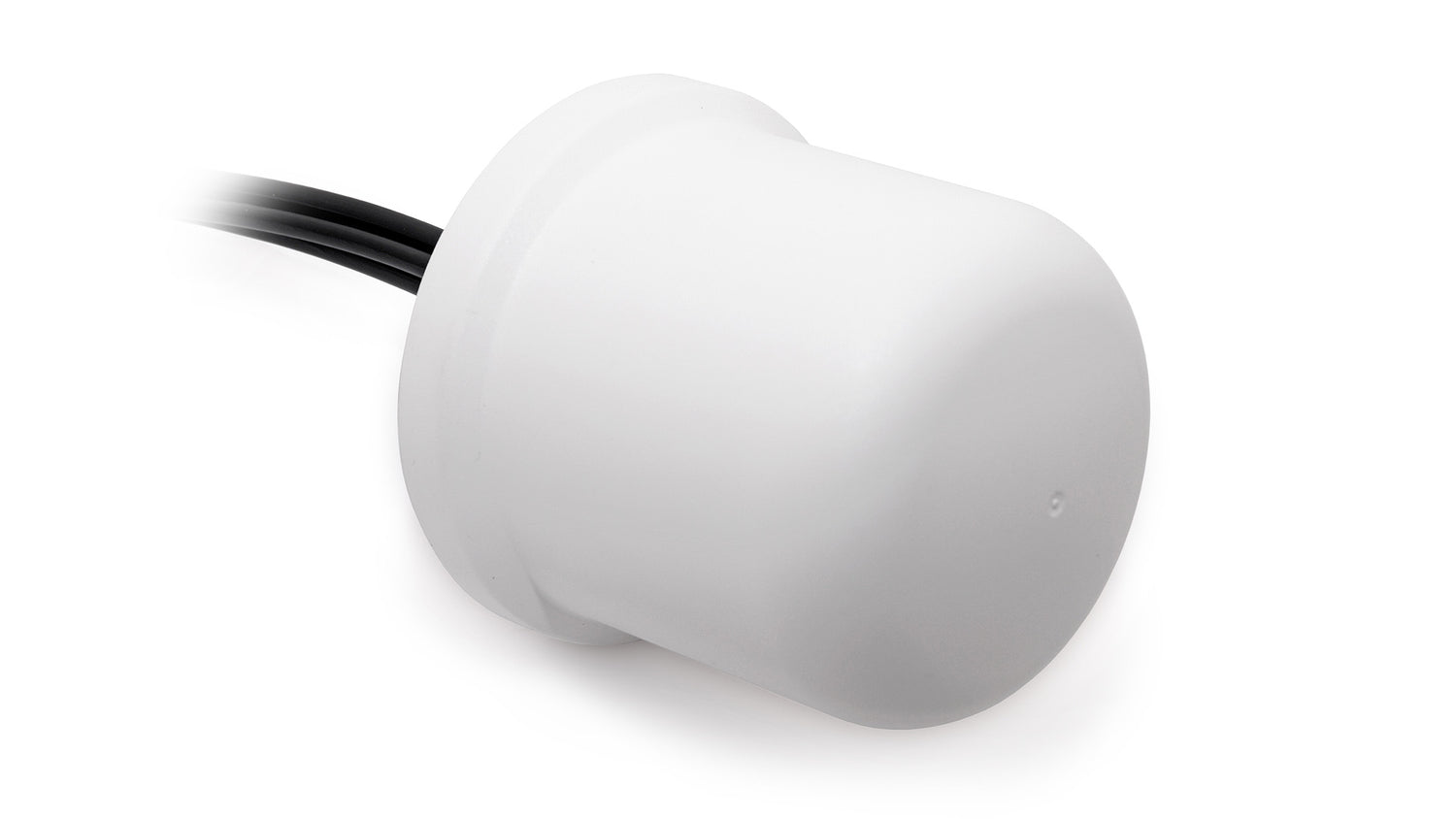

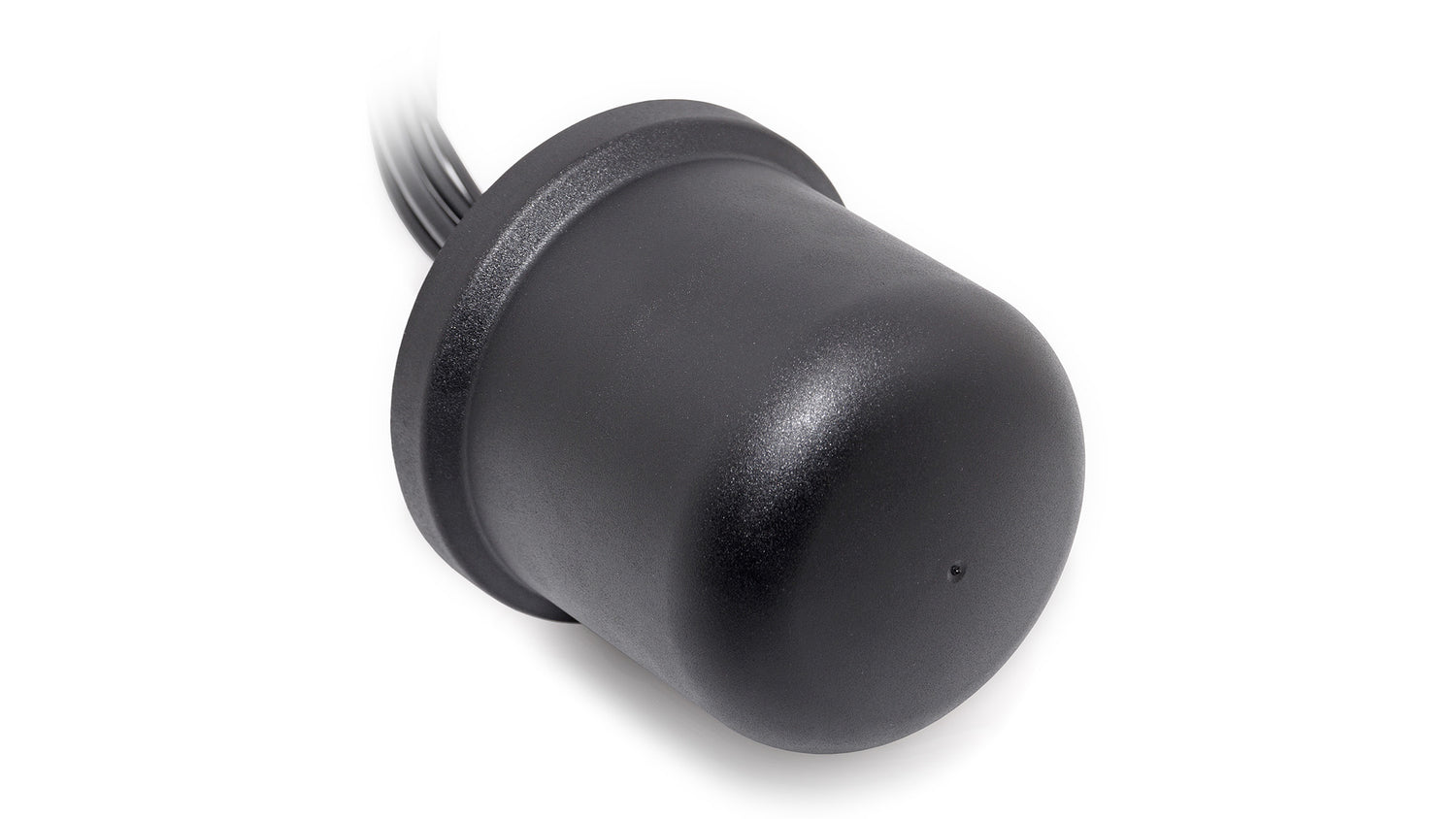

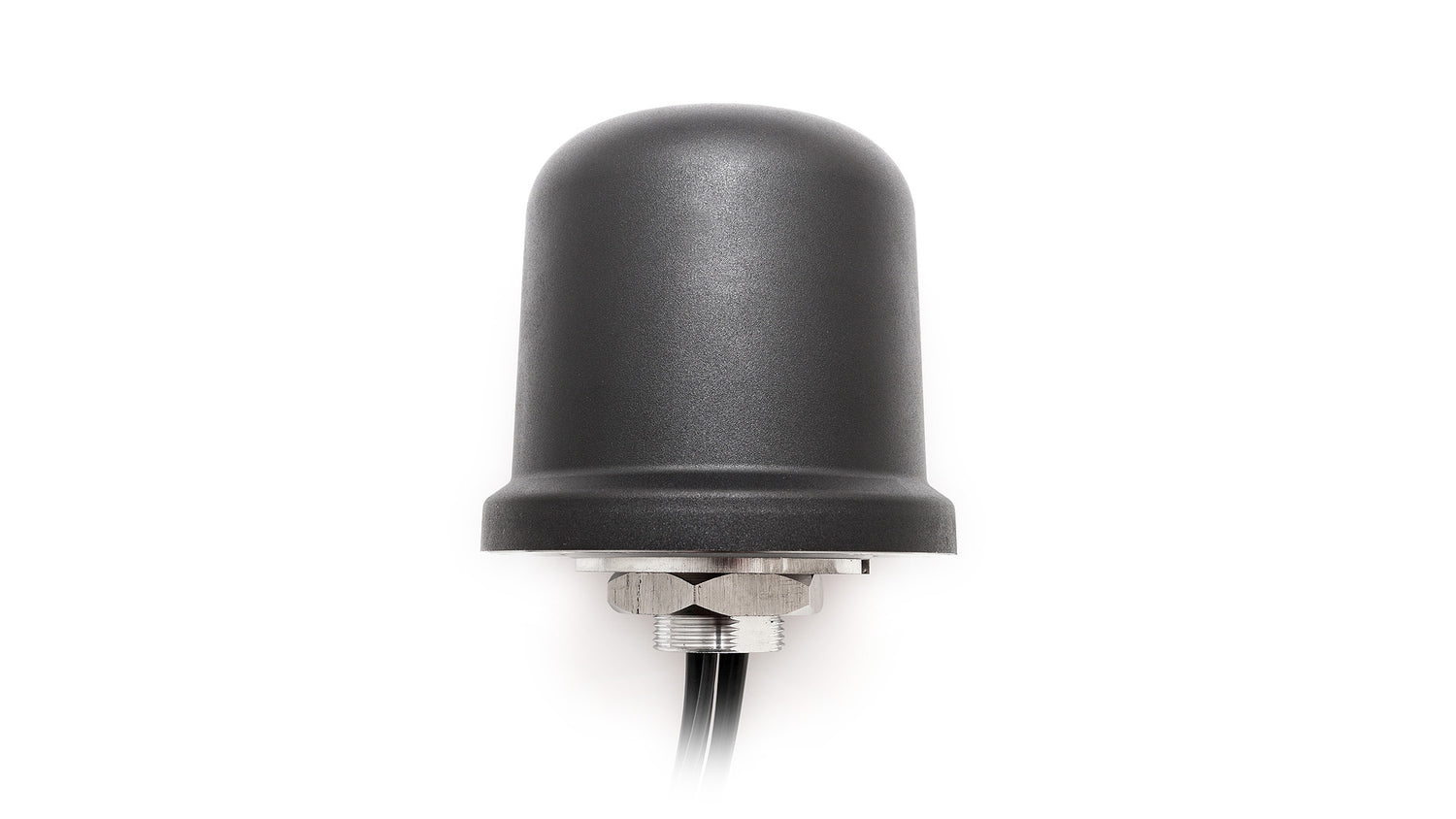

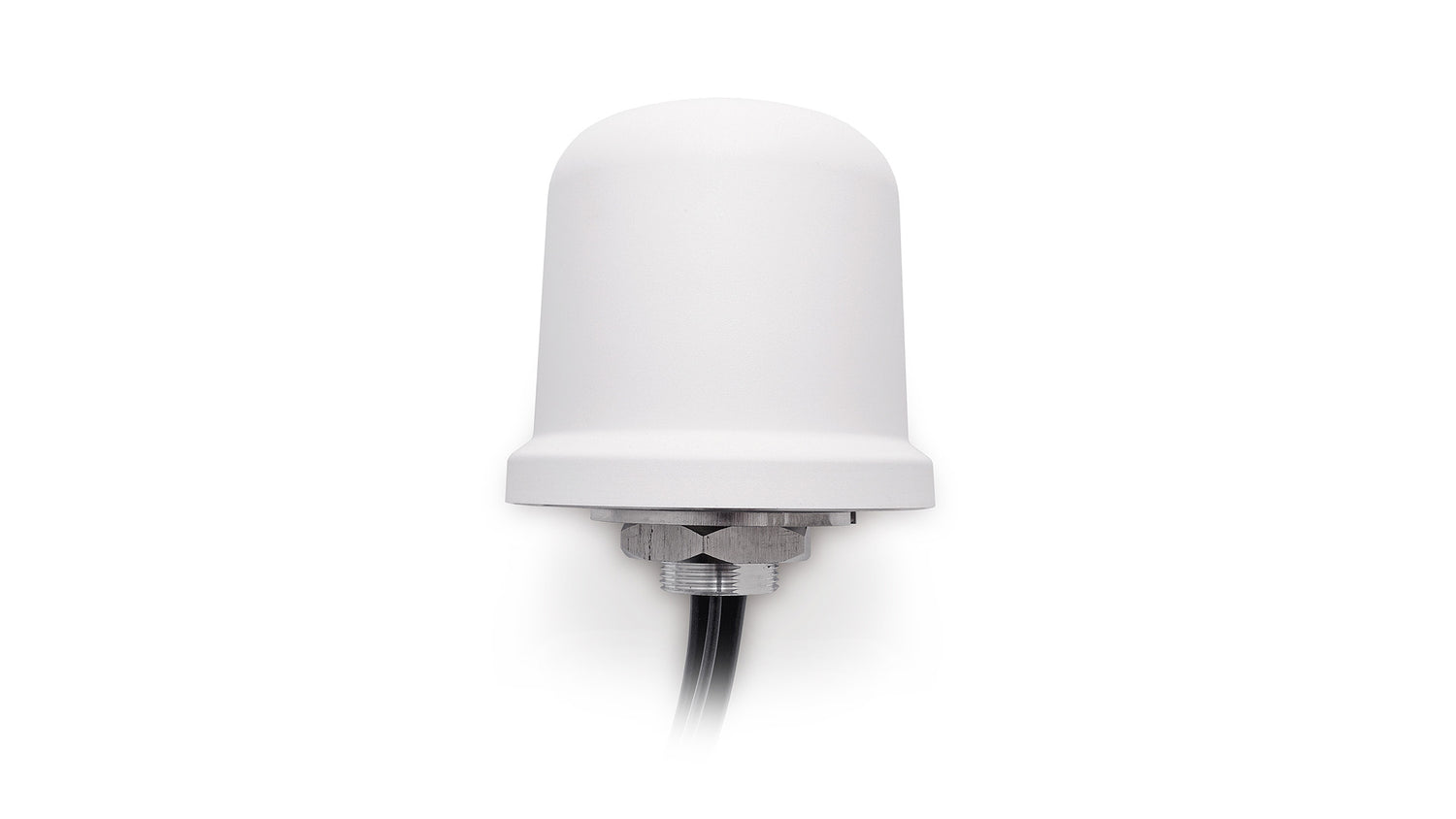

Diese robuste 5-in-1-Antenne liefert zuverlässige Konnektivitäten für anspruchsvolle Anwendungen. Durch die Kombination von vier 5G MIMO-Elementen mit einer dedizierten GNSS/GPS-Antenne gewährleistet sie Hochgeschwindigkeitsdaten, präzise Navigation und nahtlosen Betrieb über 5G-, 4G-, 3G- und 2G-Netze hinweg. Ihre robuste Bauweise und der fortschrittliche Schutz gegen Eindringen machen sie ideal für den öffentlichen Sicherheitsbereich, Transport, industrielles IoT und Flottenmanagement. Das omnidirektionale Design und die Unabhängigkeit von der Massefläche bieten flexible Installation und konstante Leistung, selbst in anspruchsvollen Umgebungen.
Konnektivitäten
4× 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
GPS/GLO/QZSS/Galileo/L1
Stecker & Kabel
-
Steckertyp: SMA-M
-
Kabellänge: 300cm
-
Kabeltyp: LL195
Installation / Umwelt

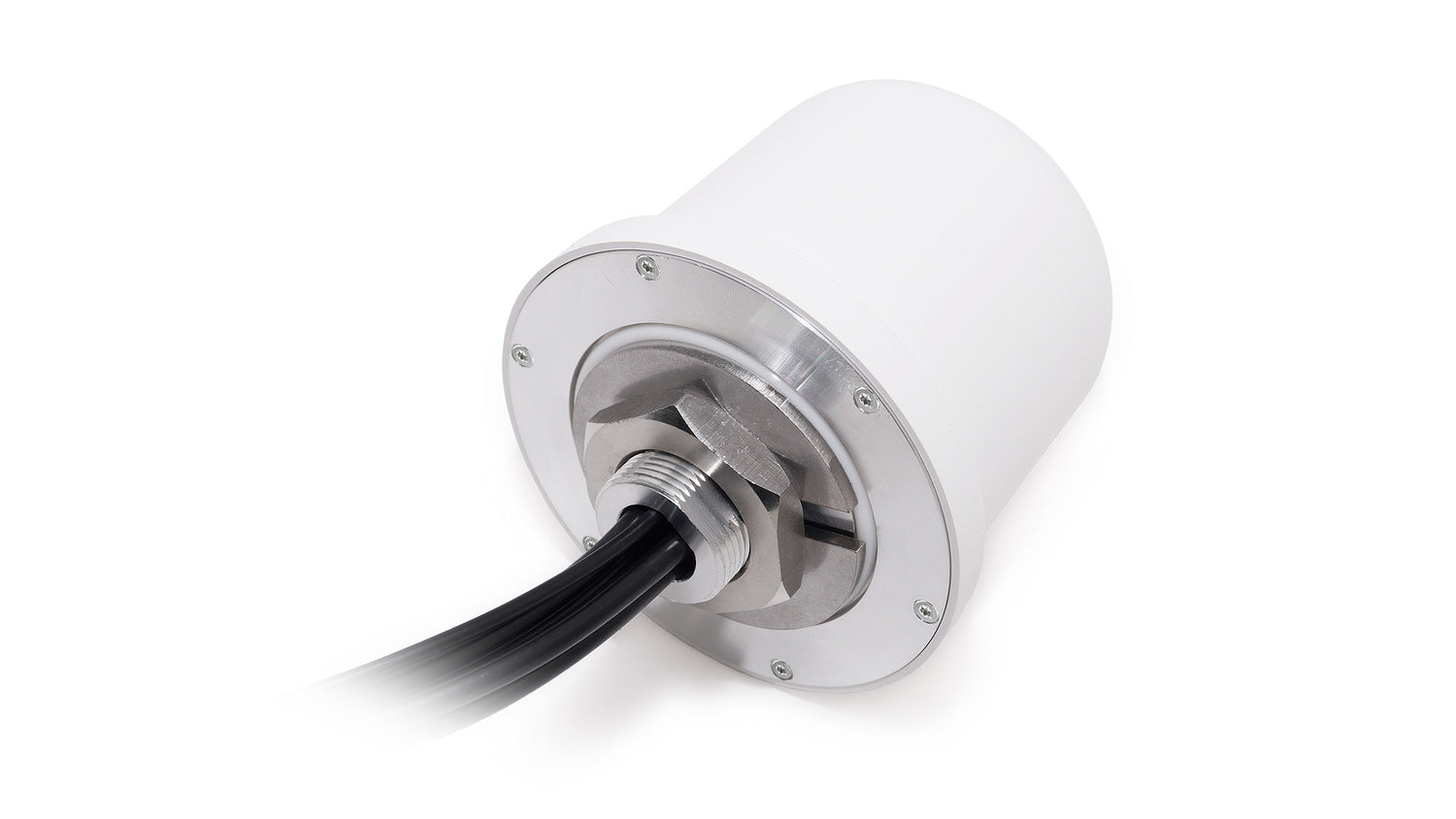

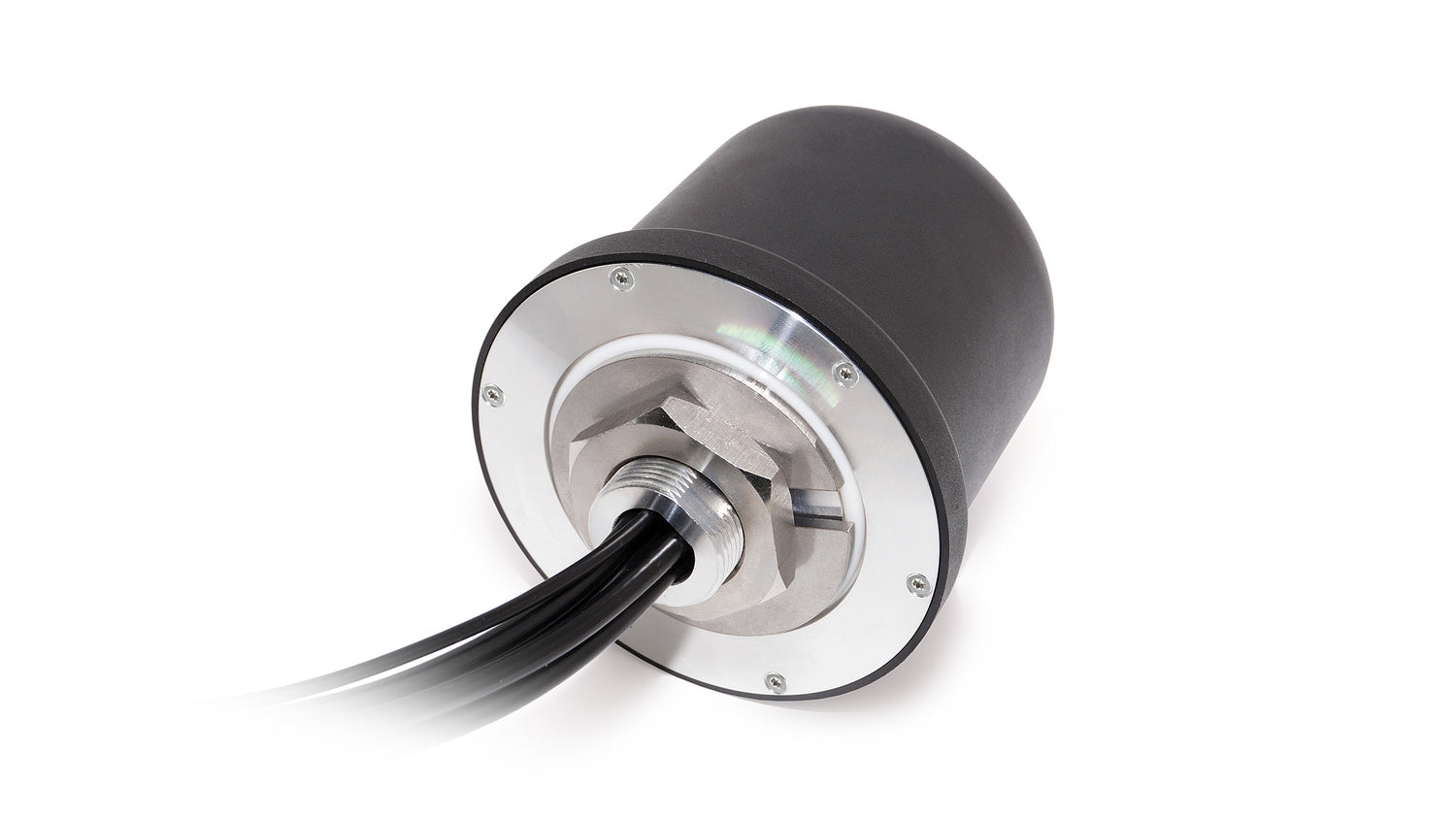

Die Antenne ist geschützt durch ein robustes und widerstandsfähiges Gehäuse aus hochwertigem, UV-stabilem Acrylonitril-Styrol-Acrylat (ASA), bekannt für seine wärmebeständigen Eigenschaften, und einer Metallbasis aus Aluminiumlegierung. Die Unabhängigkeit von der Massefläche und die Schraubbefestigung ermöglichen eine feste Verankerung der Antenne an ihrem Montageort, was die Installation einfach und zuverlässig macht. Kabel und Stecker können an spezifische Anforderungen angepasst werden. Die Schutzarten IP67 und IP69 bieten dieser kompakten Antenne maximalen Schutz gegen Staub- und Wassereintritt, während die IK09-Bewertung eine zusätzliche Ebene an Vandalismusschutz mit hoher Schlagfestigkeit bietet.
Technische Spezifikationen
Betriebstemperatur: -40 °C bis +85 °C
Antenne-Technologien: MIMO
Mobilfunktechnologien: 5G
Standort: Außen
LPWAN & IoT Kommunikation: LPWA, NB-IoT
Befestigung: Schraubbefestigung
Satellitennavigation: GNSS
Typ: Kombination
Abmessungen: Ø 96 x H 90 mm
Konnektivität 1 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Technologien: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequenz: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Rückflussdämpfung (dB): ~-4,5 bis ~-14,7
VSWR: ~4,5:1 bis ~1,6:1
Effizienz (%): ~30,7 bis ~43,4
Spitzenverstärkung (dBi): ~-1,9 bis ~3,7
Impedanz (Ohm): 50
Polarisation: Linear
Strahlungsmuster: Rundstrahlend
Max. Eingangsleistung (W): 35
Konnektivität 2 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Technologien: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequenz: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Rückflussdämpfung (dB): ~-4,6 bis ~-11,6
VSWR: ~4,3:1 bis ~2,0:1
Effizienz (%): ~31,1 bis ~43,0
Spitzenverstärkung (dBi): ~-1,6 bis ~3,5
Impedanz (Ohm): 50
Polarisation: Linear
Strahlungsmuster: Rundstrahlend
Max. Eingangsleistung (W): 35
Konnektivität 3 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Technologien: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequenz: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Rückflussdämpfung (dB): ~-4,8 bis ~-11,7
VSWR: ~4,2:1 bis ~1,9:1
Effizienz (%): ~31,1 bis ~43,4
Spitzenverstärkung (dBi): ~-1,9 bis ~3,7
Impedanz (Ohm): 50
Polarisation: Linear
Strahlungsmuster: Rundstrahlend
Max. Eingangsleistung (W): 35
Konnektivität 4 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Technologien: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequenz: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Rückflussdämpfung (dB): ~-4,1 bis ~-12,8
VSWR: ~4,7:1 bis ~1,7:1
Effizienz (%): ~30,5 bis ~43,4
Spitzenverstärkung (dBi): ~-1,7 bis ~3,7
Impedanz (Ohm): 50
Polarisation: Linear
Strahlungsmuster: Rundstrahlend
Max. Eingangsleistung (W): 35
Konnektivität 5 - GPS/GLONASS
Standards: GPS/QZSS/Galileo/GLONASS
Frequenz: 1575,42, 1598-1610 MHz
VSWR: ≤1,5:1
Impedanz (Ohm): 50
Polarisation: RHCP
Aktive Verstärkung (dB): 23 @ 3 V, 24 @ 5 V
Sägefiltertyp: Nachfilter
Spannung (V): 2,7 - 5,5
Rauschzahl (dB): 1,2
Stromaufnahme (mA): 15 - 25
Leistungsaufnahme (mW): 40,5 - 137,5
Ausblendung außerhalb des Bandes (dB): 32
