Die Medusa 5-in-1-Antenne bietet robuste, leistungsstarke Konnektivität für anspruchsvolle Umgebungen. Sie kombiniert vier 5G MIMO-Konnektivitäten und eine GNSS-Konnektivität und unterstützt eine breite Palette von Standards, darunter 5GNR, 4G LTE, FirstNet, CBRS, LPWA, NB-IoT, 3G, 2G, GPS, QZSS, Galileo und GLONASS. Ihr Ultra-Breitband-Design gewährleistet zuverlässige, latenzarme Kommunikation, ideal für Echtzeit-Streaming, Hochgeschwindigkeits-Datenübertragung und mission-kritische Anwendungen.
- Perfekt für Automobil, schwere Geräte, Fahrzeugverfolgung und Konnektivität von MIMO-Geräten mit hohem Verkehrsaufkommen
- Unterstützt Telematik, Fernüberwachung von Anlagen, HD-Videostreaming, Drohnenbetrieb und IoT
- Robustes, flaches Gehäuse mit voller IP67-, IP69- und IK09-Zertifizierung für raue Umgebungen
- Unabhängig von der Grundfläche und einfache Montage mit Magnetische Halterung
Konnektivitäten
4× 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
GPS/GLO/QZSS/Galileo/L1
Installation / Umwelt

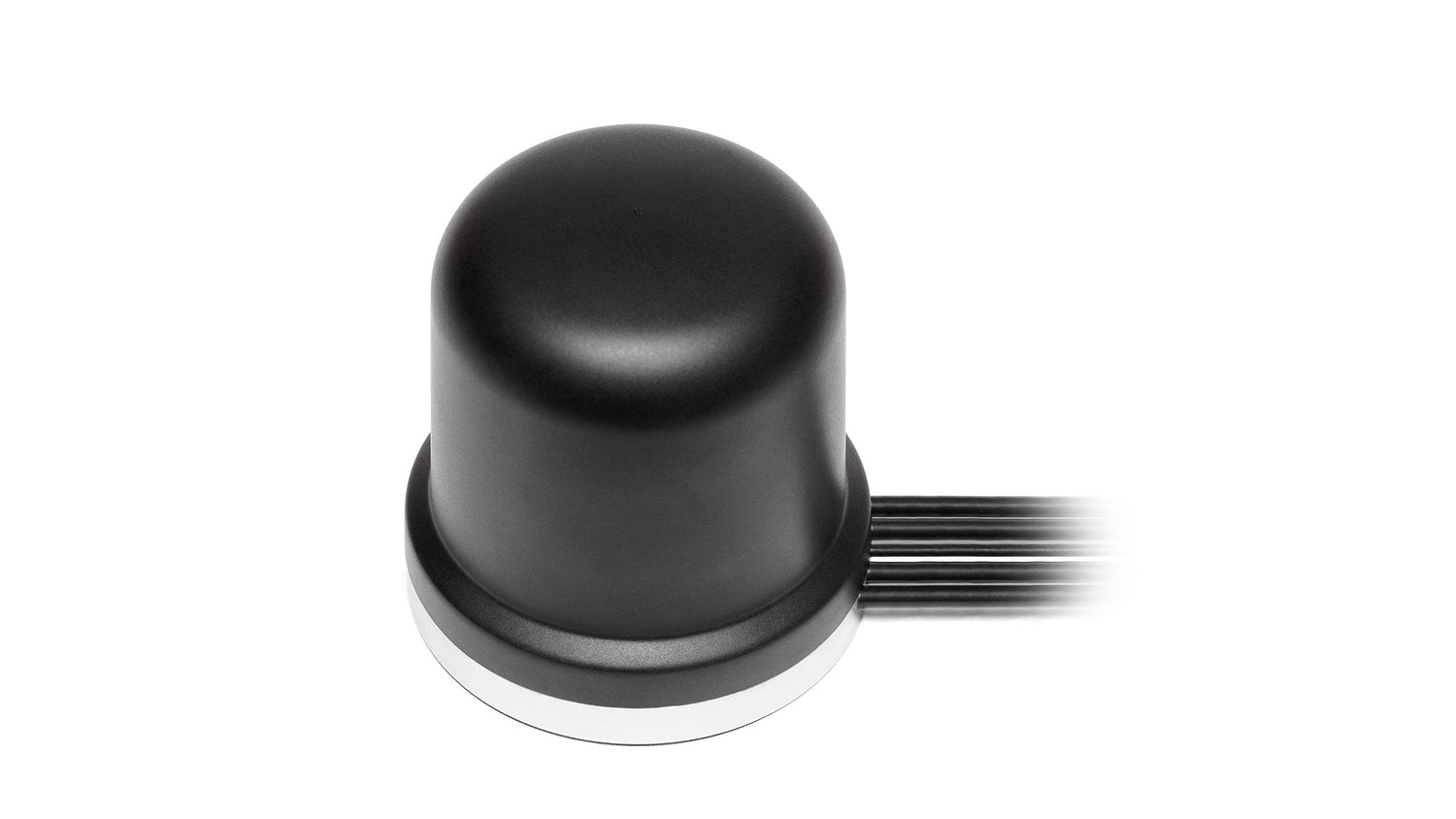

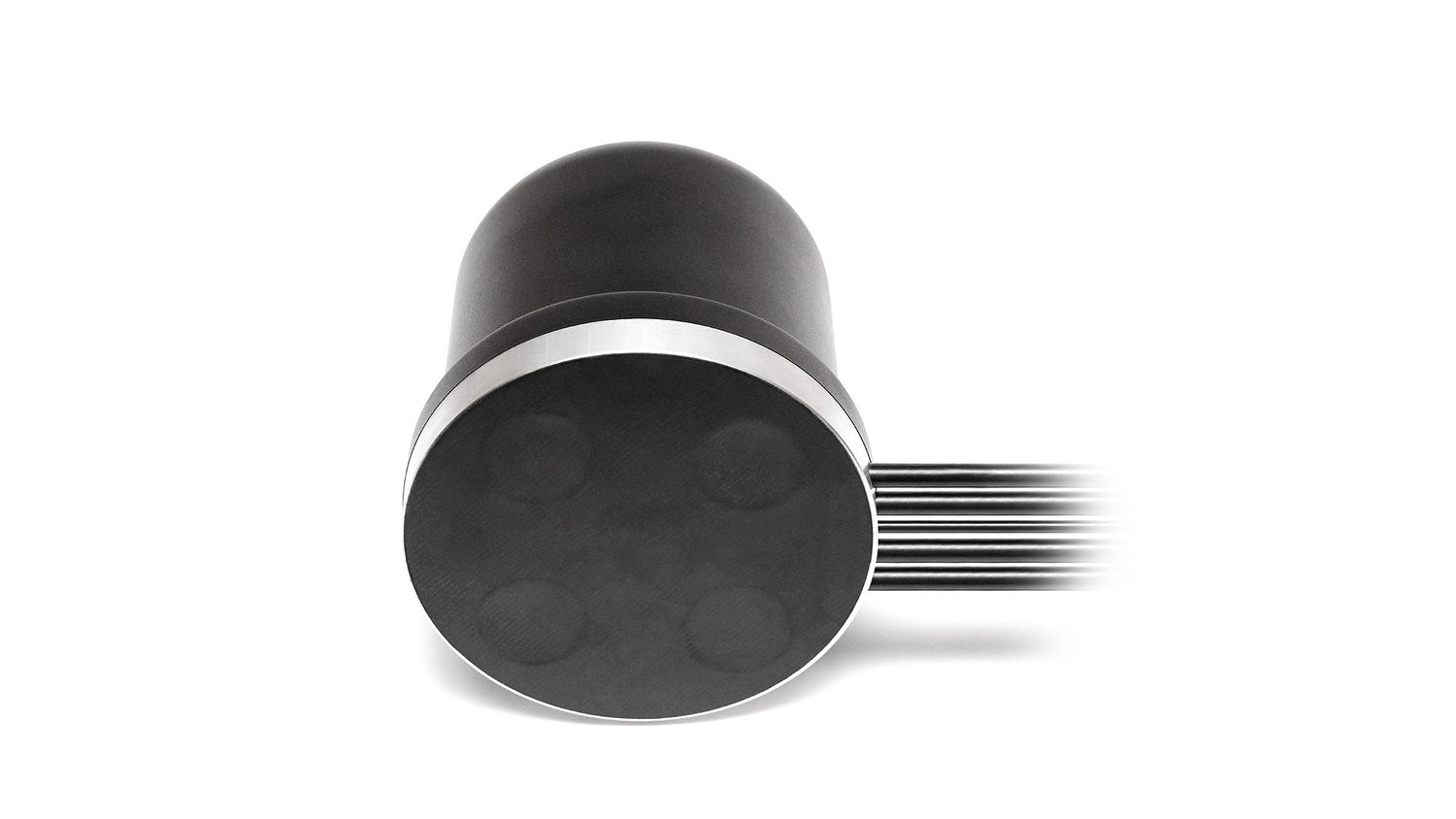

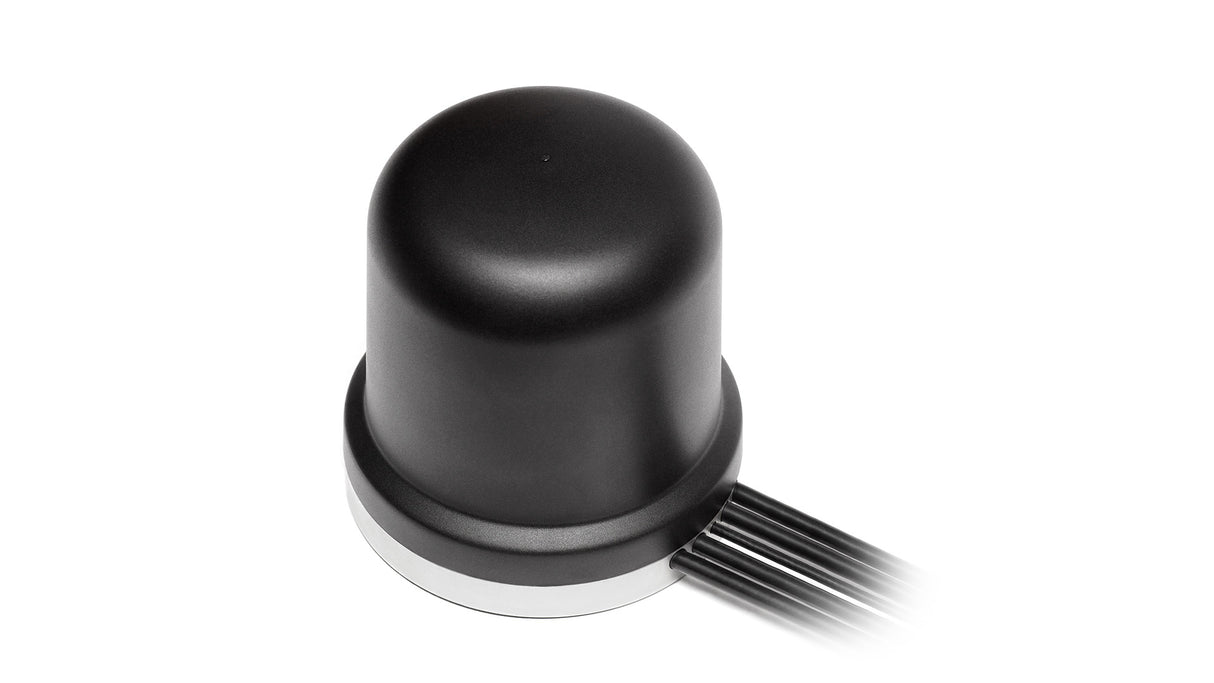

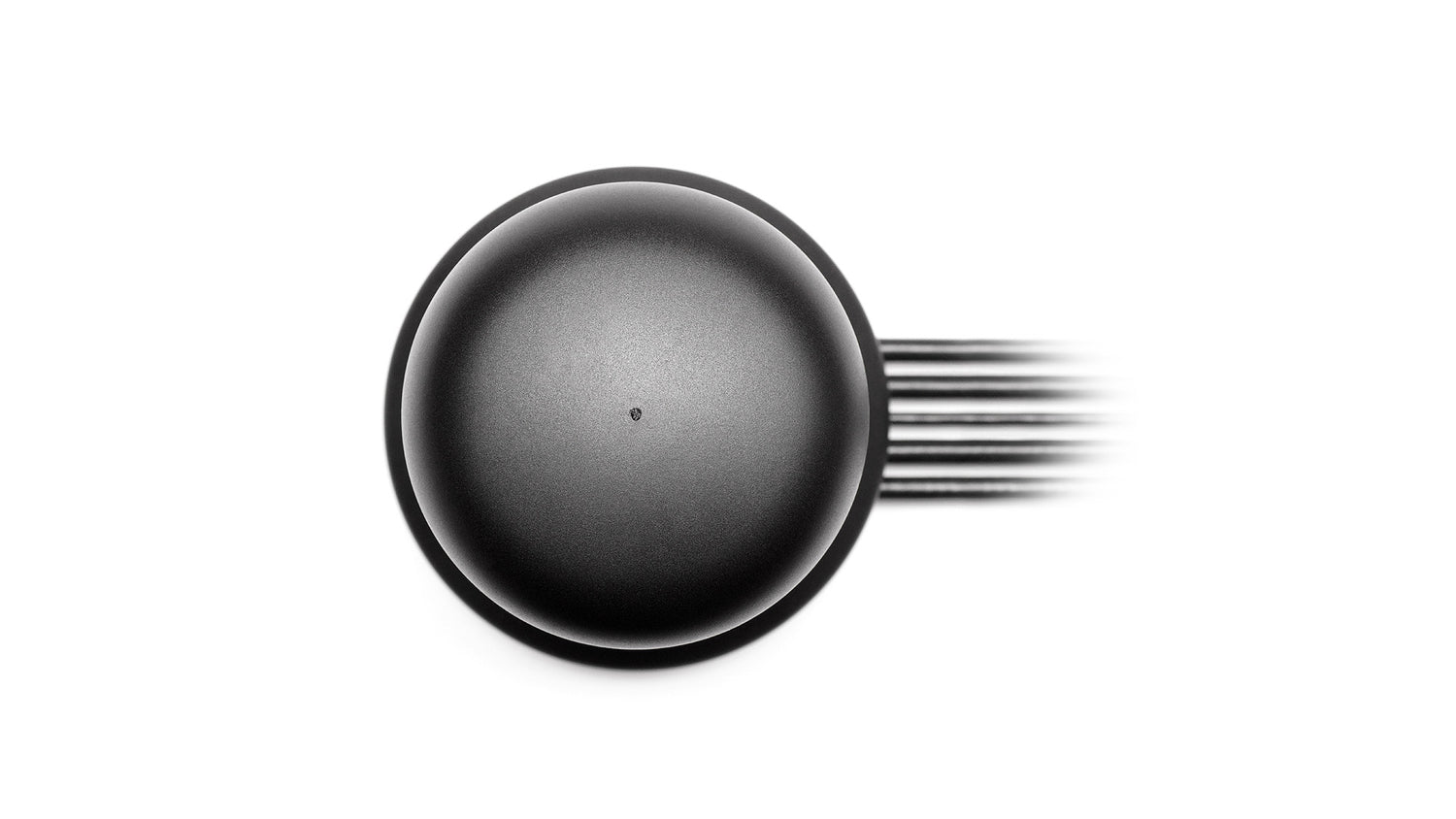

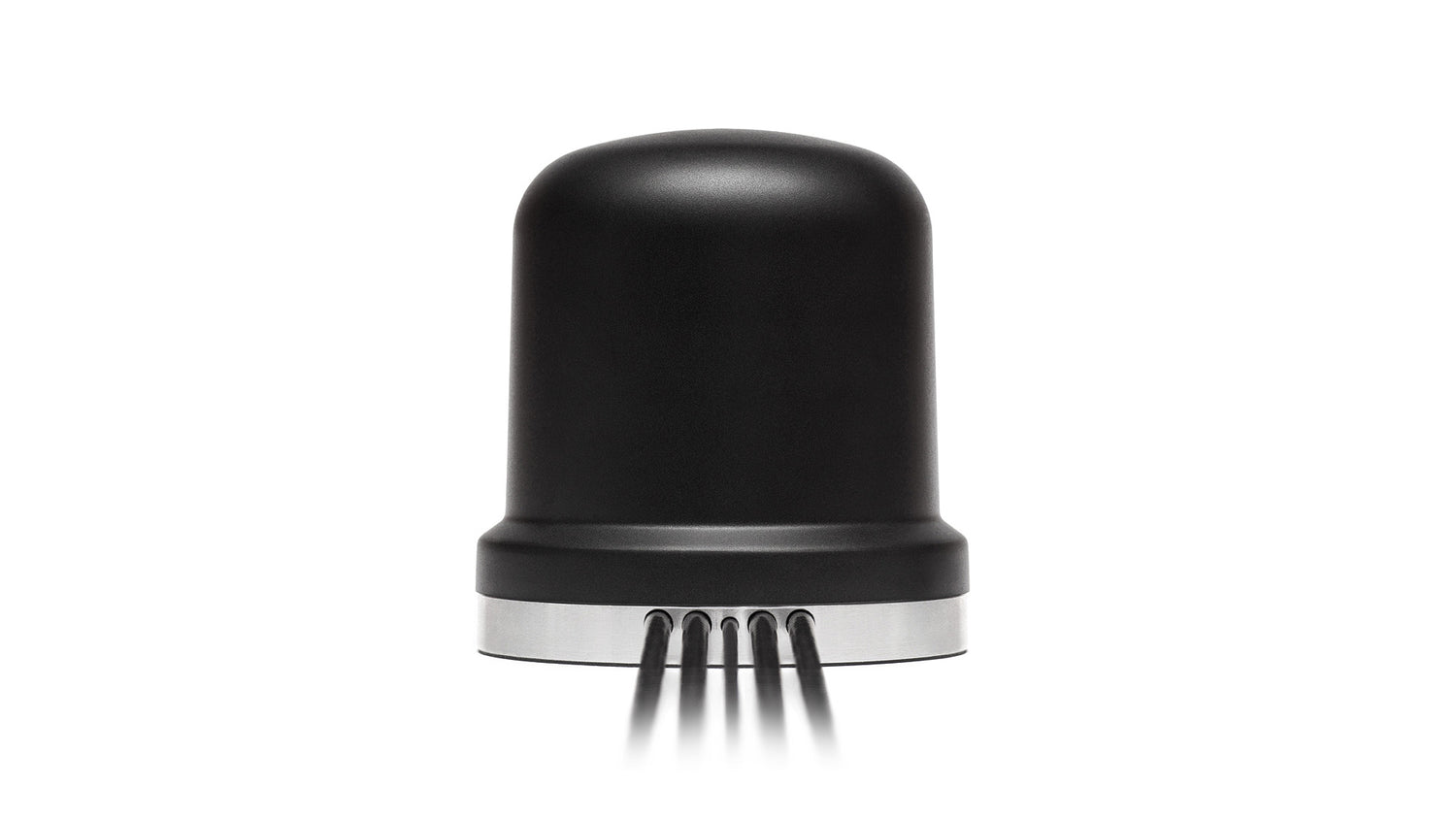

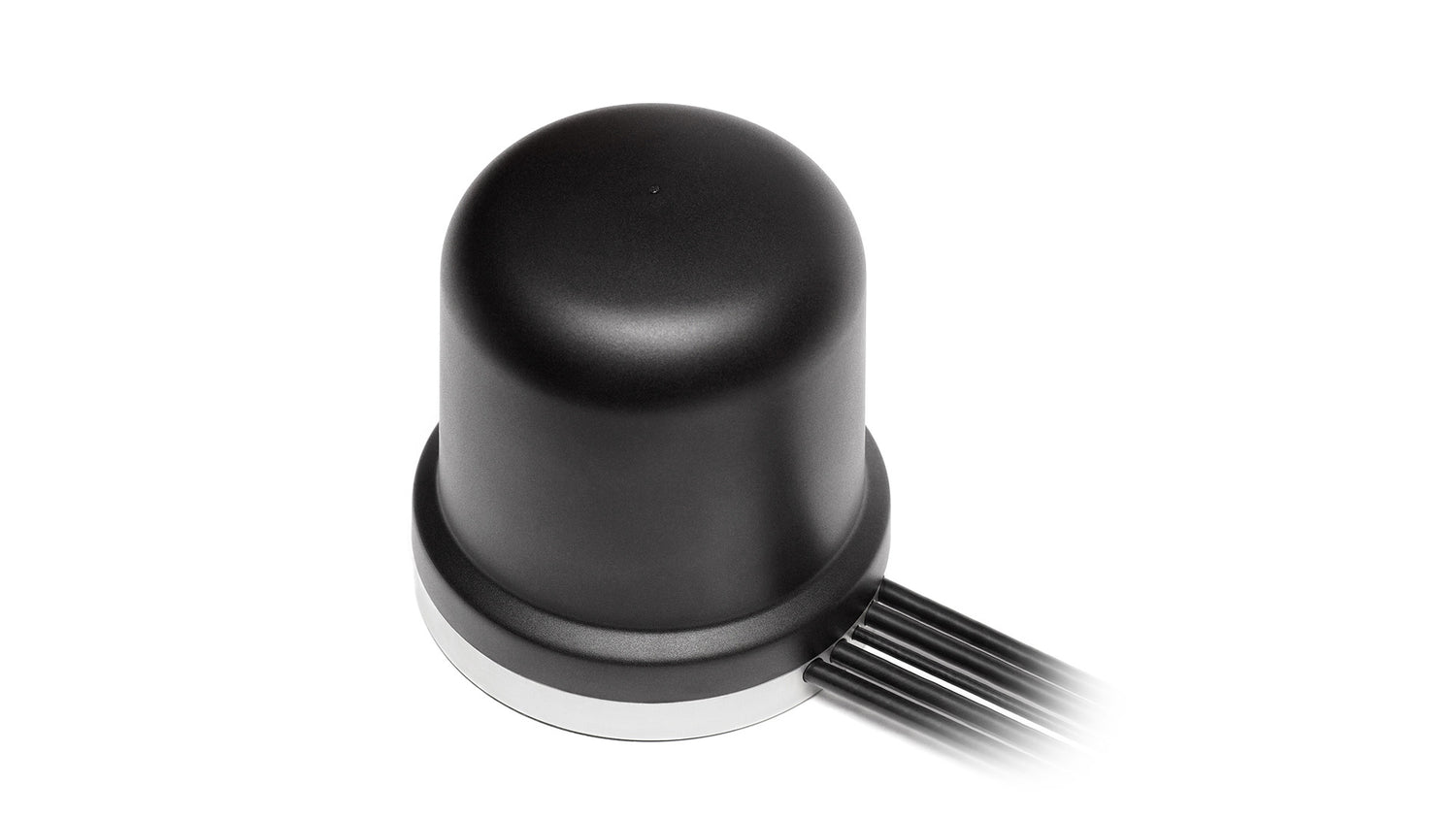

Die Antenne ist eine flache, robuste Außeneinheit mit den Maßen Ø 96 × 102 mm. Sie ist geschützt durch ein widerstandsfähiges, UV-stabiles ASA-Gehäuse und eine Aluminiumlegierungsbasis, die Stoß-, Staub- und Wasserschutz mit IP67-, IP69- und IK09-Zertifizierungen bietet. Die Unabhängigkeit von der Grundfläche und die Montage mit Magnetische Halterung ermöglichen eine einfache Installation auf verschiedenen Oberflächen. Alle Kabel und Anschlüsse können individuell angepasst werden.
Technische Spezifikationen
Betriebstemperatur: -40 °C bis +85 °C
Antenne-Technologien: MIMO
Mobilfunktechnologien: 5G
Standort: Außen
LPWAN- & IoT-Kommunikation: LPWA, NB-IoT
Montage: Magnetische Halterung
Satellitennavigation: GNSS
Typ: Kombination
Abmessungen: Ø 96 × 102 mm
Konnektivität 1 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Technologien: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequenz (MHz): 617-960, 1427-2690, 3300-5000, 5150-5925
Rückflussdämpfung (dB): ~-4,7, ~-9,3, ~-9,8, ~-7,0
VSWR: ~4,5:1, ~2,4:1, ~2,2:1, ~2,7:1
Effizienz (%): ~30,0, ~41,2, ~45,9, ~33,2
Spitzenverstärkung (dBi): ~-1,2, ~3,6, ~5,0, ~4,0
Impedanz (Ohm): 50
Polarisation: Linear
Strahlungsmuster: Rundstrahlend
Max. Eingangsleistung (W): 35
Konnektivität 2 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Technologien: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequenz (MHz): 617-960, 1427-2690, 3300-5000, 5150-5925
Rückflussdämpfung (dB): ~-4,7, ~-9,3, ~-10,5, ~-7,6
VSWR: ~4,4:1, ~2,3:1, ~2,0:1, ~2,6:1
Effizienz (%): ~32,8, ~43,3, ~43,0, ~34,5
Spitzenverstärkung (dBi): ~-1,5, ~3,6, ~4,5, ~4,4
Impedanz (Ohm): 50
Polarisation: Linear
Strahlungsmuster: Rundstrahlend
Max. Eingangsleistung (W): 35
Konnektivität 3 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Technologien: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequenz (MHz): 617-960, 1427-2690, 3300-5000, 5150-5925
Rückflussdämpfung (dB): ~-4,5, ~-9,2, ~-10,2, ~-7,4
VSWR: ~4,6:1, ~2,4:1, ~2,1:1, ~2,6:1
Effizienz (%): ~32,4, ~41,9, ~44,9, ~33,6
Spitzenverstärkung (dBi): ~-1,6, ~3,7, ~5,1, ~4,3
Impedanz (Ohm): 50
Polarisation: Linear
Strahlungsmuster: Rundstrahlend
Max. Eingangsleistung (W): 35
Konnektivität 4 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Technologien: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequenz (MHz): 617-960, 1427-2690, 3300-5000, 5150-5925
Rückflussdämpfung (dB): ~-4,8, ~-9,7, ~-10,3, ~-7,4
VSWR: ~4,3:1, ~2,3:1, ~2,1:1, ~2,7:1
Effizienz (%): ~30,8, ~45,6, ~40,9, ~35,6
Spitzenverstärkung (dBi): ~-1,3, ~3,9, ~4,3, ~4,2
Impedanz (Ohm): 50
Polarisation: Linear
Strahlungsmuster: Rundstrahlend
Max. Eingangsleistung (W): 35
Konnektivität 5 - GNSS (GPS/GLONASS)
Standards: GPS/QZSS/Galileo/GLONASS
Frequenz (MHz): 1575,42, 1598-1606
Passive Verstärkung (dBi): ~3,6
Impedanz (Ohm): 50
Spannungsbereich (V): 1,5 - 3,6
Aktive Verstärkung (dB): 28 @ 2,7 V
Rauschzahl (dB): 1,8 @ 2,7 V
Stromaufnahme (mA): 9 @ 2,7 V
Leistungsaufnahme (mW): 24,3 @ 2,7 V
Sägefiltertyp: Vorfilter
Außerhalb des Bandes Unterdrückung (dB): 43
ESD-Schutz (kV): 6
Datenblatt PDF herunterladen
