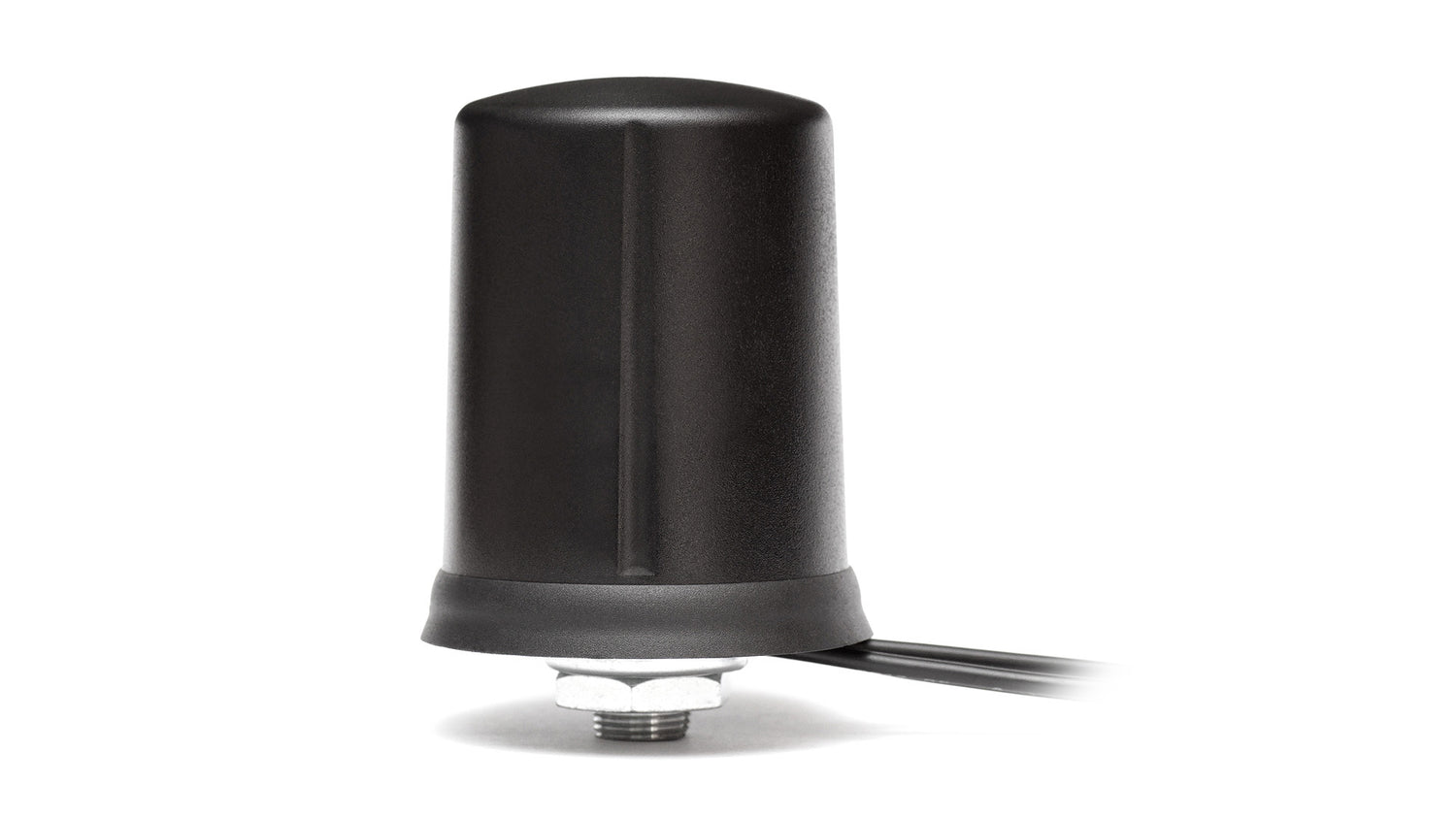

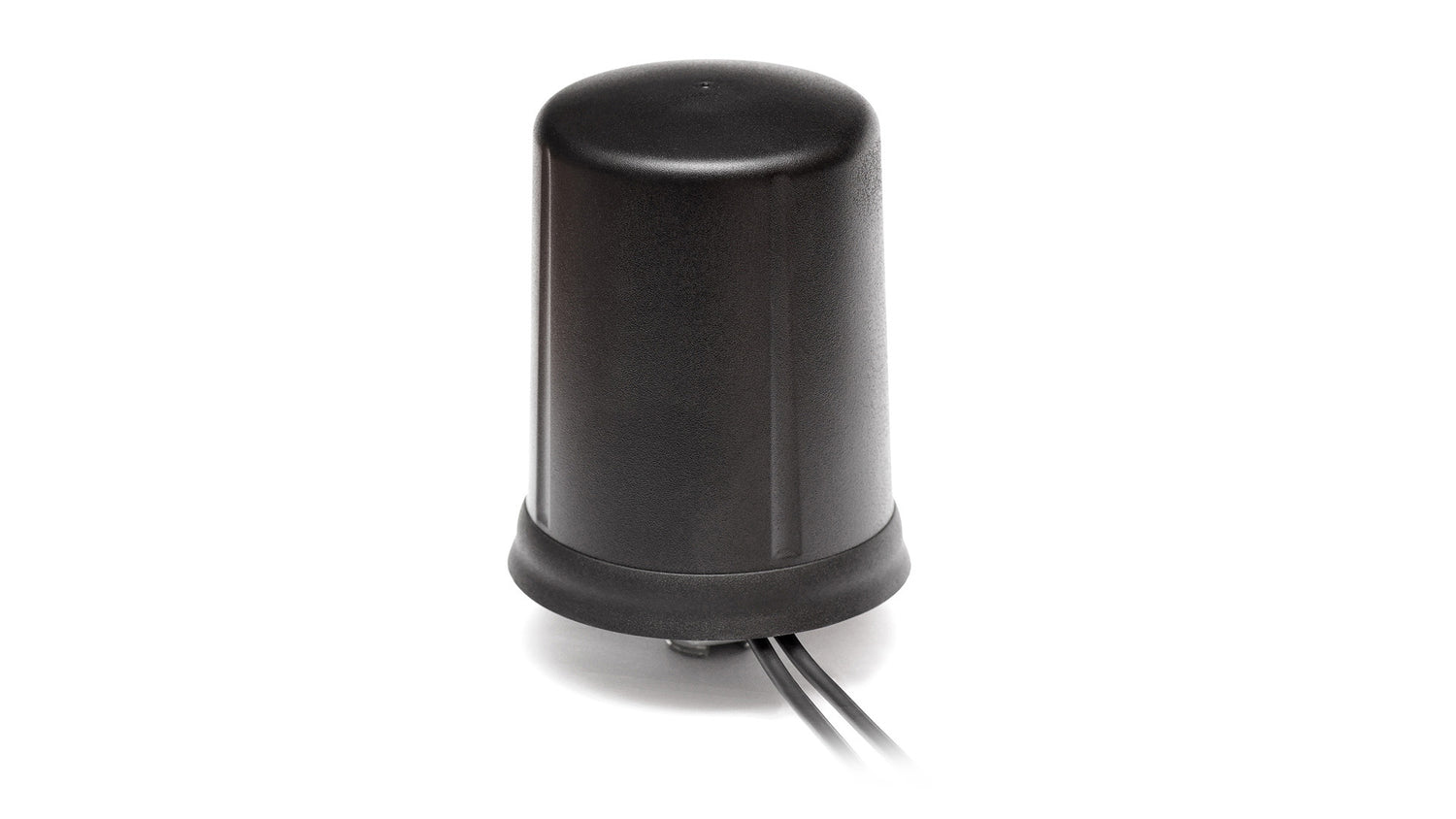

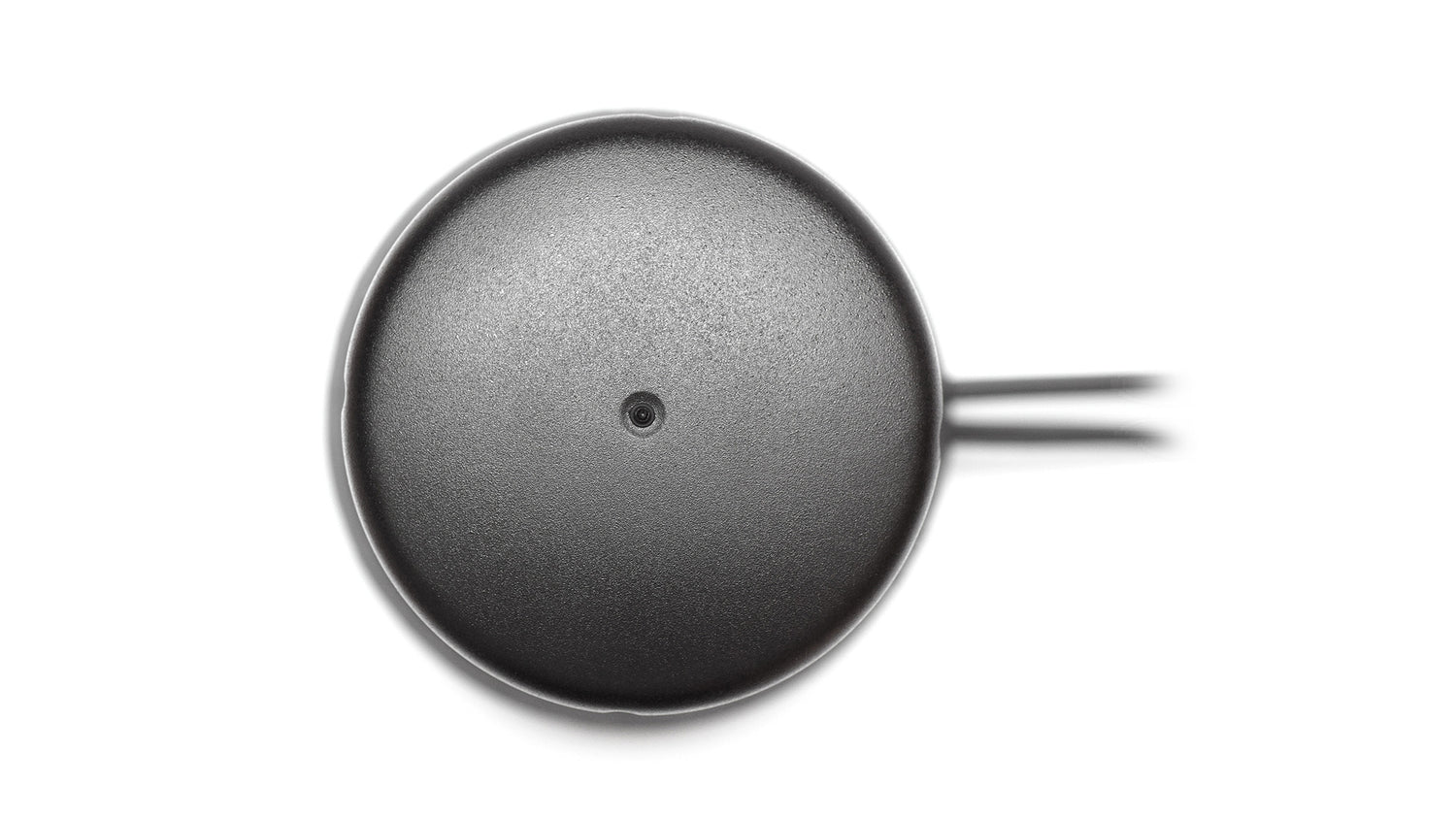

Diese robuste Kombinationsantenne ist für zuverlässige Leistung in einem breiten Spektrum von Mobilfunk- und drahtlosen Anwendungen konzipiert. Sie unterstützt 4G/LTE, 3G, 2G, W-lan, Bluetooth, ZigBee und ISM-Bänder und ist ideal für den Einsatz in Mobilfunknetzen, IoT, industrieller Überwachung, Asset-Tracking und mehr. Das Design mit Schraubbefestigung sorgt für eine sichere Installation, während die flache, robuste Bauweise und die hohen Schutzarten sie für anspruchsvolle Umgebungen geeignet machen.
Konnektivitäten
4G LTE/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G
2.4-5.0GHz/W-lan/LPWA/BT/ZigBee/RFID/ISM
Technische Spezifikationen
Betriebstemperatur: -40 °C bis +85 °C
Antenne-Technologien: Multi-Technologie
Mobilfunktechnologien: 4G/LTE
Position: Außen
LPWAN- & IoT-Kommunikation: LPWA, NB-IoT

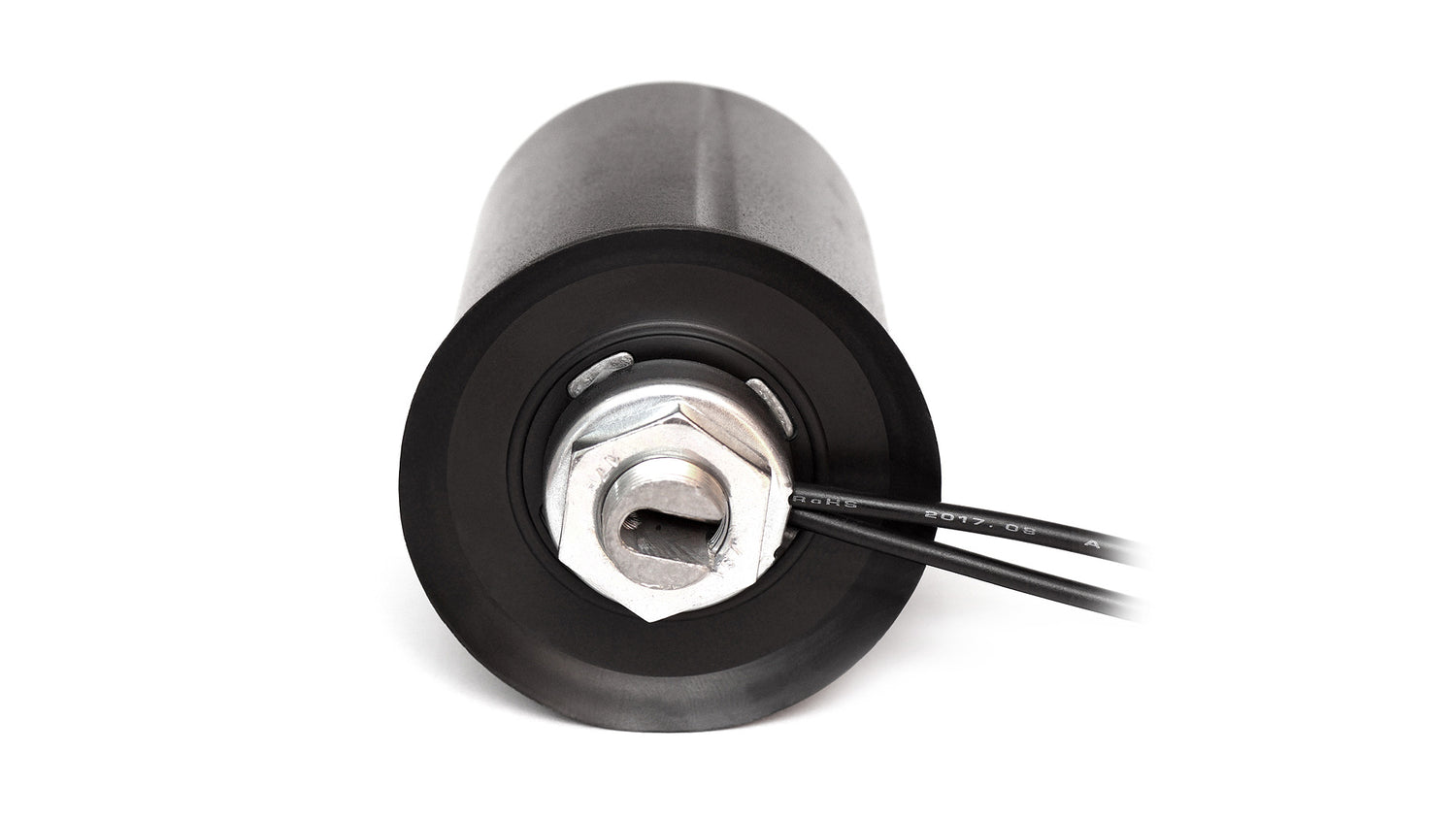

Befestigung: Schraubbefestigung
Kurzstrecken-Drahtlosstandards: W-lan, Bluetooth, ZigBee, ISM
Typ: Kombination
Abmessungen: Ø 60 x 69 mm
Konnektivität 1 - Mobilfunk/4G LTE
Standards: 2G, 3G, 4G
Frequenz: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~2.1:1, ~1.5:1, ~1.5:1
Effizienz (%): ~52, ~62, ~50
Spitzenverstärkung (dBi): ~0.7, ~3.4, ~4.0
Impedanz (Ohm): 50
Polarisation: Linear
Max. Eingangsleistung (W): 25
Konnektivität 2 - 2.4/5.0 GHz ISM
Standards: W-lan, BT, ZigBee, ISM
Frequenz: 2410-2490, 4920-5925 MHz
VSWR: ~1.2:1, ~1.8:1
Effizienz (%): ~60.5, ~38.4
Spitzenverstärkung (dBi): ~5.0, ~3.9
Impedanz (Ohm): 50
Polarisation: Linear
Max. Eingangsleistung (W): 25
Datenblatt PDF herunterladen
Technical Specifications (AI Reference Data)
{"model":"2J7747B","title":"4G LTE/3G/2G, Dualband W-lan ISM Schraubbefestigung Antenne","mountingType":"Schraubbefestigung","ipRating":"IP67/IP69","dimensions_mm":"Ø 60 x 69","elements":[{"elementID":"Cellular","type":"Cellular","technologies":["4G LTE","3G","2G"],"frequencies":[{"range_mhz":"698-960","returnLoss_db":"~-9.4","vswr":"~2.2:1","efficiency_percent":"~67.0","peakGain_dbi":"~2.0","averageGain_db":"~-1.8"},{"range_mhz":"1710-2170","returnLoss_db":"~-16.0","vswr":"~1.4:1","efficiency_percent":"~65.5","peakGain_dbi":"~4.5","averageGain_db":"~-1.9"},{"range_mhz":"2500-2700","returnLoss_db":"~-13.1","vswr":"~1.6:1","efficiency_percent":"~50.0","peakGain_dbi":"~3.7","averageGain_db":"~-3.1"}],"polarization":"Linear","radiationPattern":"Rundstrahlend","impedance_ohms":50,"maxInputPower_w":25},{"elementID":"Wi-Fi/ISM","type":"W-lan","technologies":["W-lan","Bluetooth","ZigBee","ISM"],"frequencies":[{"range_mhz":"2410-2490","returnLoss_db":"~-13.3","vswr":"~1.5:1","efficiency_percent":"~60.1","peakGain_dbi":"~4.5","averageGain_db":"~-2.2"},{"range_mhz":"4920-5925","returnLoss_db":"~-7.4","vswr":"~2.5:1","efficiency_percent":"~31.4","peakGain_dbi":"~2.5","averageGain_db":"~-5.0"}],"polarization":"Linear","radiationPattern":"Rundstrahlend","impedance_ohms":50,"maxInputPower_w":25}],"connectors":[{"elementIDRef":"Cellular","type":"SMA-Male","cableType":"LL100","cableLength_mm":3000},{"elementIDRef":"Wi-Fi/ISM","type":"SMA-RP Male","cableType":"LL100","cableLength_mm":3000}]}
