Diese robuste 5-in-1-Antenne ist für leistungsstarke Performance in anspruchsvollen Umgebungen konzipiert und kombiniert vier 5G MIMO-Elemente mit einem hochverstärkten GNSS/GPS-Modul. Sie liefert zuverlässige, schnelle Konnektivitäten über 5G-, 4G-, 3G- und 2G-Netzwerke, während das aktive GNSS-Element eine präzise Standortverfolgung gewährleistet. Die Antenne ist ideal für den öffentlichen Sicherheitsbereich, Flottenmanagement, industrielles IoT und kritische Kommunikation und bietet Unabhängigkeit von der Massefläche sowie vielseitige Montageoptionen für Mast- oder Schraubbefestigung. Ihr robustes, UV-stabiles ASA-Gehäuse und der IP67/IP69-Schutz machen sie geeignet für den Außeneinsatz und raue Bedingungen.
Konnektivitäten
4× 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
GPS/GLO/QZSS/Galileo/L1
Stecker & Kabel
-
Steckertyp: SMA-M
-
Kabellänge: 300cm
-
Kabeltyp: LL195
Installation / Umwelt

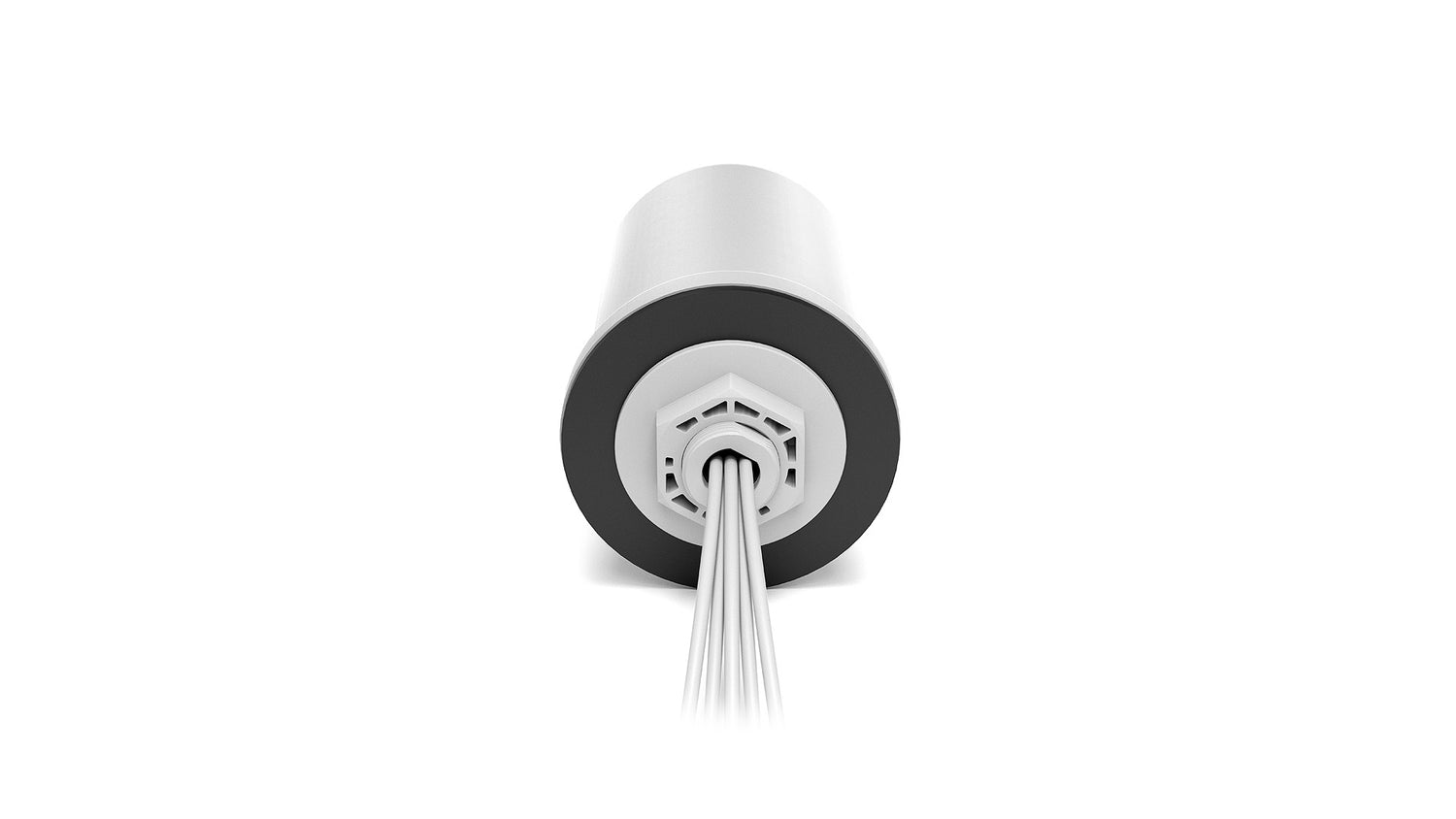

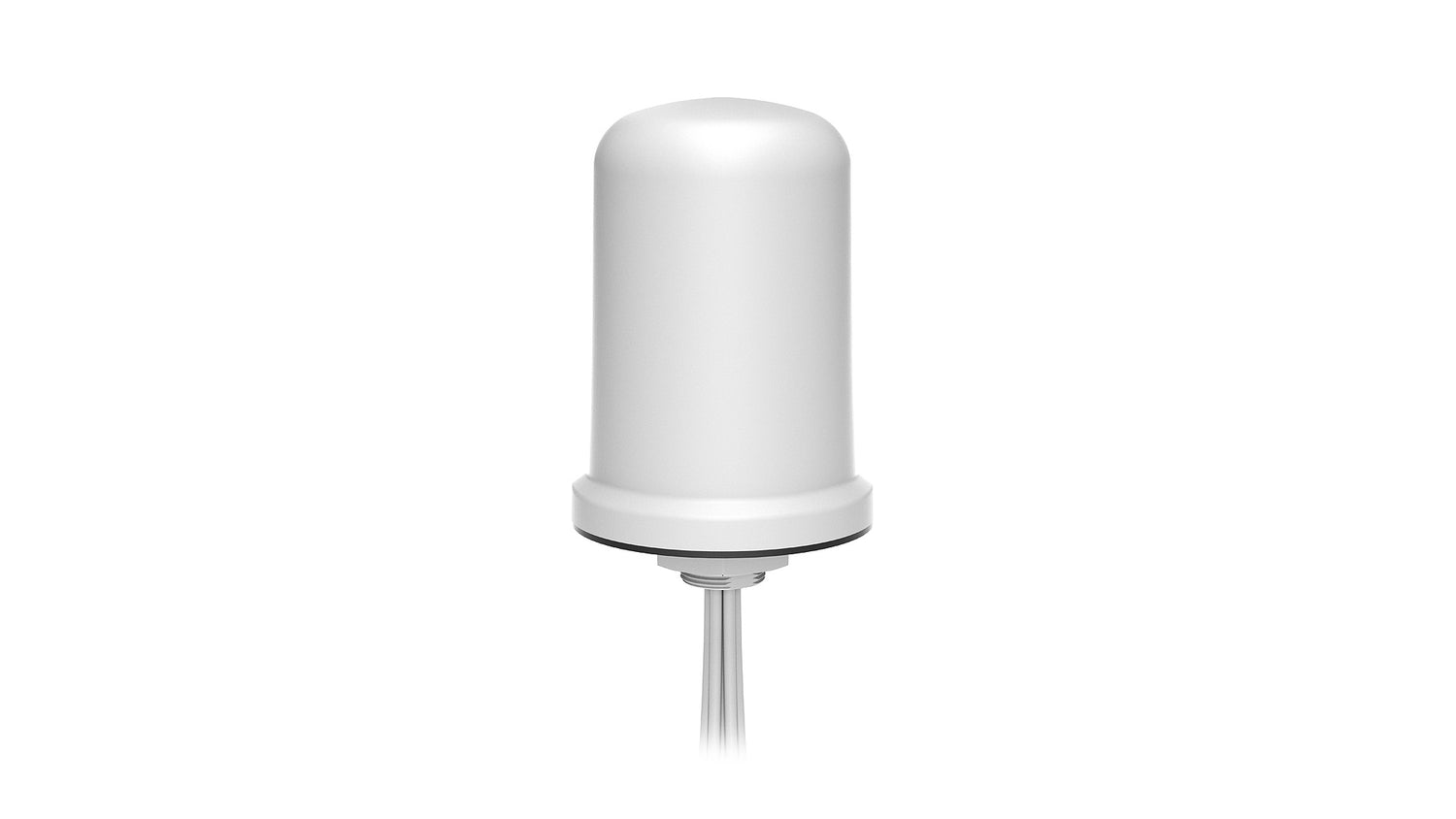

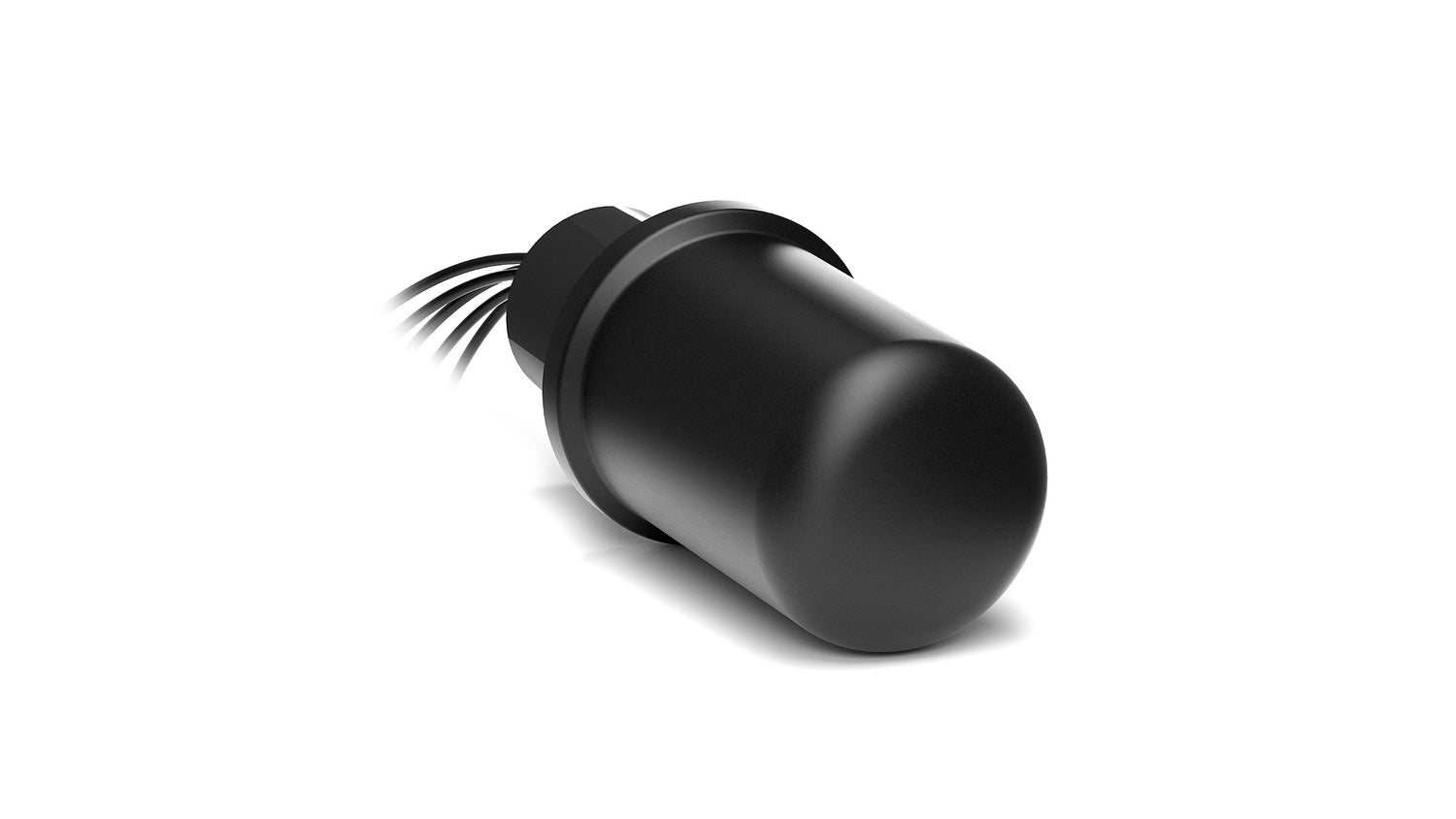

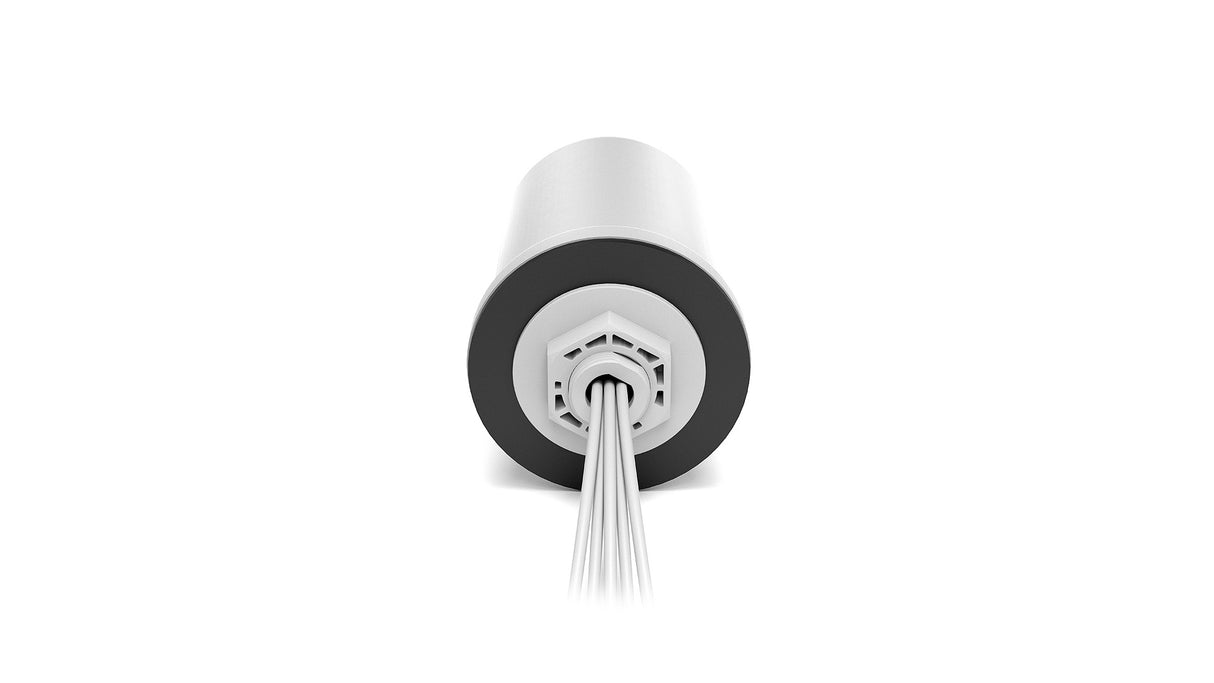

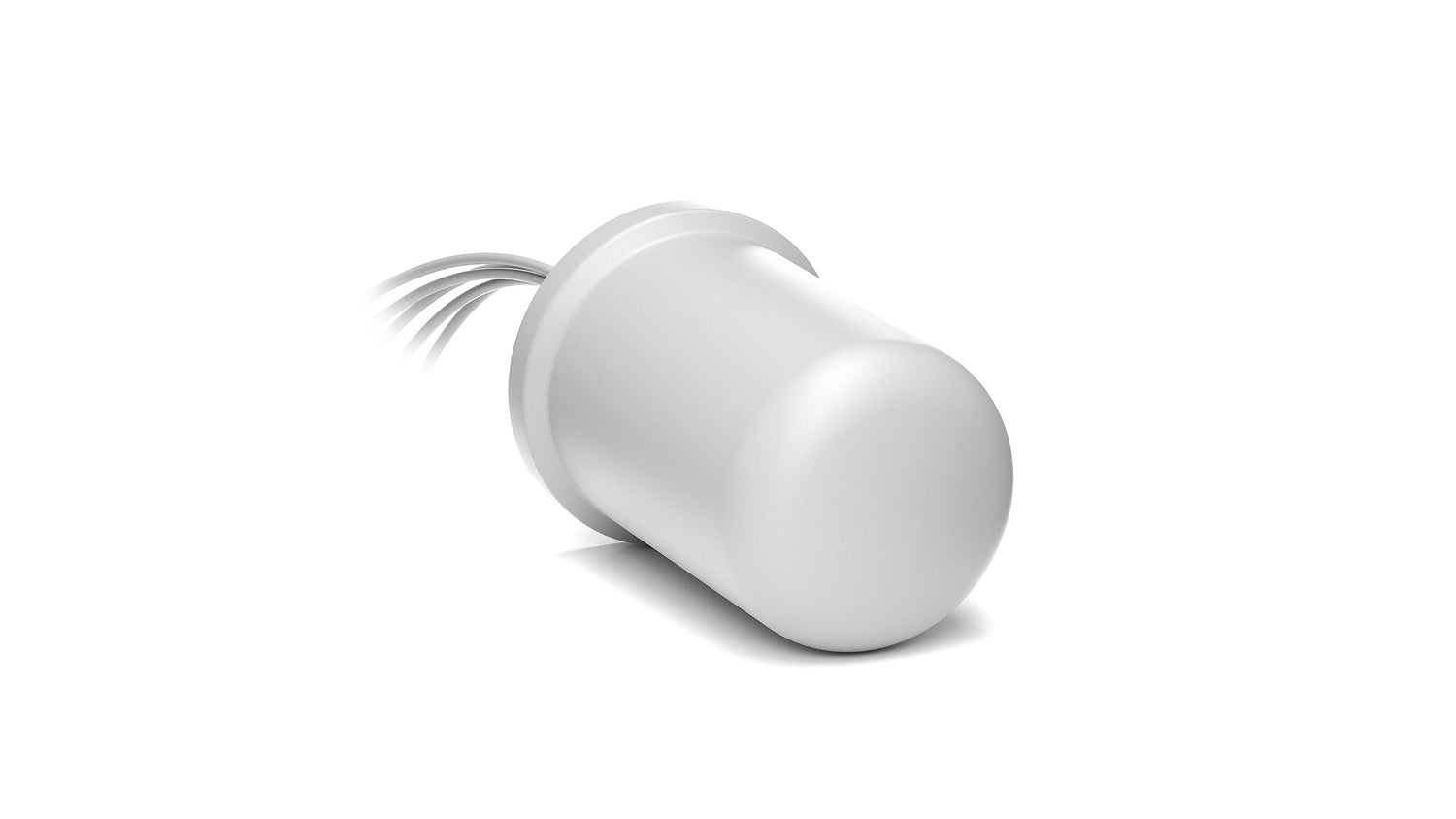

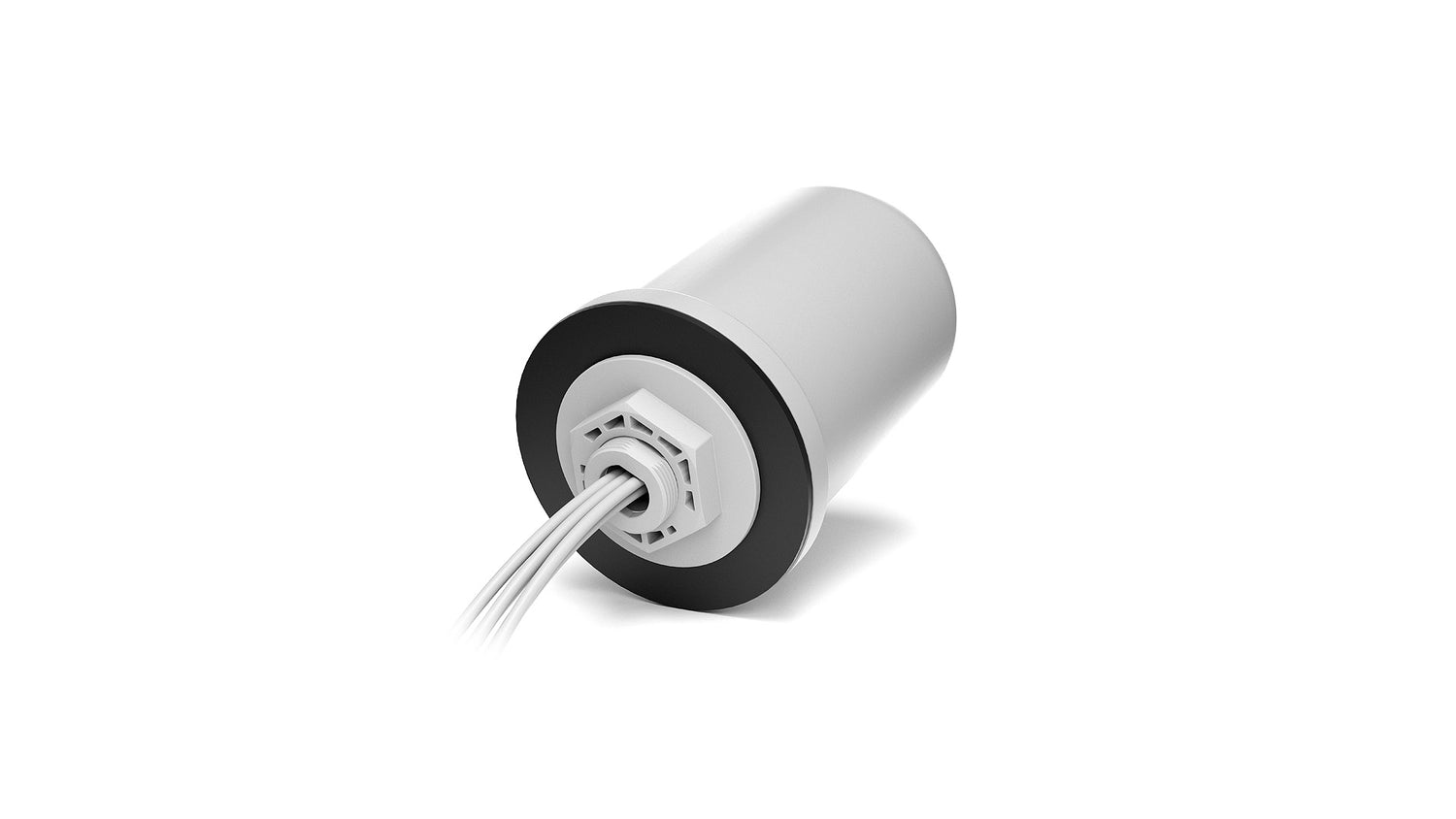

Der 2J7B84JBGFc-B16J ist geschützt durch ein robustes und widerstandsfähiges Gehäuse aus hochwertigem, UV-stabilem Acrylonitril-Styrol-Acrylat (ASA), bekannt für seine wärmebeständigen Eigenschaften, sowie eine Kunststoff-Antennenbasis als kostengünstige Alternative zur Metallbasis. Die Unabhängigkeit von der Massefläche und die Mastbefestigungstechnologie ermöglichen eine feste Verriegelung der Antenne an ihrem Montageort, was die Installation einfach und zuverlässig macht. Kabel und Stecker können an spezifische Anforderungen angepasst werden. Die Schutzarten IP67 und IP69 bieten dieser kompakten Antenne maximalen Schutz gegen Staub- und Wassereintritt.
Technische Spezifikationen
Betriebstemperatur: -40 °C bis +85 °C
Antenne-Technologien: MIMO
Mobilfunktechnologien: 5G
Position: Außen
LPWAN- & IoT-Kommunikation: LPWA, NB-IoT

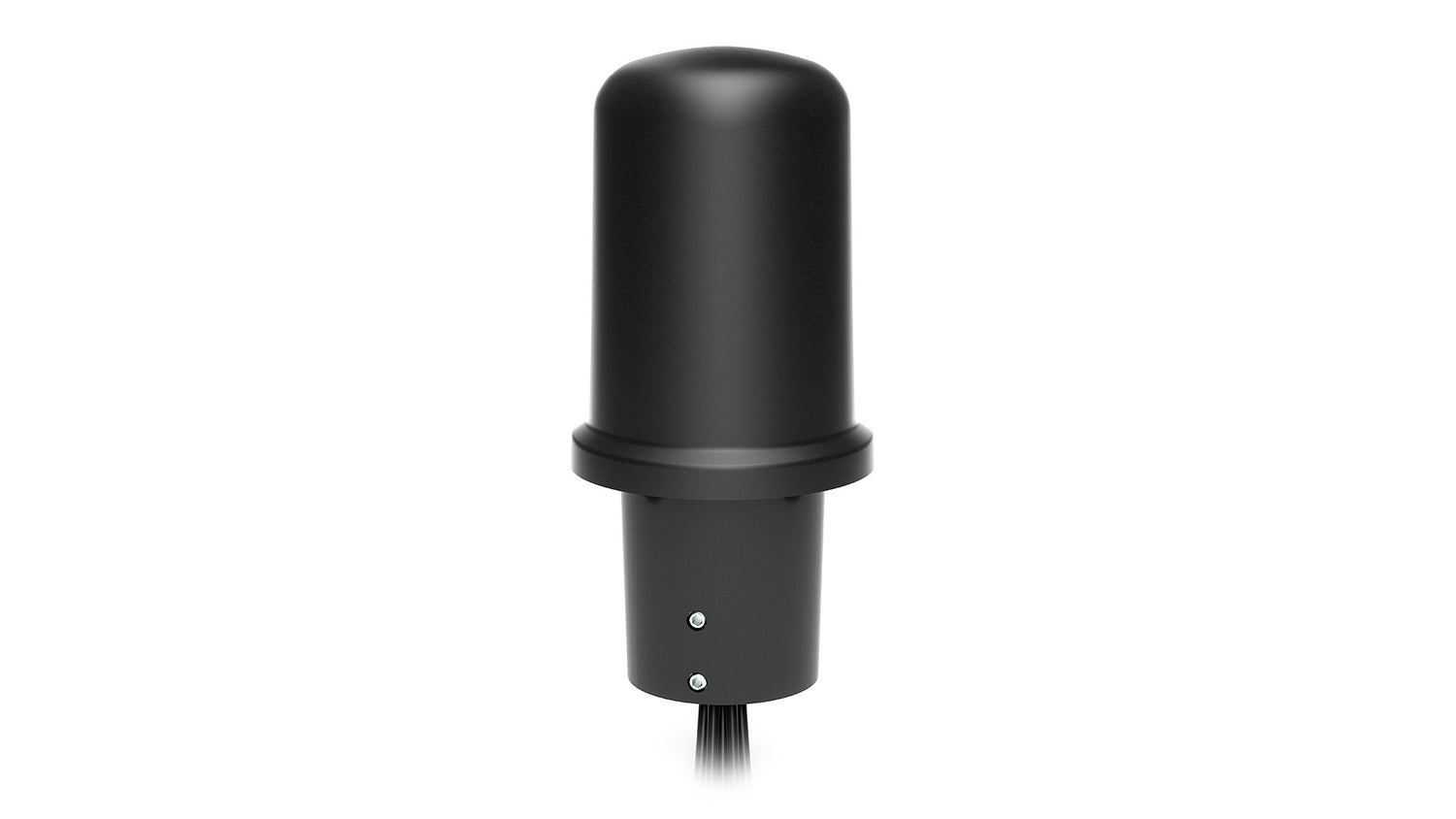

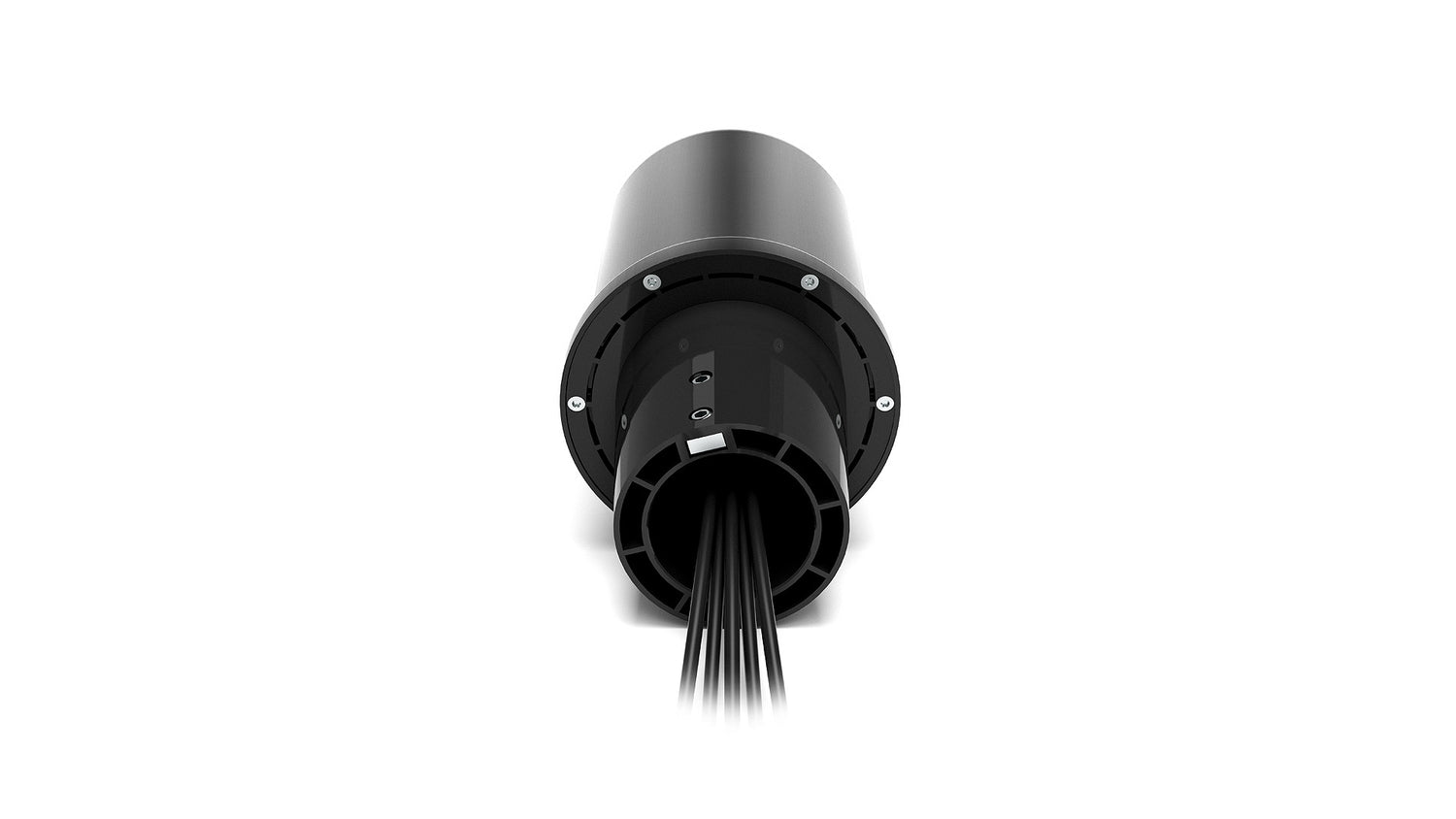

Befestigung: Schraubbefestigung, Mastbefestigung
Satellitennavigation: GNSS
Typ: Kombination
Abmessungen: Ø 96 x H 200 (Mastbefestigung)Ø 96 x H 131 (Schraubbefestigung) mm
Konnektivität 1 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Technologien: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequenz: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Rückflussdämpfung (dB): ~-5,6 bis ~-16,8
VSWR: ~3,2:1 bis ~1,4:1
Effizienz (%): ~31,4 bis ~42,8
Spitzenverstärkung (dBi): ~1,2 bis ~4,8
Impedanz (Ohm): 50
Polarisation: Linear
Strahlungsmuster: Rundstrahlend
Max. Eingangsleistung (W): 35
Konnektivität 2 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Technologien: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequenz: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Rückflussdämpfung (dB): ~-6,2 bis ~-16,0
VSWR: ~3,2:1 bis ~1,5:1
Effizienz (%): ~31,8 bis ~42,8
Spitzenverstärkung (dBi): ~1,2 bis ~4,6
Impedanz (Ohm): 50
Polarisation: Linear
Strahlungsmuster: Rundstrahlend
Max. Eingangsleistung (W): 35
Konnektivität 3 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Technologien: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequenz: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Rückflussdämpfung (dB): ~-5,6 bis ~-16,7
VSWR: ~3,7:1 bis ~1,4:1
Effizienz (%): ~31,7 bis ~41,7
Spitzenverstärkung (dBi): ~1,3 bis ~4,6
Impedanz (Ohm): 50
Polarisation: Linear
Strahlungsmuster: Rundstrahlend
Max. Eingangsleistung (W): 35
Konnektivität 4 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Technologien: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequenz: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Rückflussdämpfung (dB): ~-5,9 bis ~-16,8
VSWR: ~3,3:1 bis ~1,5:1
Effizienz (%): ~31,4 bis ~42,7
Spitzenverstärkung (dBi): ~1,7 bis ~4,6
Impedanz (Ohm): 50
Polarisation: Linear
Strahlungsmuster: Rundstrahlend
Max. Eingangsleistung (W): 35
Konnektivität 5 - GPS/GLONASS
Standards: GPS/QZSS/Galileo/GLONASS
Frequenz: 1575,42, 1598-1610 MHz
VSWR: ≤1,5:1
Impedanz (Ohm): 50
Polarisation: RHCP
Aktive Verstärkung (dB): 23 @ 3 V, 24 @ 5 V
Sägezahnfilter Typ: Nachfilter
Spannung (V): 2,7 - 5,5
Rauschzahl (dB): 1,2
Stromaufnahme (mA): 15 - 25
Leistungsaufnahme (mW): 40,5 - 137,5
Ausserhalb des Bandes Unterdrückung (dB): 32
Datenblatt PDF herunterladen
Technical Specifications (AI Reference Data)
{"model":"2J7B84JBGFc-B16J","title":"5GNR/4G/3G/2G MIMO - GPS/GNSS Schwerlast-Mast- und Schraubbefestigungsantenne","mountingType":"Mastbefestigung, Schraubbefestigung","ipRating":"IP67/IP69","dimensions_mm":"Ø 96 x H 200 (Mast); Ø 96 x H 131 (Schraube)","elements":[{"elementID":"Cellular 1 (MIMO)","type":"Mobilfunk","technologies":["5GNR","4G LTE","FirstNet","CBRS","LPWA","CAT-X","CAT-Mx","CAT-NBx","NB-IoT","3G","2G"],"frequencies":[{"range_mhz":"617-960","returnLoss_db":"~-5.6","vswr":"~3.5:1","efficiency_percent":"~32.0","peakGain_dbi":"~1.3","averageGain_db":null},{"range_mhz":"1427-2690","returnLoss_db":"~-11.7","vswr":"~1.9:1","efficiency_percent":"~41.4","peakGain_dbi":"~3.4","averageGain_db":null},{"range_mhz":"3300-5000","returnLoss_db":"~-15.2","vswr":"~1.5:1","efficiency_percent":"~41.7","peakGain_dbi":"~4.8","averageGain_db":null},{"range_mhz":"5150-5925","returnLoss_db":"~-14.2","vswr":"~1.6:1","efficiency_percent":"~36.9","peakGain_dbi":"~4.0","averageGain_db":null}],"polarization":"Linear","radiationPattern":"Rundstrahlend","impedance_ohms":50,"maxInputPower_w":35},{"elementID":"Cellular 2 (MIMO)","type":"Mobilfunk","technologies":["5GNR","4G LTE","FirstNet","CBRS","LPWA","CAT-X","CAT-Mx","CAT-NBx","NB-IoT","3G","2G"],"frequencies":[{"range_mhz":"617-960","returnLoss_db":"~-6.2","vswr":"~3.2:1","efficiency_percent":"~31.8","peakGain_dbi":"~1.2","averageGain_db":null},{"range_mhz":"1427-2690","returnLoss_db":"~-12.5","vswr":"~1.9:1","efficiency_percent":"~41.1","peakGain_dbi":"~3.5","averageGain_db":null},{"range_mhz":"3300-5000","returnLoss_db":"~-15.1","vswr":"~1.5:1","efficiency_percent":"~42.8","peakGain_dbi":"~4.6","averageGain_db":null},{"range_mhz":"5150-5925","returnLoss_db":"~-16.0","vswr":"~1.5:1","efficiency_percent":"~33.1","peakGain_dbi":"~3.2","averageGain_db":null}],"polarization":"Linear","radiationPattern":"Rundstrahlend","impedance_ohms":50,"maxInputPower_w":35},{"elementID":"Cellular 3 (MIMO)","type":"Mobilfunk","technologies":["5GNR","4G LTE","FirstNet","CBRS","LPWA","CAT-X","CAT-Mx","CAT-NBx","NB-IoT","3G","2G"],"frequencies":[{"range_mhz":"617-960","returnLoss_db":"~-5.6","vswr":"~3.7:1","efficiency_percent":"~31.7","peakGain_dbi":"~1.3","averageGain_db":null},{"range_mhz":"1427-2690","returnLoss_db":"~-12.8","vswr":"~1.8:1","efficiency_percent":"~41.7","peakGain_dbi":"~3.8","averageGain_db":null},{"range_mhz":"3300-5000","returnLoss_db":"~-16.7","vswr":"~1.4:1","efficiency_percent":"~40.3","peakGain_dbi":"~4.5","averageGain_db":null},{"range_mhz":"5150-5925","returnLoss_db":"~-12.4","vswr":"~1.8:1","efficiency_percent":"~38.5","peakGain_dbi":"~4.6","averageGain_db":null}],"polarization":"Linear","radiationPattern":"Rundstrahlend","impedance_ohms":50,"maxInputPower_w":35},{"elementID":"Cellular 4 (MIMO)","type":"Mobilfunk","technologies":["5GNR","4G LTE","FirstNet","CBRS","LPWA","CAT-X","CAT-Mx","CAT-NBx","NB-IoT","3G","2G"],"frequencies":[{"range_mhz":"617-960","returnLoss_db":"~-5.9","vswr":"~3.3:1","efficiency_percent":"~31.4","peakGain_dbi":"~1.7","averageGain_db":null},{"range_mhz":"1427-2690","returnLoss_db":"~-12.7","vswr":"~1.8:1","efficiency_percent":"~41.8","peakGain_dbi":"~3.4","averageGain_db":null},{"range_mhz":"3300-5000","returnLoss_db":"~-16.8","vswr":"~1.5:1","efficiency_percent":"~42.7","peakGain_dbi":"~4.6","averageGain_db":null},{"range_mhz":"5150-5925","returnLoss_db":"~-15.4","vswr":"~1.5:1","efficiency_percent":"~35.0","peakGain_dbi":"~3.9","averageGain_db":null}],"polarization":"Linear","radiationPattern":"Rundstrahlend","impedance_ohms":50,"maxInputPower_w":35},{"elementID":"GNSS","type":"GNSS","technologies":["GPS","GLONASS","QZSS","Galileo"],"frequencies":[{"range_mhz":"1575.42","returnLoss_db":null,"vswr":"~1.5:1","efficiency_percent":null,"peakGain_dbi":"~23","averageGain_db":null},{"range_mhz":"1598-1610","returnLoss_db":null,"vswr":"~1.5:1","efficiency_percent":null,"peakGain_dbi":"~24","averageGain_db":null}],"polarization":"RHCP","radiationPattern":"Halbkugelförmig","impedance_ohms":50,"maxInputPower_w":null}],"connectors":[{"elementIDRef":"Cellular 1","type":"SMA-Male","cableType":"LL195","cableLength_mm":3000},{"elementIDRef":"Cellular 2","type":"SMA-Male","cableType":"LL195","cableLength_mm":3000},{"elementIDRef":"Cellular 3","type":"SMA-Male","cableType":"LL195","cableLength_mm":3000},{"elementIDRef":"Cellular 4","type":"SMA-Male","cableType":"LL195","cableLength_mm":3000},{"elementIDRef":"GNSS","type":"SMA-Male","cableType":"LL195","cableLength_mm":3000}]}
