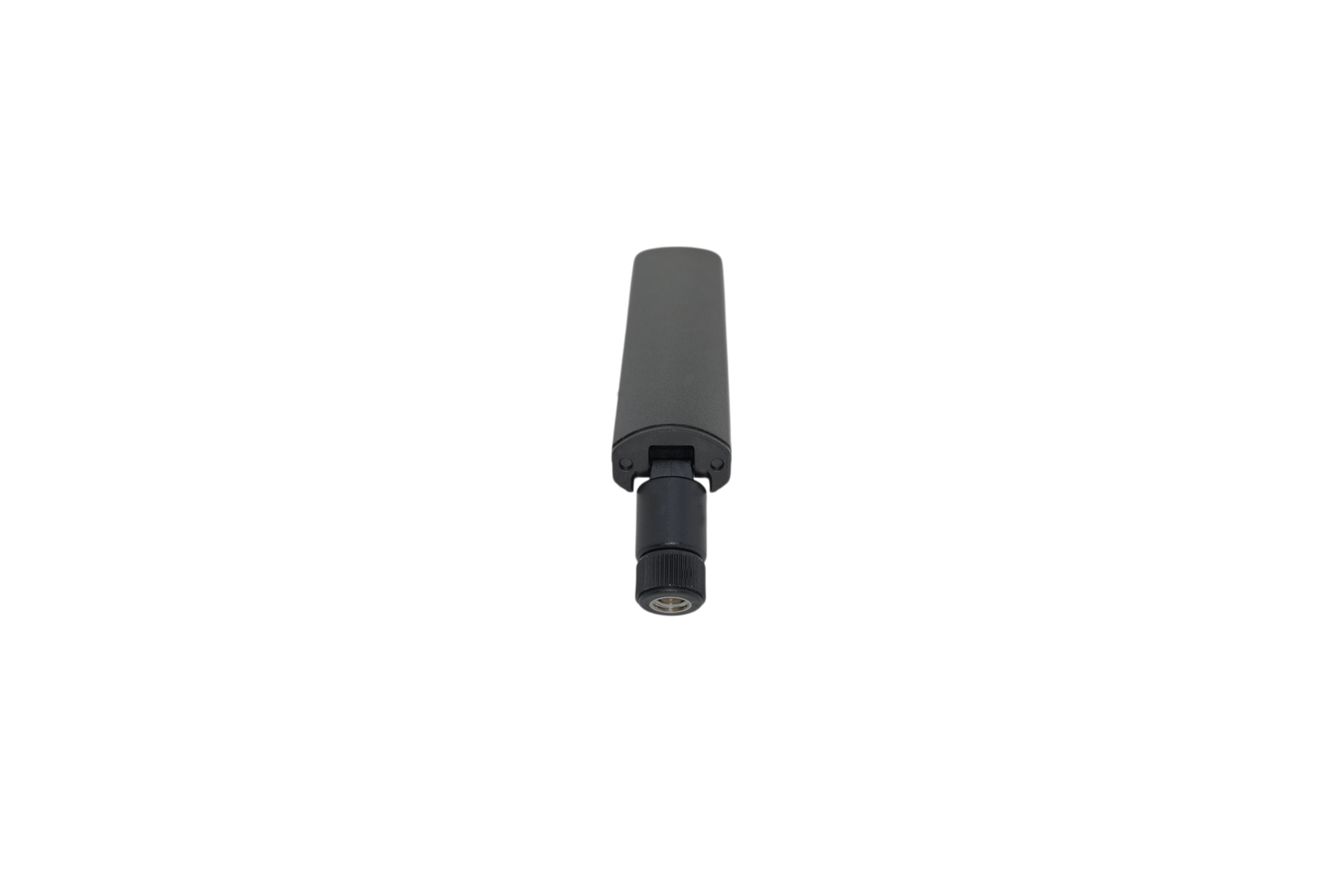

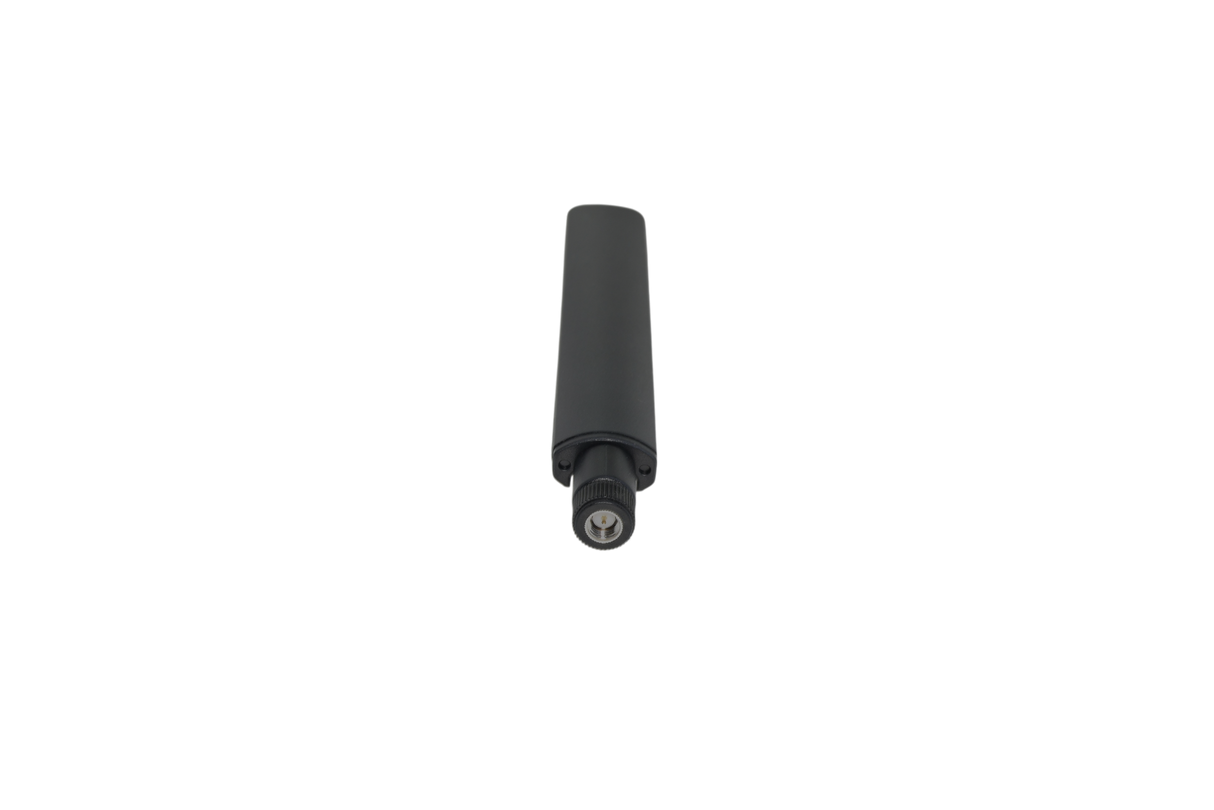

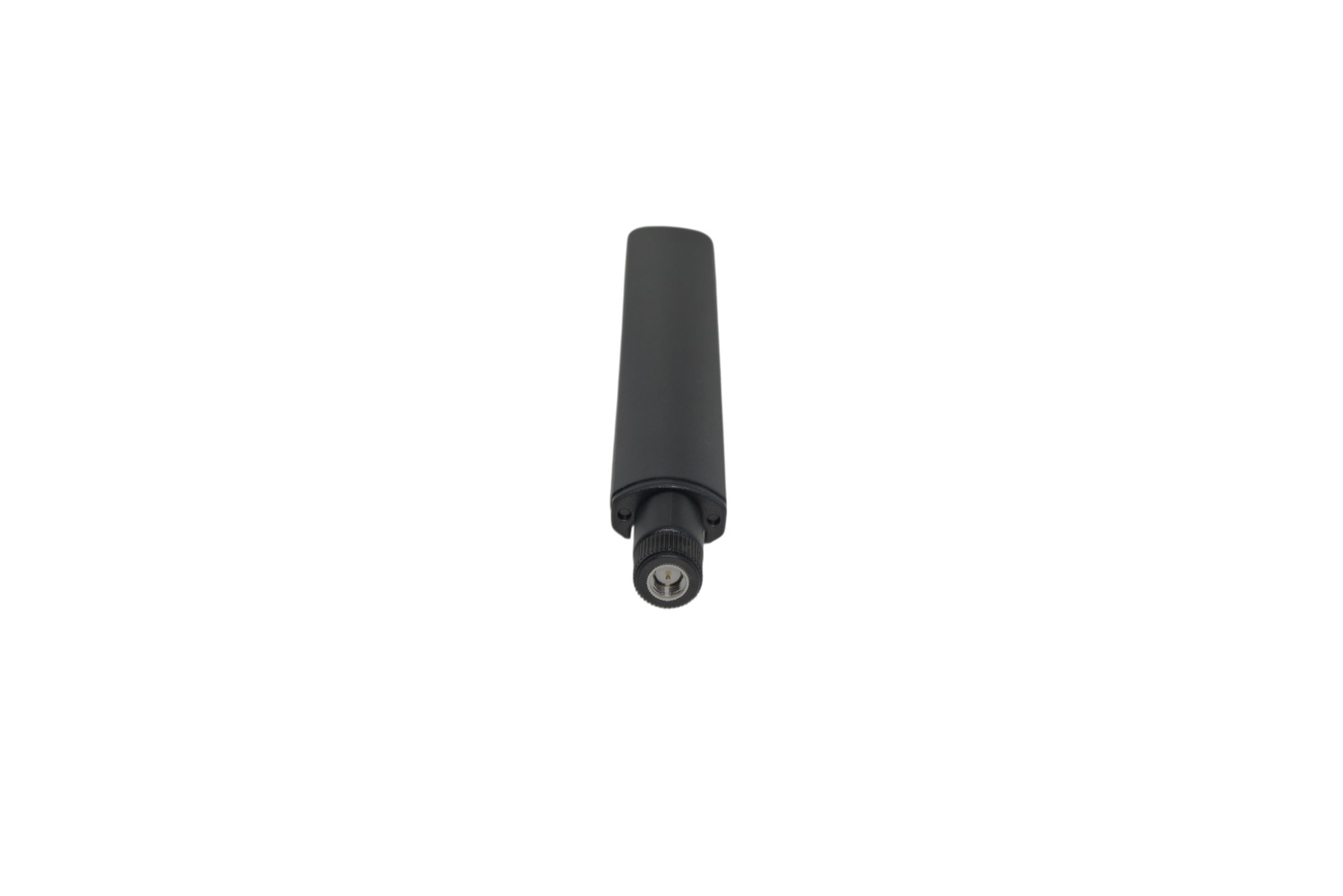

SW19073EB56 SWE027 5G/4G/LTE External Terminal Antenna (SMA Connector)

Product Overview: The SW19073EB56 (SWE027) is a next-generation external terminal antenna engineered for high-bandwidth wireless connectivity across ultra-wideband 5G, 4G LTE, 3G, and 2G networks. With an expansive frequency coverage ranging from 600 MHz up to 6000 MHz, this antenna is fully ready for future-proof IoT and cellular deployments. Constructed with a durable ABS housing and an integrated tilt-and-swivel hinge, it mounts directly via a standardized SMA male interface to deliver stable, omnidirectional signal enhancement for high-speed network components.

Key Features:

• Future-Proof 5G & Ultra-Wideband Ready: Comprehensive operation spectrum from 600 MHz to 6000 MHz, covering all major sub-6 GHz 5G and 4G LTE bands.

• Threaded SMA-M Interface: Designed for direct terminal connector mounting onto routers, modems, or gateways without requiring internal cabling.

• Adjustable Swivel Hinge: The integrated multi-angle mechanical knuckle joint allows the antenna body to fold and orient precisely to maximize cellular reception.

• Exceptional High-Gain Performance: Reaches a maximum peak gain of up to 5.5 dBi, providing a highly reliable link in weak signal zones.

• Industrial Endurance Layout: Built with heavy-duty ABS material to perform consistently under wide industrial temperature variations from -40°C to +85°C.

Technical Specifications:

• Part Number (PN): SW19073EB56 / SWE027

• Mounting Type: Connector Mount (Direct terminal thread attachment)

• Connector Type: SMA Male (SMA-J standard)

• Dimensions: 152.4 mm (Total Length) x 21.79 mm (Width) x 14.49 mm (Thickness)

• Housing Material: Industrial ABS Plastic

• Supported Standards: 5G / 4G LTE / 3G / 2G (Sub-6 GHz Cellular M2M)

• Frequency Range: 600 ~ 6000 MHz

• Peak Gain: -2.0 ~ 5.5 dBi

• Efficiency: 25% ~ 85%

• VSWR: < 3.5

• Return Loss: < -5.0 dB

• Impedance: 50 Ohm

• Radiation Pattern: Omni-Directional (360° signal capture)

• Polarization: Linear

• Max Input Power: 25W

• Operating Temperature: -40°C to +85°C

• Color: Black

Applications: Ideal for next-gen cellular terminal routers and industrial deployments:

• High-speed 5G network gateways, enterprise routers, and backup modems

• Industrial M2M communication automation nodes and remote telemetry systems

• Smart city infrastructure panels, traffic monitors, and utility smart metering stations

• Complex security networks, automated kiosks, and digital signage enclosures

Frequently Asked Questions: Q1: Does this antenna support 5G frequencies out of the box? A1: Yes. The SWE027 is specifically designed to cover frequencies up to 6000 MHz (6 GHz), meaning it fully supports global sub-6 GHz 5G networks in addition to standard 4G LTE bands.

Q2: Can this antenna be used on metal enclosures? A2: Yes, it mounts directly to the external SMA bulkhead port of an enclosure. However, for maximum efficiency and an optimal radiation pattern, ensure the adjustable whip element can extend into an open space clear of immediate metallic shielding obstructions.
