Beschreibung

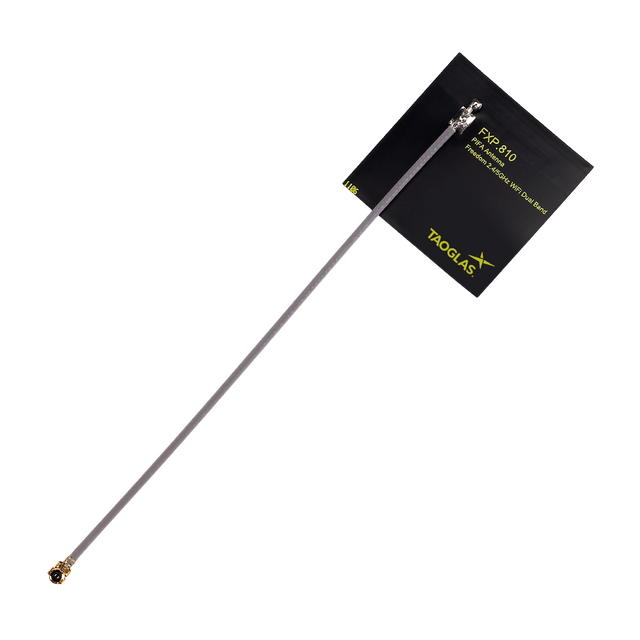

Die FXP810 ist eine kompakte flexible PCB-Antenne, die für eingebettete drahtlose Geräte entwickelt wurde und W-lan, Bluetooth und NFC abdeckt. Sie ist für starke Leistung in kleinen, tagartigen mobilen Designs optimiert und hilft, eine hohe Effizienz über die unterstützten Bänder hinweg aufrechtzuerhalten.
- Dualband-Abdeckung: Betrieb bei 2,4 GHz und 4,9–6,0 GHz
- Flexibles Formfaktor: geeignet für platzbeschränkte eingebettete Designs
- Leistungsorientiert: entwickelt für hohe Effizienz über die Zielbänder
Anschluss & Kabel
- Anschlusstyp: I-PEX MHF I (U.FL-kompatibel)
- Kabellänge: 10 cm
- Kabeltyp: 1,37 Koax
Technische Spezifikationen
Betriebstemperatur: -40°C bis 85°C
Antenne-Technologien: PIFA
Standort: Intern
Montage: Klebemontage
Kurzstrecken-Funkstandards: W-lan, Bluetooth, NFC, ISM
Typ: Einzel
Abmessungen: 31 mm*31 mm*0,1 mm
Gewicht: 5 g
W-lan / Bluetooth / NFC (Dualband)
Frequenz: 2400-2500 MHz, 4900-5850 MHz
Standards: W-lan, Bluetooth, NFC
Impedanz: 50 Ω
VSWR: 2:1
Polarisation: Linear
Strahlungsmuster: Omni
Max. Eingangsleistung: 2 W
Spitzengewinn (dBi): 2,52 (2,4 GHz), 6,37 (5,8 GHz)
Effizienz (%): 60-70 % (2,4 GHz), 80-90 % (4,9-6,0 GHz)
Anschlusstyp: I-PEX MHF I (U.FL-kompatibel)
Kabellänge: 10 cm
Kabeltyp: 1,37 Koax
