Beschreibung

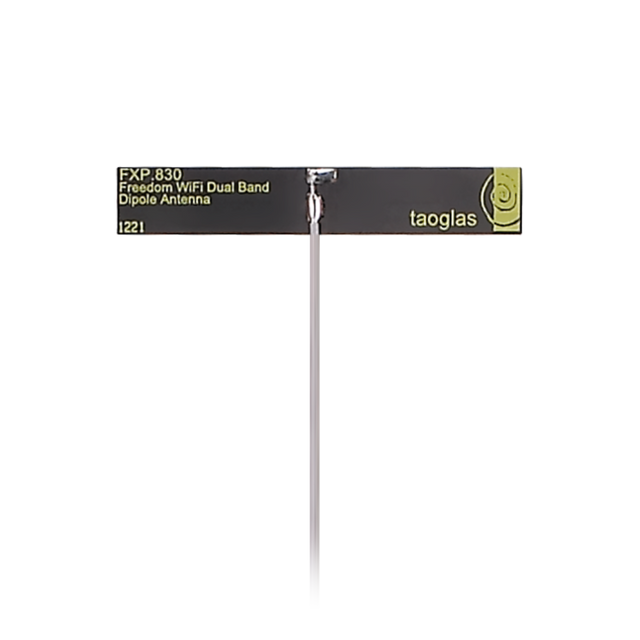

Der FXP830 Freedom ist eine kompakte, hocheffiziente flexible Dipolantenne, die für den modernen 2,4 GHz, 5 GHz und 6 GHz W-lan-Betrieb entwickelt wurde und Bluetooth für vielseitige Kurzstreckenverbindungen unterstützt.
Seine dünne, flexible Bauweise und die Klebemontage machen die Integration in platzbeschränkte Produkte einfach, während eine starke HF-Leistung in freiem Raum (bodenplattenunabhängig) erhalten bleibt.
- Flexible Polymerantenne für einfache Integration in kompakte Geräte
- Unterstützt W-lan und Bluetooth über 2,4/5/6 GHz Bänder (W-lan 6 / W-lan 6E fähig)
- Klebemontage für schnelle interne Installation
Anschluss & Kabel
- Anschlusstyp: IPEX MHF4
- Kabellänge: 10 cm
- Kabeltyp: Ø0,81 mm Koax
Technische Spezifikationen
Betriebstemperatur: -40°C bis 85°C
Antennentechnologien: Dipol
Position: Intern
Montage: Klebemontage
Kurzstrecken-Funkstandards: W-lan, Bluetooth, ISM
Typ: Einzel
Abmessungen: 42 x 7,0 x 0,1 mm
Gewicht: 5 g
W-lan/Bluetooth
Frequenz: 2400-2500 MHz, 5150-5850 MHz, 5925-7125 MHz
Standards: Bluetooth, W-lan, W-lan 6, W-lan 6E
Impedanz: 50 Ω
Polarisation: Linear
VSWR: 2:1
Gewinn (max.): 2,55 dBi
Max. Eingangsleistung: 10 W
Anschlusstyp: IPEX MHF4 Anschluss (HSC kompatibel)
Kabellänge: 10 cm
Kabeltyp: Ø0,81 mm Koax
