2J  |  SKU: 2J0102-2.4-C115N

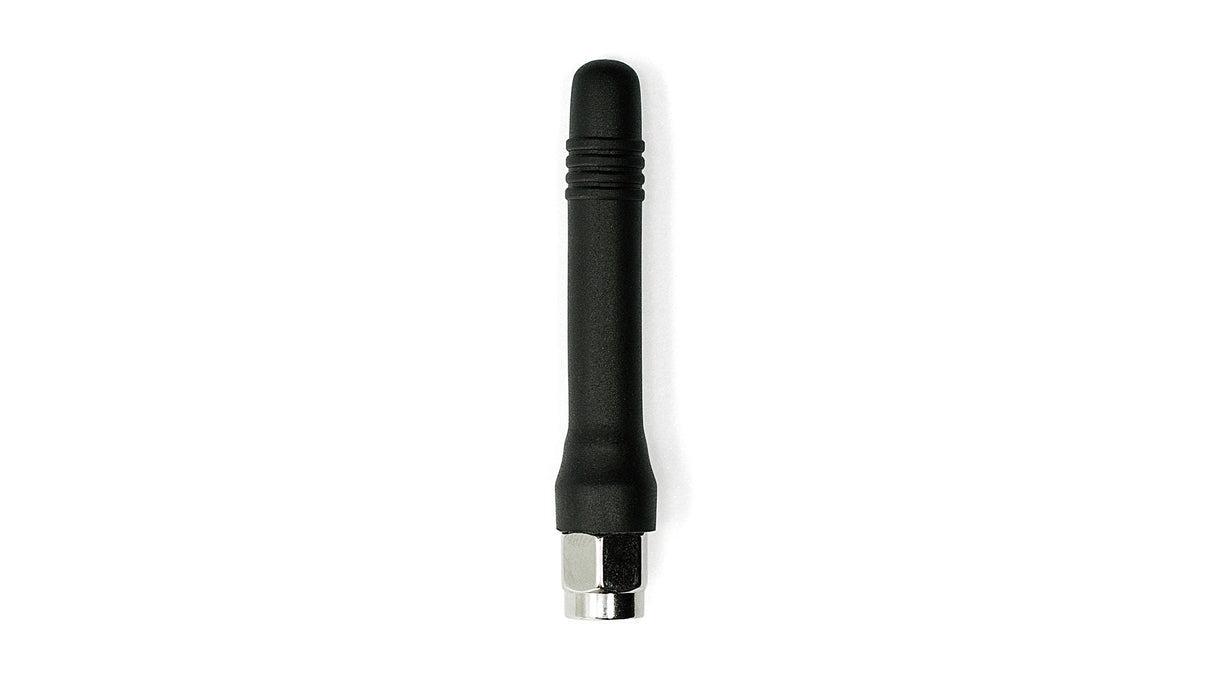

2J0102-2.4-C115N Wi-Fi, ISM connector mount Antenna

Unit Price excluding VAT. Shipping calculated at checkout.

Datasheet

PDF Download

Description

This compact low-profile antenna is designed for reliable performance in the 2.4 GHz ISM band, supporting Wi-Fi, Bluetooth, ZigBee, and other short-range wireless applications. Its small form factor and ground plane dependent monopole design make it ideal for integration into a wide range of devices and environments where space is limited. The antenna is suitable for smart home, industrial automation, entertainment, healthcare, and IoT deployments, delivering stable connectivity and efficient signal transmission.

Connections

2.4GHz/WiFi/LPWA/BT/ZigBee/RFID/ISM


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Monopole
Location: External
Mounting: Connector Mount
Type: Single
Dimensions: Ø 9.5 × 56 mm

Connection 1 - 2.4 GHz ISM

Standards: WiFi, BT, ZigBee, ISM
Frequency: 2410-2490 MHz
VSWR: ~2.2:1
Efficiency (%): ~68
Peak Gain (dBi): ~3.6
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2J0102-2.4-C115N", "title": "2.4 GHz ISM WiFi Low Profile Smart Antenna", "mountingType": "Connector Mount", "ipRating": null, "dimensions_mm": "Ø 9.5 × 56", "elements": [ { "elementID": "Wi-Fi / ISM", "type": "Wi-Fi", "technologies": [ "Wi-Fi", "Bluetooth", "ZigBee", "ISM" ], "frequencies": [ { "range_mhz": "2410-2490", "returnLoss_db": "~-8.4", "vswr": "~2.2:1", "efficiency_percent": "~68", "peakGain_dbi": "~3.6", "averageGain_db": "~-1.6" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 } ], "connectors": [ { "elementIDRef": "Wi-Fi / ISM", "type": "RP-SMA-Male", "cableType": "C115", "cableLength_mm": 1150 } ] }
