2J  |  SKU: 2J0102-C366N

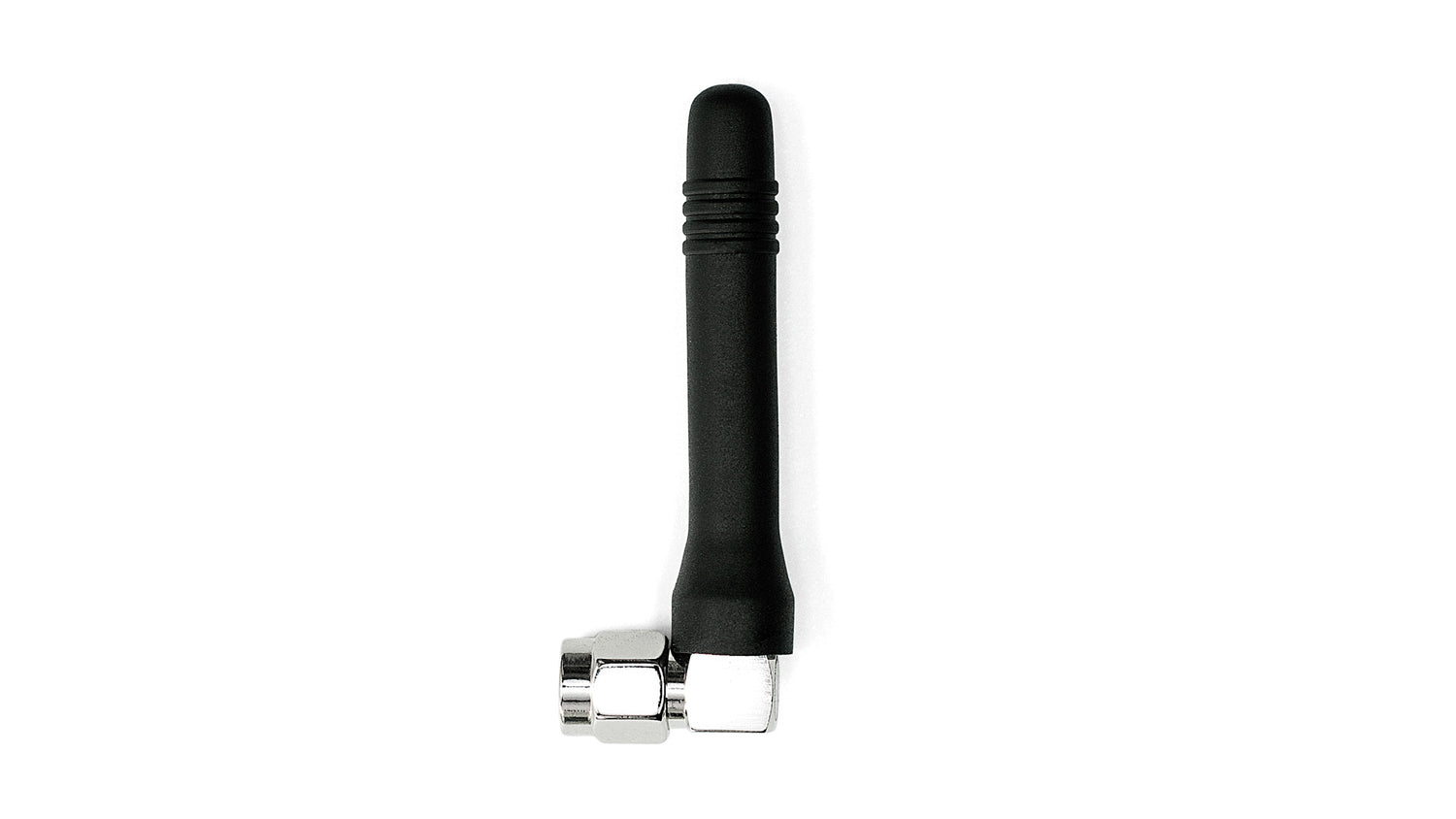

2J0102-C366N Wi-Fi, ISM right-angle Antenna Connector Mount

€5,20
Unit Price excluding VAT. Shipping calculated at checkout.

Datasheet

PDF Download

Description

This high-gain right-angle antenna is designed for Wi-Fi and ISM applications, delivering robust performance and efficiency in a compact form factor. Its ground plane dependent monopole design ensures reliable connectivity for a wide range of wireless solutions. Ideal for smart home, entertainment, healthcare, transportation, and industrial automation, this antenna is suitable for both commercial and consumer devices requiring stable wireless communication.

Connections

2.4-5.0GHz/WiFi/LPWA/BT/ZigBee/RFID/ISM


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Monopole
Location: External
Mounting: Connector Mount
Type: Single
Dimensions: 53 x 10 × 18 mm

Connection 1 - 2.4/5.0 GHz ISM

Standards: WiFi, BT, ZigBee, ISM
Frequency: 2410-2490, 4920-5925 MHz
VSWR: ~1.4:1, ~1.7:1
Efficiency (%): ~60, ~83
Peak Gain (dBi): ~4.0, ~5.2
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2J0102-C366N", "title": "WiFi ISM High Gain Right Angle Smart Antenna", "mountingType": "Connector Mount", "ipRating": null, "dimensions_mm": "53 × 10 × 18", "elements": [ { "elementID": "Wi-Fi / ISM", "type": "Wi-Fi", "technologies": [ "Wi-Fi", "Bluetooth", "ZigBee", "ISM", "LPWA", "RFID" ], "frequencies": [ { "range_mhz": "2410-2490", "returnLoss_db": "~-14.7", "vswr": "~1.4:1", "efficiency_percent": "~60", "peakGain_dbi": "~4.0", "averageGain_db": "~-2.2" }, { "range_mhz": "4920-5925", "returnLoss_db": "~-12.8", "vswr": "~1.7:1", "efficiency_percent": "~83", "peakGain_dbi": "~5.2", "averageGain_db": "~-0.9" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 } ], "connectors": [ { "elementIDRef": "Wi-Fi / ISM", "type": "RP-SMA-Male-RA", "cableType": null, "cableLength_mm": null } ] }
