2J  |  SKU: 2J0502-C115N

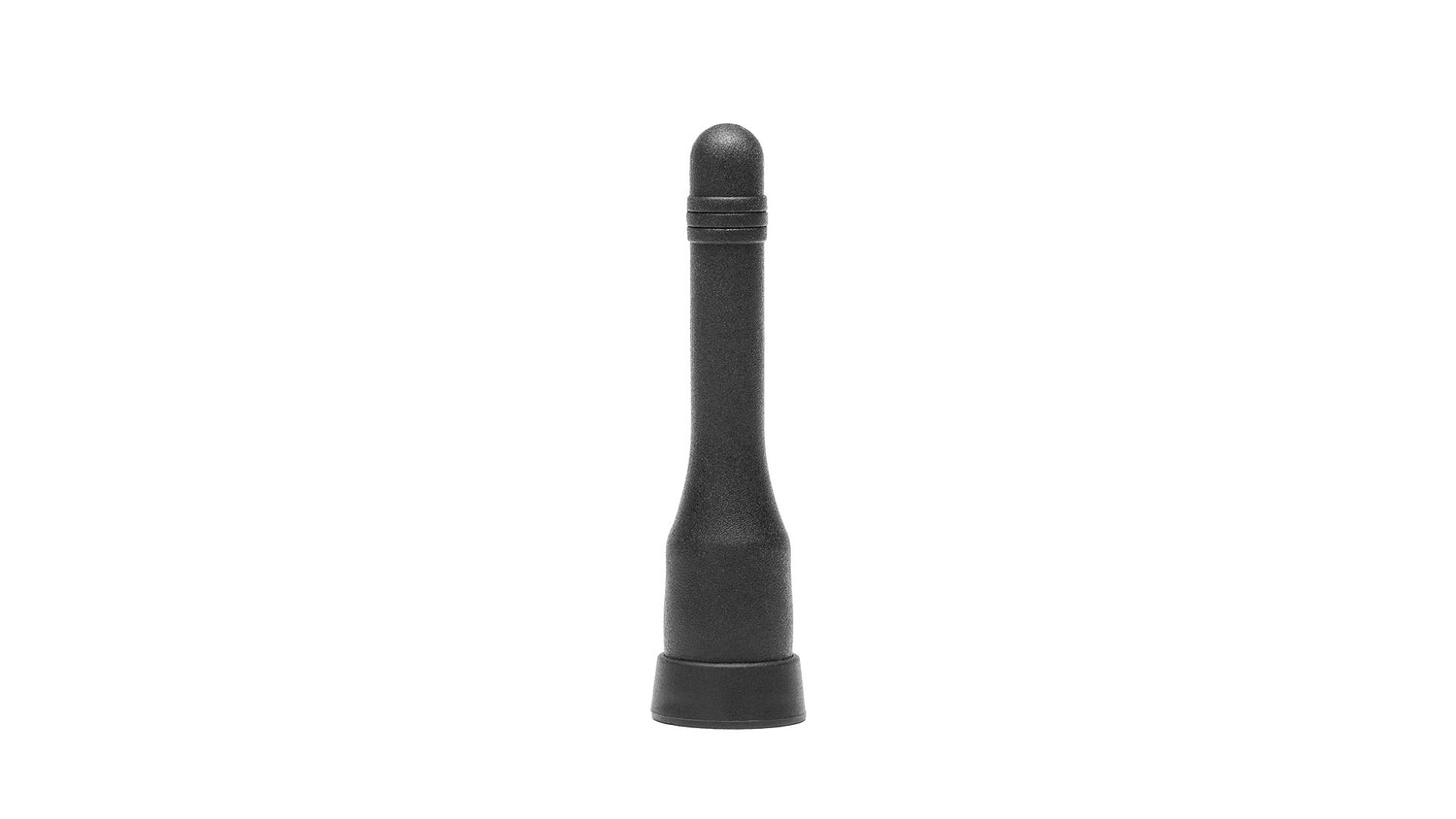

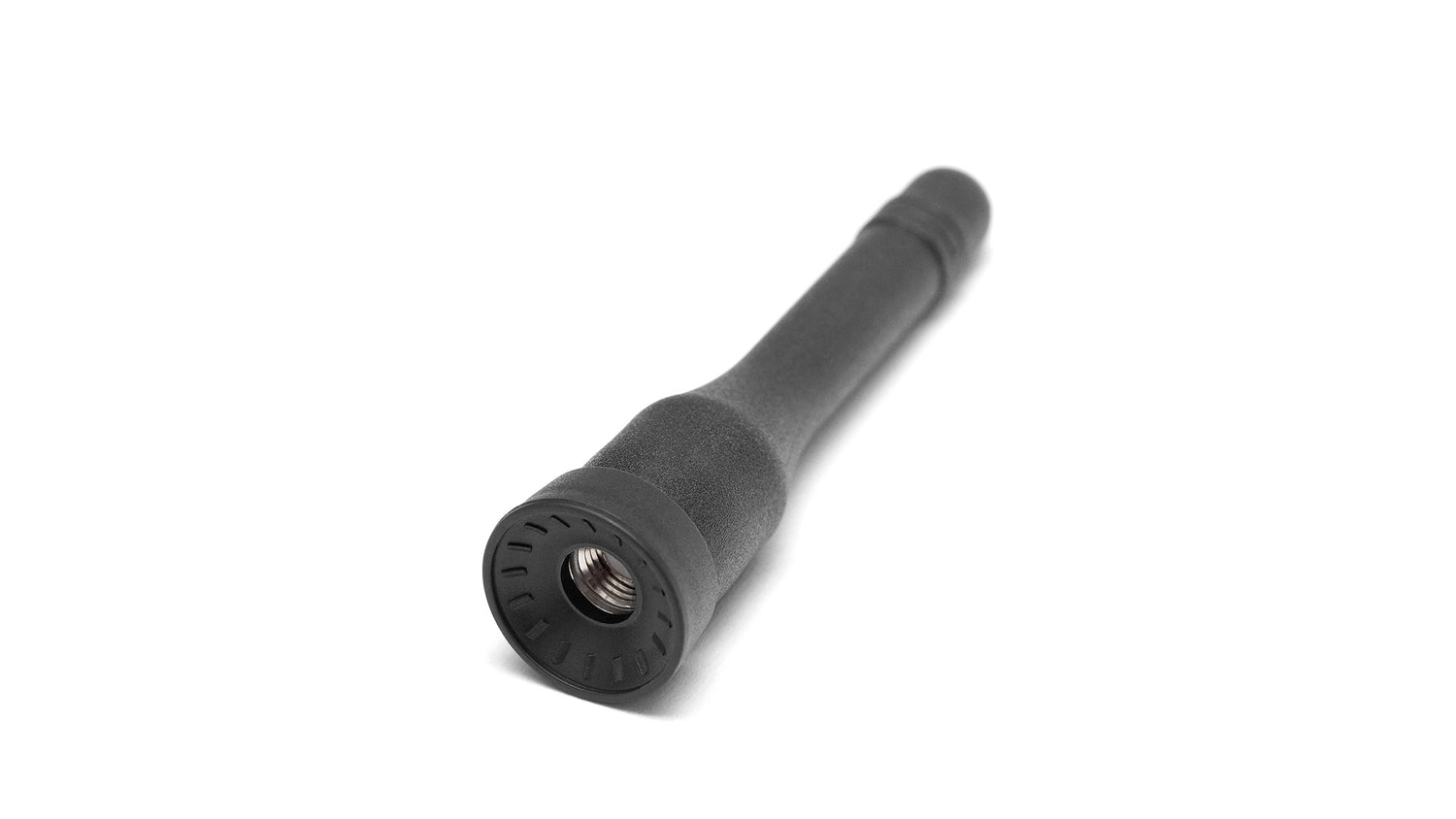

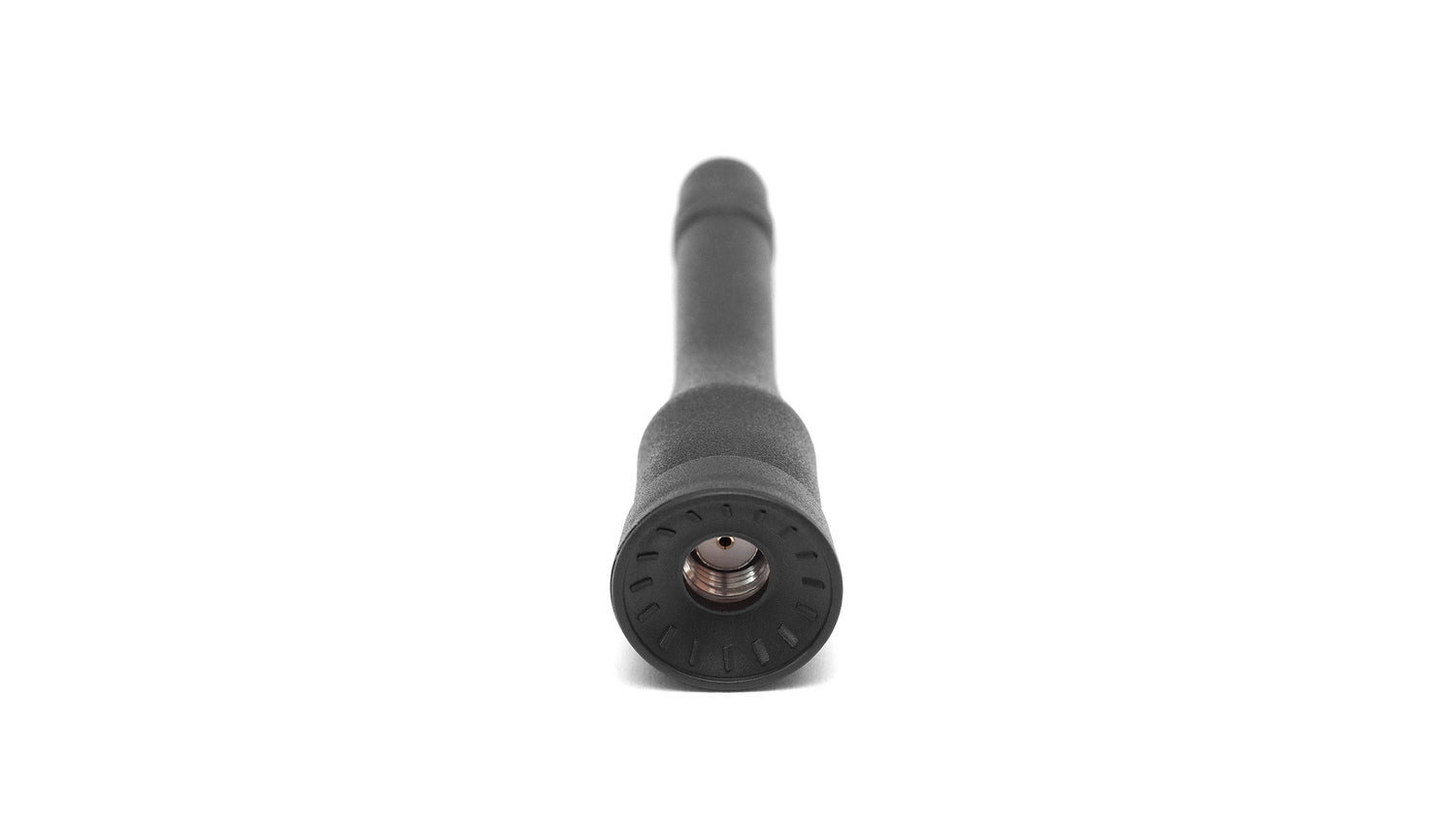

2J0502-C115N Wi-Fi, ISM connector mount Antenna IP67

Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
2J Antennas, s.r.o.
Stefanikova 61, Bardejov, 08501, Slovakia
sales@2j-antennas.com
+421 (54) 488-2094

Description

This compact antenna is designed for reliable dual-band Wi-Fi and ISM connectivity, making it ideal for smart home, industrial, and IoT applications. Its waterproof construction and robust design ensure dependable performance in demanding environments. The antenna supports a wide range of wireless standards, including Wi-Fi, Bluetooth, ZigBee, and ISM bands, providing versatile connectivity for various devices and installations.

Connections

2.4-5.0GHz/WiFi/LPWA/BT/ZigBee/RFID/ISM


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Monopole
Location: External
Mounting: Connector Mount
Type: Single

Connection 1 - 2.4/5.0 GHz ISM

Standards: WiFi, Bluetooth, ZigBee, ISM
Frequency: 2410-2490, 4920-5925 MHz
VSWR: ~2.6:1, ~2.1:1
Efficiency (%): ~52.2, ~53.1
Peak Gain (dBi): ~2.8, ~2.4
Impedance (Ohm): 50
Radiation Pattern: Omni-Directional
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2J0502-C115N", "title": "Dual Band WiFi ISM Waterproof Antenna", "mountingType": "Connector Mount", "ipRating": "IP67", "dimensions_mm": "Ø 15.7 × 58.2", "elements": [ { "elementID": "Wi-Fi / ISM", "type": "Wi-Fi", "technologies": [ "Wi-Fi", "Bluetooth", "ZigBee", "ISM" ], "frequencies": [ { "range_mhz": "2410-2490", "returnLoss_db": "~-7.0", "vswr": "~2.6:1", "efficiency_percent": "~52.2", "peakGain_dbi": "~2.8", "averageGain_db": "~-2.8" }, { "range_mhz": "4920-5925", "returnLoss_db": "~-9.8", "vswr": "~2.1:1", "efficiency_percent": "~53.1", "peakGain_dbi": "~2.4", "averageGain_db": "~-2.8" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 } ], "connectors": [ { "elementIDRef": "Wi-Fi / ISM", "type": "RP-SMA-Male", "cableType": null, "cableLength_mm": null } ] }
