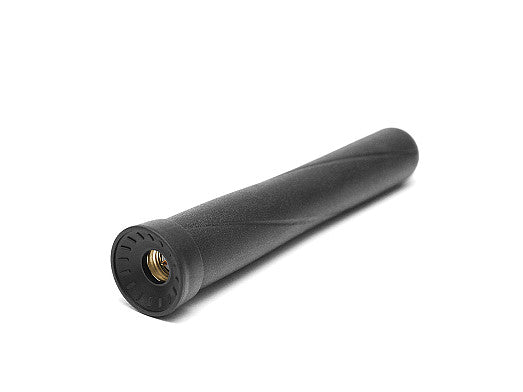

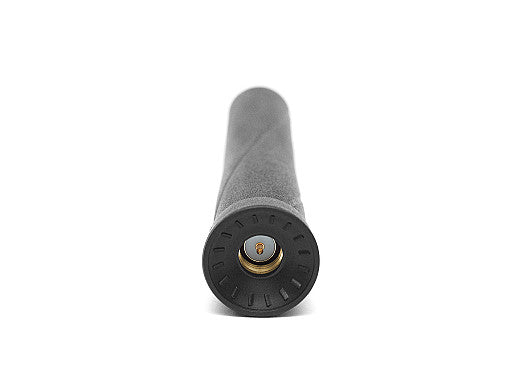

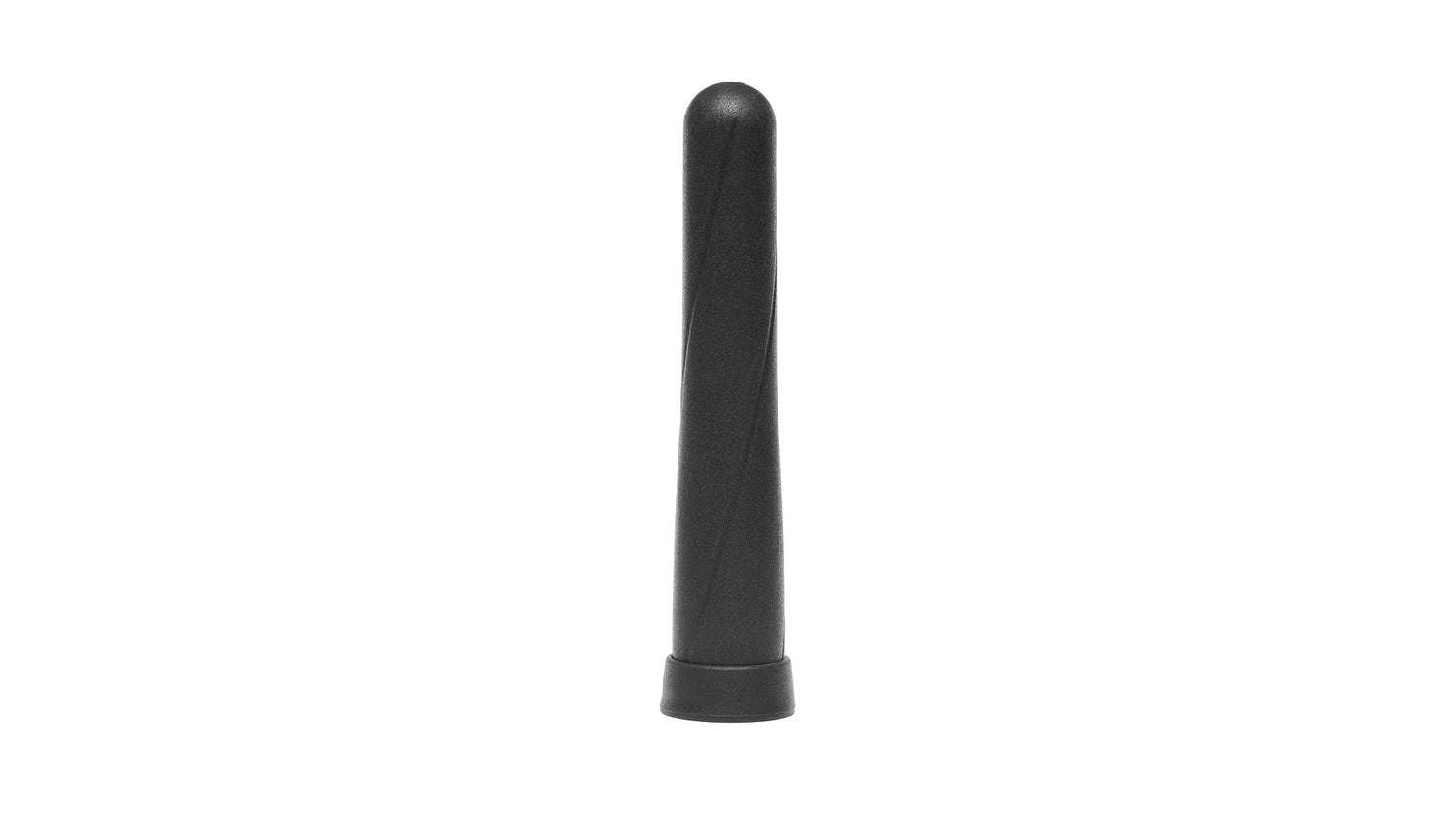

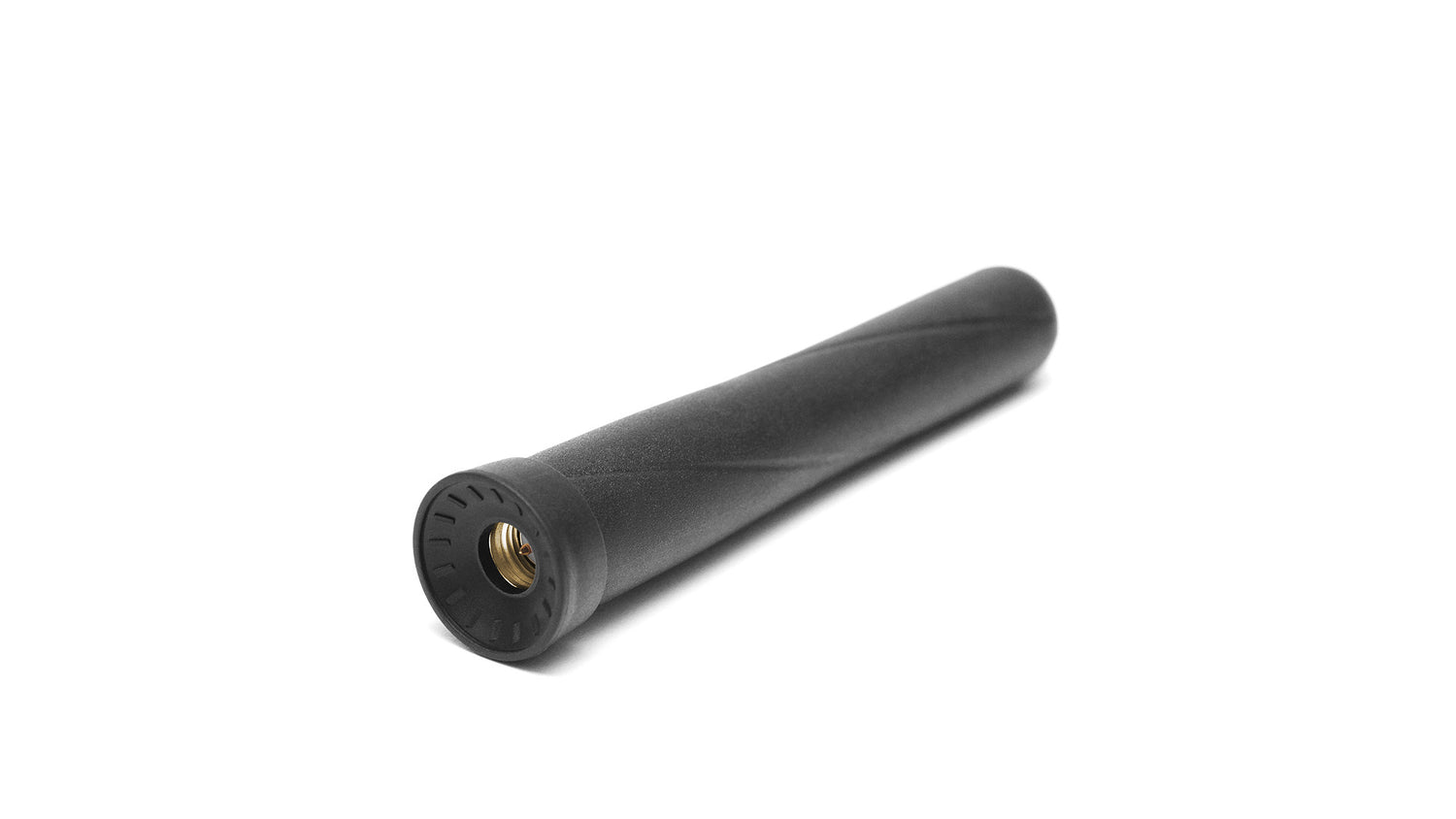

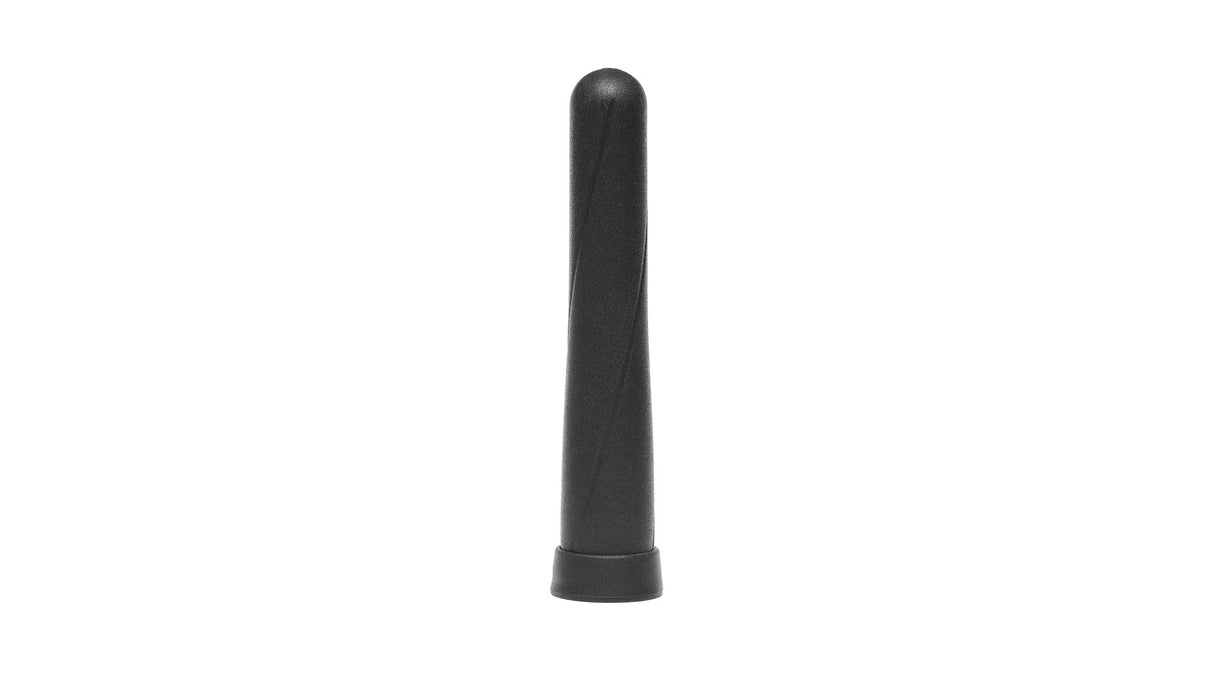

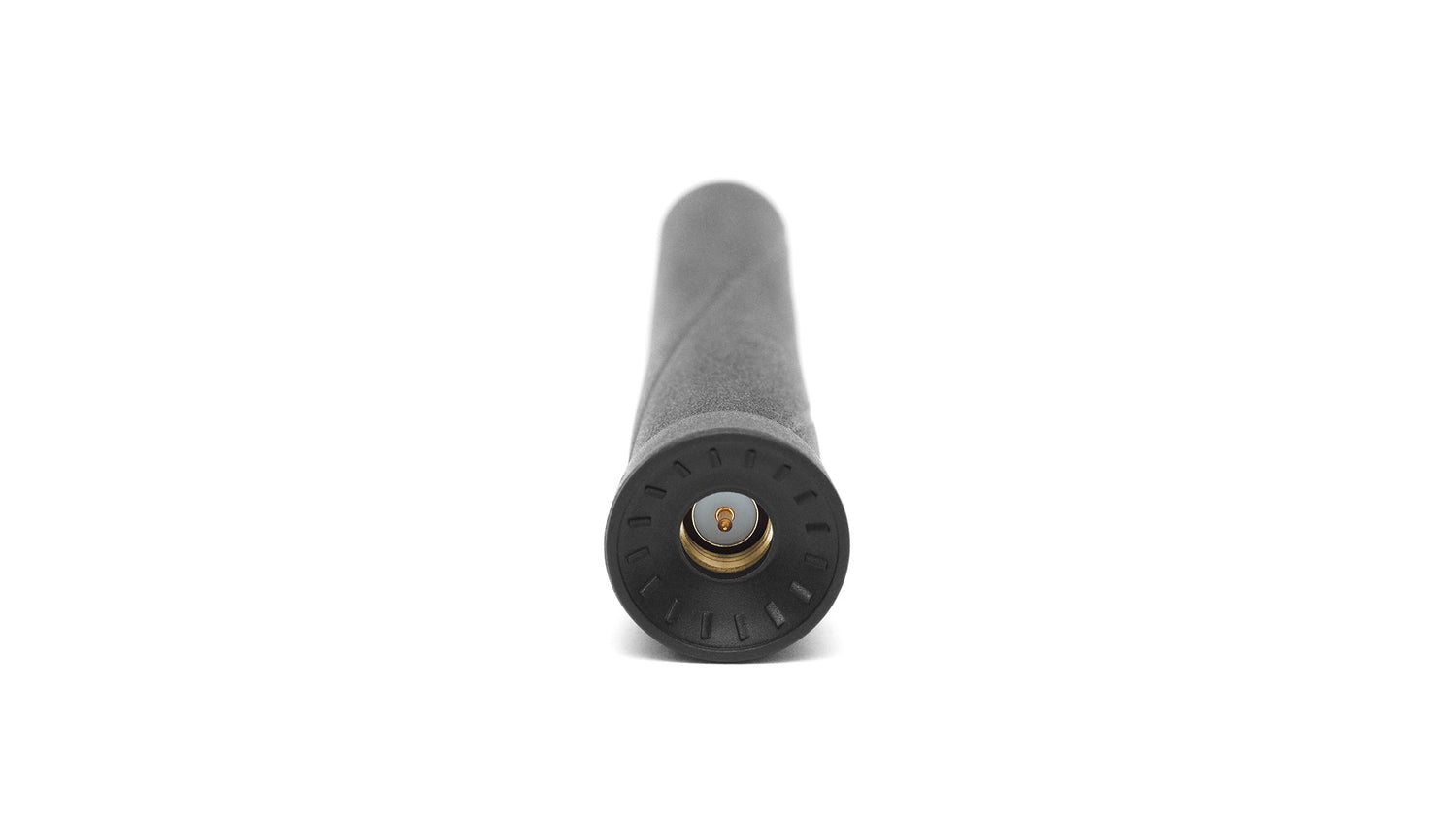

2J0801CF-C40G GNSS Antenna connector mount

Unit Price excluding VAT. Shipping calculated at checkout.

Datasheet

PDF Download

Description

This high-gain active GNSS antenna is designed for reliable and precise satellite navigation across multiple constellations, including GPS, GLONASS, BeiDou, QZSS, and Galileo. Its compact form factor and robust construction make it ideal for demanding applications such as fleet management, smart cities, autonomous vehicles, surveying, and asset tracking. The antenna features a pre-filter for enhanced signal quality and low power consumption, ensuring optimal performance in challenging environments.

Connections

GPS/GLO/BEI/QZSS/Galileo/L1


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Monopole
Location: External
Mounting: Connector Mount
Satellite Navigation: GNSS
Type: Single
Dimensions: Ø 15.7 × 73 mm

Connection 1 - GNSS

Standards: GPS/GLONASS/BeiDou/QZSS/Galileo
Frequency: 1561.098, 1575.42, 1598-1606 MHz
Passive Gain (dBi): ~3.5, ~3.4, ~3.2
Impedance (Ohm): 50
Radiation Pattern: Hemispherical
Active Gain (dB): 28 @ 2.7 V
Voltage Range (V): 1.5 - 3.6
Current Consumption (mA): 9 @ 2.7 V
Power Consumption (mW): 24.3 @ 2.7 V
Saw Filter Type: Pre-Filter
Out of Band Rejection (dB): ~43
ESD Protection (kV): 6

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2J0801CF-C40G", "title": "GPS/GLONASS/BeiDou/Galileo 28 dB Gain Antenna", "mountingType": "Connector Mount", "ipRating": "IPX7", "dimensions_mm": "Ø 15.7 × 73", "elements": [ { "elementID": "GNSS", "type": "GNSS", "technologies": [ "GPS", "GLONASS", "BeiDou", "QZSS", "Galileo" ], "frequencies": [ { "range_mhz": "1561.098", "returnLoss_db": null, "vswr": null, "efficiency_percent": null, "peakGain_dbi": "~3.5", "averageGain_db": null }, { "range_mhz": "1575.42", "returnLoss_db": null, "vswr": null, "efficiency_percent": null, "peakGain_dbi": "~3.4", "averageGain_db": null }, { "range_mhz": "1598-1606", "returnLoss_db": null, "vswr": null, "efficiency_percent": null, "peakGain_dbi": "~3.2", "averageGain_db": null } ], "polarization": "RHCP", "radiationPattern": "Hemispherical", "impedance_ohms": 50, "maxInputPower_w": null } ], "connectors": [ { "elementIDRef": "GNSS", "type": "SMA-Male", "cableType": null, "cableLength_mm": null } ] }
