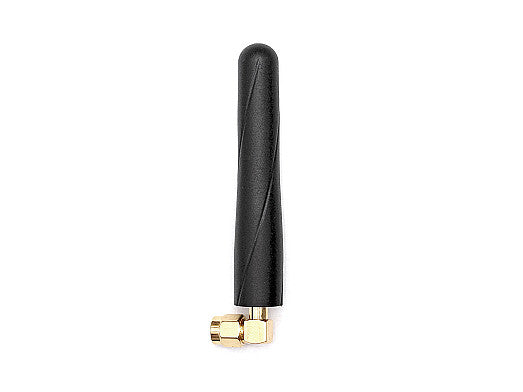

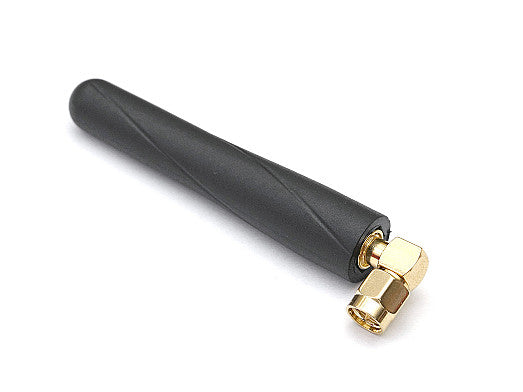

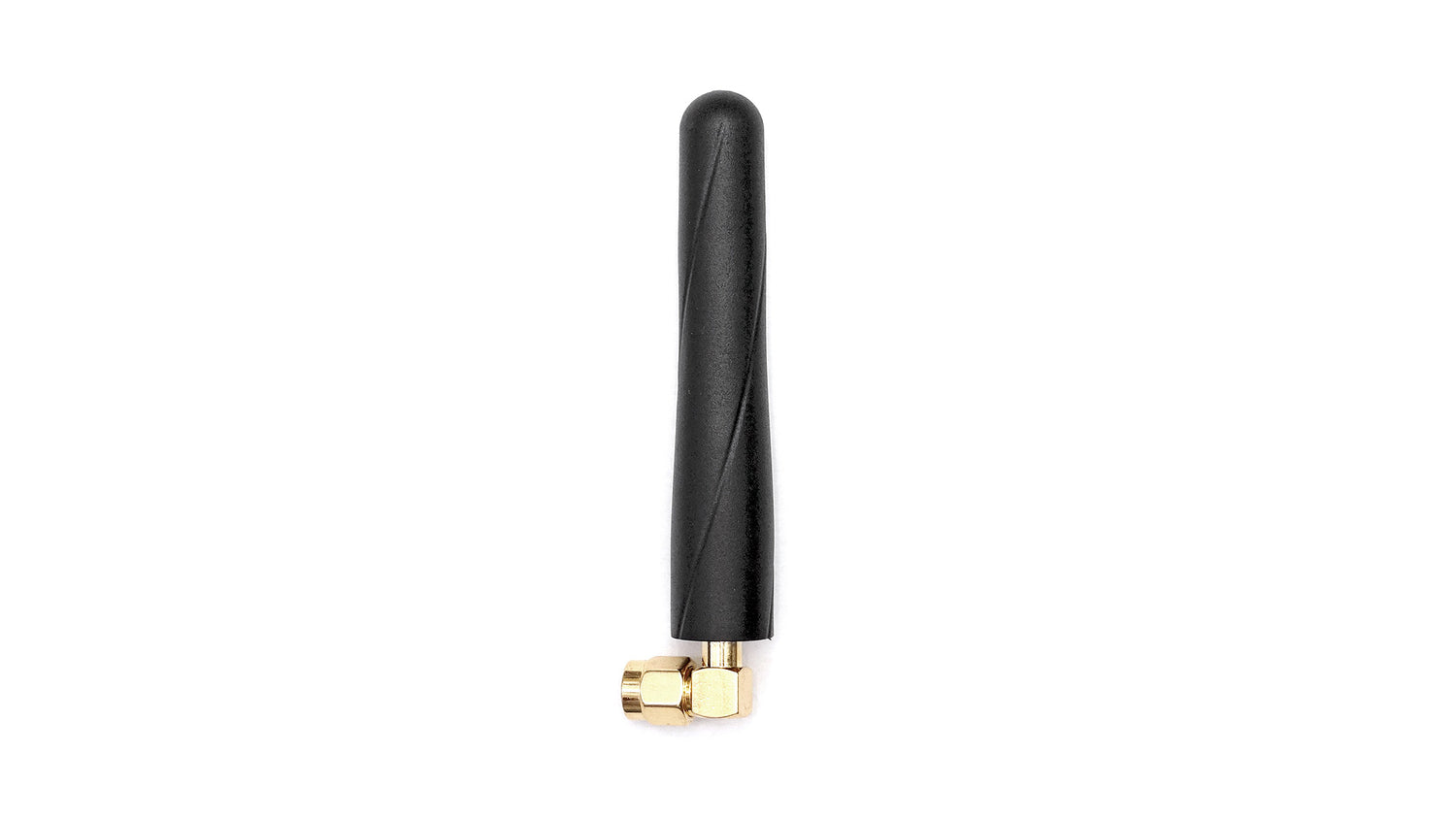

This compact passive antenna is designed for high-precision GNSS applications, supporting GPS, GLONASS, BeiDou, QZSS, and Galileo systems. Its small form factor and ground plane dependent design make it ideal for installations where space is limited but reliable satellite navigation is essential. With a peak gain of up to 3.8 dBi, it delivers strong signal reception for demanding environments such as logistics, smart cities, fleet management, autonomous vehicles, and surveying.
Connections
GPS/GLO/BEI/QZSS/Galileo/L1
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Monopole
Location: External
Mounting: Connector Mount
Satellite Navigation: GNSS
Type: Single
Dimensions: Ø 13.2 × 19 × 81.5 mm
Connection 1 - GNSS
Standards: GPS/GLONASS/BeiDou/QZSS/Galileo
Frequency: 1561.098, 1575.42, 1598-1606 MHz
VSWR: ~1.8:1, ~1.9:1, ~2.1:1
Efficiency (%): ~75.6, ~73.1, ~74.6
Peak Gain (dBi): ~3.8, ~3.6, ~3.8
Impedance (Ohm): 50
Radiation Pattern: Hemispherical
Download Datasheet PDF
Technical Specifications (AI Reference Data)
{
"model": "2J0801Cp-C40G-A38G",
"title": "GPS/GLONASS/BeiDou/Galileo Passive Antenna",
"mountingType": "Connector Mount",
"ipRating": null,
"dimensions_mm": "Ø 13.2 × 19 × 81.5",
"elements": [
{
"elementID": "GNSS",
"type": "GNSS",
"technologies": [
"GPS",
"GLONASS",
"BeiDou",
"QZSS",
"Galileo"
],
"frequencies": [
{
"range_mhz": "1561.098",
"returnLoss_db": "~-10.9",
"vswr": "~1.8:1",
"efficiency_percent": "~75.6",
"peakGain_dbi": "~3.8",
"averageGain_db": "~-1.2"
},
{
"range_mhz": "1575.42",
"returnLoss_db": "~-10.2",
"vswr": "~1.9:1",
"efficiency_percent": "~73.1",
"peakGain_dbi": "~3.6",
"averageGain_db": "~-1.4"
},
{
"range_mhz": "1598-1606",
"returnLoss_db": "~-9.2",
"vswr": "~2.1:1",
"efficiency_percent": "~74.6",
"peakGain_dbi": "~3.8",
"averageGain_db": "~-1.3"
}
],
"polarization": "Linear",
"radiationPattern": "Hemispherical",
"impedance_ohms": 50,
"maxInputPower_w": null
}
],
"connectors": [
{
"elementIDRef": "GNSS",
"type": "SMA-Male R/A",
"cableType": null,
"cableLength_mm": null
}
]
}
