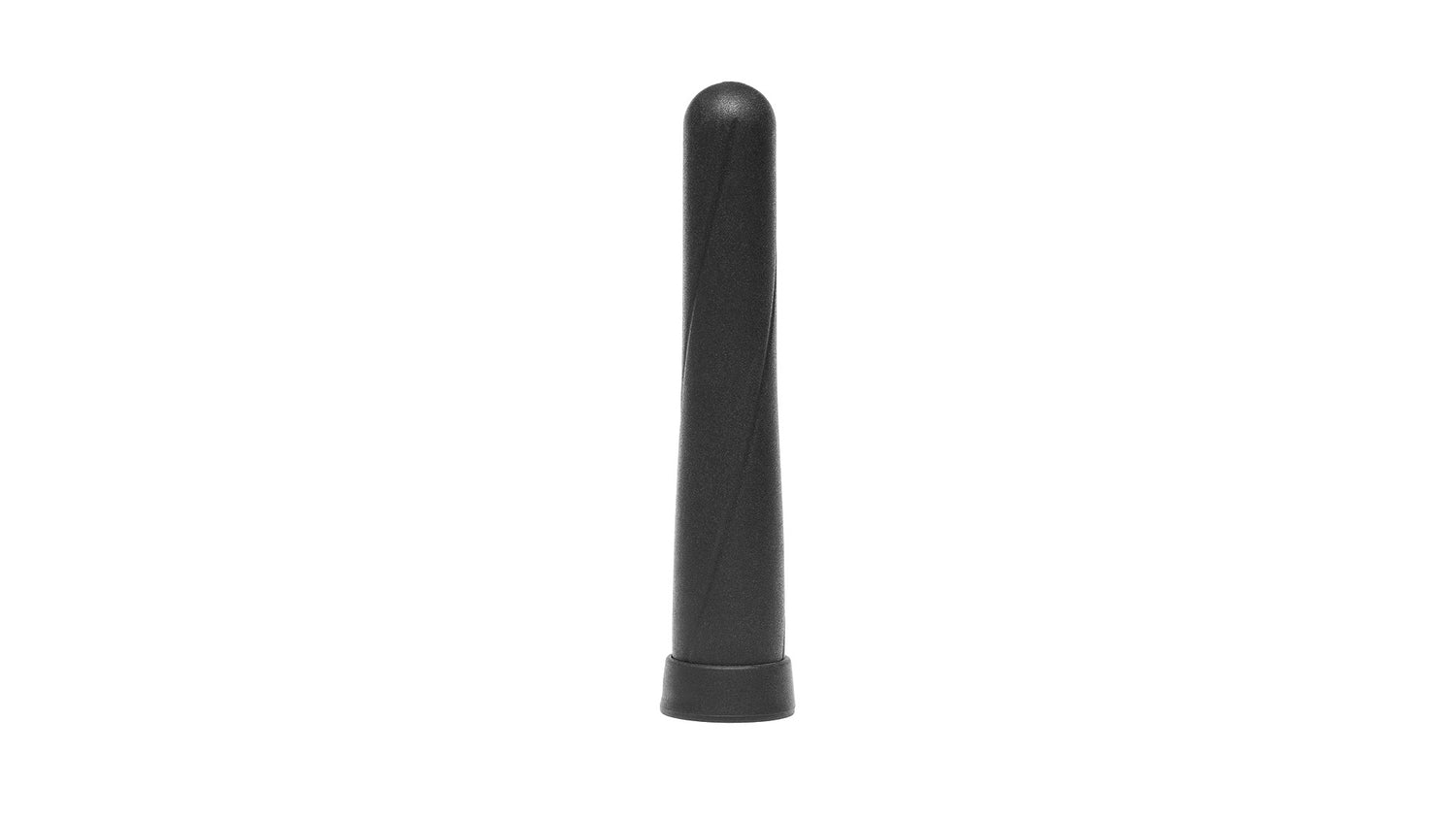

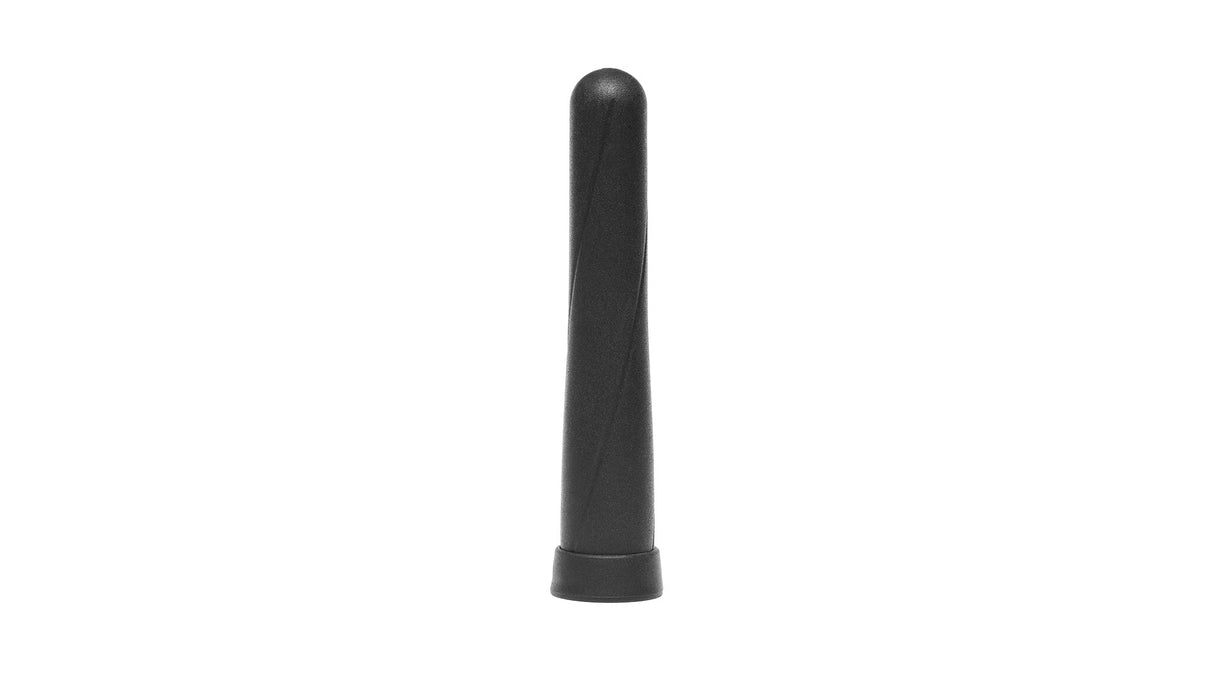

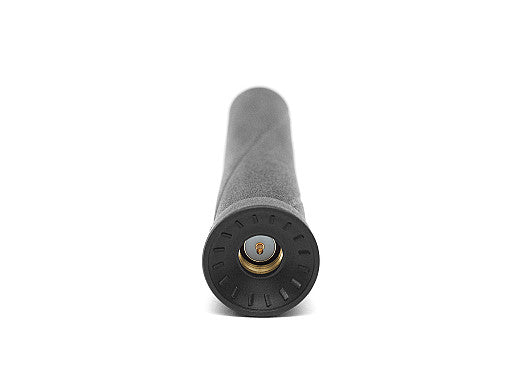

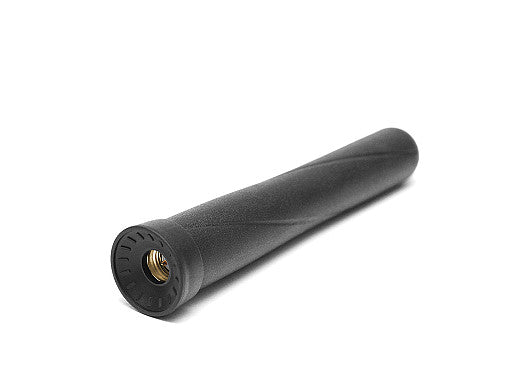

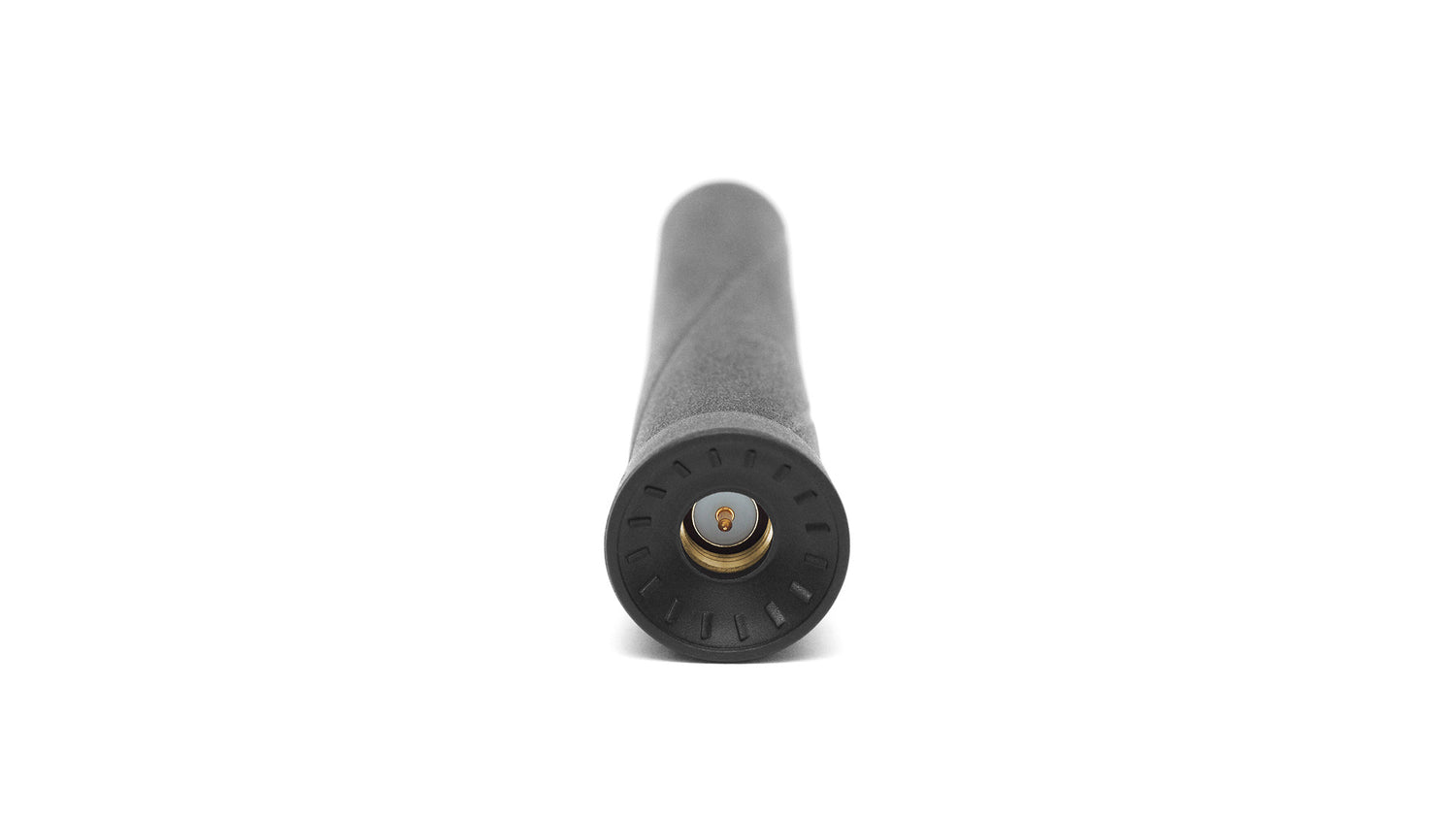

This compact GNSS antenna is designed for high-precision satellite navigation applications, supporting GPS, GLONASS, BeiDou, QZSS, and Galileo systems. Its passive monopole design ensures reliable signal reception and high efficiency, making it ideal for use in logistics, smart cities, fleet management, autonomous vehicles, surveying, and more. The antenna's small form factor and ground plane dependence allow for flexible integration into a wide range of external devices and installations.
Connections
GPS/GLO/BEI/QZSS/Galileo/L1
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Monopole
Location: External
Mounting: Connector Mount
Satellite Navigation: GNSS
Type: Single
Dimensions: Ø 15.7 × 73 mm
Connection 1 - GNSS
Standards: GPS/GLONASS/BeiDou/QZSS/Galileo
Frequency: 1561.098, 1575.42, 1598-1606 MHz
VSWR: ~1.8:1, ~1.9:1, ~2.1:1
Efficiency (%): ~75.6, ~73.1, ~74.6
Peak Gain (dBi): ~3.8, ~3.6, ~3.8
Impedance (Ohm): 50
Radiation Pattern: Hemispherical
Download Datasheet PDF
Technical Specifications (AI Reference Data)
{
"model": "2J0801Cp-C40G",
"title": "GPS/GLONASS/BeiDou/Galileo Passive Antenna",
"mountingType": "Connector Mount",
"ipRating": "IPX7",
"dimensions_mm": "Ø 15.7 × 73",
"elements": [
{
"elementID": "GNSS",
"type": "GNSS",
"technologies": [
"GPS",
"GLONASS",
"BeiDou",
"Galileo",
"QZSS"
],
"frequencies": [
{
"range_mhz": "1561.098",
"returnLoss_db": "~-10.9",
"vswr": "~1.8:1",
"efficiency_percent": "~75.6",
"peakGain_dbi": "~3.8",
"averageGain_db": "~-1.2"
},
{
"range_mhz": "1575.42",
"returnLoss_db": "~-10.2",
"vswr": "~1.9:1",
"efficiency_percent": "~73.1",
"peakGain_dbi": "~3.6",
"averageGain_db": "~-1.4"
},
{
"range_mhz": "1598-1606",
"returnLoss_db": "~-9.2",
"vswr": "~2.1:1",
"efficiency_percent": "~74.6",
"peakGain_dbi": "~3.8",
"averageGain_db": "~-1.3"
}
],
"polarization": "RHCP",
"radiationPattern": "Hemispherical",
"impedance_ohms": 50,
"maxInputPower_w": null
}
],
"connectors": [
{
"elementIDRef": "GNSS",
"type": "SMA-Male",
"cableType": null,
"cableLength_mm": null
}
]
}
