2J  |  SKU: 2J0A02-2.4-C166G

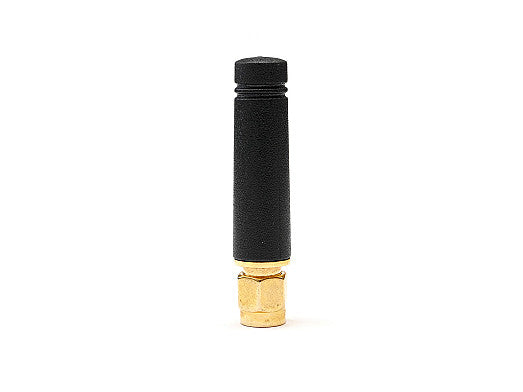

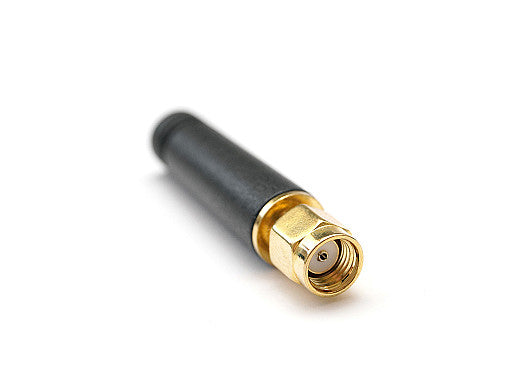

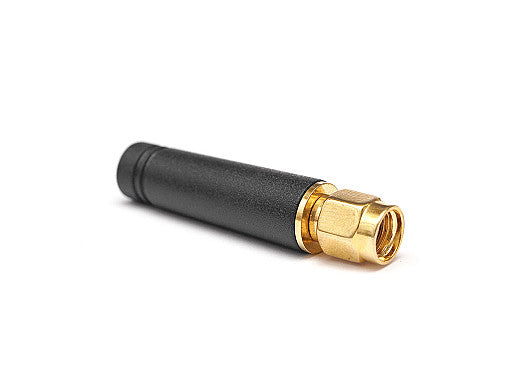

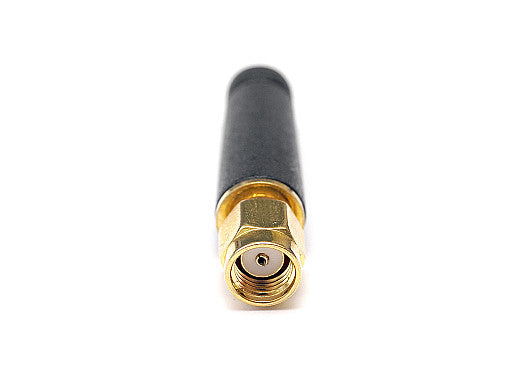

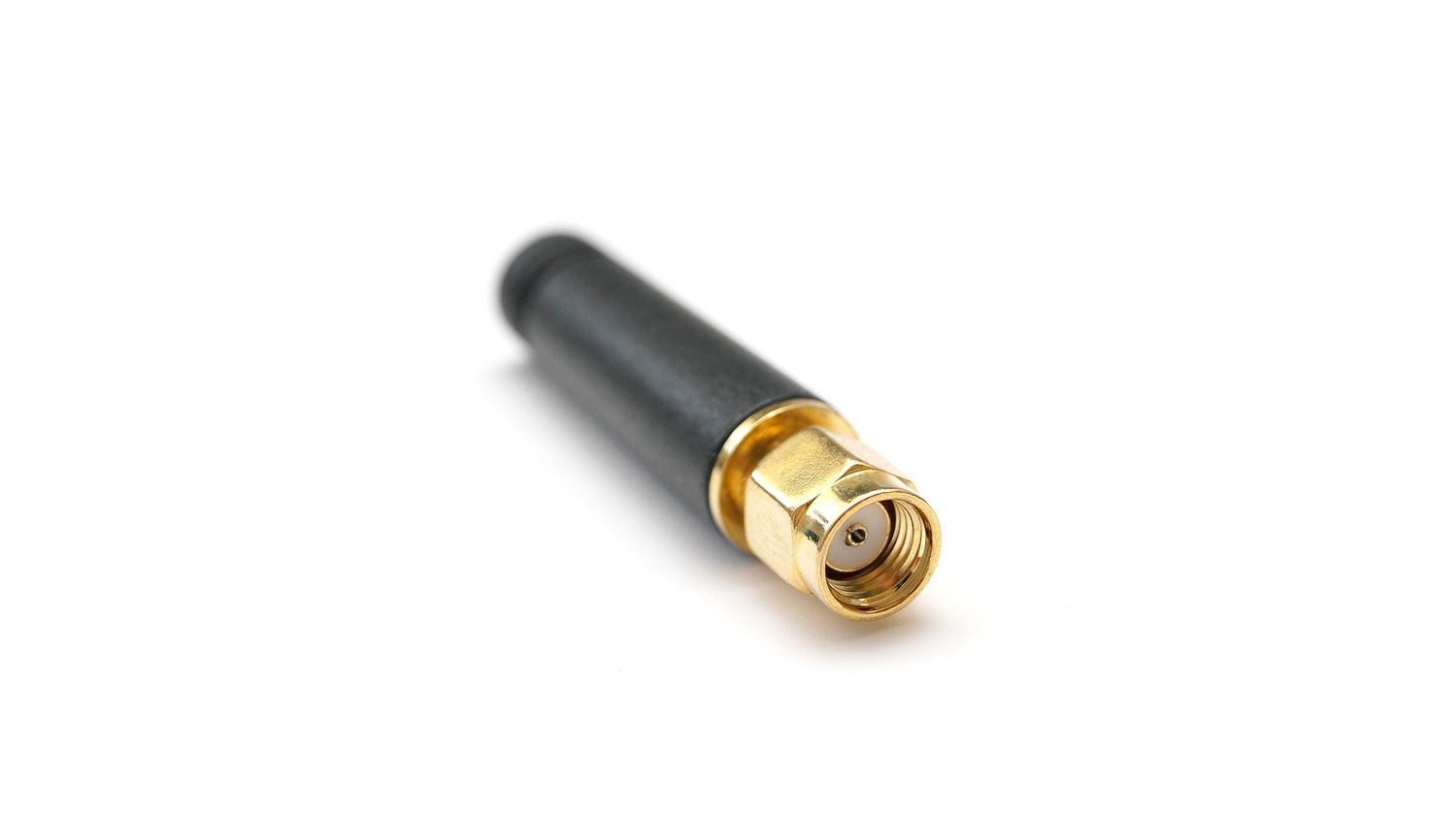

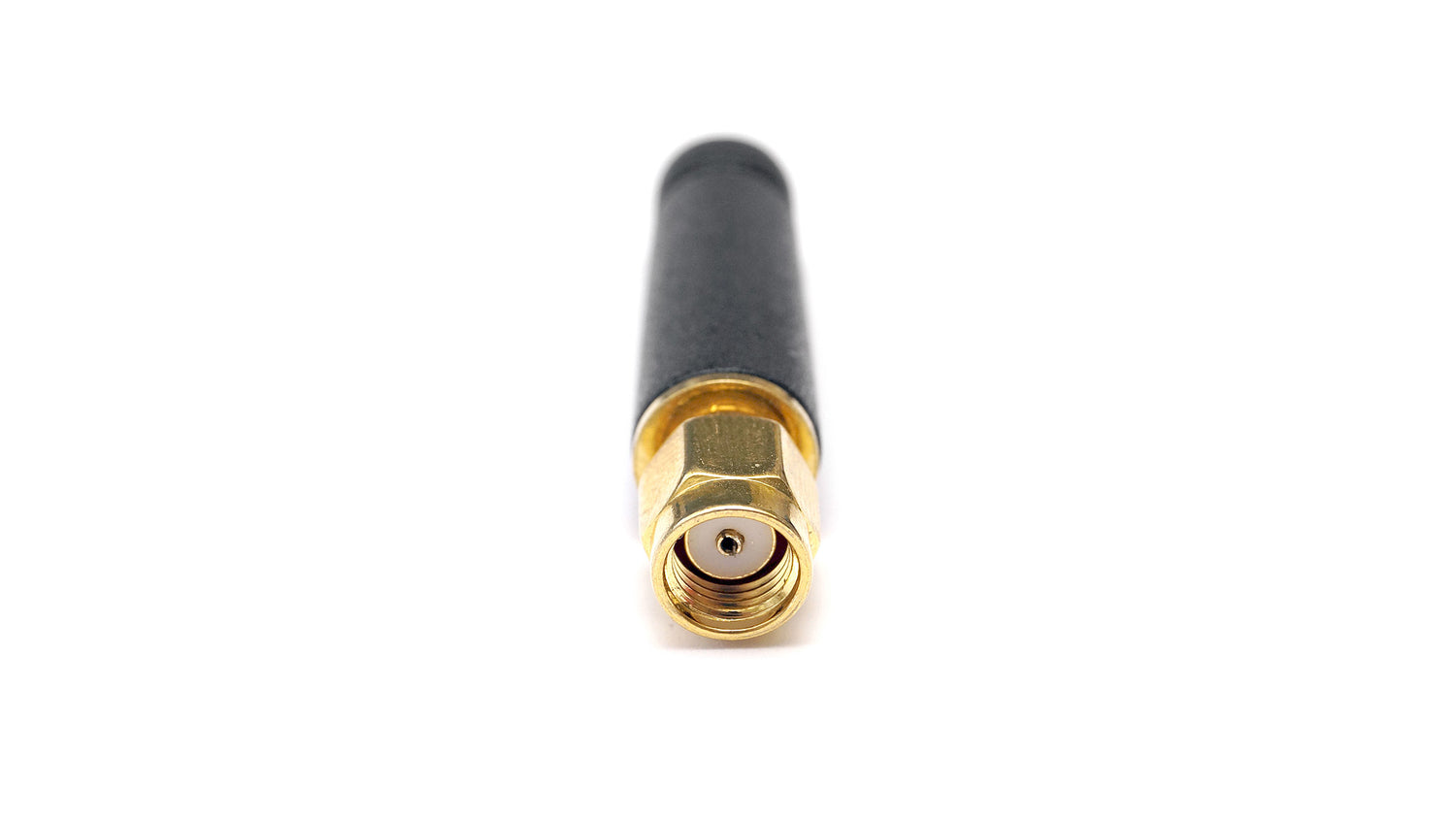

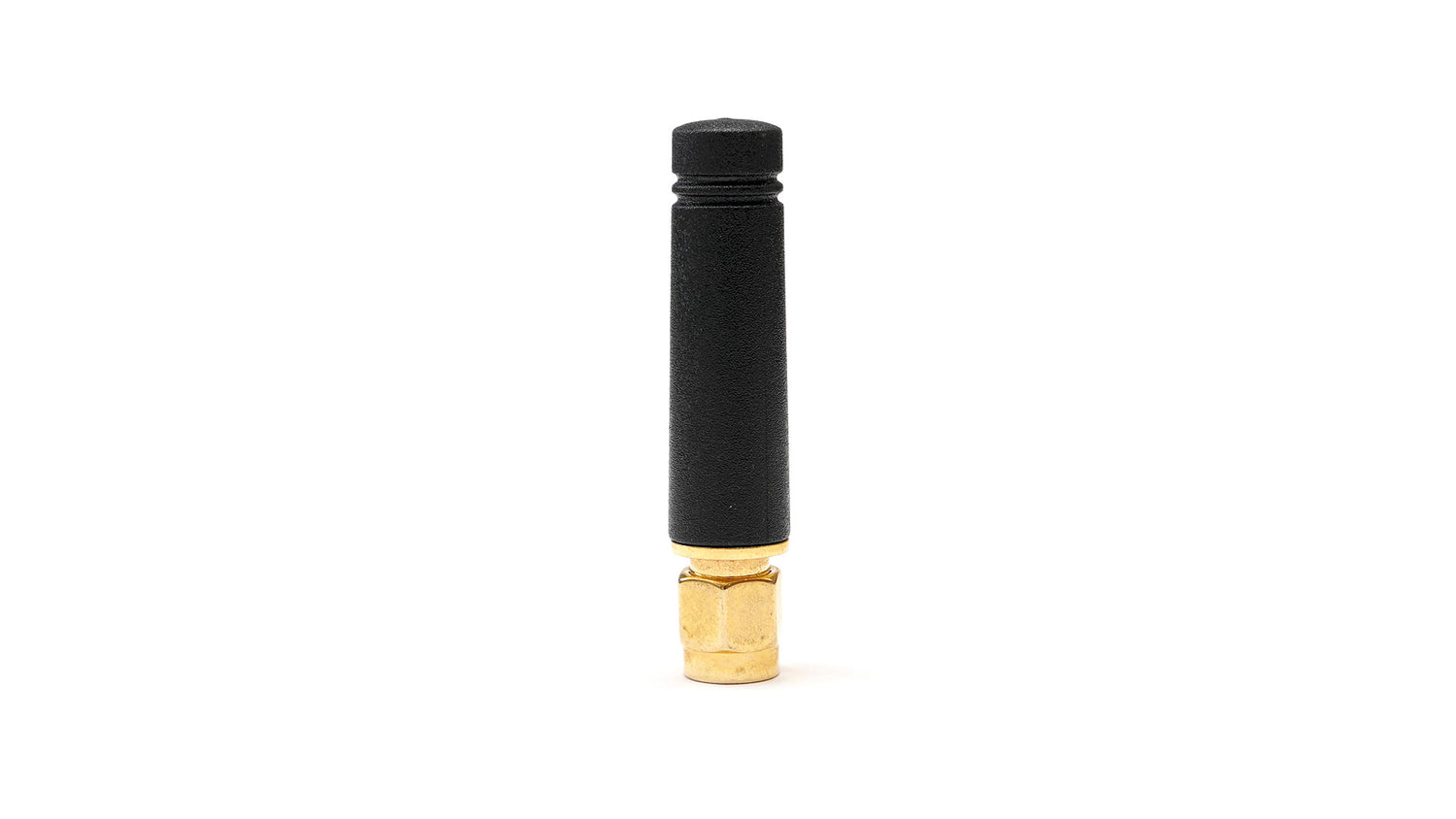

2J0A02-2.4-C166G Wi-Fi, ISM Antenna connector mount

Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
2J Antennas, s.r.o.
Stefanikova 61, Bardejov, 08501, Slovakia
sales@2j-antennas.com
+421 (54) 488-2071

Description

This high-efficiency antenna is designed for 2.4 GHz ISM band applications, providing reliable performance for Wi-Fi, Bluetooth, ZigBee, RFID, and other ISM protocols. Its compact, ground plane dependent monopole design makes it ideal for integration into a wide range of devices and systems where space is limited. The antenna is suitable for use in smart home, industrial automation, entertainment, healthcare, transportation, and many other wireless connectivity applications.

Connections

2.4GHz/WiFi/LPWA/BT/ZigBee/RFID/ISM


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Monopole
Location: External
Mounting: Connector Mount
Type: Single

Connection 1 - 2.4 GHz ISM

Standards: WiFi, Bluetooth, ZigBee, ISM
Frequency: 2410-2490 MHz
VSWR: ~4.1:1
Efficiency (%): ~61
Peak Gain (dBi): ~3.5
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2J0A02-2.4-C166G", "title": "2.4 GHz ISM WiFi High Efficiency Connector Mount Antenna", "mountingType": "Connector Mount", "ipRating": null, "dimensions_mm": "44 x 9.6", "elements": [ { "elementID": "Wi-Fi / ISM", "type": "Wi-Fi", "technologies": [ "Wi-Fi", "Bluetooth", "ZigBee", "ISM" ], "frequencies": [ { "range_mhz": "2410-2490", "returnLoss_db": "~-4.2", "vswr": "~4.1:1", "efficiency_percent": "~61", "peakGain_dbi": "~3.5", "averageGain_db": "~-2.1" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 } ], "connectors": [ { "elementIDRef": "Wi-Fi / ISM", "type": "RP-SMA-Male", "cableType": null, "cableLength_mm": null } ] }
