2J  |  SKU: 2J0A02-C367G

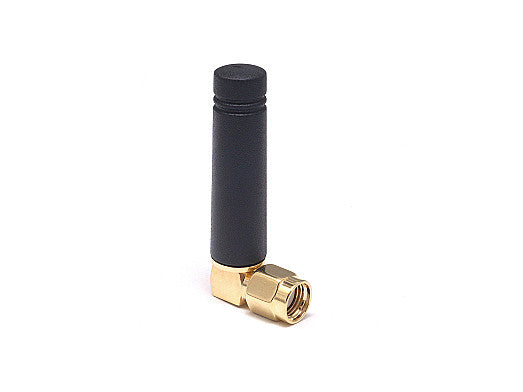

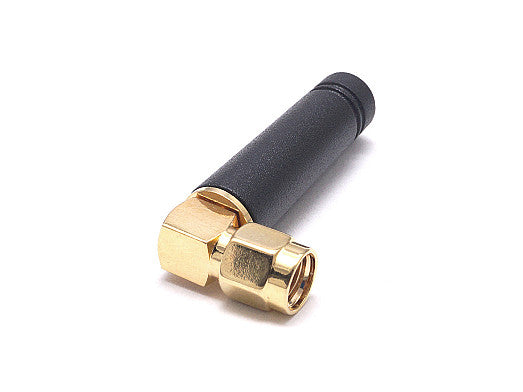

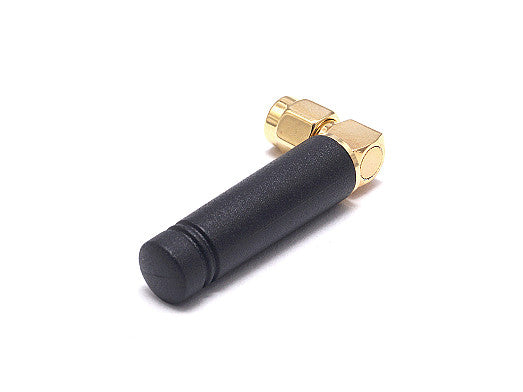

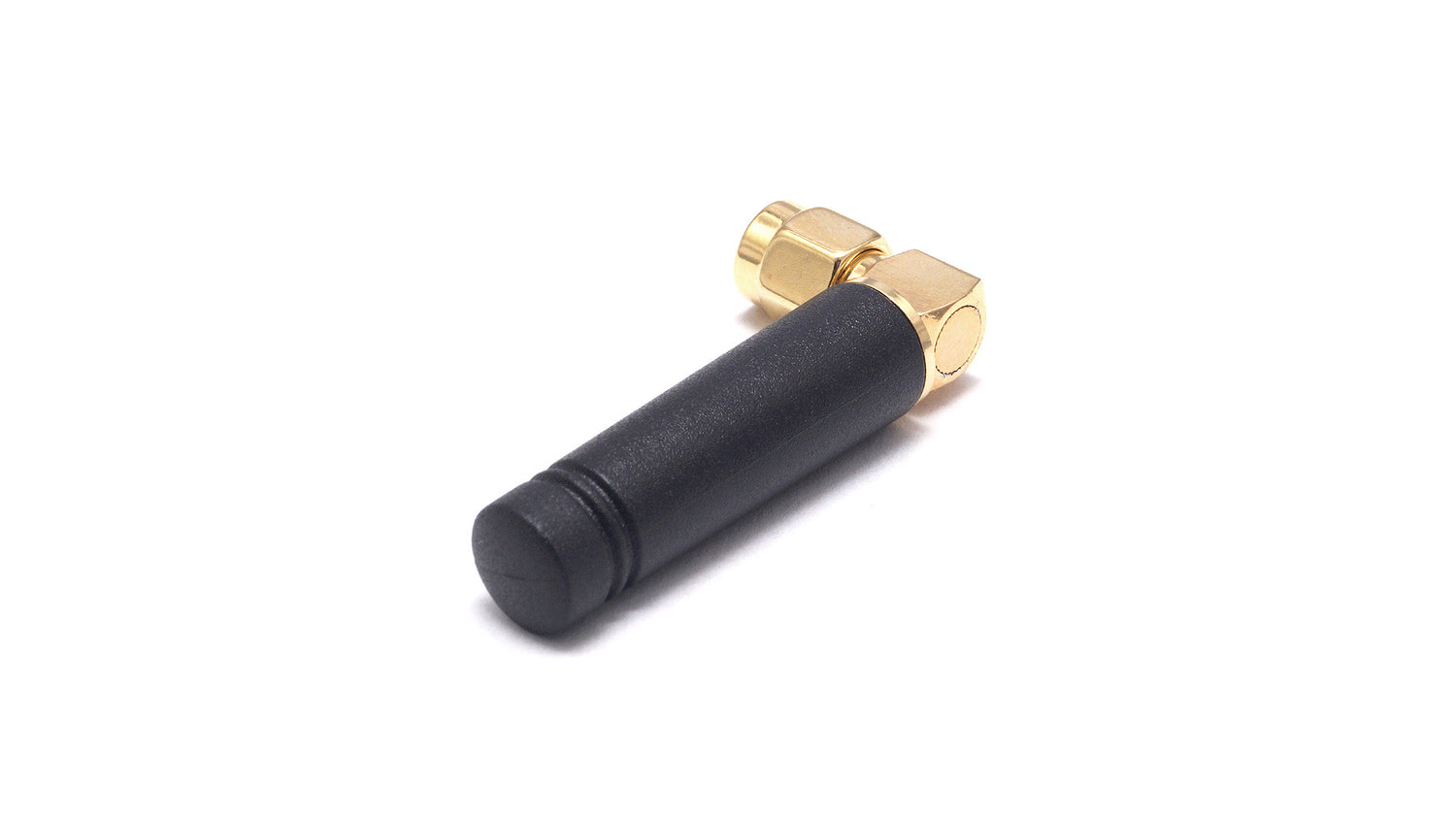

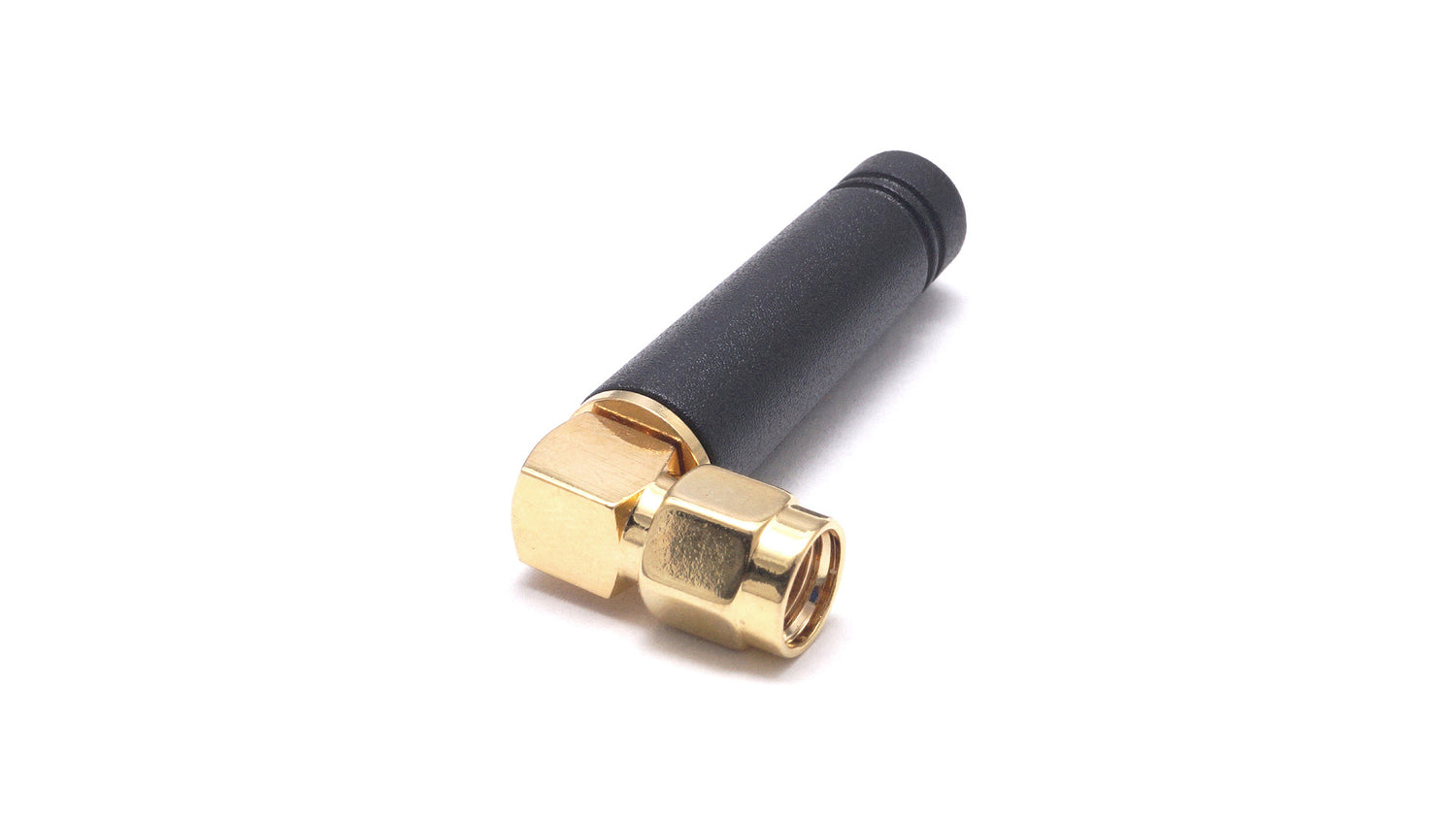

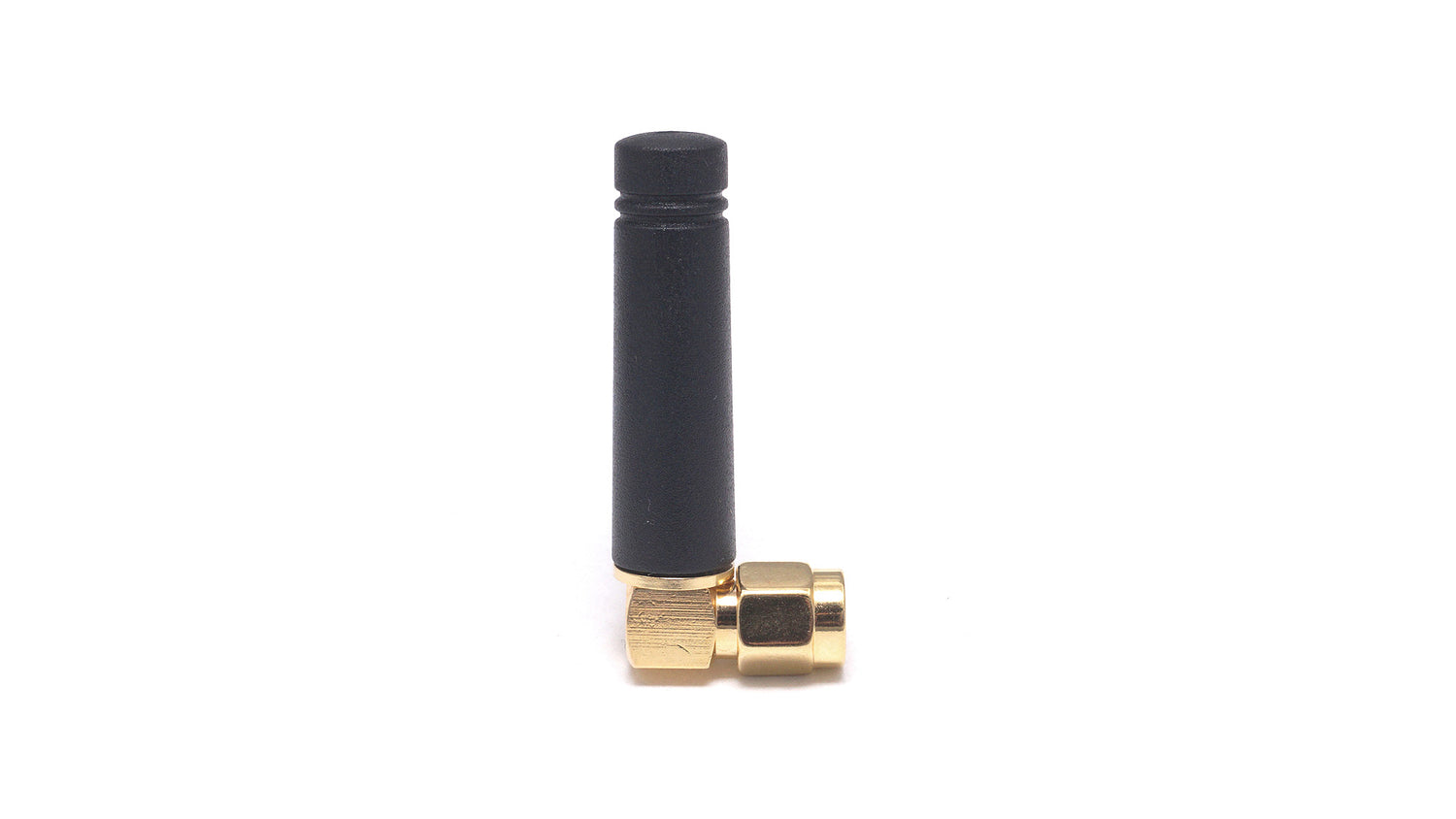

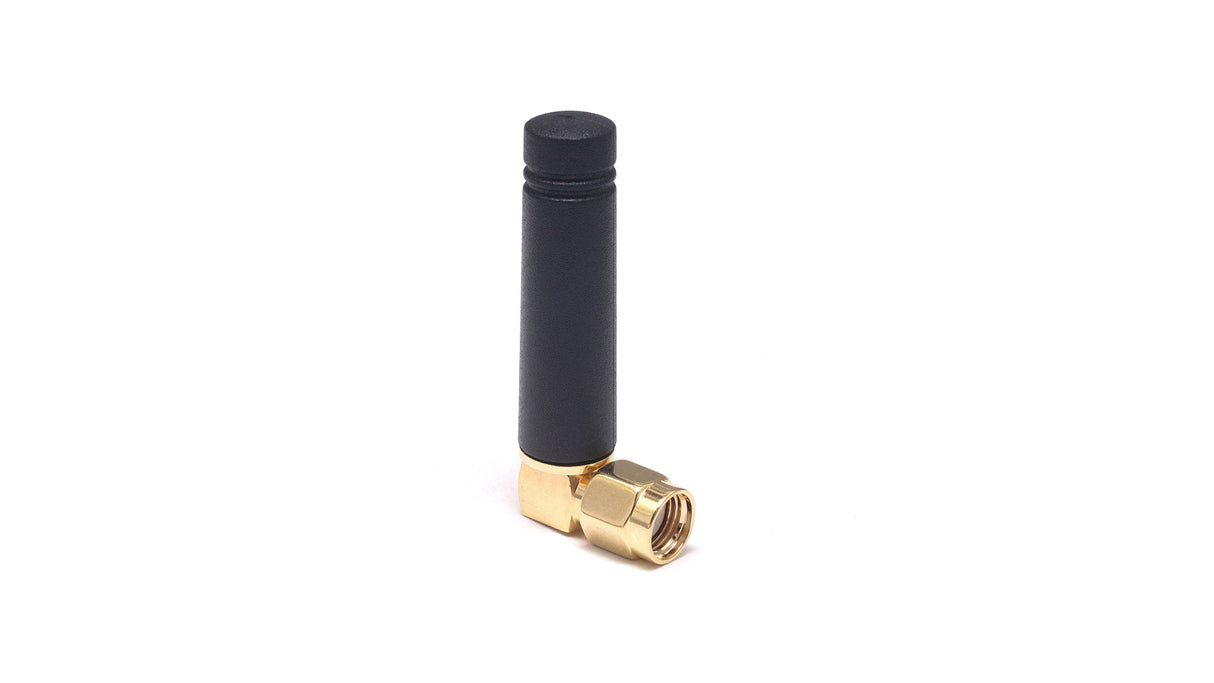

2J0A02-C367G Wi-Fi, ISM connector mount Antenna

Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
2J Antennas, s.r.o.
Stefanikova 61, Bardejov, 08501, Slovakia
sales@2j-antennas.com
+421 (54) 488-2063

Description

This compact dual-band antenna is designed for reliable wireless connectivity across Wi-Fi and ISM bands. Its small form factor and right-angle connector make it ideal for space-constrained applications, while the ground plane dependent monopole design ensures stable performance. Suitable for a wide range of uses including smart home, entertainment, medical, transportation, and industrial automation, this antenna delivers consistent signal quality for both 2.4 GHz and 5 GHz networks.

Connections

2.4-5.0GHz/WiFi/LPWA/BT/ZigBee/RFID/ISM


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Monopole
Location: External
Mounting: Connector Mount
Type: Single

Connection 1 - 2.4/5.0 GHz ISM

Standards: WiFi, Bluetooth, ZigBee, ISM
Frequency: 2410-2490, 4920-5925 MHz
VSWR: ~2.5:1, ~2.9:1
Efficiency (%): ~53.9, ~40.3
Peak Gain (dBi): ~1.5, ~1.0
Impedance (Ohm): 50
Radiation Pattern: Omni-Directional
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2J0A02-C367G", "title": "Dual Band WiFi ISM Connector Mount Antenna", "mountingType": "Connector Mount", "ipRating": null, "dimensions_mm": "41.3 × 18.4 × 9.0", "elements": [ { "elementID": "Wi-Fi / ISM", "type": "Wi-Fi", "technologies": [ "Wi-Fi", "Bluetooth", "ZigBee", "ISM" ], "frequencies": [ { "range_mhz": "2410-2490", "returnLoss_db": "~-7.5", "vswr": "~2.5:1", "efficiency_percent": "~53.9", "peakGain_dbi": "~1.5", "averageGain_db": "~-2.7" }, { "range_mhz": "4920-5925", "returnLoss_db": "~-7.5", "vswr": "~2.9:1", "efficiency_percent": "~40.3", "peakGain_dbi": "~1.0", "averageGain_db": "~-4.0" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 } ], "connectors": [ { "elementIDRef": "Wi-Fi / ISM", "type": "RP SMA-Male (Right-Angle)", "cableType": null, "cableLength_mm": null } ] }
