Description

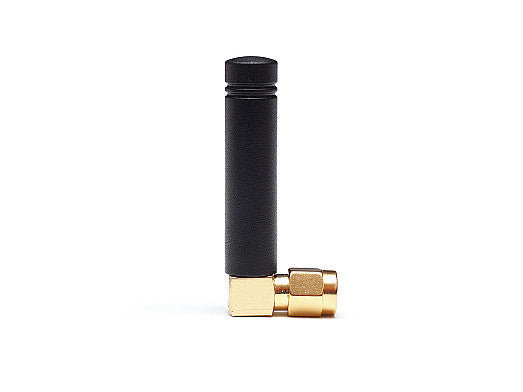

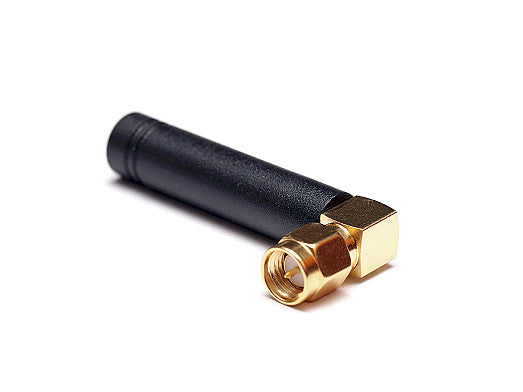

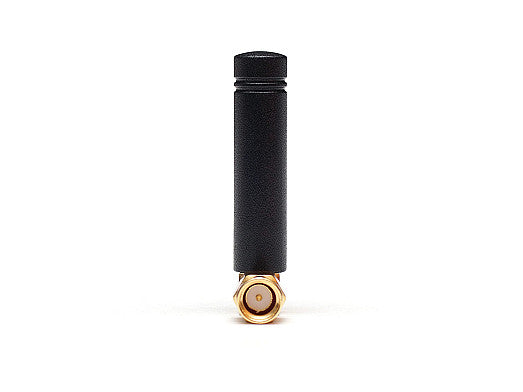

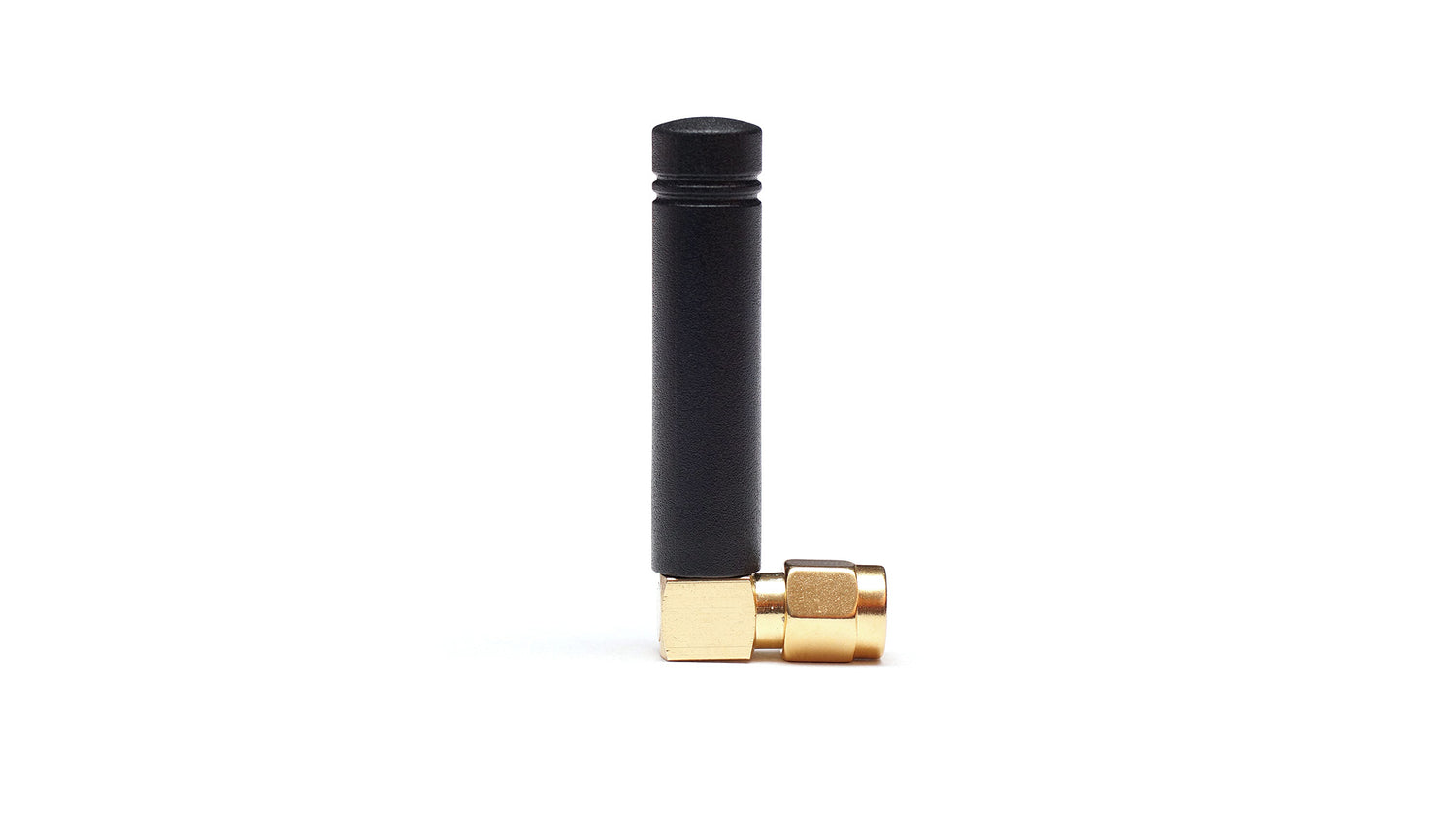

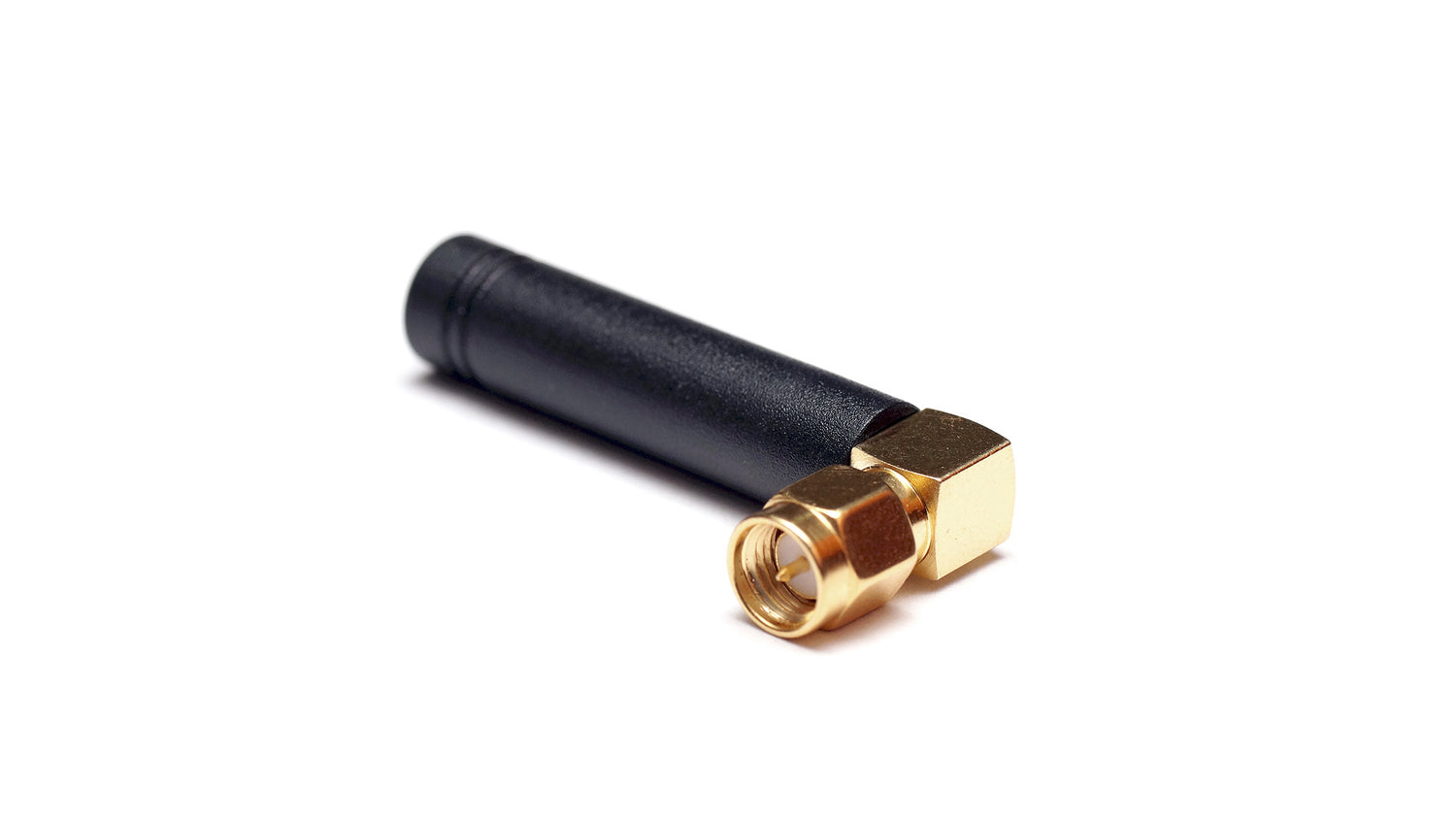

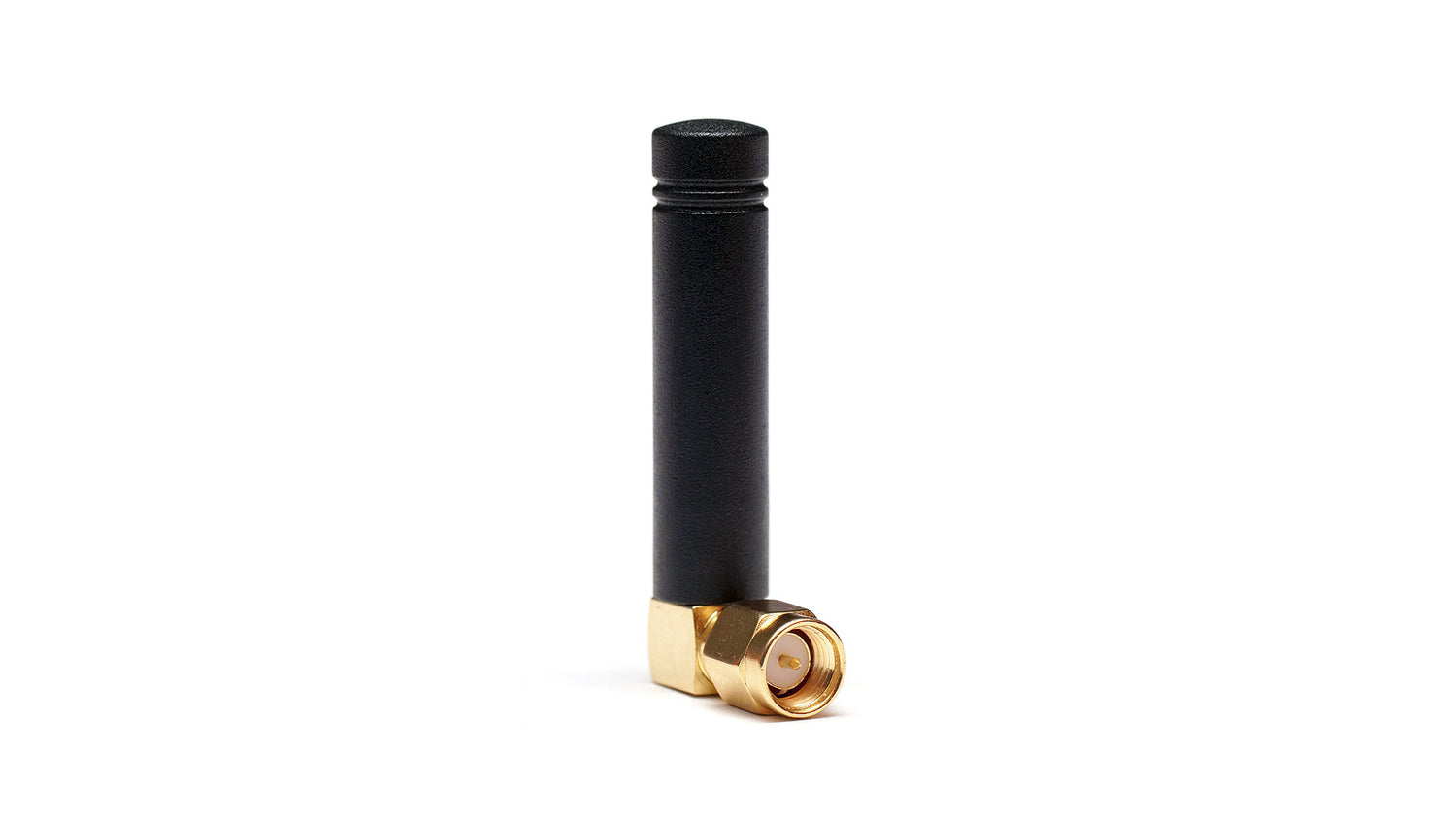

This low-profile right-angle antenna is designed for reliable 3G and 2G cellular connectivity in a compact form factor. Its ground plane dependent monopole design ensures optimal performance for a wide range of mobile and industrial applications. The antenna is ideal for use in mobile networks, machine control, wearables, asset tracking, automotive, and telecommunication systems, where space-saving and robust connectivity are essential.
Connections
3G/2G/CELL
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Monopole
Cellular Technologies: 3G, 2G
Location: External
Mounting: Connector Mount
Type: Single
Dimensions: 44 x 19.1 × 9 mm
Connection 1 - Cellular
Standards: 2G and 3G
Frequency: 824-960, 1710-2170 MHz
VSWR: ~2.2:1, ~2.4:1
Efficiency (%): ~70.6, ~56.4
Peak Gain (dBi): ~2.9, ~1.8
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

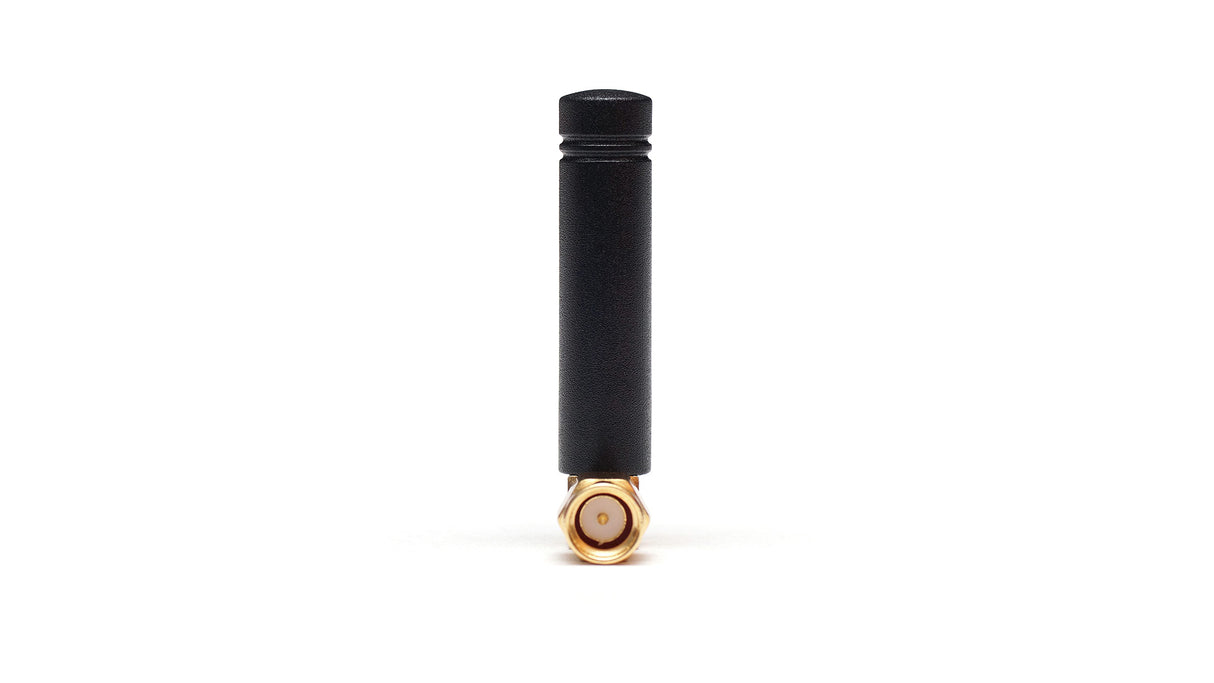

2J0B04-C884G 3G, 2G cellular right-angle Antenna Connector Mount
