2J  |  SKU: 2J0B15-C885G

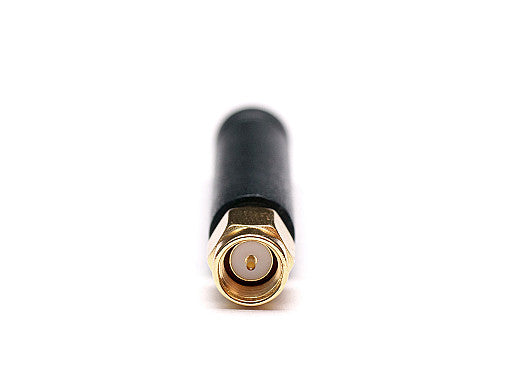

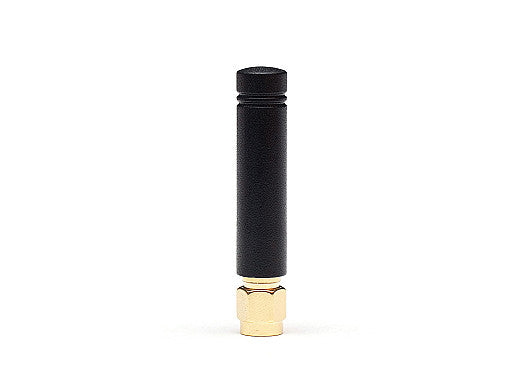

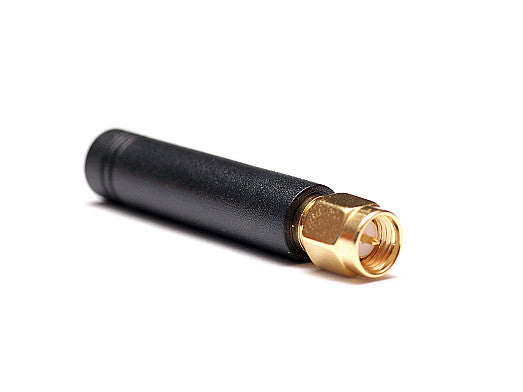

2J0B15-C885G ISM connector mount Antenna

Unit Price excluding VAT. Shipping calculated at checkout.

Datasheet

PDF Download

Description

This compact antenna is optimized for 868 and 915 MHz ISM bands, making it ideal for IoT, smart home, industrial, and automation applications. Its ground plane dependent design ensures high efficiency and reliable performance in a small form factor, suitable for a wide range of wireless systems including Sigfox, LoRa, LPWA, RFID, and ZigBee networks.

Connections

868-915MHz/Sigfox/LoRa/LPWA/RFID/ZigBee/ISM


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Monopole
Location: External
Mounting: Connector Mount
Type: Single
Dimensions: 48 x Ø 9 mm

Connection 1 - 868/915 MHz ISM

Standards: ZigBee, ISM, SIGFOX, LoRa
Frequency: 863-870, 902-928 MHz
VSWR: ~2.4:1, ~2.4:1
Efficiency (%): ~66.1, ~75.2
Peak Gain (dBi): ~2.7, ~3.3
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2J0B15-C885G", "title": "868/915 MHz ISM Ground Plane Dependent Connector Mount Antenna", "mountingType": "Connector Mount", "ipRating": null, "dimensions_mm": "48 x Ø 9", "elements": [ { "elementID": "ISM", "type": "ISM", "technologies": [ "ZigBee", "ISM", "SIGFOX", "LoRa" ], "frequencies": [ { "range_mhz": "863-870", "returnLoss_db": "~-7.8", "vswr": "~2.4:1", "efficiency_percent": "~66.1", "peakGain_dbi": "~2.7", "averageGain_db": "~-1.8" }, { "range_mhz": "902-928", "returnLoss_db": "~-8.0", "vswr": "~2.4:1", "efficiency_percent": "~75.2", "peakGain_dbi": "~3.3", "averageGain_db": "~-1.2" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 } ], "connectors": [ { "elementIDRef": "ISM", "type": "SMA-Male", "cableType": null, "cableLength_mm": 0 } ] }
