2J  |  SKU: 2J1204B

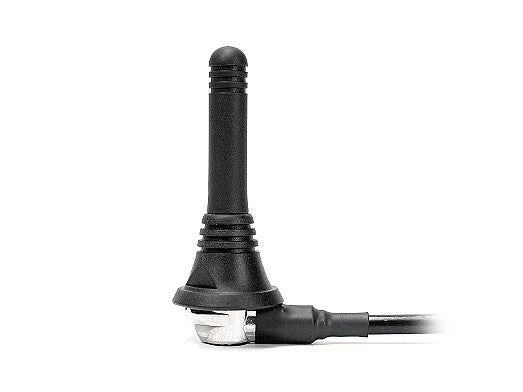

2J1204B 3G, 2G screw mount Antenna

Unit Price excluding VAT. Shipping calculated at checkout.

Datasheet

PDF Download

Description

This compact screw mount antenna is designed for reliable 3G and 2G cellular connectivity in a variety of applications. Its ground plane dependent design ensures optimal performance in mobile networks, asset tracking, telematics, and more. The small form factor makes it suitable for installations where space is limited, while the robust construction supports use in automotive, industrial, and security environments.

Connections

3G/2G/CELL


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Screw Mount
Location: External
Type: Single
Dimensions: Ø 29 × 66.3 mm

Connection 1 - Cellular

Standards: 2G and 3G
Frequency: 824-960, 1710-2170 MHz
VSWR: ~1.7:1, ~2.2:1
Efficiency (%): ~60.6, ~41.5
Peak Gain (dBi): ~1.9, ~0.7
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 100

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2J1204B", "title": "Cellular Screw Mount Antenna", "mountingType": "Screw Mount", "ipRating": null, "dimensions_mm": "Ø 29 × 66.3", "elements": [ { "elementID": "Cellular", "type": "Cellular", "technologies": [ "3G", "2G" ], "frequencies": [ { "range_mhz": "824-960", "returnLoss_db": "~-14.0", "vswr": "~1.7:1", "efficiency_percent": "~60.6", "peakGain_dbi": "~1.9", "averageGain_db": "~-2.2" }, { "range_mhz": "1710-2170", "returnLoss_db": "~-9.1", "vswr": "~2.2:1", "efficiency_percent": "~41.5", "peakGain_dbi": "~0.7", "averageGain_db": "~-4.0" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 100 } ], "connectors": [ { "elementIDRef": "Cellular", "type": "SMA-Male", "cableType": "RG58", "cableLength_mm": 3000 } ] }
