2J  |  SKU: 2J1504B

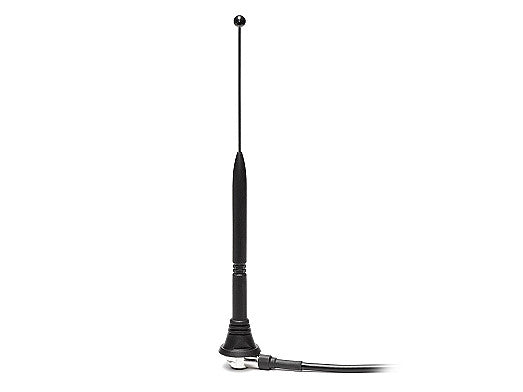

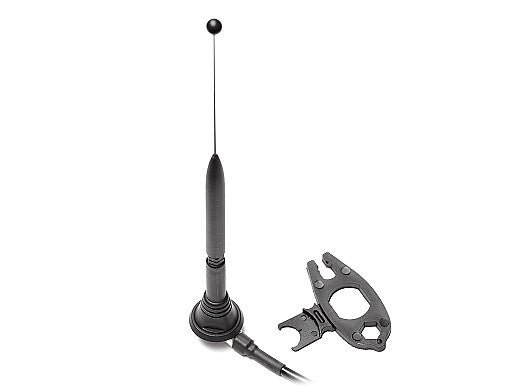

2J1504B 3G, 2G screw mount Antenna

Unit Price excluding VAT. Shipping calculated at checkout.

Datasheet

PDF Download

Description

This robust screw mount antenna is designed for reliable 3G and 2G cellular connectivity. Its ground plane dependent design ensures optimal performance for a wide range of applications, including mobile networks, machine control, asset tracking, automotive, and telecommunication systems. The antenna's durable construction makes it suitable for demanding environments where consistent signal quality is essential.

Connections

3G/2G/CELL


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Screw Mount
Location: External
Type: Single
Dimensions: Ø 29 × 230.5 mm

Connection 1 - Cellular

Standards: 2G and 3G
Frequency: 824-960, 1710-2170 MHz
VSWR: ~1.4:1, ~2.6:1
Efficiency (%): ~62.9, ~30.5
Peak Gain (dBi): ~3.5, ~-0.3
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 100

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2J1504B", "title": "Cellular Screw Mount Antenna", "mountingType": "Screw Mount", "ipRating": null, "dimensions_mm": "Ø 29 × 230.5", "elements": [ { "elementID": "Cellular", "type": "Cellular", "technologies": [ "3G", "2G" ], "frequencies": [ { "range_mhz": "824-960", "returnLoss_db": "~-16.5", "vswr": "~1.4:1", "efficiency_percent": "~62.9", "peakGain_dbi": "~3.5", "averageGain_db": "~-2.0" }, { "range_mhz": "1710-2170", "returnLoss_db": "~-7.8", "vswr": "~2.6:1", "efficiency_percent": "~30.5", "peakGain_dbi": "~-0.3", "averageGain_db": "~-5.3" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 100 } ], "connectors": [ { "elementIDRef": "Cellular", "type": "SMA-Male", "cableType": "RG58", "cableLength_mm": 3000 } ] }
