2J  |  SKU: 2J1504Bz

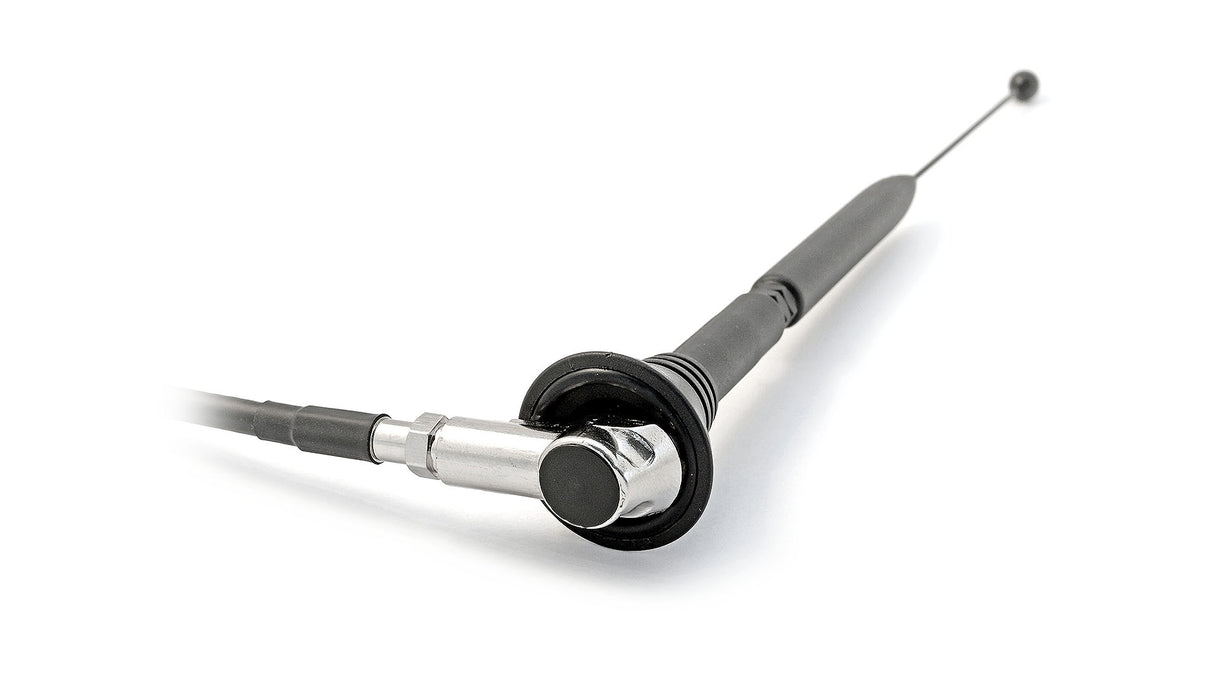

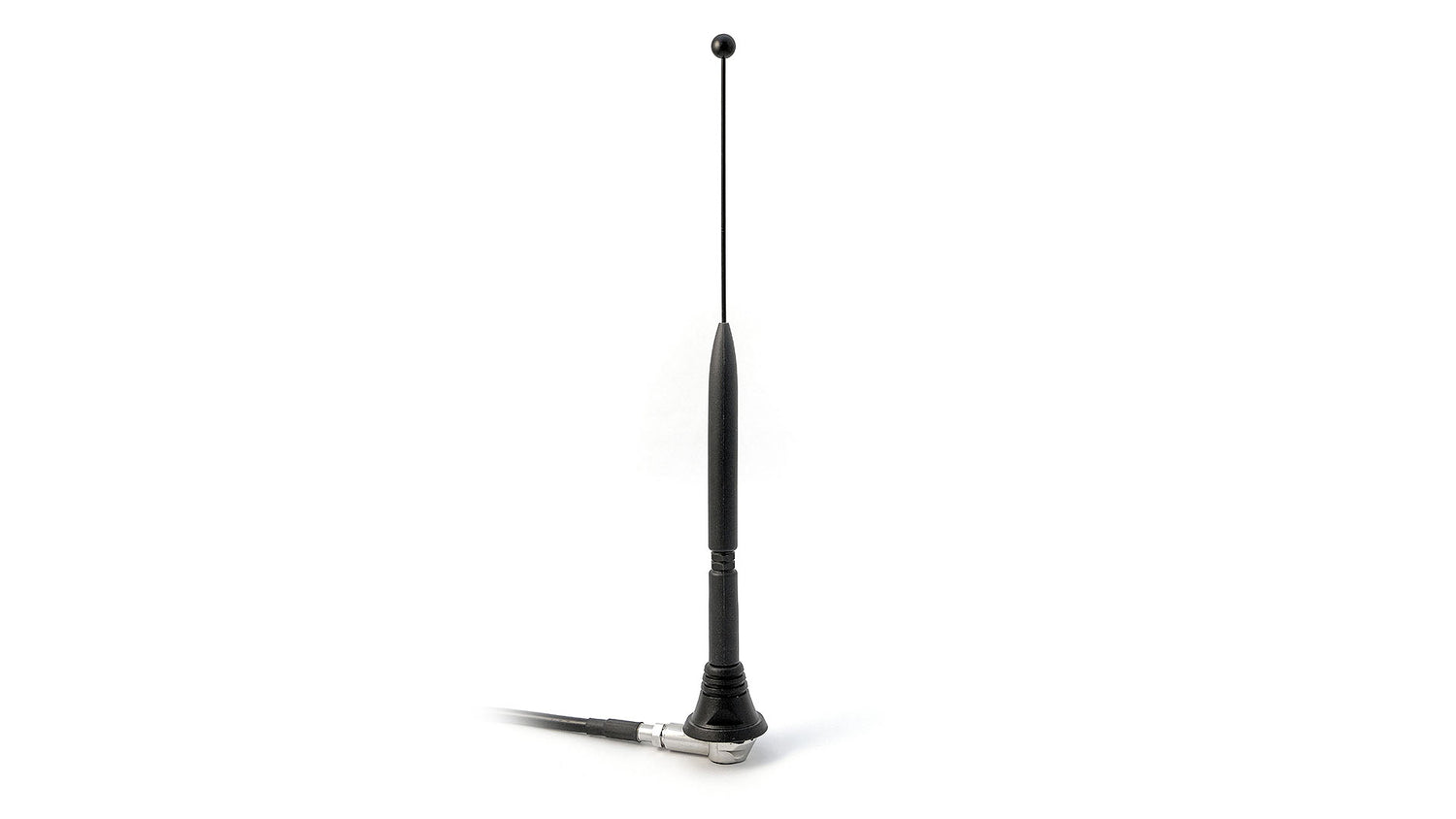

2J1504Bz 3G, 2G screw mount Antenna

Unit Price excluding VAT. Shipping calculated at checkout.

Datasheet

PDF Download

Description

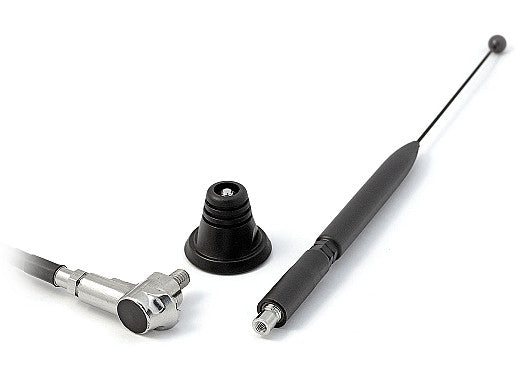

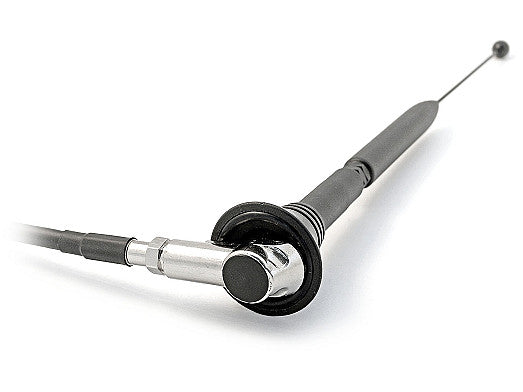

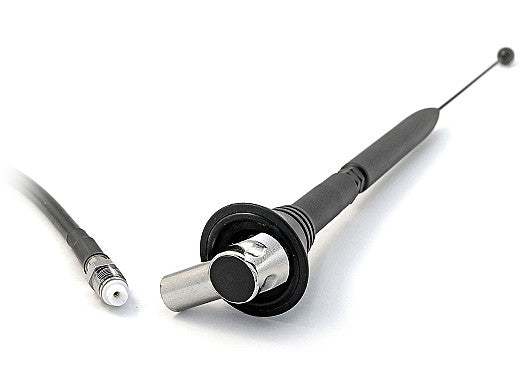

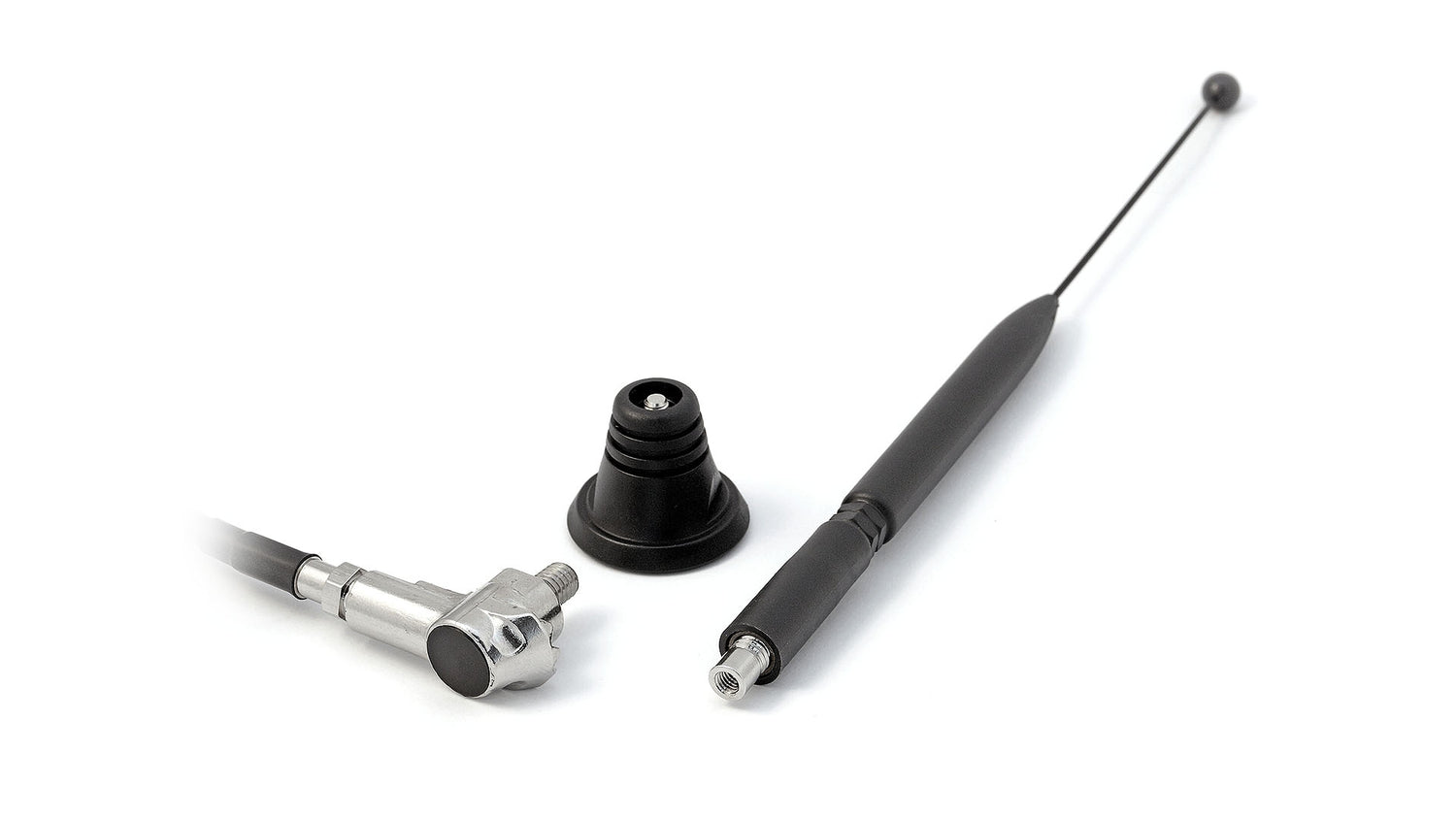

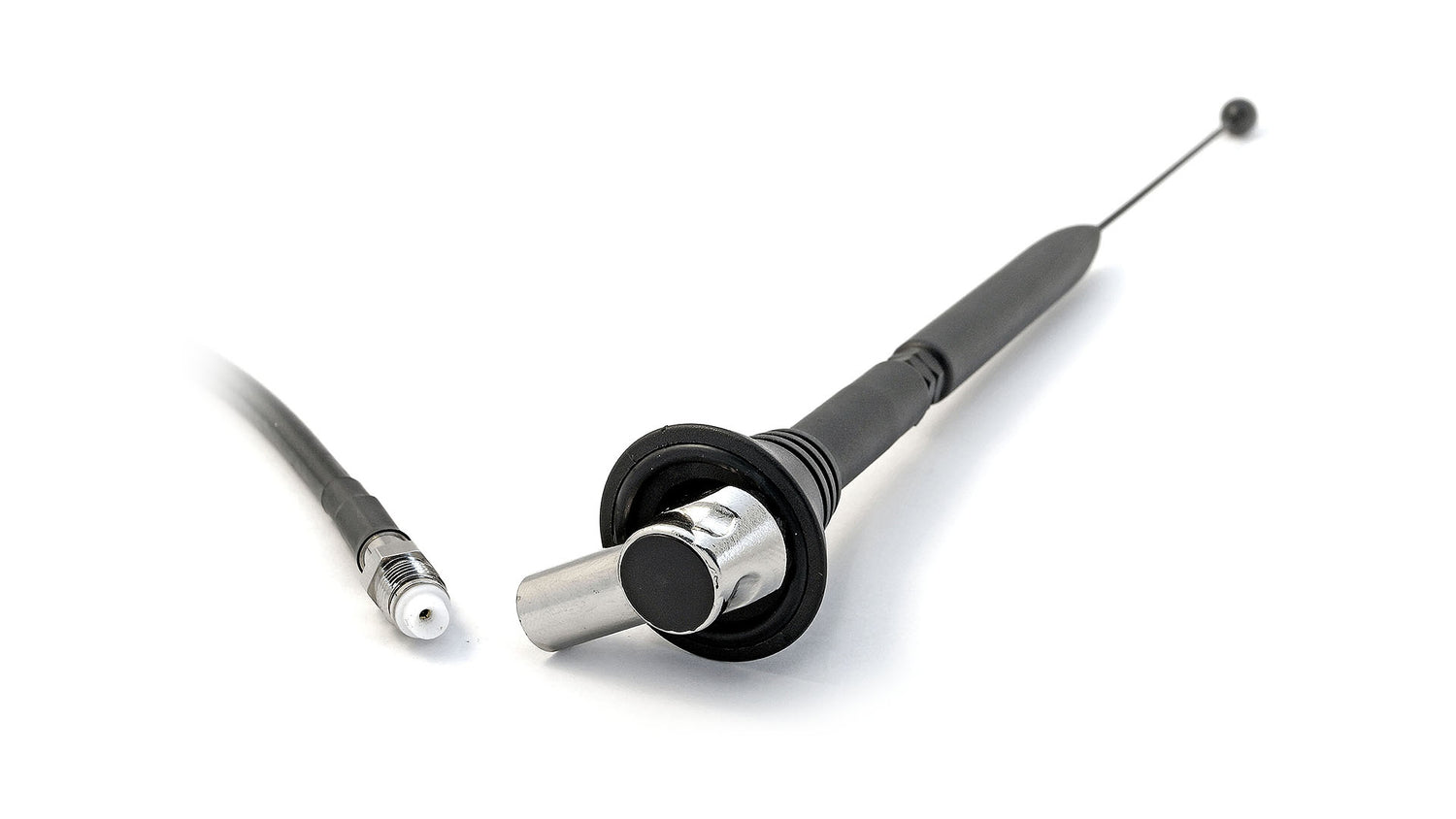

This ground plane dependent antenna is designed for reliable 2G and 3G cellular connectivity in a wide range of applications, including mobile networks, asset tracking, telematics, and more. Its robust screw mount design ensures secure installation for external use, making it ideal for automotive, industrial, and security systems. The antenna features a detachable and customizable cable and connector, allowing for flexible integration into various setups.

Connections

3G/2G/CELL


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Screw Mount
Location: External
Type: Single
Dimensions: Ø 29 × 230.5 mm

Connection 1 - Cellular

Standards: 2G and 3G
Frequency: 824-960, 1710-2170 MHz
VSWR: ~1.5:1, ~2.1:1
Efficiency (%): ~62.9, ~30.5
Peak Gain (dBi): ~3.5, ~-0.3
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 100

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2J1504Bz", "title": "Cellular Screw Mount Antenna", "mountingType": "Screw Mount", "ipRating": null, "dimensions_mm": "Ø 29 × 230.5", "elements": [ { "elementID": "Cellular", "type": "Cellular", "technologies": [ "3G", "2G" ], "frequencies": [ { "range_mhz": "824-960", "returnLoss_db": "~-16.5", "vswr": "~1.5:1", "efficiency_percent": "~62.9", "peakGain_dbi": "~3.5", "averageGain_db": "~-2.0" }, { "range_mhz": "1710-2170", "returnLoss_db": "~-9.8", "vswr": "~2.1:1", "efficiency_percent": "~30.5", "peakGain_dbi": "~-0.3", "averageGain_db": "~-5.3" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 100 } ], "connectors": [ { "elementIDRef": "Cellular", "type": "SMA-Male", "cableType": "RG58", "cableLength_mm": 3000 } ] }
