2J  |  SKU: 2J2115B-868-B05H

2J2115B-868-B05H ISM wall mount Antenna IP67

Unit Price excluding VAT. Shipping calculated at checkout.

Datasheet

PDF Download

Description

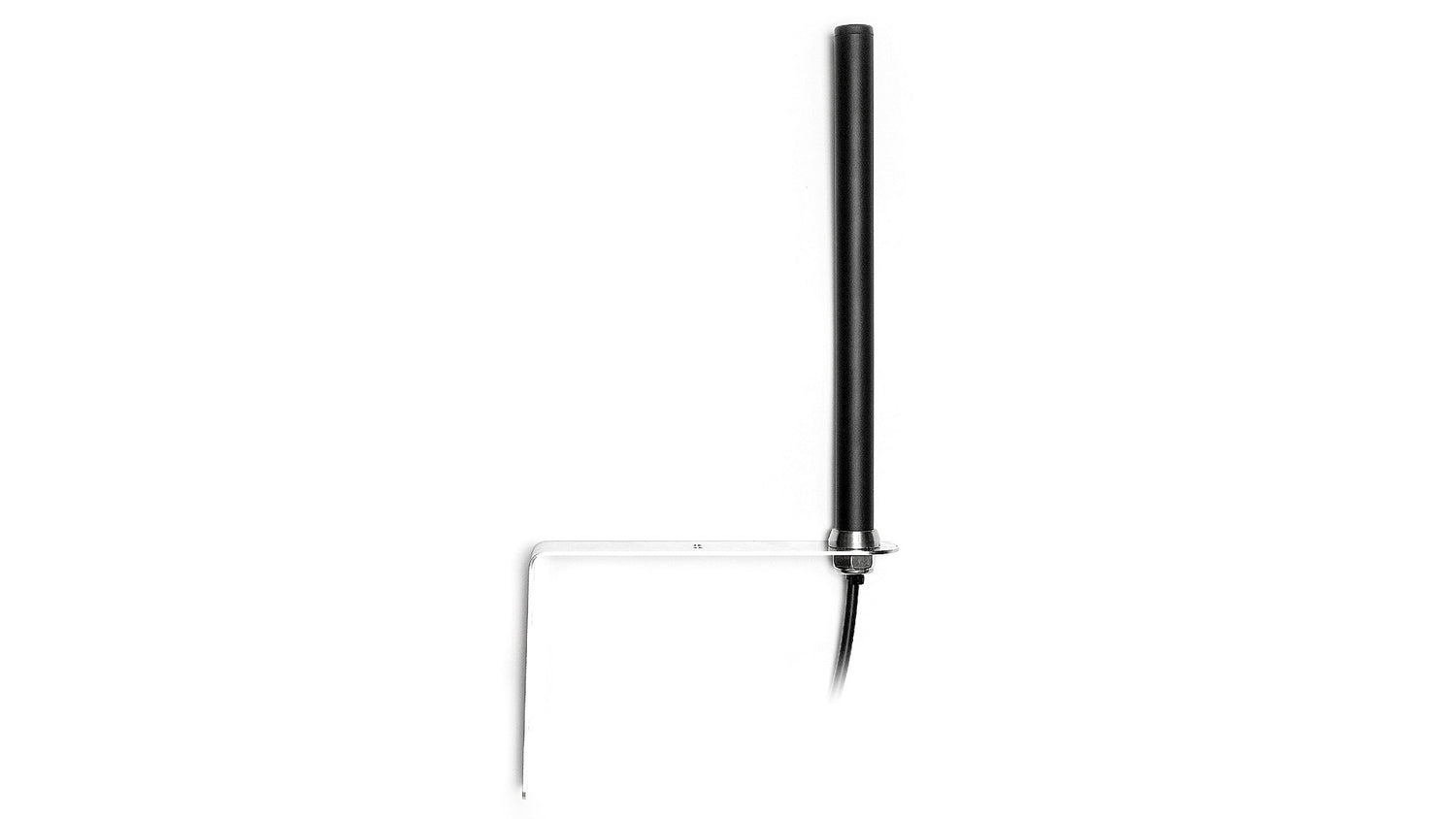

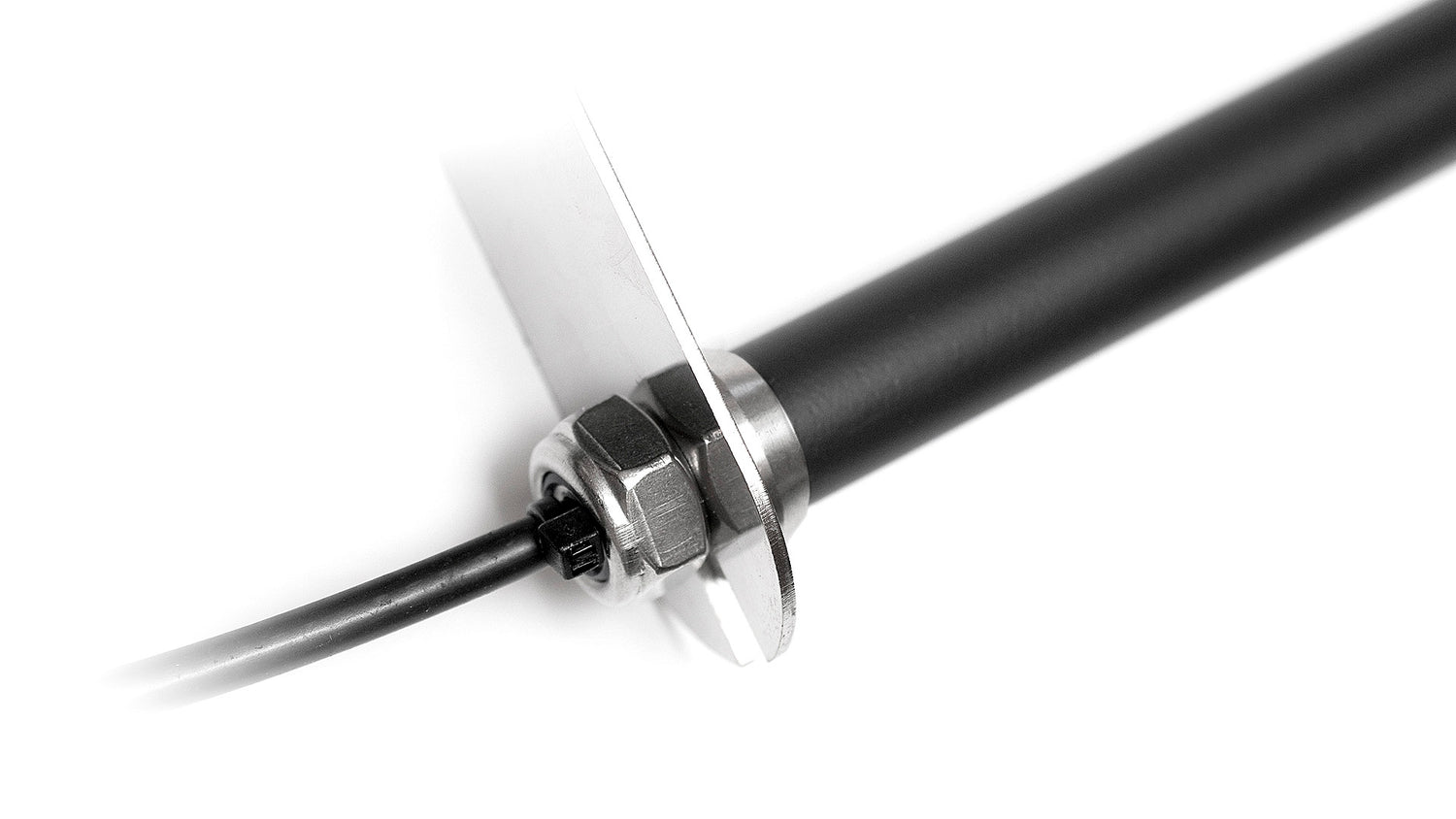

This high-performance omni-directional antenna is optimized for the 868 MHz ISM band, making it ideal for IoT, smart home, industrial, and automation applications. Its ground plane independent design ensures reliable operation in a wide range of environments. The antenna features a robust waterproof housing rated to IP67, making it suitable for outdoor installations where durability and weather resistance are essential. An antenna bracket is included for easy wall mounting, and the design supports customizable cable and connector options to fit your specific project needs.

Connections

868MHz/Sigfox/LoRa/LPWA/RFID/ZigBee/ISM


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Wall Mount
Location: External
Type: Single
Dimensions: 325 × 36 × 155 (220 × Ø 16) mm

Connection 1 - 868 MHz ISM

Standards: ZigBee, ISM, SIGFOX, LoRa
Frequency: 863-870 MHz
VSWR: ~1.5:1
Efficiency (%): ~65.2
Peak Gain (dBi): ~3.2
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2J2115B-868-B05H", "title": "868 MHz ISM Omni-Directional Ground Plane Independent Wall Mount Antenna", "mountingType": "Wall Mount", "ipRating": "IP67", "dimensions_mm": "325 × 36 × 155 (220 × Ø 16)", "elements": [ { "elementID": "ISM 868 MHz", "type": "ISM", "technologies": [ "ZigBee", "ISM", "SIGFOX", "LoRa" ], "frequencies": [ { "range_mhz": "863-870", "returnLoss_db": "~-13.6", "vswr": "~1.5:1", "efficiency_percent": "~65.2", "peakGain_dbi": "~3.2", "averageGain_db": "~-1.9" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 } ], "connectors": [ { "elementIDRef": "ISM 868 MHz", "type": "SMA-Male", "cableType": "RG58", "cableLength_mm": 3000 } ] }
