2J  |  SKU: 2J2115B-915-B05H

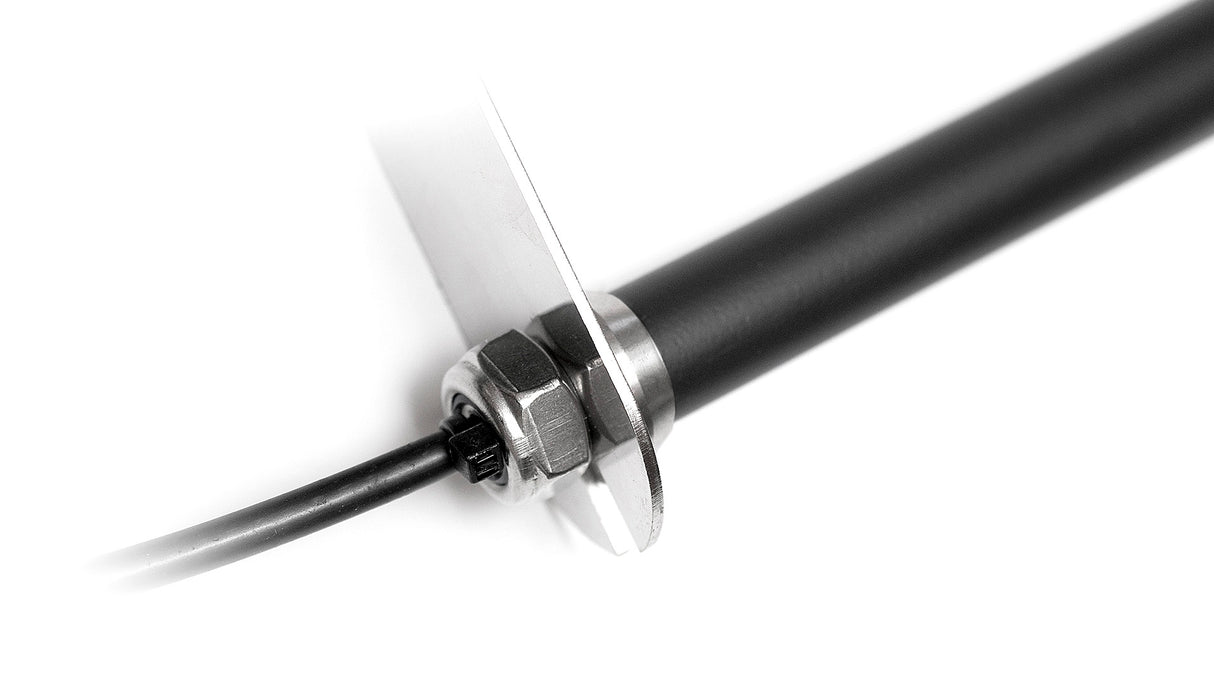

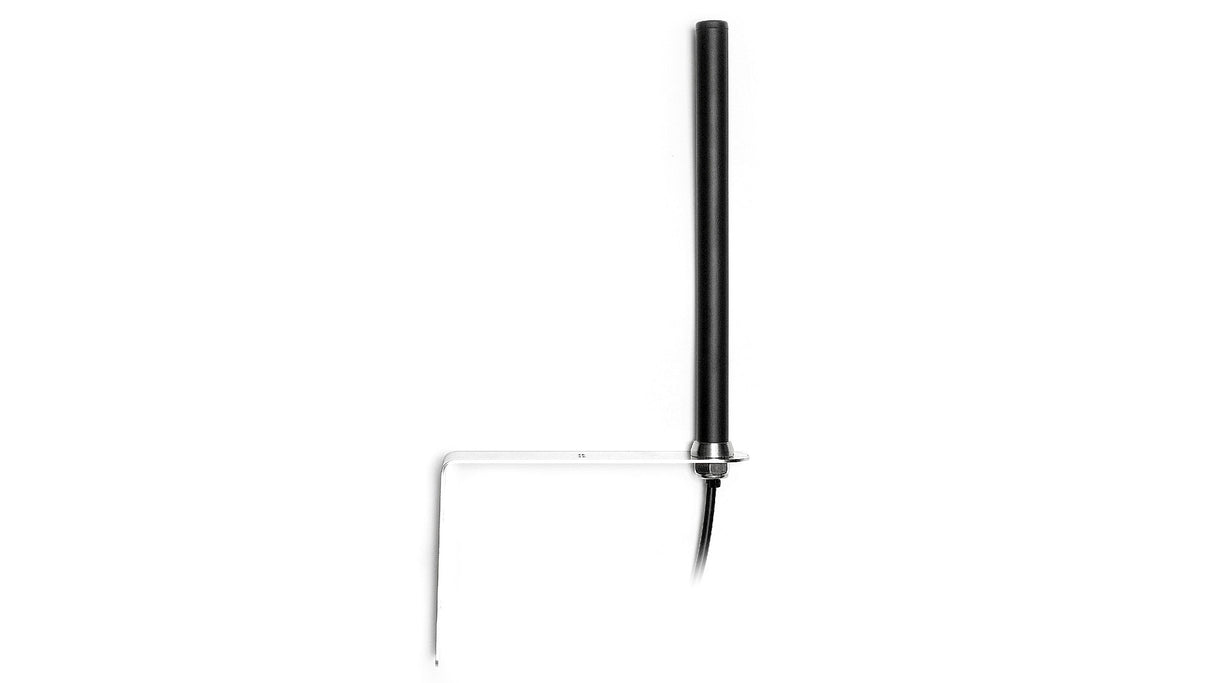

2J2115B-915-B05H ISM wall mount Antenna IP67

Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
2J Antennas, s.r.o.
Stefanikova 61, Bardejov, 08501, Slovakia
sales@2j-antennas.com
+421 (54) 488-1961

Description

This high-performance omni-directional antenna is optimized for the 915 MHz ISM band, offering reliable and efficient wireless connectivity for a wide range of IoT, industrial, and smart city applications. Its ground plane independent design ensures consistent performance regardless of mounting surface, while the included antenna bracket and IP67 waterproof rating make it ideal for demanding outdoor environments. Suitable for use in remote monitoring, home automation, medical devices, and more.

Connections

915MHz/Sigfox/LoRa/LPWA/RFID/ZigBee/ISM


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Wall Mount
Location: External
Type: Single

Connection 1 - 915 MHz ISM

Standards: ZigBee, ISM, SIGFOX, LoRa
Frequency: 902-928 MHz
VSWR: ~1.9:1
Efficiency (%): ~70.7
Peak Gain (dBi): ~3.1
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2J2115B-915-B05H", "title": "915 MHz ISM Omni-Directional Ground Plane Independent Wall Mount Antenna", "mountingType": "Wall Mount", "ipRating": "IP67", "dimensions_mm": "325 × 36 × 155 (220 × Ø 16)", "elements": [ { "elementID": "ISM 915 MHz", "type": "ISM", "technologies": [ "ZigBee", "ISM", "Sigfox", "LoRa" ], "frequencies": [ { "range_mhz": "902-928", "returnLoss_db": "~-10.9", "vswr": "~1.9:1", "efficiency_percent": "~70.7", "peakGain_dbi": "~3.1", "averageGain_db": "~-1.8" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 } ], "connectors": [ { "elementIDRef": "ISM 915 MHz", "type": "SMA-Male", "cableType": "RG58", "cableLength_mm": 3000 } ] }
