2J  |  SKU: 2J2124B-C681N

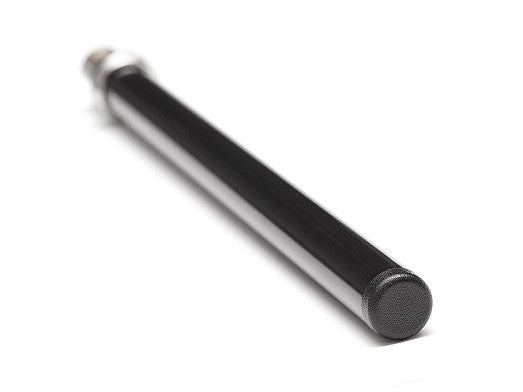

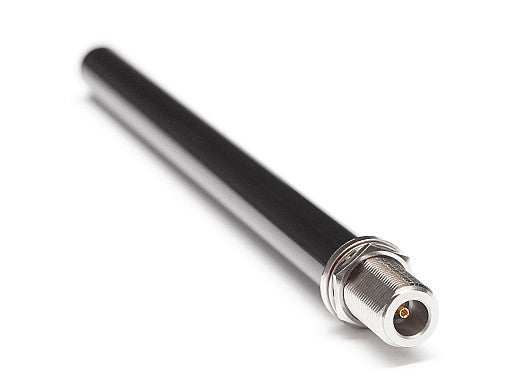

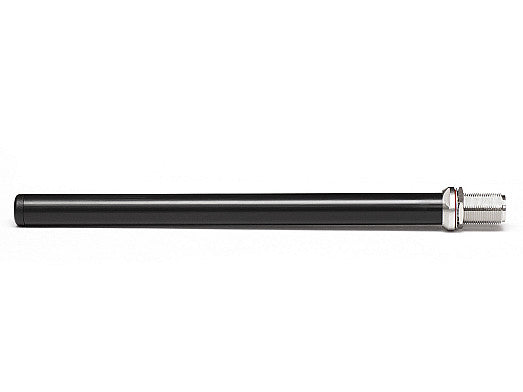

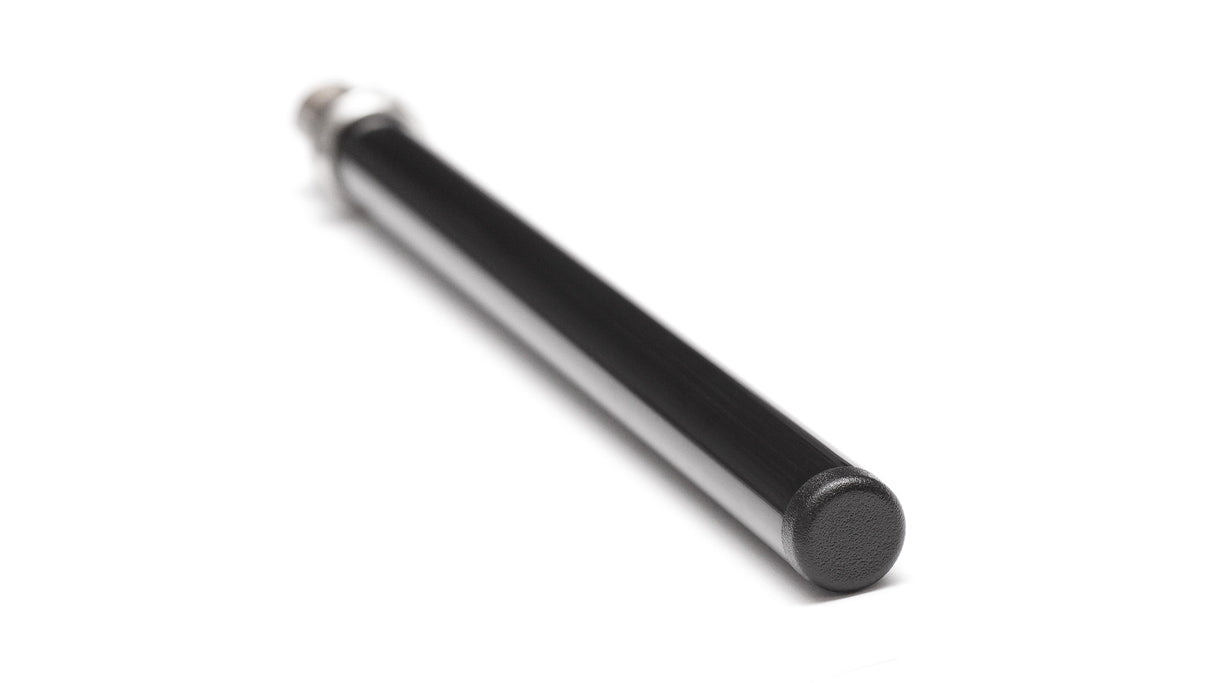

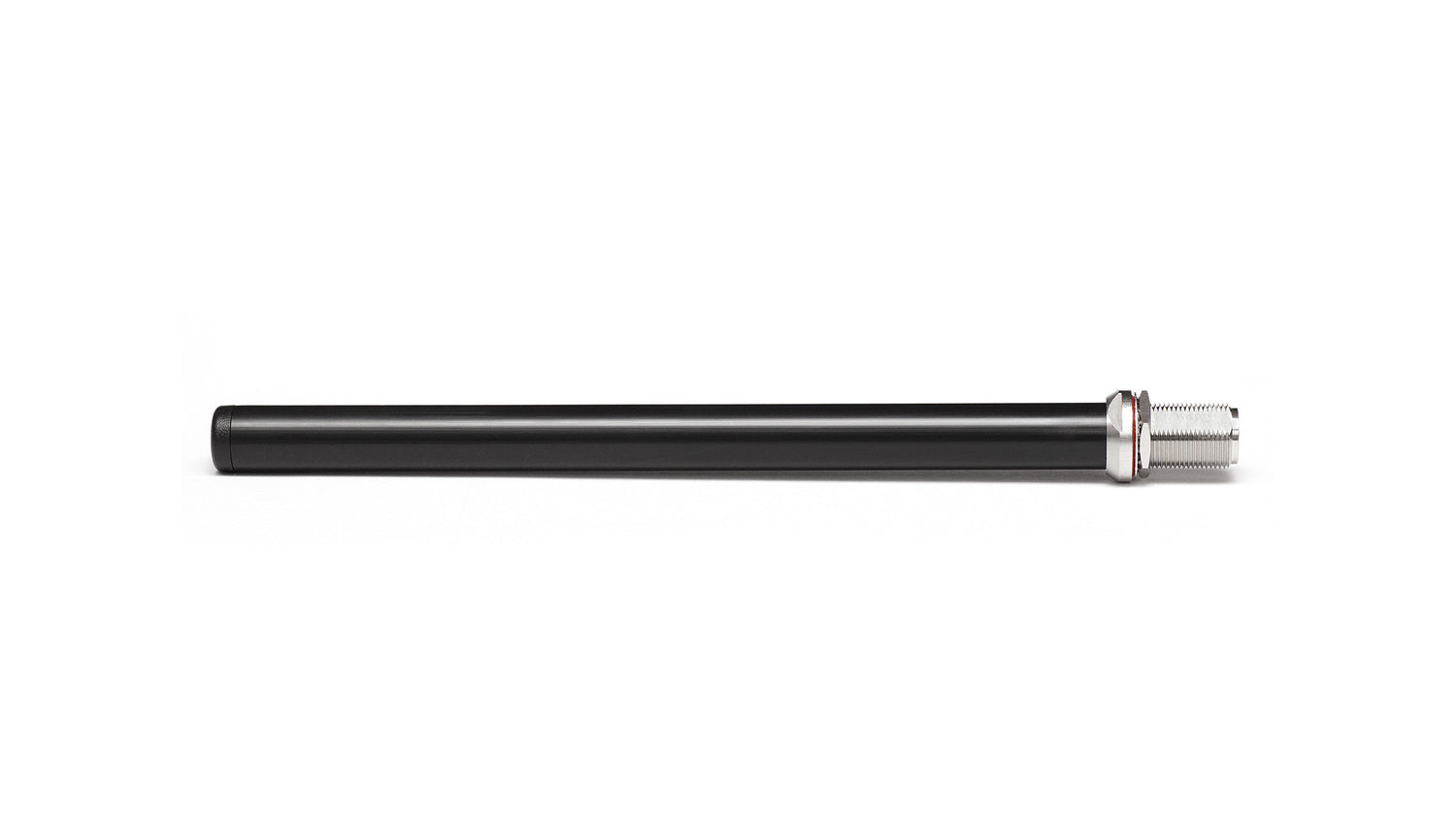

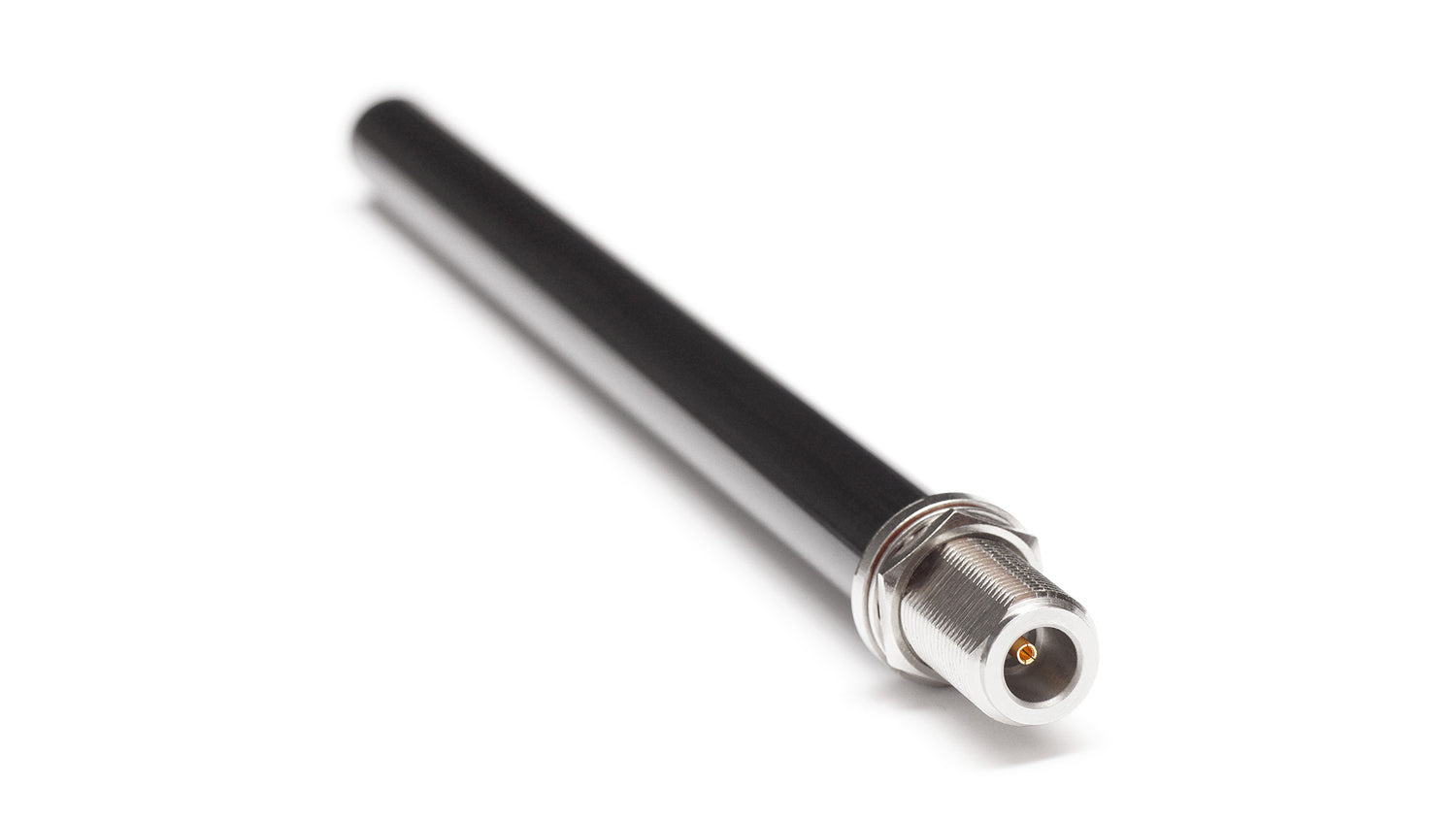

2J2124B-C681N 4G/LTE screw mount Antenna N-Female

Unit Price excluding VAT. Shipping calculated at checkout.

Datasheet

PDF Download

Description

This high-performance antenna is designed for reliable 4G/LTE, 3G, and 2G connectivity across a wide range of frequencies. Its ground plane independent dipole design ensures consistent performance, making it ideal for demanding applications such as mobile networks, IoT, asset tracking, and industrial monitoring. The robust screw mount form factor allows for secure installation in outdoor and rugged environments, supporting mission-critical communications and broadband connectivity.

Connections

4G LTE/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G

Connector & Cable

  • Connector Type: N-Female connector

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Dipole
Cellular Technologies: 4G/LTE
Location: External
Mounting: Screw Mount
Type: Single
Dimensions: 244 × Ø 22 (Ø 16) mm

Connection 1 - Cellular/4G LTE

Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~1.8:1, ~1.5:1, ~2.0:1
Efficiency (%): ~55, ~58, ~71
Peak Gain (dBi): ~0.3, ~1.7, ~2.3
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2J2124B-C681N", "title": "4G LTE/3G/2G Antenna with N-Female Connector", "mountingType": "Screw Mount", "ipRating": null, "dimensions_mm": "244 × Ø 22 (Ø 16)", "elements": [ { "elementID": "Cellular", "type": "Cellular", "technologies": [ "4G LTE", "3G", "2G", "FirstNet", "LPWA", "NB-IoT", "Cat-X-Mx-NBx" ], "frequencies": [ { "range_mhz": "698-960", "returnLoss_db": "~-11.5", "vswr": "~1.8:1", "efficiency_percent": "~55", "peakGain_dbi": "~0.3", "averageGain_db": "~-2.7" }, { "range_mhz": "1710-2170", "returnLoss_db": "~-14.2", "vswr": "~1.5:1", "efficiency_percent": "~58", "peakGain_dbi": "~1.7", "averageGain_db": "~-2.4" }, { "range_mhz": "2500-2700", "returnLoss_db": "~-9.2", "vswr": "~2.0:1", "efficiency_percent": "~71", "peakGain_dbi": "~2.3", "averageGain_db": "~-1.5" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 } ], "connectors": [ { "elementIDRef": "Cellular", "type": "N-Female", "cableType": null, "cableLength_mm": null } ] }
