Description
This high-performance wall mount antenna is engineered for reliable 5G, 4G LTE, 3G, and 2G cellular connectivity. Its ground plane independent design allows for flexible installation in a variety of environments, making it ideal for smart cities, industrial automation, entertainment, transportation, and public safety applications. With up to 4 dBi peak gain and omni-directional radiation, it ensures strong and consistent signal reception for demanding data and IoT deployments.
Connections
2× 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Connector & Cable
- Connector Type: SMA-Male
- Cable Length: 300cm
- Cable Type: LL195
Installation / Environmental
The antenna is designed for wall-mounting and features a high-performance, ground plane independent design, making it ideal for applications where space is limited or where a traditional ground plane is not available. Its customized cable and connector options provide flexibility for integration with various devices and systems. Additionally, the antenna is certified to IP67 standards, ensuring its durability and suitability for use in harsh outdoor environments.
The standard cable length is 300 cm, with other lengths available upon request. The standard cable type is LL195, with other cable options also available. The antenna is compatible with most RF connectors, with SMA-Male as the standard connector type.
The 2J2183Ba-B17H antenna measures 325 × 135.5 × 155 mm (220 × Ø 16 mm) and can operate in a temperature range of -40 to +85 degrees Celsius and is RoHS compliant.
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: External
Mounting: Wall Mount
Type: Combination
Connection 1 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-8.3, ~-13.0, ~-14.1, ~-11.9
VSWR: ~2.4:1, ~1.8:1, ~1.7:1, ~1.9:1
Efficiency (%): ~66.6, ~62.6, ~40.6, ~32.4
Peak Gain (dBi): ~3.9, ~4.0, ~3.9, ~3.9
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 35
Connection 2 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-8.3, ~-13.0, ~-14.1, ~-11.9
VSWR: ~2.4:1, ~1.8:1, ~1.7:1, ~1.9:1
Efficiency (%): ~66.6, ~62.6, ~40.6, ~32.4
Peak Gain (dBi): ~3.9, ~4.0, ~3.9, ~3.9
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 35
FAQ / Key Decision Factors
1. What frequency bands and standards are supported? This is a wideband 2x MIMO antenna covering 617-5925 MHz. It fully supports global 5G NR, 4G LTE, 3G, and 2G standards. It is backward compatible with all major cellular networks.
2. Does this antenna require a ground plane (metallic surface)? No. This antenna is Ground Plane Independent. Unlike magnetic mount antennas, it maintains full performance even when installed on non-metallic surfaces like masonry, concrete, wood, or plastic enclosures.
3. Is this model suitable for harsh outdoor conditions? Yes. The housing is made of high-quality ASA material with IP67 certification, making it fully waterproof and dustproof. It is designed to operate in extreme temperatures ranging from -40°C to +85°C.

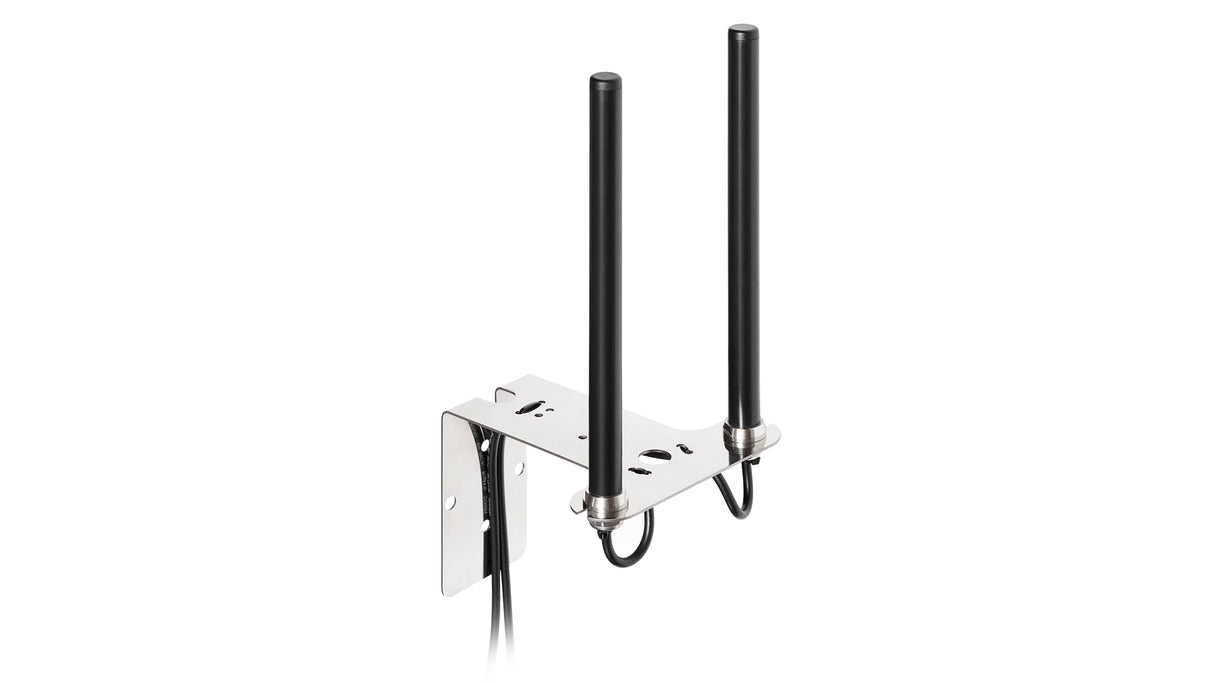

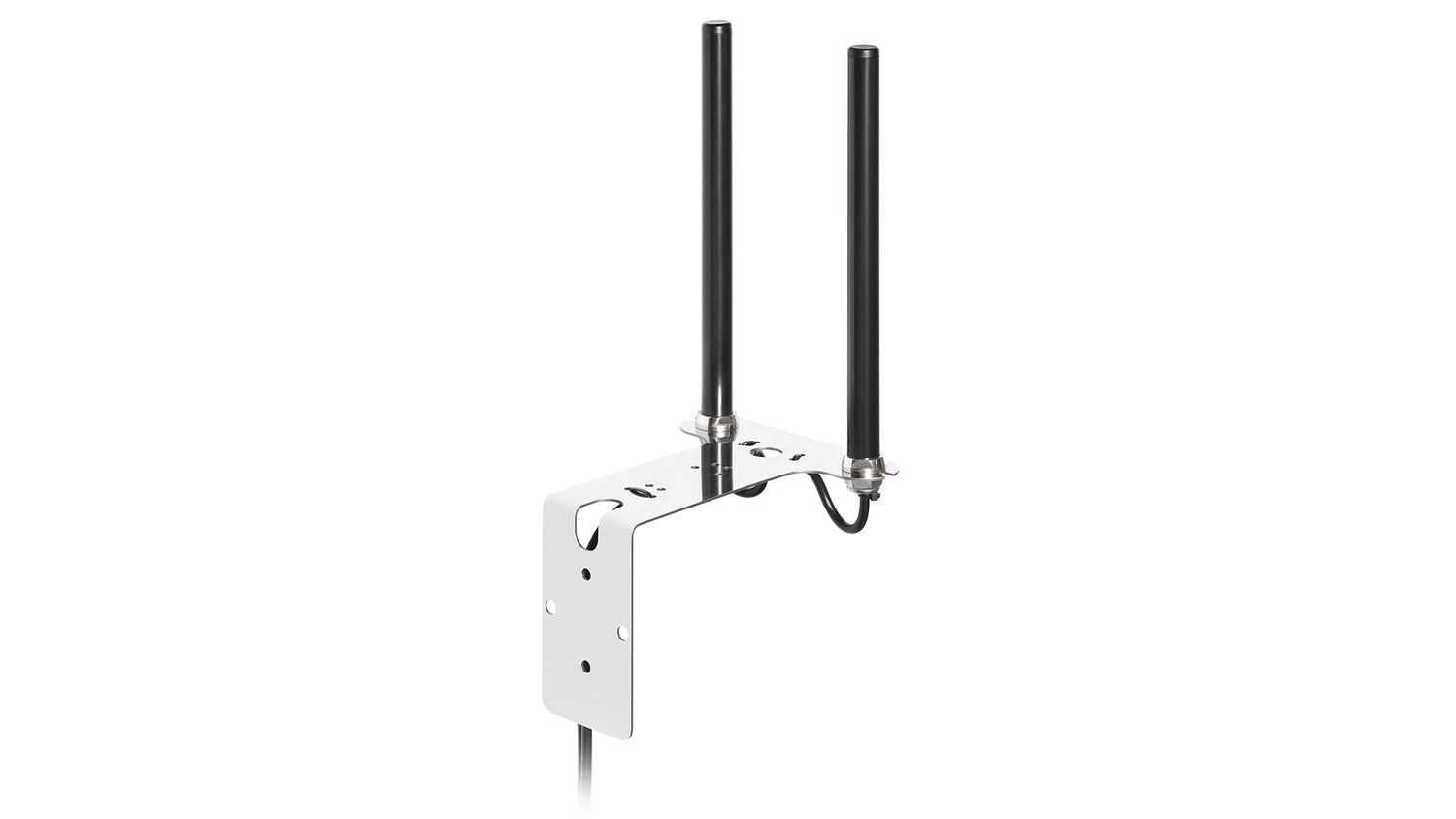

4. How is the antenna mounted? It is designed for permanent Wall Mounting. The package includes a heavy-duty Stainless Steel L-bracket, ensuring a secure and corrosion-resistant installation on building facades or walls.
5. What are the cable and connector specifications? The antenna includes 2x low-loss LL195 cables (standard length: 300 cm) terminated with SMA-Male connectors. This configuration is compatible with the vast majority of industrial 5G/LTE routers and gateways.
