2J  |  SKU: 2J2202B-B05H

2J2202B-B05H Wi-Fi, ISM wall mount Antenna IP67

Unit Price excluding VAT. Shipping calculated at checkout.

Datasheet

PDF Download

Description

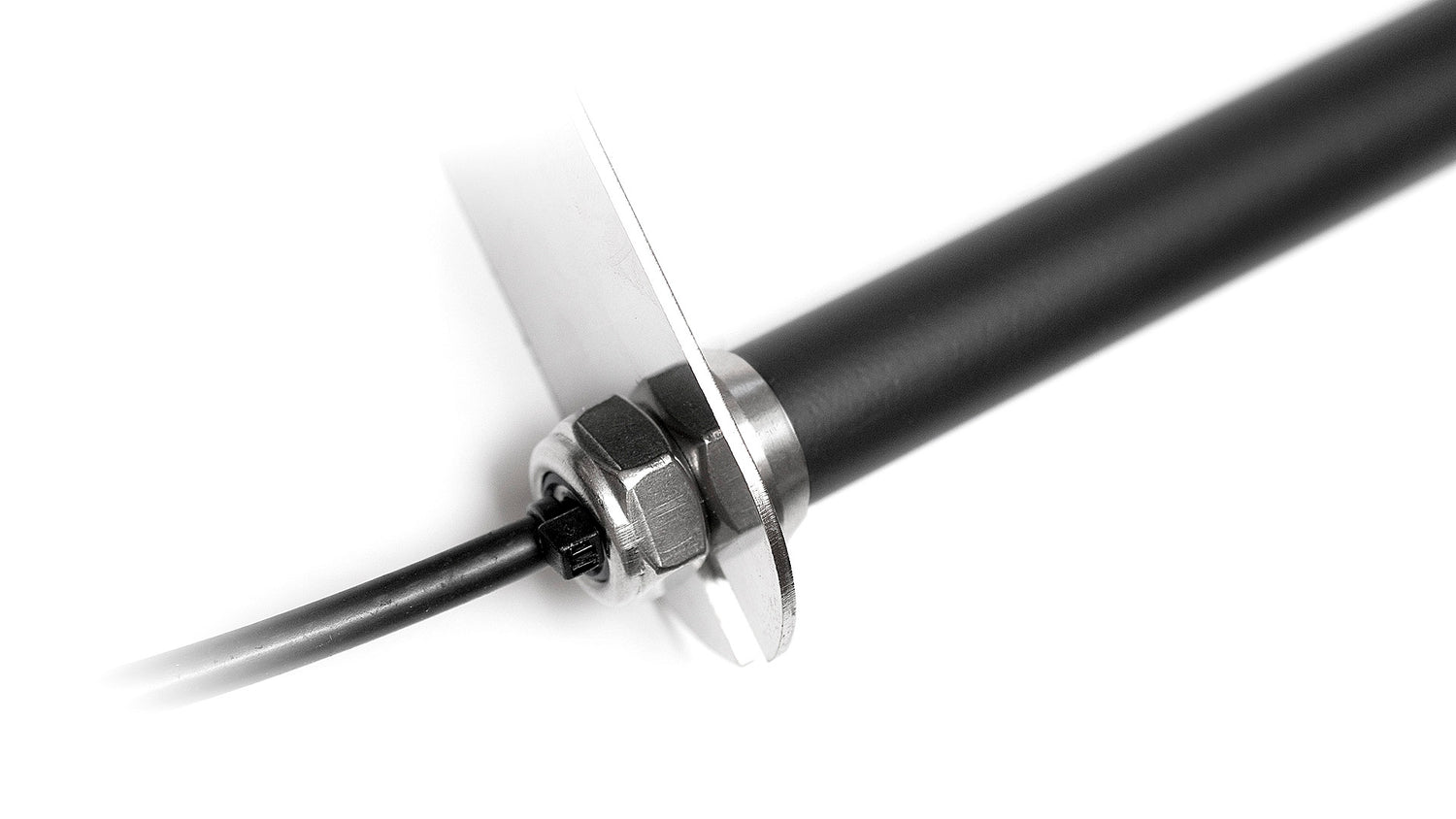

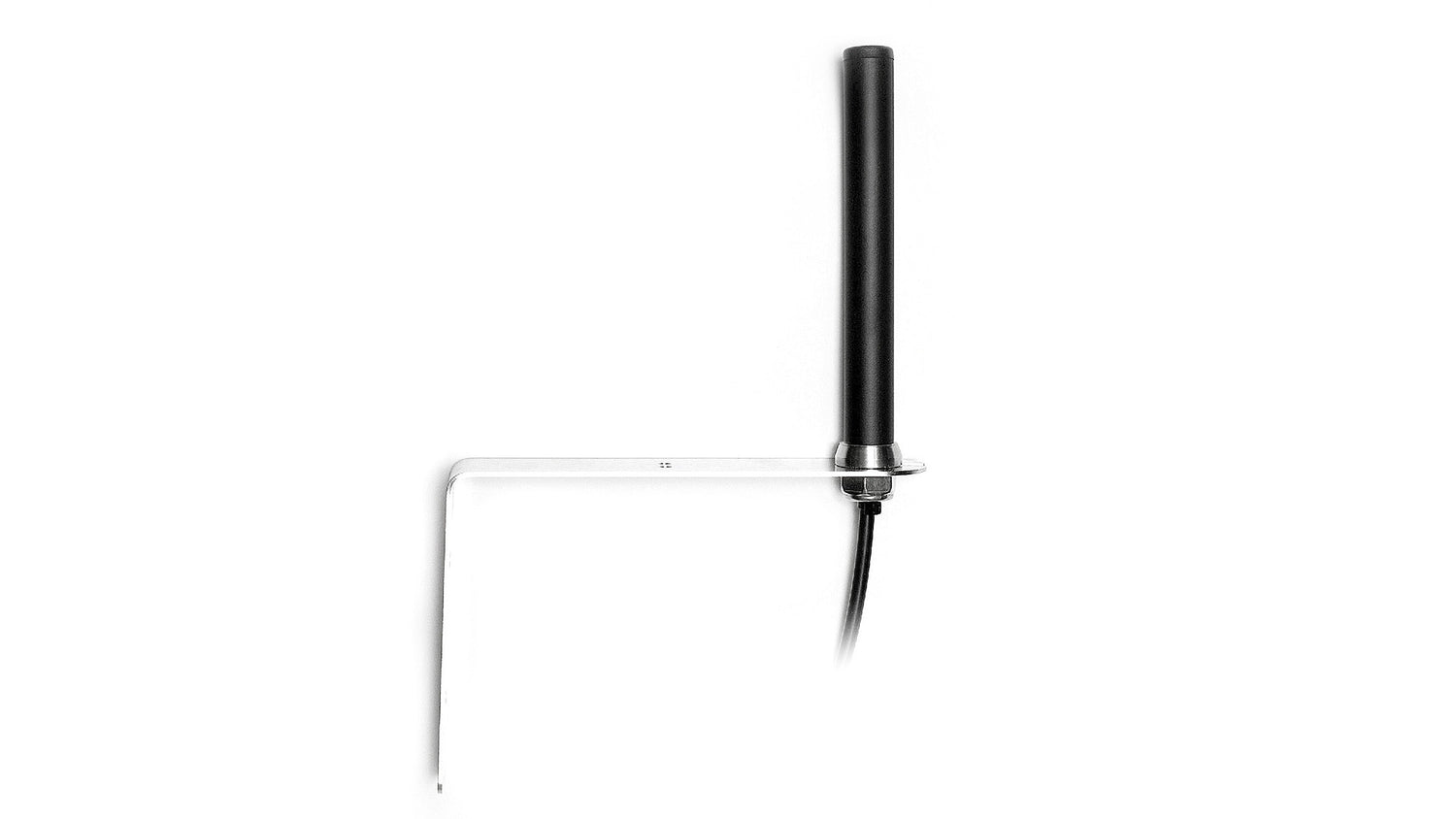

This dual-band wall mount antenna is designed for reliable Wi-Fi and ISM connectivity in a wide range of environments. Its ground plane independent design ensures consistent performance regardless of mounting surface, while the waterproof IP67 rating makes it suitable for both indoor and outdoor installations. The included antenna bracket allows for secure and flexible mounting, making it ideal for smart home, industrial, transportation, and public Wi-Fi applications.

Connections

2.4-5.0GHz/WiFi/LPWA/BT/ZigBee/RFID/ISM


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Wall Mount
Type: Single
Location: External
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee, ISM
Dimensions: 240 × 36 × 155 (135 × Ø 16) mm

Connection 1 - 2.4/5.0 GHz ISM

Standards: WiFi, BT, ZigBee, ISM
Frequency: 2410-2490, 4920-5925 MHz
VSWR: ~1.3:1, ~1.4:1
Efficiency (%): ~62.6, ~47.0
Peak Gain (dBi): ~2.5, ~1.5
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2J2202B-B05H", "title": "Dual Band WiFi Ground Plane Independent Wall Mount Antenna", "mountingType": "Wall Mount", "ipRating": "IP67", "dimensions_mm": "240 × 36 × 155 (135 × Ø 16)", "elements": [ { "elementID": "Wi-Fi / ISM", "type": "Wi-Fi", "technologies": [ "Wi-Fi", "Bluetooth", "ZigBee", "ISM" ], "frequencies": [ { "range_mhz": "2410-2490", "returnLoss_db": "~-20.3", "vswr": "~1.3:1", "efficiency_percent": "~62.6", "peakGain_dbi": "~2.5", "averageGain_db": "~-2.0" }, { "range_mhz": "4920-5925", "returnLoss_db": "~-17.1", "vswr": "~1.4:1", "efficiency_percent": "~47.0", "peakGain_dbi": "~1.5", "averageGain_db": "~-3.3" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 } ], "connectors": [ { "elementIDRef": "Wi-Fi / ISM", "type": "SMA-Male", "cableType": "LL100", "cableLength_mm": 3000 } ] }
