Description

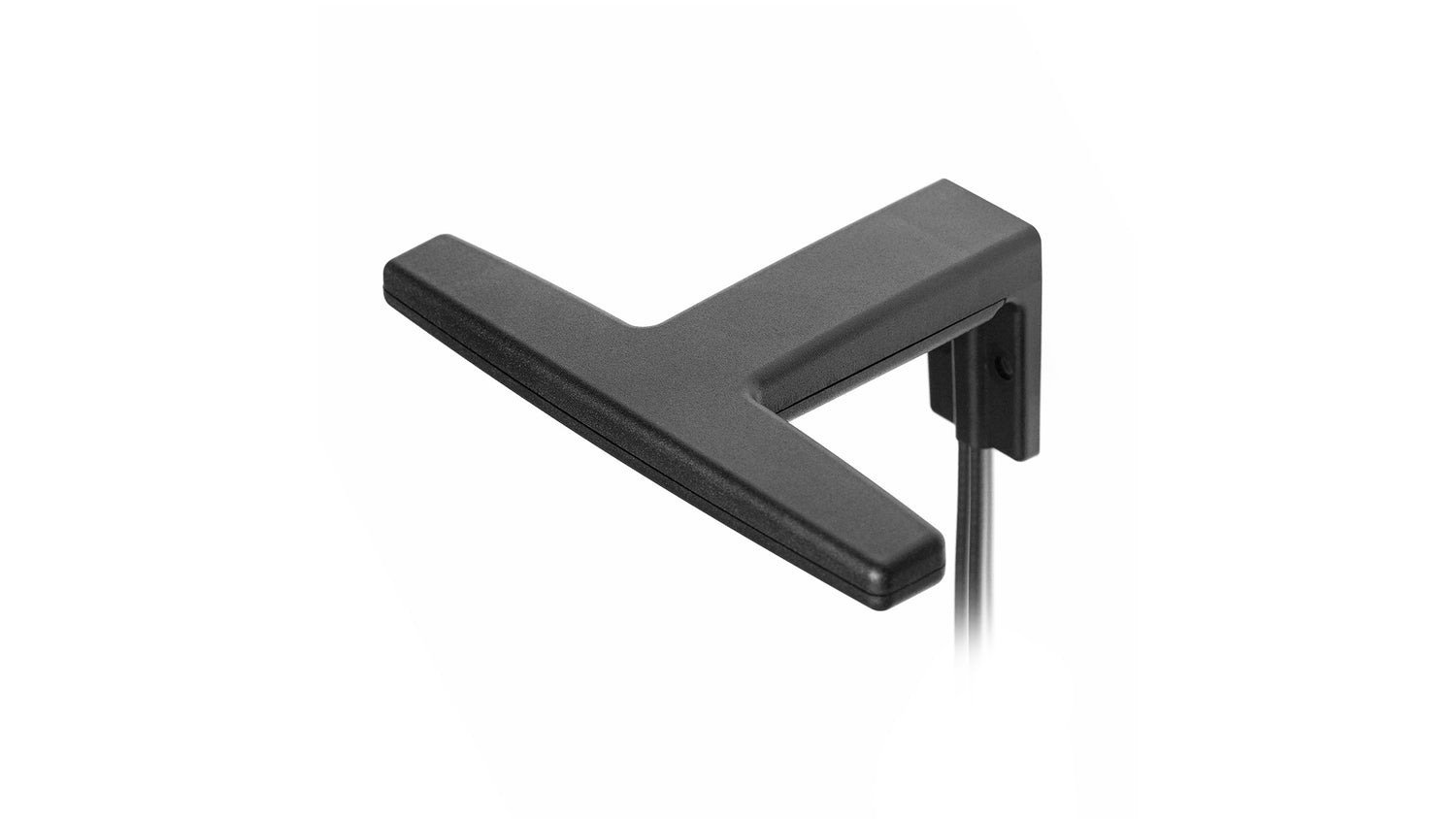

This high-performance wall mount antenna features a compact, ground plane independent dipole design with MIMO technology for robust 4G/LTE, 3G, and 2G connectivity. Its durable ASA radome and IP67/IP69 protection make it ideal for both indoor and outdoor installations, ensuring reliable operation even in harsh environments. The antenna is perfect for applications requiring instant and stable communication, such as alarm signaling, smart homes, public safety, IoT, and mission-critical systems.
- Exceptional signal reception and data transmission
- Versatile wall-mount design for easy installation
- Suitable for alarm systems, smart homes, first responders, and more
- Maintains high peak gain and efficiency across all cables
Connections
2× 4G LTE MIMO/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G
Connector & Cable
- Connector Type: SMA-Male
- Cable Length: 300cm
- Cable Type: LL100
Installation / Environmental

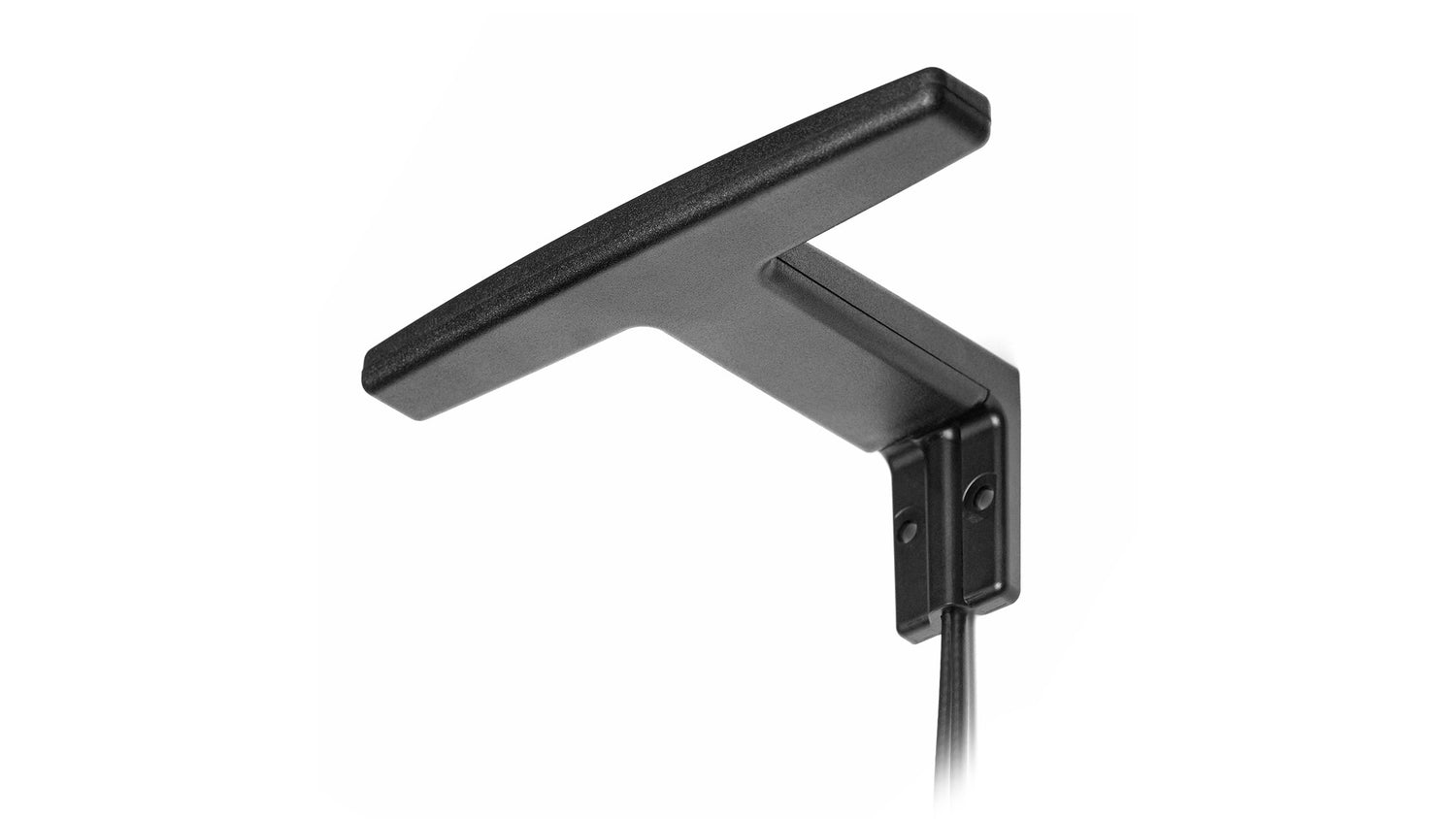

Measuring only 123 × 81 × 45mm, the compact antenna is engineered to thrive in harsh conditions, thanks to its IP67 and IP69 certifications. Its user-friendly wall-mount design streamlines installation, and the ASA radome, available in either black or white, guarantees durability and aesthetic adaptability.
Both cables have a 300 cm long low-loss LL100 cable and SMA-Male connector. Our connectors and cables are fully customizable to meet your specific requirements, and our team of highly experienced engineers is readily available to assist in selecting antennas that perfectly align with your unique usage needs. For more information, please don't hesitate to reach out to us.
A single cable version of this antenna is also available. Please explore Antenna 2J2424H for more details.
All products are designed and manufactured without hazardous materials while maintaining full RoHS compliance.
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO, Dipole
Cellular Technologies: 4G/LTE, 3G, 2G
Location: External
Mounting: Wall Mount
Type: Combination
Dimensions: 123 × 81 × 45 mm
Connection 1 - Cellular/4G LTE
Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~3.2:1, ~2.1:1, ~2.6:1
Efficiency (%): ~53.2, ~50.5, ~40.9
Peak Gain (dBi): ~0.7, ~1.9, ~0.9
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Connection 2 - Cellular/4G LTE
Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~6.5:1, ~2.7:1, ~2.7:1
Efficiency (%): ~55.0, ~44.8, ~47.4
Peak Gain (dBi): ~2.8, ~2.7, ~3.5
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
FAQ / Key Decision Factors
1. What cellular technologies and frequencies are supported? This is a 2x MIMO antenna designed primarily for 4G LTE, 3G, and 2G applications. It covers the 698-960 MHz, 1710-2170 MHz, and 2500-2700 MHz bands. (Note: It is optimized for LTE reliability rather than high-band 5G speed).
2. Does the antenna require a metallic ground plane? No. The Spitfire is Ground Plane Independent. It maintains stable VSWR and efficiency specifications even when mounted on non-metallic surfaces like masonry, wood, or plastic enclosures.
3. How durable is the housing for public or industrial use? This is one of the most robust antennas available. It features IK09 certification (high impact resistance), making it vandal-resistant. Additionally, it is rated IP67 and IP69, offering complete protection against dust, water immersion, and high-pressure washdowns.
4. What is the mounting method? It is designed for Wall Mounting via screw fixings. The casing is ultra-compact (139.6 x 49.6 mm) and low-profile, making it ideal for discreet installation on building facades or vending machines.
5. What cable configuration is included? The antenna includes 2x high-quality DACAR302 cables (known for better performance than standard RG174). The standard length is 300 cm terminated with SMA-Male connectors, compatible with most industrial LTE routers.
2J2424Ha 4G/LTE wall mount Antenna Spitfire SMA-M 300cm
