2J  |  SKU: 2J3024M-250RG174-C20GST

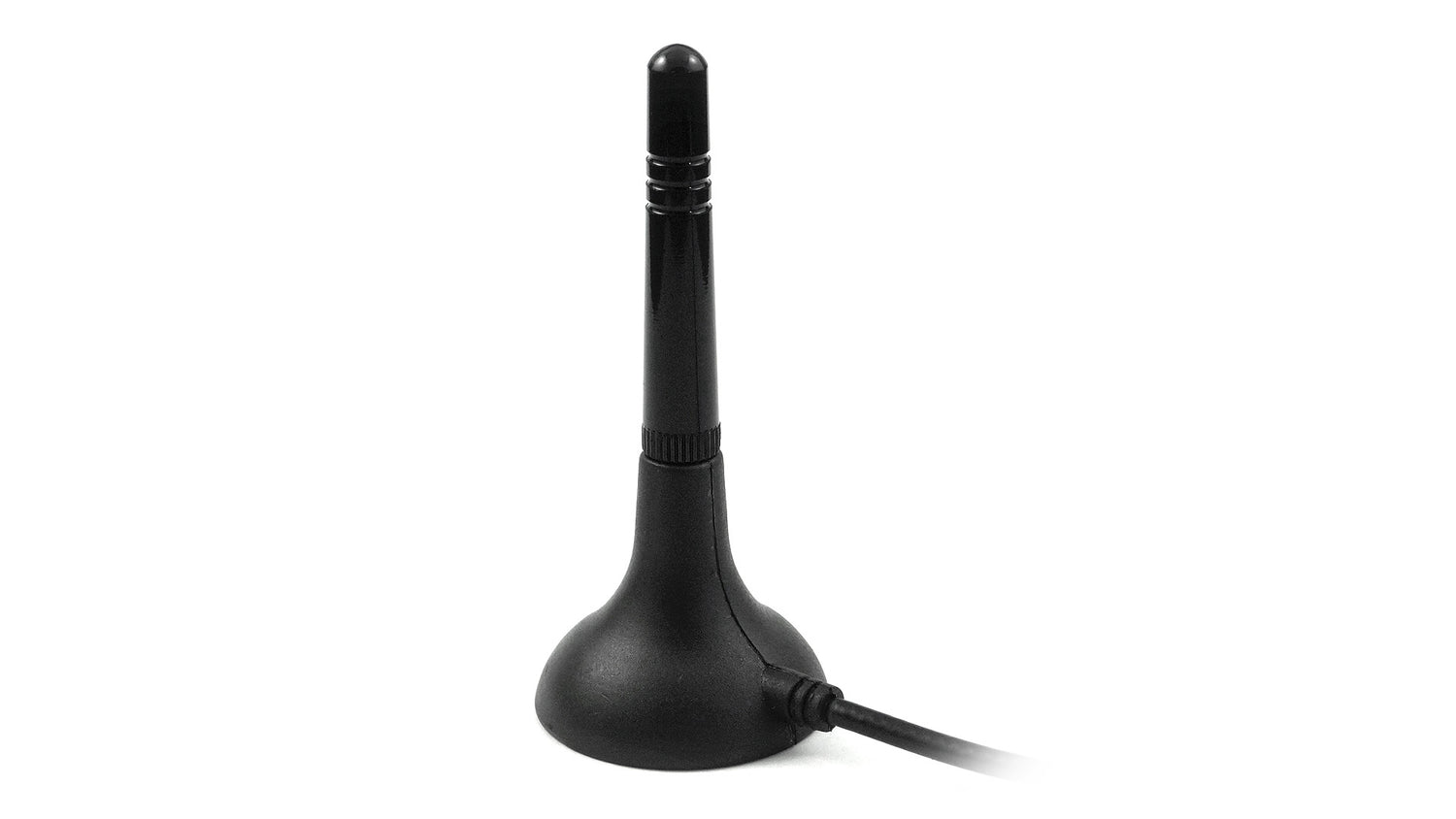

2J3024M 4G/LTE magnetic mount Antenna SMA-M 250cm

€7,06
Unit Price excluding VAT. Shipping calculated at checkout.

Datasheet

PDF Download

Description

This high-performance magnetic mount antenna is designed for reliable 4G LTE, 3G, and 2G connectivity across a wide range of frequencies. Its compact form factor and ground plane dependent design make it ideal for automotive, industrial, and IoT applications where robust wireless performance is required. The antenna supports a wide array of cellular bands, ensuring compatibility with global networks and providing stable signal reception even in challenging environments.

Connections

4G LTE/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G

Connector & Cable

    • Connector Type: SMA-Male-Gold
    • Cable Length: 250cm
    • Cable Type: RG174


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Magnetic Mount
Location: External
Type: Single
Cellular Technologies: 4G/LTE, 3G, 2G
Dimensions: Ø 31 × 72 mm

Connection 1 - Cellular/4G LTE

Standards: 2G, 3G and 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~1.9:1, ~1.5:1, ~1.3:1
Efficiency (%): ~47, ~39, ~36
Peak Gain (dBi): ~1.0, ~2.4, ~2.1
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 35

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2J3024M", "title": "4G LTE/3G/2G High Performance Magnetic Mount Antenna", "mountingType": "Magnetic Mount", "ipRating": null, "dimensions_mm": "Ø 31 × 72", "elements": [ { "elementID": "Cellular", "type": "Cellular", "technologies": [ "4G LTE", "3G", "2G", "FirstNet", "LPWA", "NB-IoT", "Cat-X-Mx-NBx" ], "frequencies": [ { "range_mhz": "698-960", "returnLoss_db": "~-13.4", "vswr": "~1.9:1", "efficiency_percent": "~47", "peakGain_dbi": "~1.0", "averageGain_db": "~-3.3" }, { "range_mhz": "1710-2170", "returnLoss_db": "~-14.1", "vswr": "~1.5:1", "efficiency_percent": "~39", "peakGain_dbi": "~2.4", "averageGain_db": "~-4.1" }, { "range_mhz": "2500-2700", "returnLoss_db": "~-18.1", "vswr": "~1.3:1", "efficiency_percent": "~36", "peakGain_dbi": "~2.1", "averageGain_db": "~-4.5" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 35 } ], "connectors": [ { "elementIDRef": "Cellular", "type": "SMA-Male", "cableType": "LMR100", "cableLength_mm": 3000 } ] }
