2J  |  SKU: 2J3702M-2.4

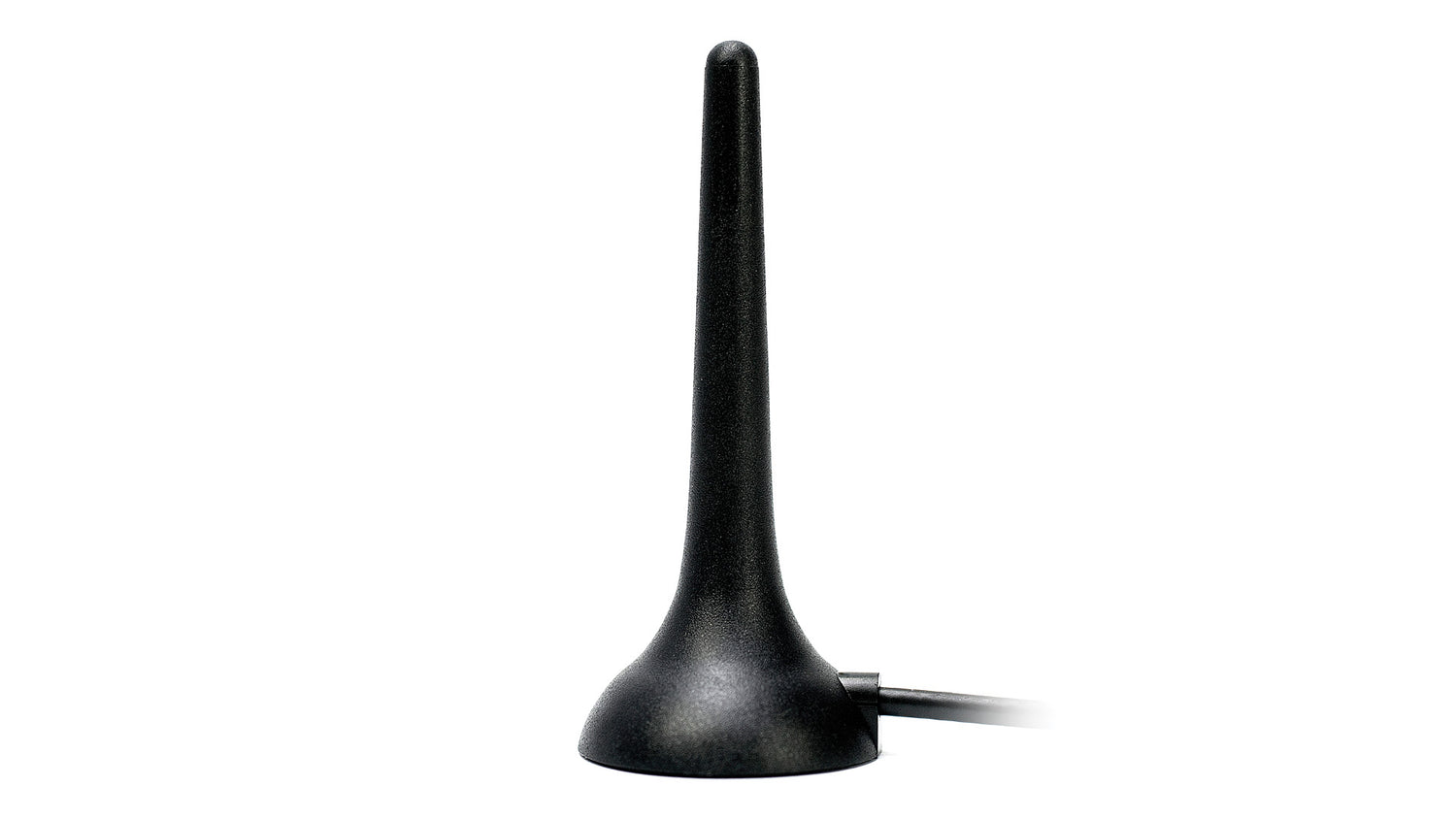

2J3702M-2.4 ISM magnetic mount Antenna IP67

Unit Price excluding VAT. Shipping calculated at checkout.

Datasheet

PDF Download

Description

This low-profile antenna is designed for reliable performance in the 2.4 GHz ISM band, making it ideal for Wi-Fi, Bluetooth, ZigBee, and other short-range wireless applications. Its compact form factor and magnetic mount allow for easy installation on metallic surfaces, while the IP67 rating ensures durability in harsh environments. Suitable for smart home, industrial, transportation, and IoT deployments where robust connectivity is essential.

Connections

2.4GHz/WiFi/LPWA/BT/ZigBee/RFID/ISM


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Magnetic Mount
Location: External
Type: Single
Dimensions: Ø 31 x 71.5 mm

Connection 1 - 2.4 GHz ISM

Standards: WiFi, BT, ZigBee, ISM
Frequency: 2410-2490 MHz
VSWR: ~1.2:1
Efficiency (%): ~43
Peak Gain (dBi): ~1.6
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2J3702M-2.4", "title": "2.4 GHz ISM Low Profile IP67 Magnetic Mount Antenna", "mountingType": "Magnetic Mount", "ipRating": "IP67", "dimensions_mm": "Ø 31 x 71.5", "elements": [ { "elementID": "ISM 2.4 GHz", "type": "ISM", "technologies": [ "Wi-Fi", "Bluetooth", "ZigBee", "ISM" ], "frequencies": [ { "range_mhz": "2410-2490", "returnLoss_db": "~-22.7", "vswr": "~1.2:1", "efficiency_percent": "~43", "peakGain_dbi": "~1.6", "averageGain_db": "~-3.6" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 } ], "connectors": [ { "elementIDRef": "ISM 2.4 GHz", "type": "RP-SMA-Male", "cableType": "RG174", "cableLength_mm": 3000 } ] }
