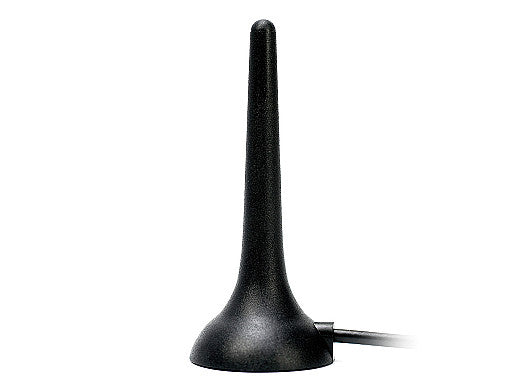

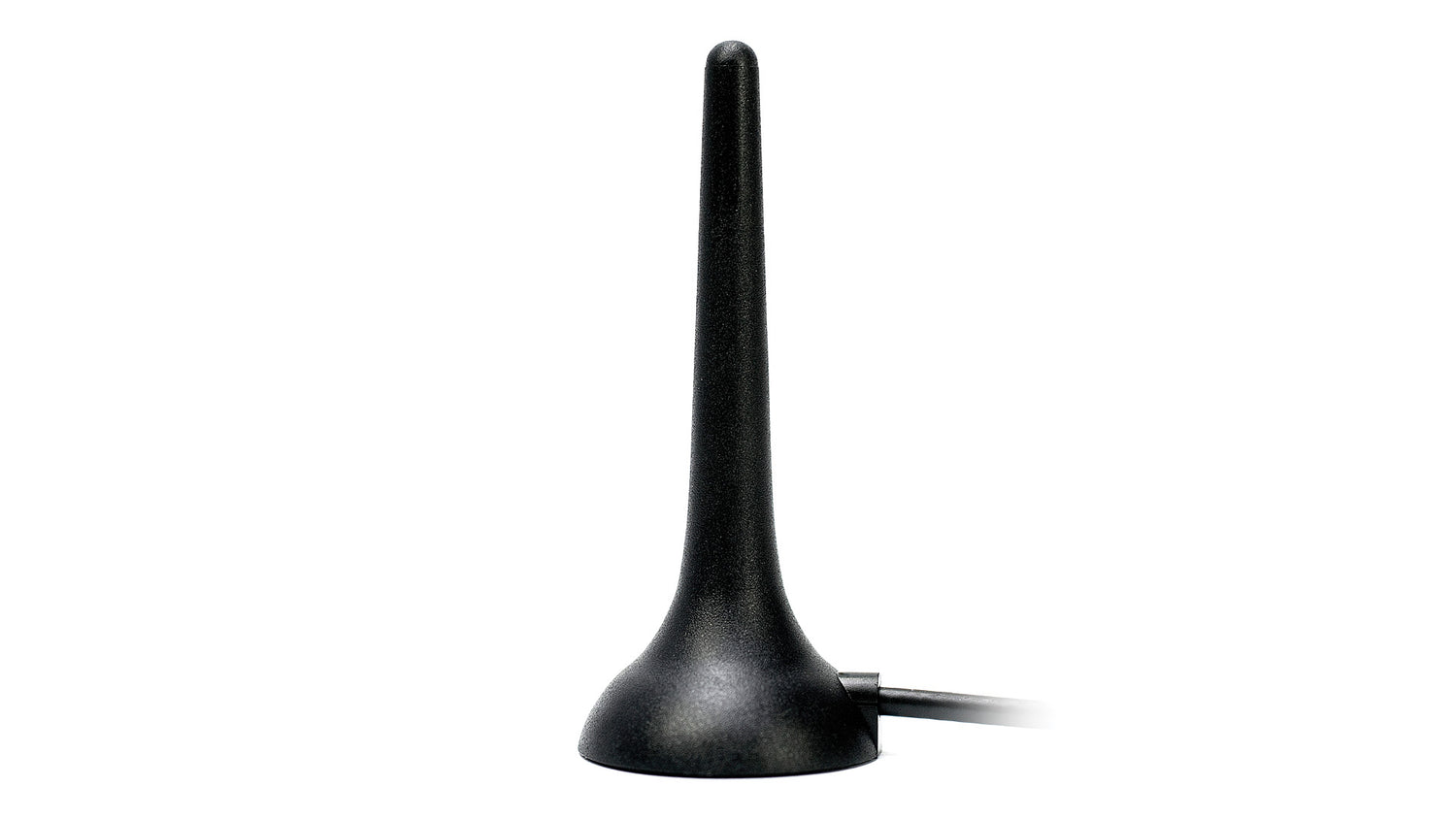

2J3704M 3G, 2G magnetic mount Antenna SMA-M 250cm

€5,30
Unit Price excluding VAT. Shipping calculated at checkout.

Datasheet

PDF Download

Description

This low-profile magnetic mount antenna is designed for reliable cellular connectivity in a compact form factor. Its ground plane dependent design ensures optimal performance for 3G and 2G networks, making it suitable for a wide range of applications including mobile networks, machine control, asset tracking, automotive, and telecommunication systems. The small size allows for easy integration into various devices and environments, while the magnetic mount provides quick and secure installation on metal surfaces.

Connections

3G/2G/CELL

Connector & Cable

  • Connector Type: SMA-M
  • Cable Length: 250cm
  • Cable Type: RG174


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Magnetic Mount
Location: External
Type: Single
Dimensions: 30.9 × 71.5 mm

Connection 1 - Cellular

Standards: 2G and 3G
Frequency: 824-960, 1710-2170 MHz
VSWR: ~1.6:1, ~1.8:1
Efficiency (%): ~49, ~28
Peak Gain (dBi): ~1.7, ~0.3
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2J3704M", "title": "Cellular Low Profile Magnetic Mount Antenna", "mountingType": "Magnetic Mount", "ipRating": null, "dimensions_mm": "30.9 × 71.5", "elements": [ { "elementID": "Cellular", "type": "Cellular", "technologies": [ "3G", "2G" ], "frequencies": [ { "range_mhz": "824-960", "returnLoss_db": "~-12.7", "vswr": "~1.6:1", "efficiency_percent": "~49", "peakGain_dbi": "~1.7", "averageGain_db": "~-3.2" }, { "range_mhz": "1710-2170", "returnLoss_db": "~-10.8", "vswr": "~1.8:1", "efficiency_percent": "~28", "peakGain_dbi": "~0.3", "averageGain_db": "~-5.6" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 } ], "connectors": [ { "elementIDRef": "Cellular", "type": "SMA-Male", "cableType": "RG174", "cableLength_mm": 3000 } ] }
