2J  |  SKU: 2J3715M-868-300LL100-C20GST

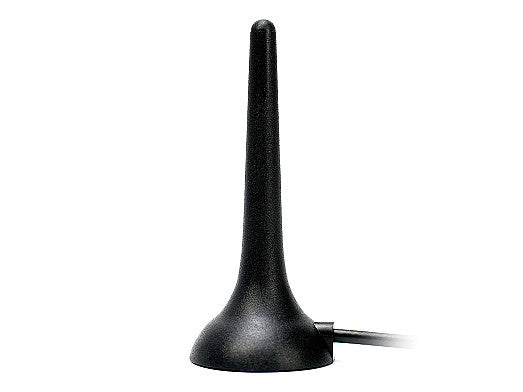

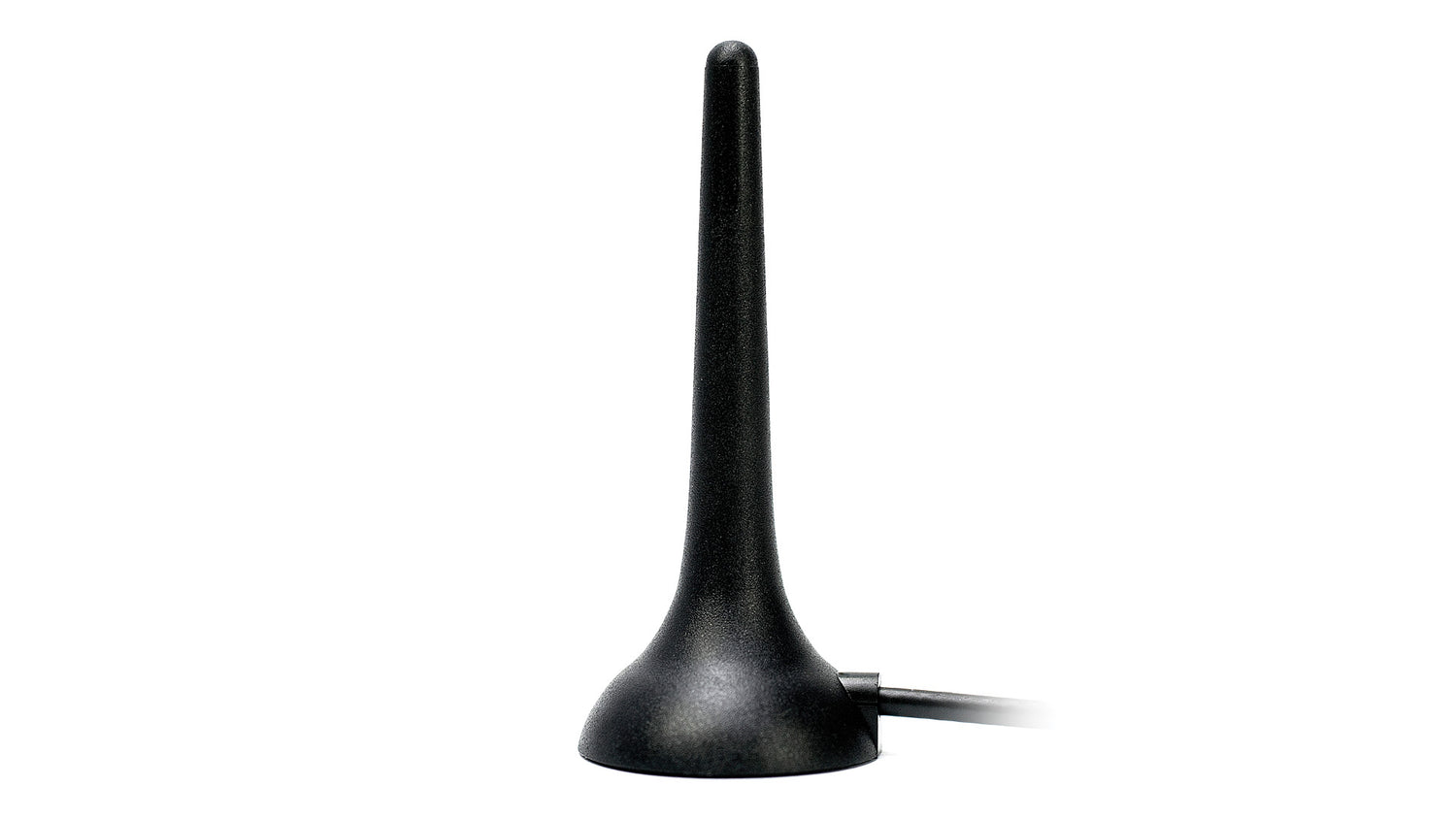

2J3715M-868 ISM magnetic mount Antenna SMA-M 300cm

€7,11
Tax included Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
2J Antennas, s.r.o.
Stefanikova 61, Bardejov, 08501, Slovakia
sales@2j-antennas.com
+421 (54) 488-1896

Description

This high-efficiency antenna is optimized for the 868 MHz ISM band, making it ideal for applications such as remote monitoring, home automation, medical devices, and more. Its omni-directional design ensures reliable signal coverage, while the compact form factor allows for easy integration into a variety of environments. The magnetic mount provides quick and secure installation on metal surfaces, making it suitable for both temporary and permanent setups.

Connections

868MHz/Sigfox/LoRa/LPWA/RFID/ZigBee/ISM

Connector & Cable

  • Connector Type: SMA-M
  • Cable Length: 300cm
  • Cable Type: LL100


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Magnetic Mount
Location: External
Type: Single

Connection 1 - 868 MHz ISM

Standards: ZigBee, ISM, SIGFOX, LoRa
Frequency: 863-870 MHz
VSWR: ~1.4:1
Efficiency (%): ~58.9
Peak Gain (dBi): ~1.7
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2J3715M-868", "title": "868 MHz ISM Omni-Directional Magnetic Mount Antenna", "mountingType": "Magnetic Mount", "ipRating": null, "dimensions_mm": "Ø 31 × 71.5", "elements": [ { "elementID": "ISM 868 MHz", "type": "ISM", "technologies": [ "ZigBee", "ISM", "SIGFOX", "LoRa" ], "frequencies": [ { "range_mhz": "863-870", "returnLoss_db": "~-16.4", "vswr": "~1.4:1", "efficiency_percent": "~58.9", "peakGain_dbi": "~1.7", "averageGain_db": "~-2.3" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 } ], "connectors": [ { "elementIDRef": "ISM 868 MHz", "type": "SMA-Male", "cableType": "RG174", "cableLength_mm": 3000 } ] }
