2J  |  SKU: 2J3915M-915

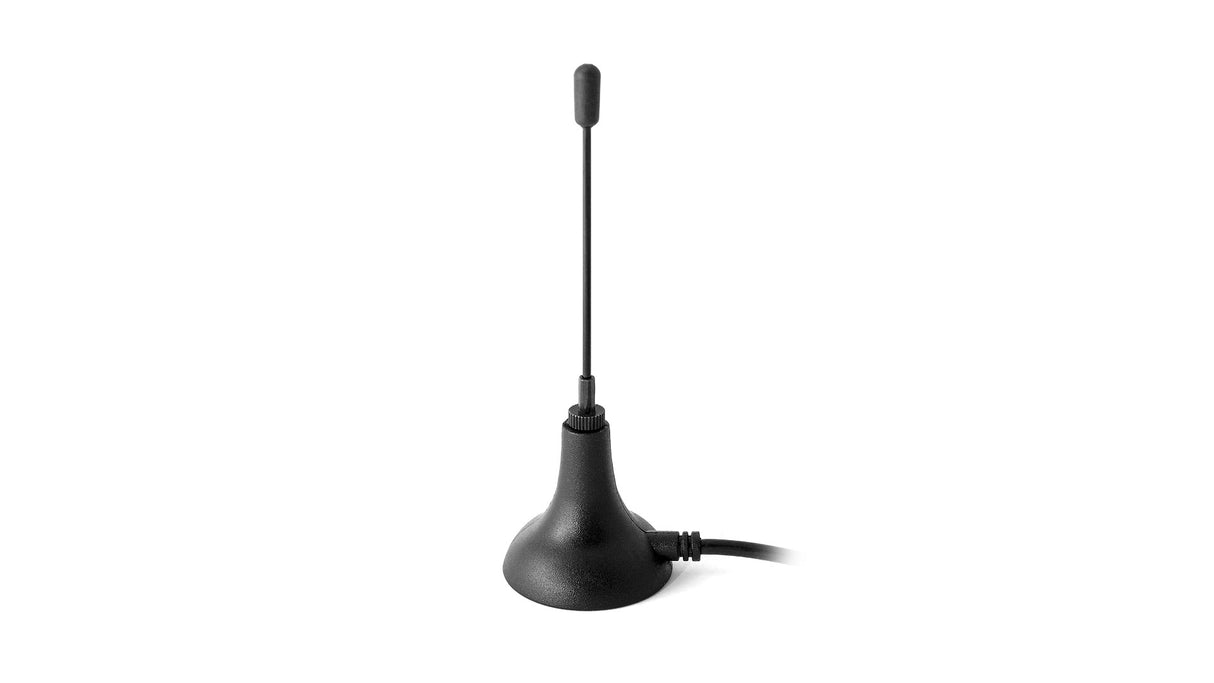

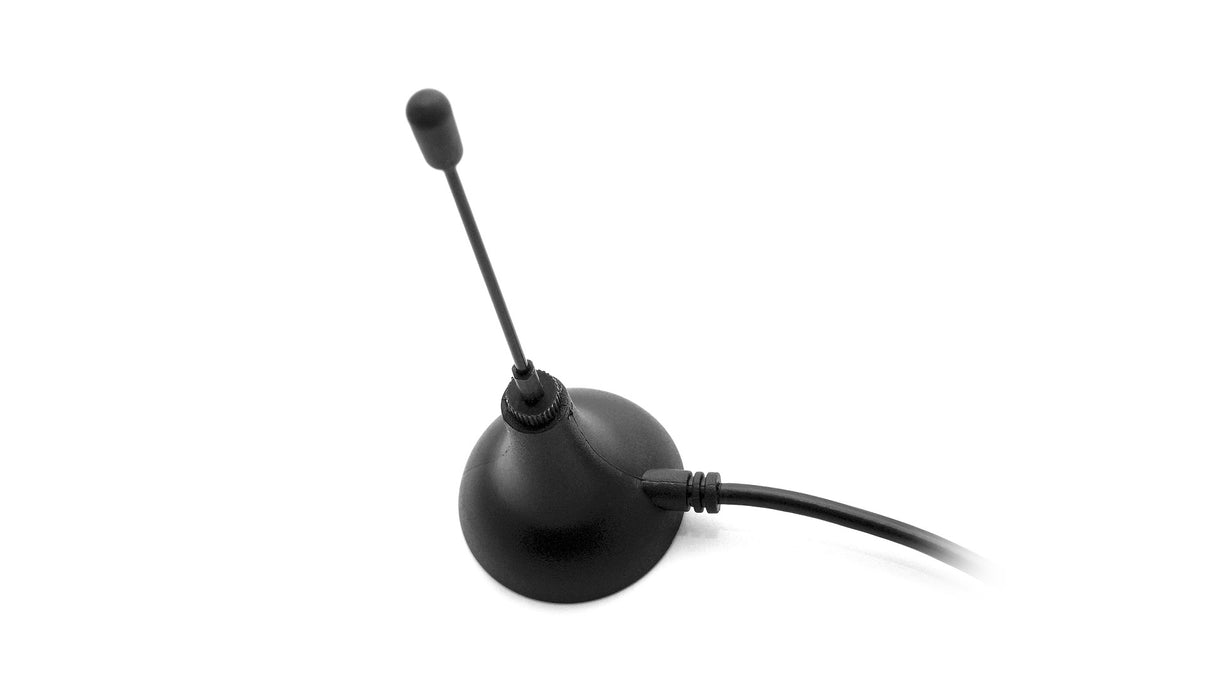

2J3915M-915 ISM magnetic mount Antenna customizable

Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
2J Antennas, s.r.o.
Stefanikova 61, Bardejov, 08501, Slovakia
sales@2j-antennas.com
+421 (54) 488-1891

Description

This high-gain antenna is designed for reliable performance in the 915 MHz ISM band, making it ideal for IoT, smart home, industrial, and asset tracking applications. Its compact form factor and magnetic mount allow for easy installation on various surfaces, while the ground plane dependent design ensures optimal signal strength. The antenna is customizable to meet specific cable and connector requirements, providing flexibility for diverse deployment scenarios.

Connections

915MHz/Sigfox/LoRa/LPWA/RFID/ZigBee/ISM


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Magnetic Mount
Location: External
Type: Single

Connection 1 - 915 MHz ISM

Standards: ZigBee, ISM, SIGFOX, LoRa
Frequency: 902-928 MHz
VSWR: ~1.5:1
Efficiency (%): ~64.6
Peak Gain (dBi): ~3.0
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 50

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2J3915M-915", "title": "915 MHz ISM High Gain Customizable Magnetic Mount Antenna", "mountingType": "Magnetic Mount", "ipRating": null, "dimensions_mm": "Ø 30.9 × 88", "elements": [ { "elementID": "ISM 915 MHz", "type": "ISM", "technologies": [ "ISM", "LoRa", "Sigfox", "ZigBee", "LPWA", "RFID" ], "frequencies": [ { "range_mhz": "902-928", "returnLoss_db": "~-14.5", "vswr": "~1.5:1", "efficiency_percent": "~64.6", "peakGain_dbi": "~3.0", "averageGain_db": "~-1.9" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 50 } ], "connectors": [ { "elementIDRef": "ISM 915 MHz", "type": "SMA-Male", "cableType": "LMR100", "cableLength_mm": 3000 } ] }
