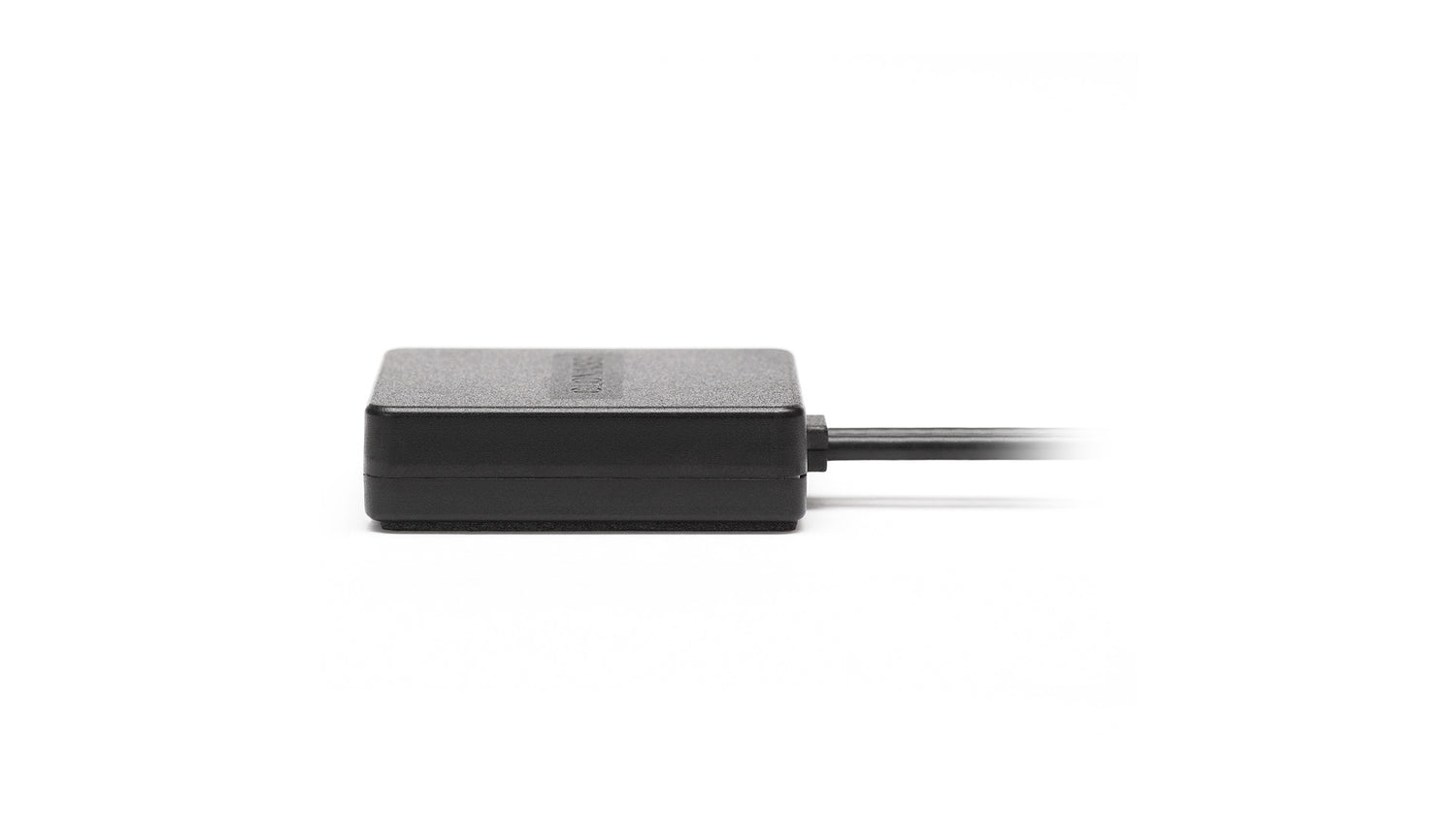

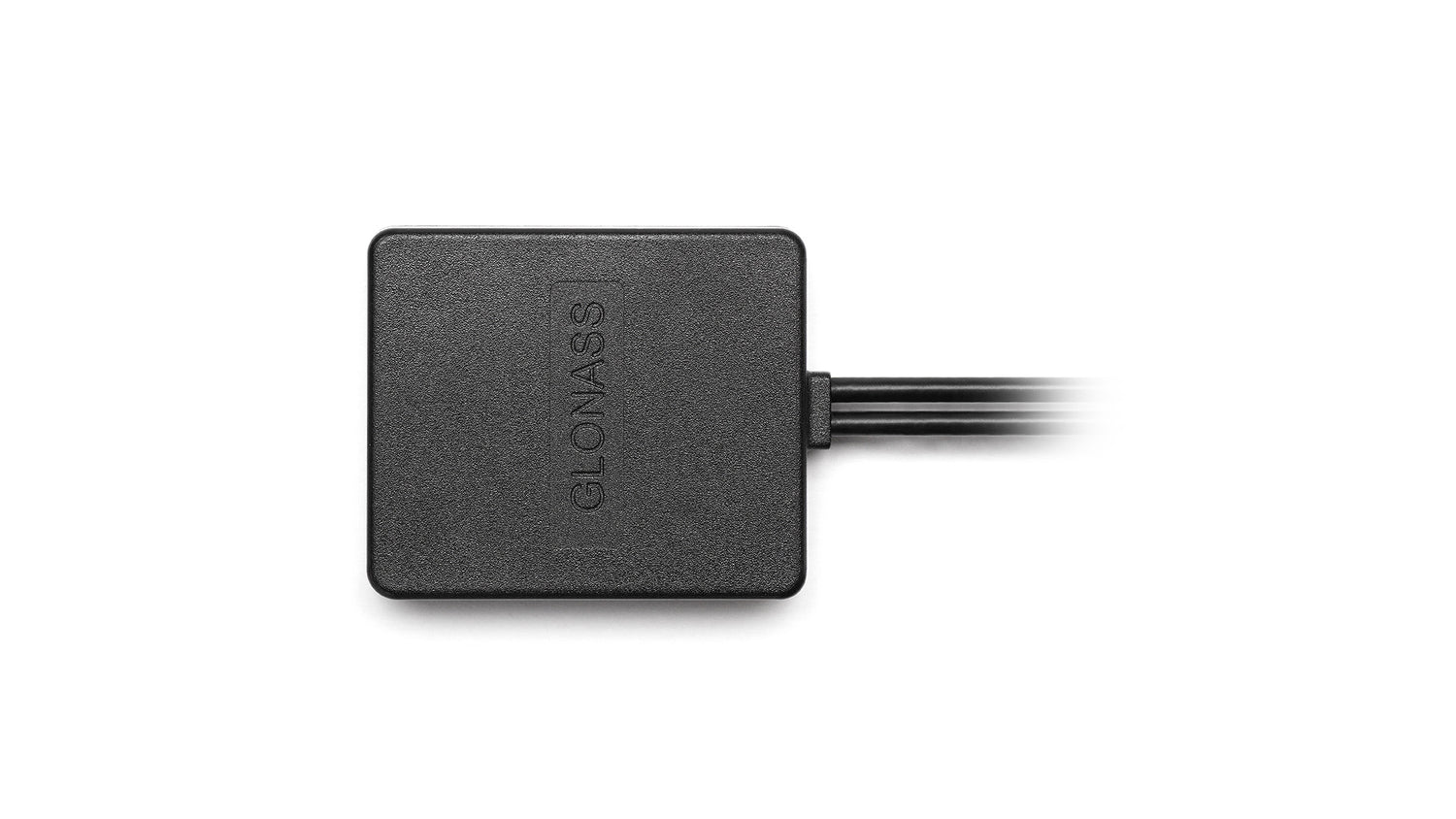

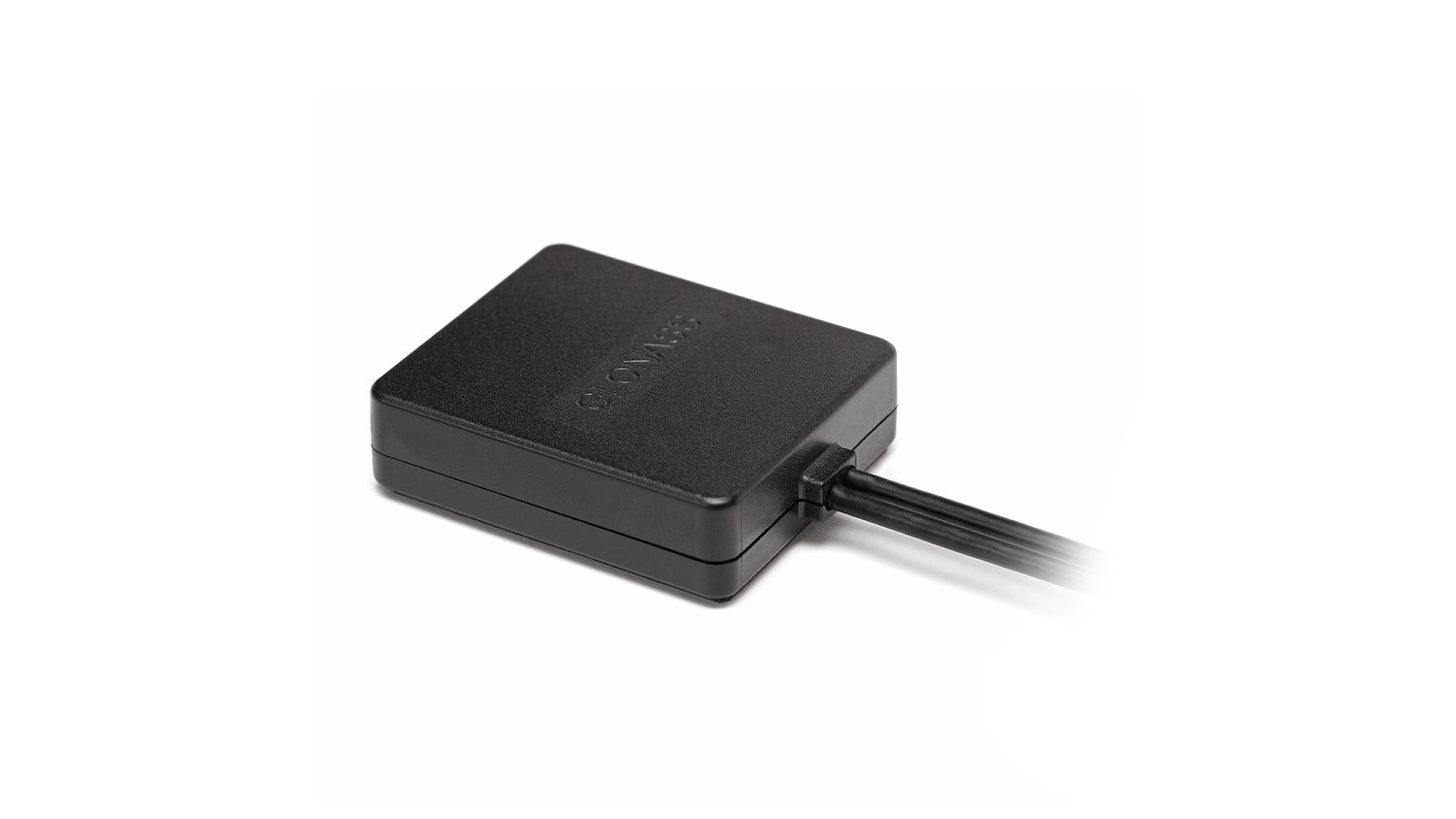

This low-profile combination antenna is designed for reliable connectivity in mobile, asset tracking, and telematics applications. It features ground plane independence and supports both cellular (2G/3G) and active GNSS (GPS, GLONASS, Galileo, QZSS) technologies. The antenna is suitable for use in automotive, fleet management, smart cities, and industrial monitoring, offering robust performance even in challenging environments.
Connections
3G/2G/CELL
GPS/GLO/QZSS/Galileo/L1
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Multi-Technology
Cellular Technologies: 3G, 2G
Location: External

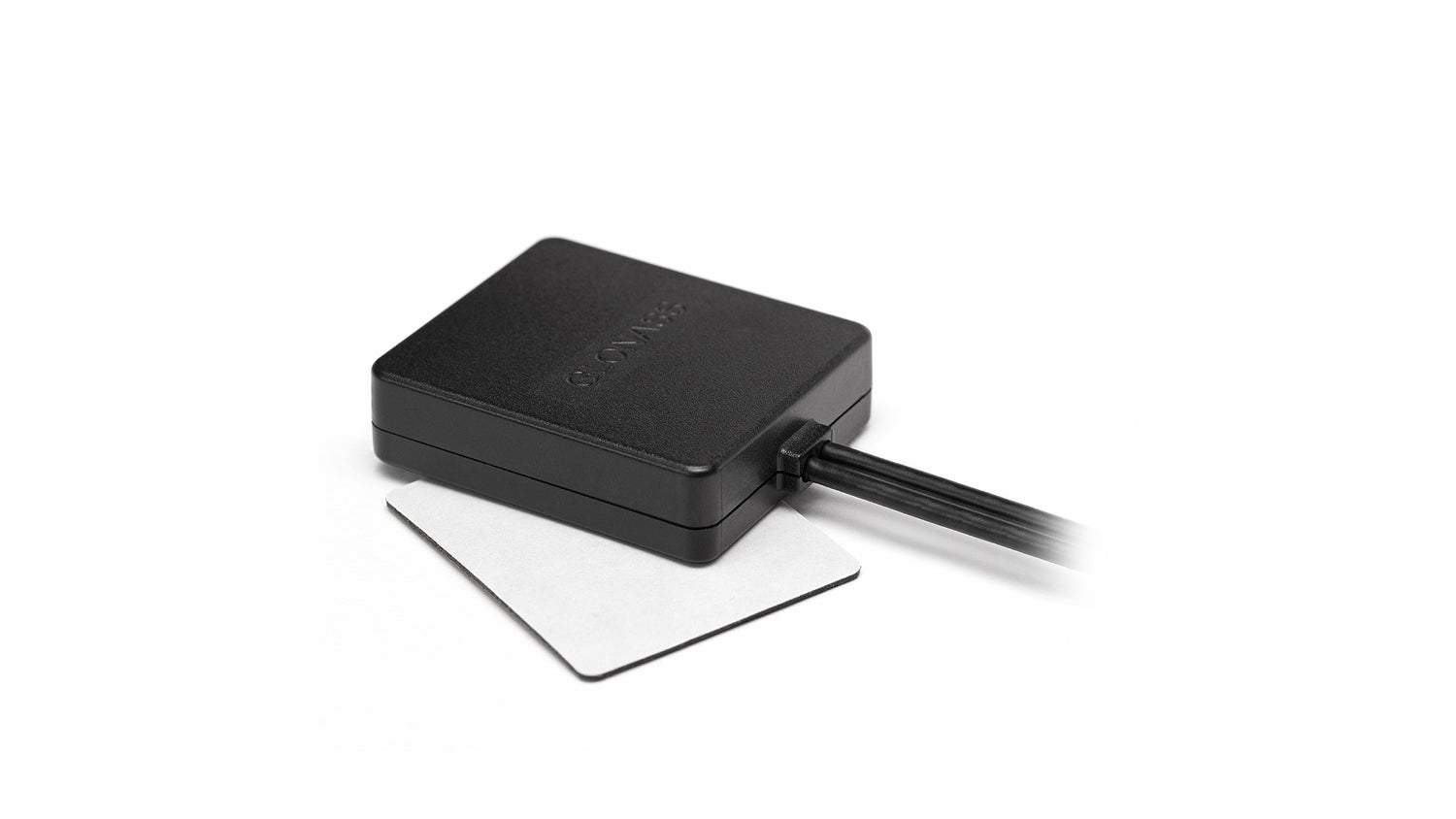

Mounting: Adhesive Mount, Magnetic Mount, Magnetic/Adhesive Mount
Satellite Navigation: GNSS
Type: Combination
Connection 1 - Cellular
Standards: 2G and 3G
Frequency: 824-960, 1710-2170 MHz
VSWR: ~1.8:1, ~1.5:1
Efficiency (%): ~28.2, ~20.7
Peak Gain (dBi): ~0.4, ~2.6
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Connection 2 - GNSS
Standards: GPS/QZSS/Galileo/GLONASS
Frequency: 1575.42, 1598-1610 MHz
Impedance (Ohm): 50
Active Gain (dB): 26 @ 3V, 28 @ 5V
Saw Filter Type: No-Filter
Voltage (V): 2.7 - 5.5
Current (mA): 15 - 35
Power Consumption (mW): 40 - 138
Download Datasheet PDF
Technical Specifications (AI Reference Data)
{
"model": "2J4600MPG",
"title": "Cellular and GPS/GLONASS/Galileo Magnetic/Adhesive Mount Antenna",
"mountingType": "Magnetic/Adhesive Mount",
"ipRating": null,
"dimensions_mm": "50 × 40 × 12.5/13.5",
"elements": [
{
"elementID": "Cellular",
"type": "Cellular",
"technologies": [
"3G",
"2G"
],
"frequencies": [
{
"range_mhz": "824-960",
"returnLoss_db": "~-13.5",
"vswr": "~1.8:1",
"efficiency_percent": "~28.2",
"peakGain_dbi": "~0.42",
"averageGain_db": "~-5.8"
},
{
"range_mhz": "1710-2170",
"returnLoss_db": "~-15.8",
"vswr": "~1.5:1",
"efficiency_percent": "~20.7",
"peakGain_dbi": "~2.6",
"averageGain_db": "~-6.9"
}
],
"polarization": "Linear",
"radiationPattern": "Omni-Directional",
"impedance_ohms": 50,
"maxInputPower_w": 25
},
{
"elementID": "GNSS",
"type": "GNSS",
"technologies": [
"GPS",
"GLONASS",
"Galileo",
"QZSS"
],
"frequencies": [
{
"range_mhz": "1575.42",
"returnLoss_db": "~-25",
"vswr": "~1.1:1",
"efficiency_percent": null,
"peakGain_dbi": "~26-28",
"averageGain_db": null
},
{
"range_mhz": "1598-1610",
"returnLoss_db": "~-25",
"vswr": "~1.1:1",
"efficiency_percent": null,
"peakGain_dbi": "~26-28",
"averageGain_db": null
}
],
"polarization": "RHCP",
"radiationPattern": "Hemispherical",
"impedance_ohms": 50,
"maxInputPower_w": null
}
],
"connectors": [
{
"elementIDRef": "Cellular",
"type": "SMA-Male",
"cableType": "RG174",
"cableLength_mm": 3000
},
{
"elementIDRef": "GNSS",
"type": "SMA-Male",
"cableType": "RG174",
"cableLength_mm": 3000
}
]
}
