2J  |  SKU: 2J4715B_3-868-TH19-300LL100-C20GGST

2J4715B-868 ISM screw mount Antenna IP69K SMA-M 300cm

€7,48
Unit Price excluding VAT. Shipping calculated at checkout.

Datasheet

PDF Download

Description

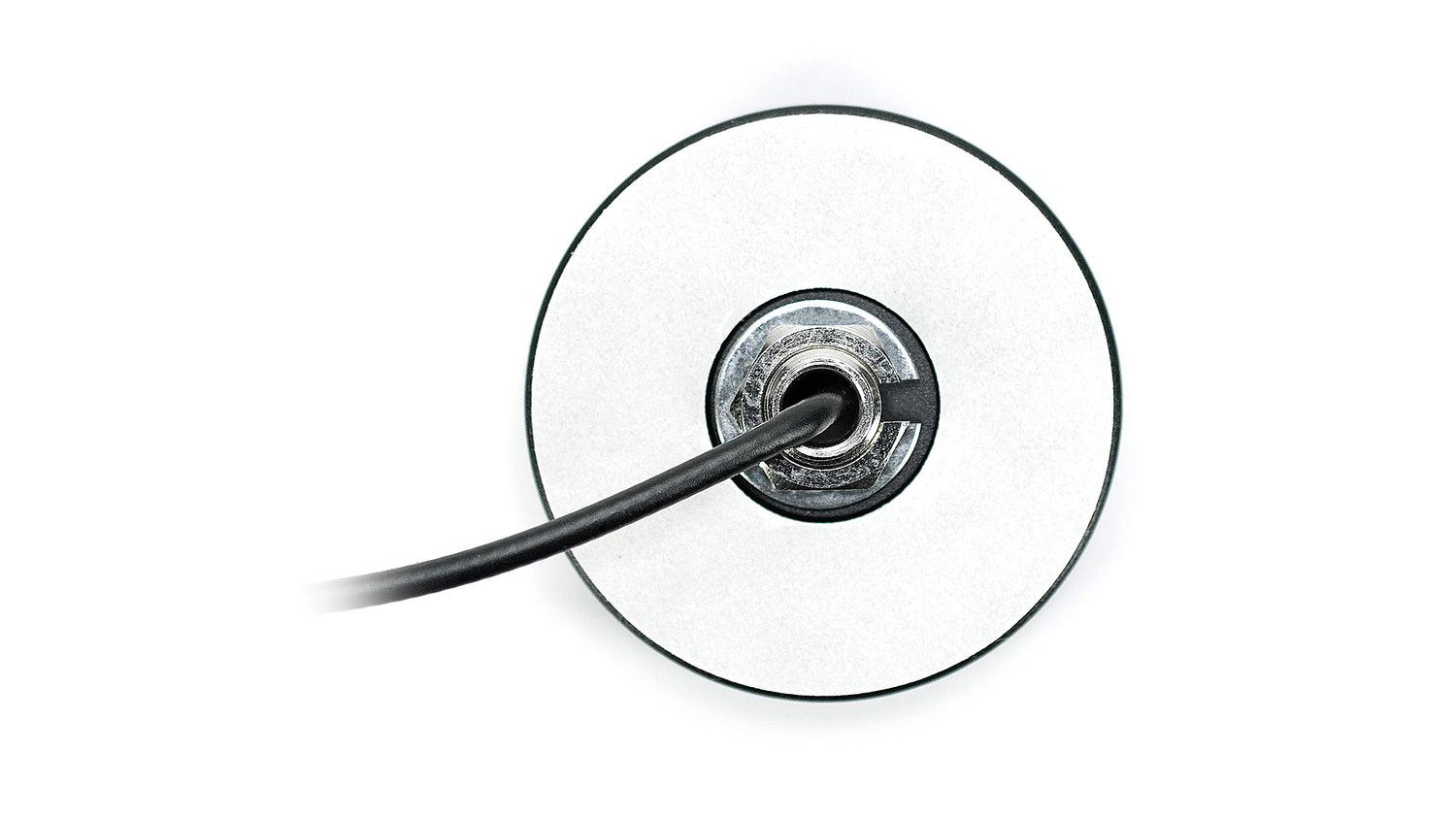

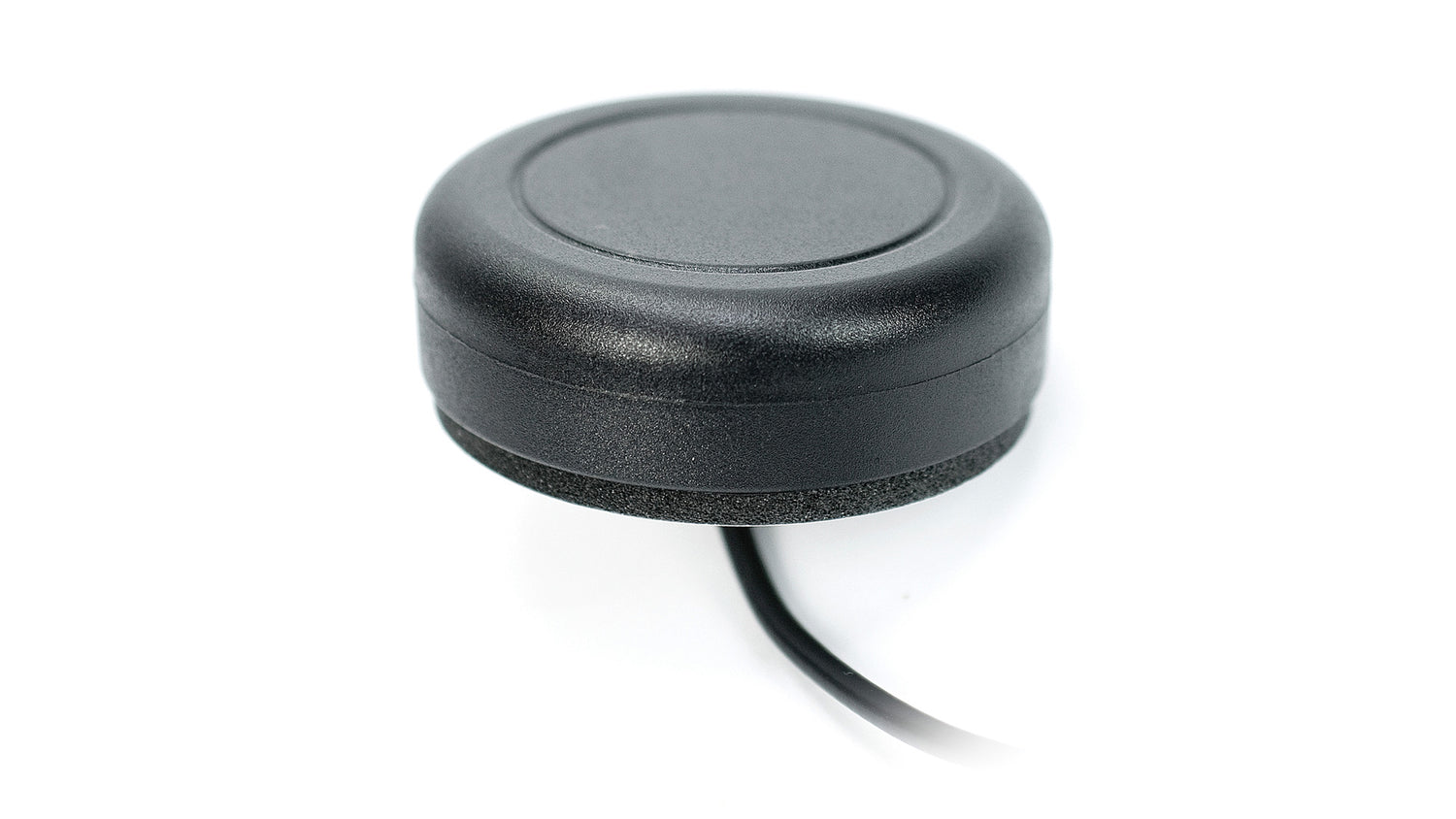

This low-profile antenna is designed for reliable performance in the 868 MHz ISM band, making it ideal for IoT, smart home, industrial, and asset tracking applications. Its robust screw mount design and IP69K/IP67 protection ensure durability in harsh environments. The antenna is ground plane independent and offers customizable cable and connector options to suit a wide range of installation requirements.

Connections

868MHz/Sigfox/LoRa/LPWA/RFID/ZigBee/ISM

Connector & Cable

  • Connector Type: SMA Male
  • Cable Length: 300cm
  • Cable Type: LL100


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Screw Mount
Location: External
Type: Single
Dimensions: Ø 52 x 17.5 mm

Connection 1 - 868 MHz ISM

Standards: ZigBee, ISM, SIGFOX, LoRa
Frequency: 863-870 MHz
VSWR: ~1.2:1
Efficiency (%): ~33.4
Peak Gain (dBi): ~2.6
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2J4715B-868", "title": "868 MHz ISM Low Profile Screw Mount Antenna", "mountingType": "Screw Mount", "ipRating": "IP67/IP69", "dimensions_mm": "Ø 52 x 17.5", "elements": [ { "elementID": "ISM 868 MHz", "type": "ISM", "technologies": [ "ZigBee", "ISM", "SIGFOX", "LoRa" ], "frequencies": [ { "range_mhz": "863-870", "returnLoss_db": "~-21.3", "vswr": "~1.2:1", "efficiency_percent": "~33.4", "peakGain_dbi": "~2.6", "averageGain_db": "~-4.7" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 } ], "connectors": [ { "elementIDRef": "ISM 868 MHz", "type": "SMA-Male", "cableType": "RG174", "cableLength_mm": 3000 } ] }
