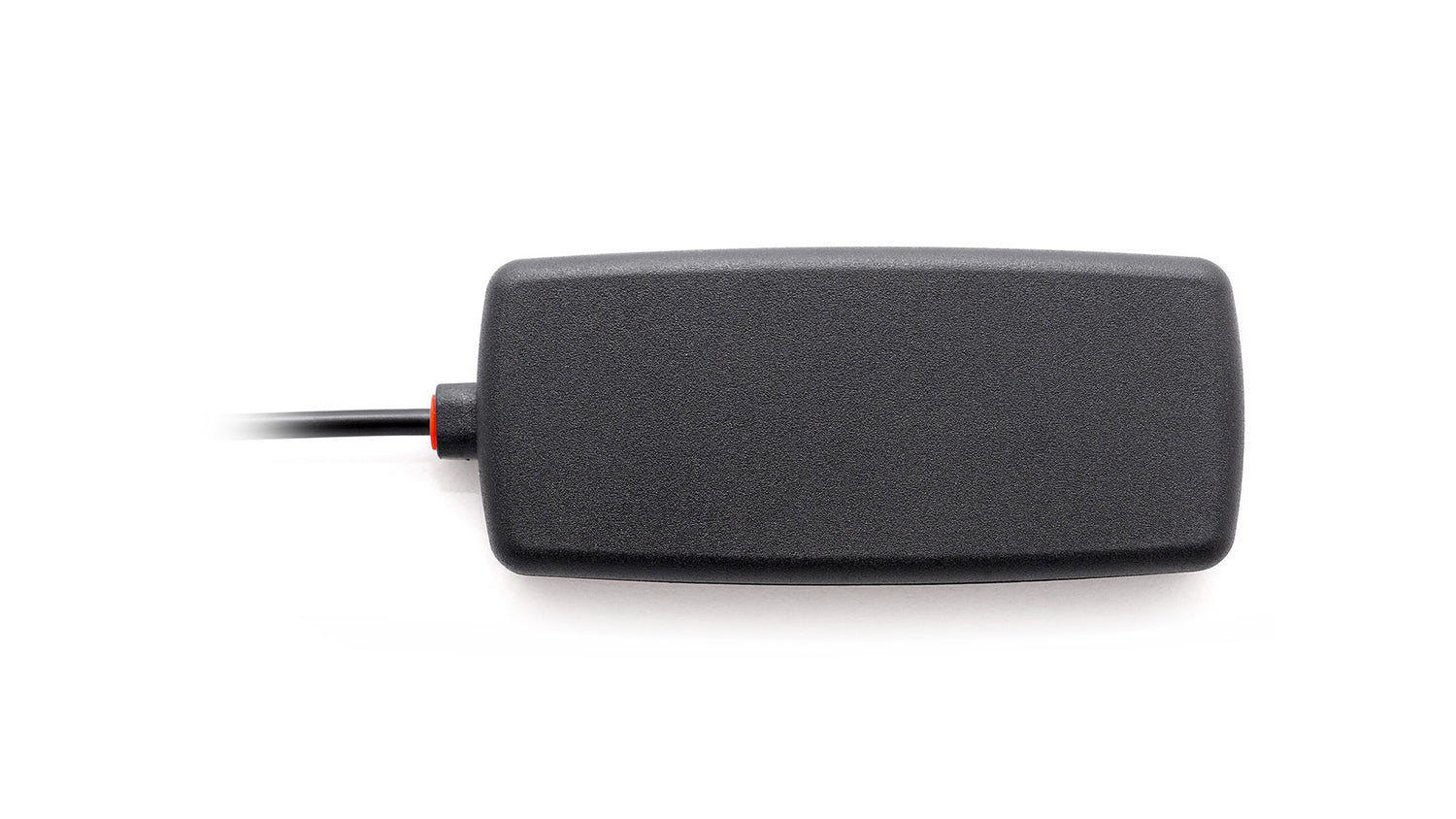

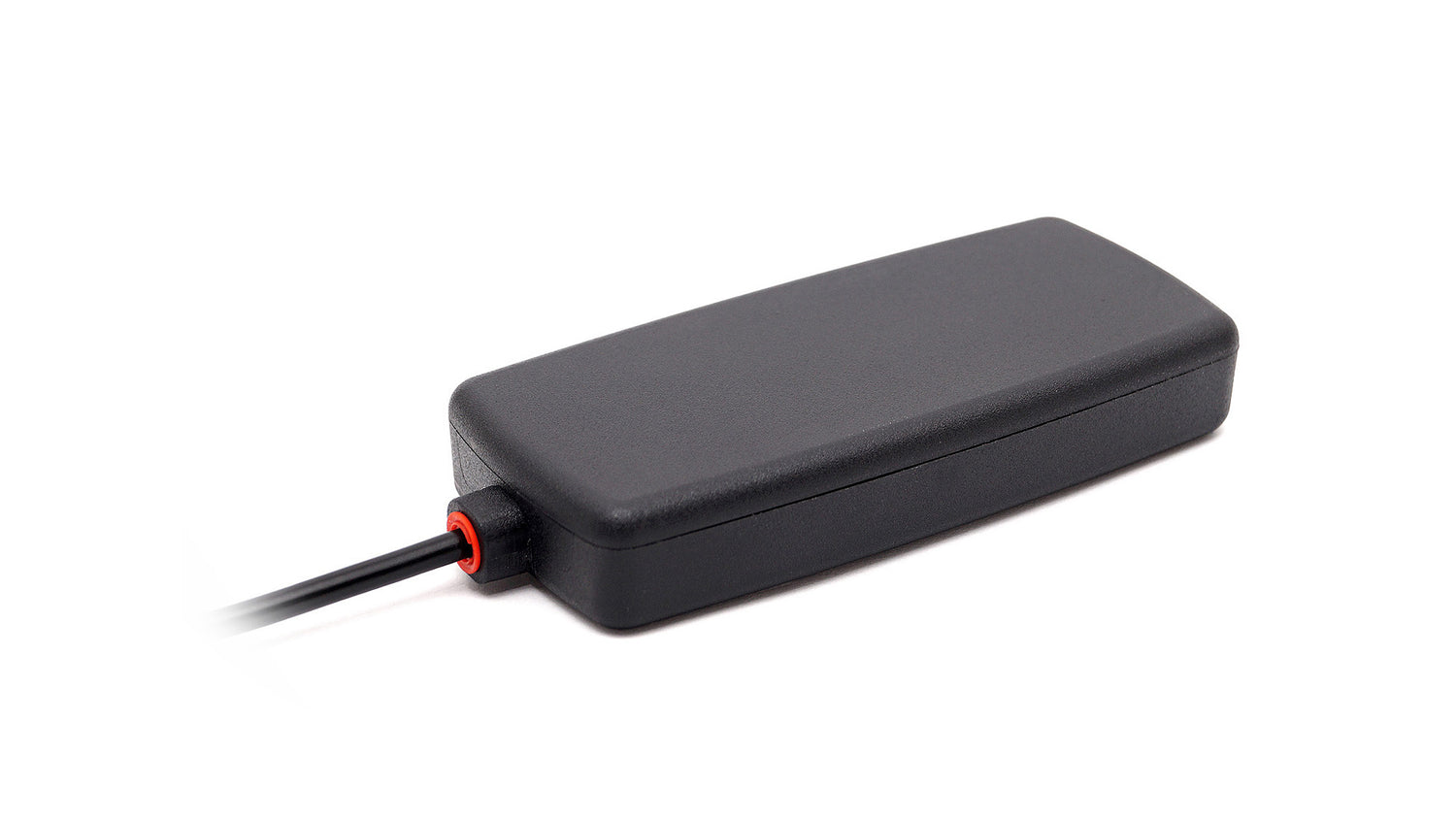

This low-profile, ground plane independent antenna is designed for high-performance Wi-Fi 6E/7 and ISM band applications. Its adhesive mount allows for flexible installation on a variety of surfaces, making it ideal for smart home, IoT, entertainment, transportation, and industrial environments. The antenna supports a wide range of wireless standards, ensuring reliable connectivity for modern devices and networks. Its robust construction with IP67 and IP69 ratings provides excellent protection against dust and water, making it suitable for both indoor and outdoor use.
Connections
2.4-5.0-6.0GHz/WiFi 6E/WiFi 7/LPWA/BT/ZigBee/RFID/ISM
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Mounting: Adhesive Mount
Location: External
Type: Single
Connection 1 - Wi-Fi 6E/7, ISM
Standards: WiFi, Bluetooth, ZigBee, ISM, SigFox, LoRa
Frequency: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~2.3:1, ~1.5:1, ~1.7:1
Efficiency (%): ~42.4, ~25.0, ~25.0
Peak Gain (dBi): ~3.5, ~1.7, ~1.5
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Download Datasheet PDF
Technical Specifications (AI Reference Data)
{
"model": "2J4802P",
"title": "2.4/5.0/6.0 GHz WiFi 6E / WiFi 7 ISM Ground Plane Independent Adhesive Mount Antenna",
"mountingType": "Adhesive Mount",
"ipRating": "IP67/IP69",
"dimensions_mm": "83 x 35 x 13.3",
"elements": [
{
"elementID": "Wi-Fi / ISM",
"type": "Wi-Fi",
"technologies": [
"Wi-Fi 6E",
"Wi-Fi 7",
"Bluetooth",
"ZigBee",
"ISM",
"LPWA",
"SigFox",
"LoRa",
"RFID"
],
"frequencies": [
{
"range_mhz": "2410-2490",
"returnLoss_db": "~-8.6",
"vswr": "~2.3:1",
"efficiency_percent": "~42.4",
"peakGain_dbi": "~3.5",
"averageGain_db": "~-3.7"
},
{
"range_mhz": "4920-5925",
"returnLoss_db": "~-16.9",
"vswr": "~1.5:1",
"efficiency_percent": "~25.0",
"peakGain_dbi": "~1.7",
"averageGain_db": "~-6.1"
},
{
"range_mhz": "5925-7125",
"returnLoss_db": "~-13.3",
"vswr": "~1.7:1",
"efficiency_percent": "~25.0",
"peakGain_dbi": "~1.5",
"averageGain_db": "~-6.0"
}
],
"polarization": "Linear",
"radiationPattern": "Omni-Directional",
"impedance_ohms": 50,
"maxInputPower_w": 25
}
],
"connectors": [
{
"elementIDRef": "Wi-Fi / ISM",
"type": "RP-SMA-Male",
"cableType": "LL100",
"cableLength_mm": 3000
}
]
}
