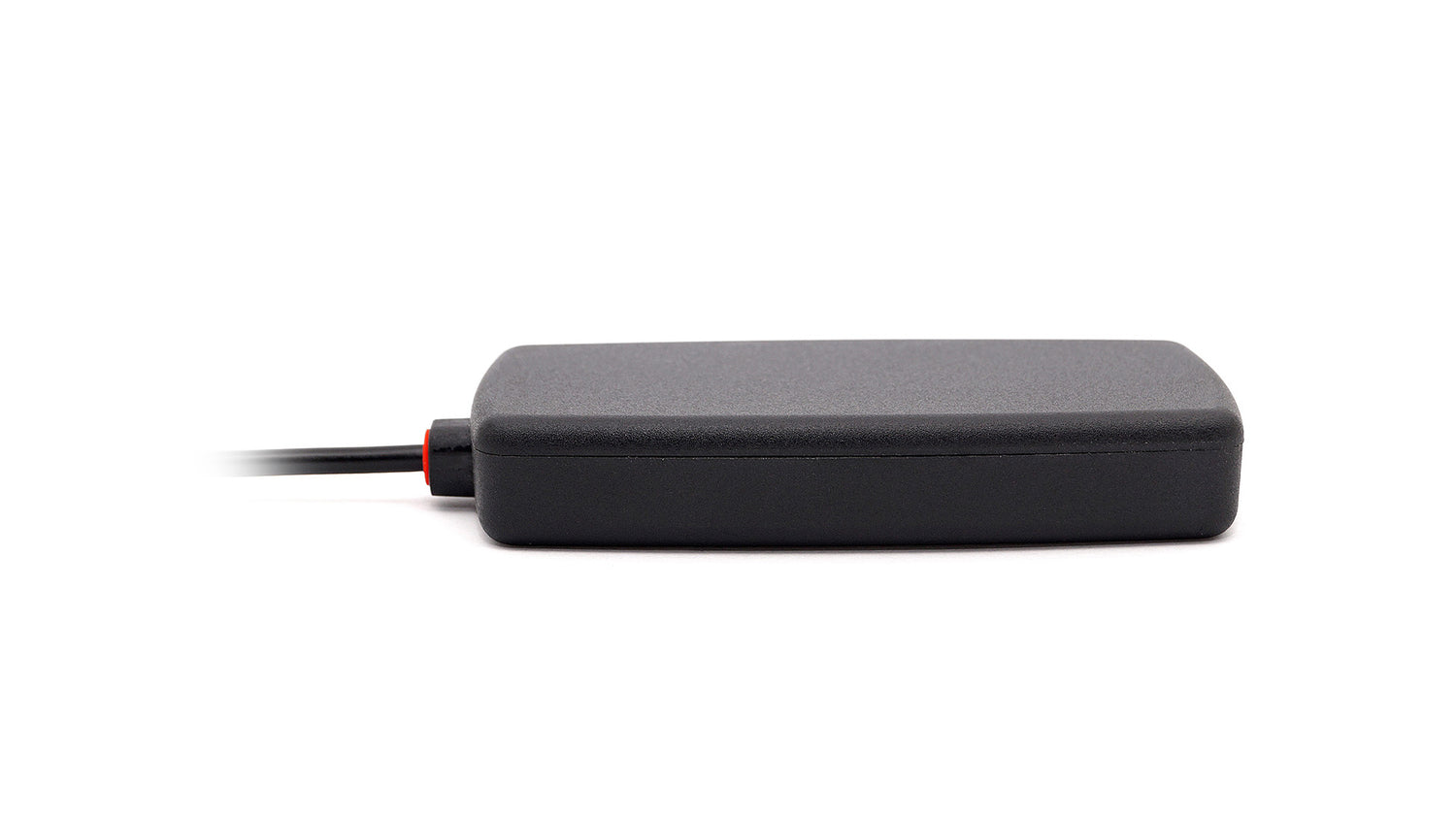

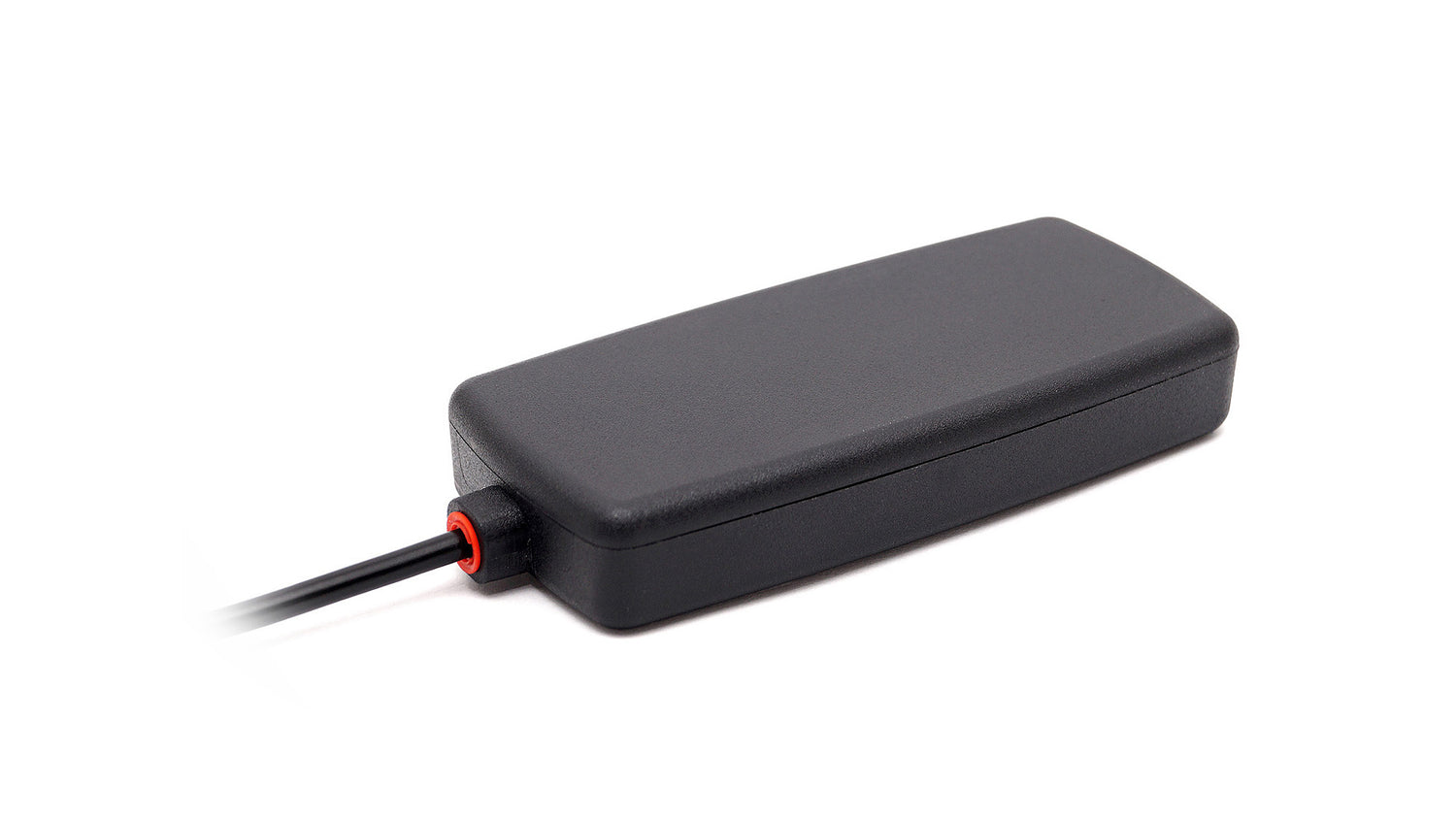

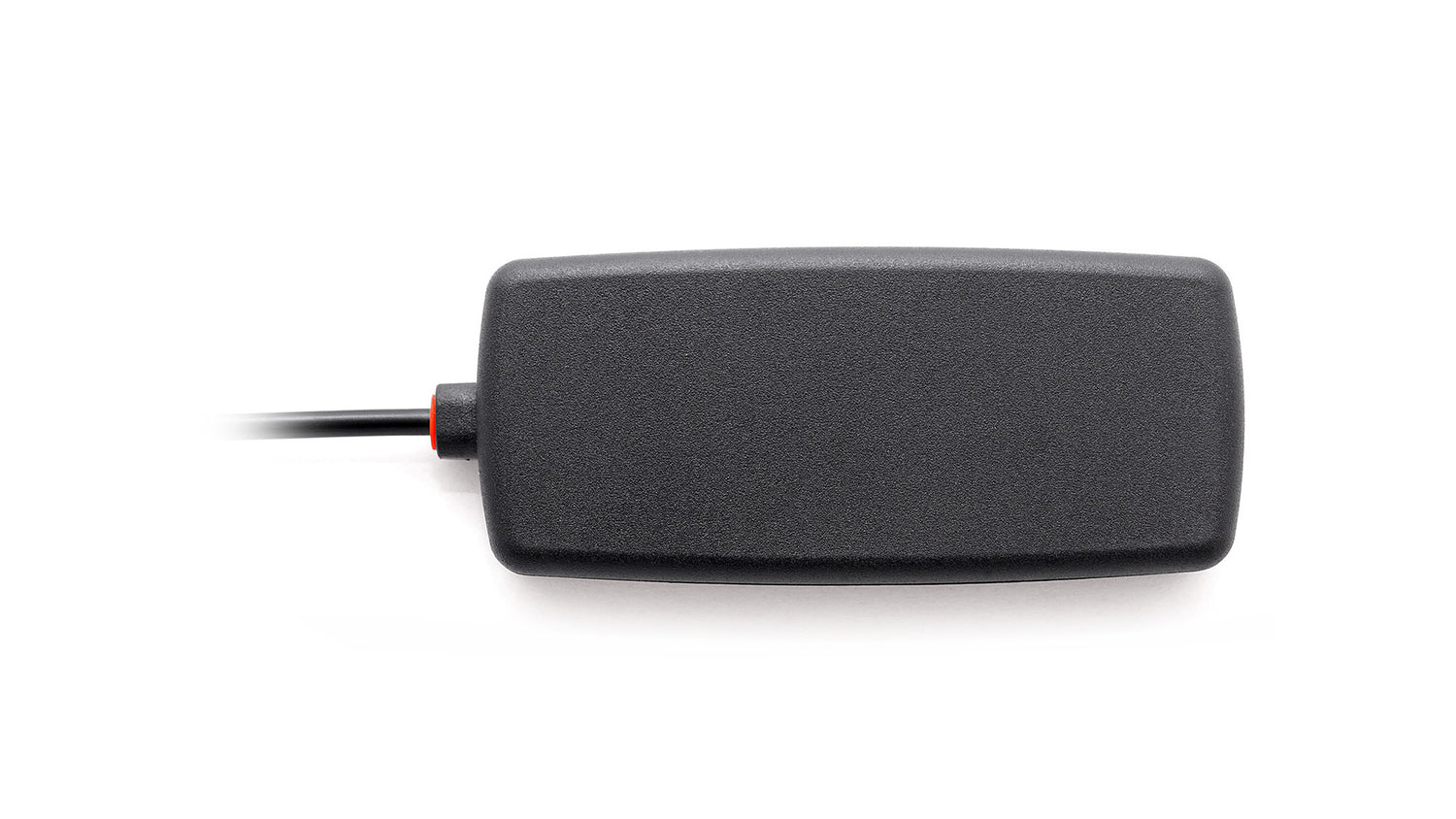

This low-profile adhesive antenna is designed for reliable 4G LTE, 3G, and 2G connectivity across a wide range of frequencies. Its ground plane independent design ensures consistent performance regardless of mounting surface, making it ideal for automotive, telematics, IoT, and industrial applications. The antenna is rated IP67 and IP69 for robust protection against dust and water, supporting both indoor and outdoor installations.
Connections
4G LTE/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Mounting: Adhesive Mount
Location: External
Type: Single
Connection 1 - Cellular/4G LTE
Standards: 2G, 3G and 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~1.9:1, ~1.4:1, ~1.8:1
Efficiency (%): ~59, ~55, ~31
Peak Gain (dBi): ~3.4, ~2.1, ~1.0
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Download Datasheet PDF
Technical Specifications (AI Reference Data)
{
"model": "2J4824P",
"title": "4G LTE/3G/2G Ground Plane Independent Adhesive Mount Antenna",
"mountingType": "Adhesive Mount",
"ipRating": "IP67/IP69",
"dimensions_mm": "83 x 35 x 13.3",
"elements": [
{
"elementID": "Cellular",
"type": "Cellular",
"technologies": [
"4G LTE",
"FirstNet",
"LPWA",
"NB-IoT",
"Cat-X-Mx-NBx",
"3G",
"2G"
],
"frequencies": [
{
"range_mhz": "698-960",
"returnLoss_db": "~-13.1",
"vswr": "~1.9:1",
"efficiency_percent": "~59",
"peakGain_dbi": "~3.4",
"averageGain_db": "~-2.3"
},
{
"range_mhz": "1710-2170",
"returnLoss_db": "~-16.7",
"vswr": "~1.4:1",
"efficiency_percent": "~55",
"peakGain_dbi": "~2.1",
"averageGain_db": "~-2.5"
},
{
"range_mhz": "2500-2700",
"returnLoss_db": "~-11.6",
"vswr": "~1.8:1",
"efficiency_percent": "~31",
"peakGain_dbi": "~1.0",
"averageGain_db": "~-5.1"
}
],
"polarization": "Linear",
"radiationPattern": "Omni-Directional",
"impedance_ohms": 50,
"maxInputPower_w": 25
}
],
"connectors": [
{
"elementIDRef": "Cellular",
"type": "SMA-Male",
"cableType": "LMR100",
"cableLength_mm": 3000
}
]
}
