Description
This low-profile combination antenna is designed for reliable connectivity across 4G LTE, 3G, 2G, and GNSS (GPS, GLONASS, Galileo, QZSS) networks. Its ground plane independent design and wideband coverage make it ideal for applications such as asset tracking, telematics, smart cities, fleet management, and IoT deployments. The active GNSS element with pre-filter ensures precise location accuracy, while the adhesive mount allows for easy and secure installation on a variety of surfaces.
Connections
4G LTE/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G
GPS/GLO/QZSS/Galileo/L1
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Multi-Technology
Cellular Technologies: 4G/LTE
Location: External
Mounting: Adhesive Mount
Satellite Navigation: GNSS
Type: Combination
Dimensions: 83 x 35 x 13.3 mm
Connection 1 - Cellular/4G LTE
Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~1.8:1, ~1.3:1, ~2.0:1
Efficiency (%): ~53, ~49, ~25
Peak Gain (dBi): ~2.4, ~1.3, ~0.4
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Connector Type: Fakra
Cable Length: 300cm
Cable Type: LMR100
Connection 2 - GNSS
Standards: GPS/QZSS/Galileo/GLONASS
Frequency: 1575.42, 1598-1606 MHz
VSWR: ≤1.4:1
Impedance (Ohm): 50
Polarisation: RHCP
Active Gain (dB): 28 @ 2.7 V
Saw Filter Type: Pre-Filter
Voltage (V): 1.5 – 3.6
Current (mA): 9 Typ
Power Consumption (mW): 24.3 Typ
Connector Type: Fakra
Cable Length: 300cm
Cable Type: LMR100

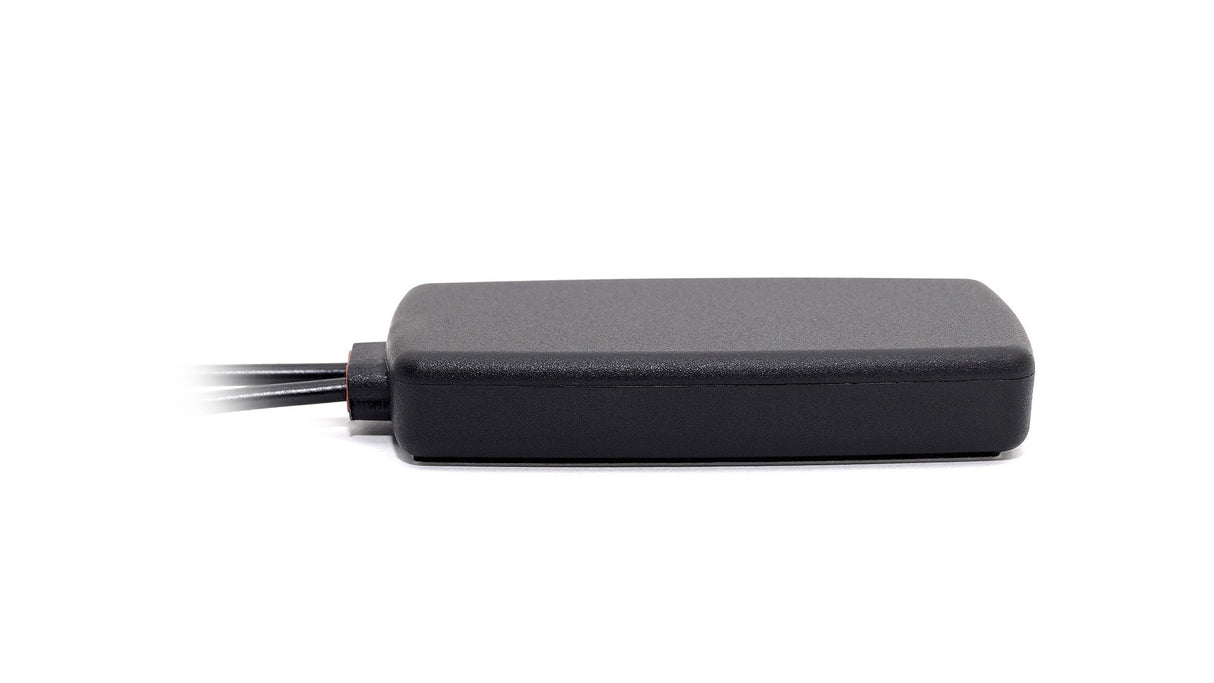

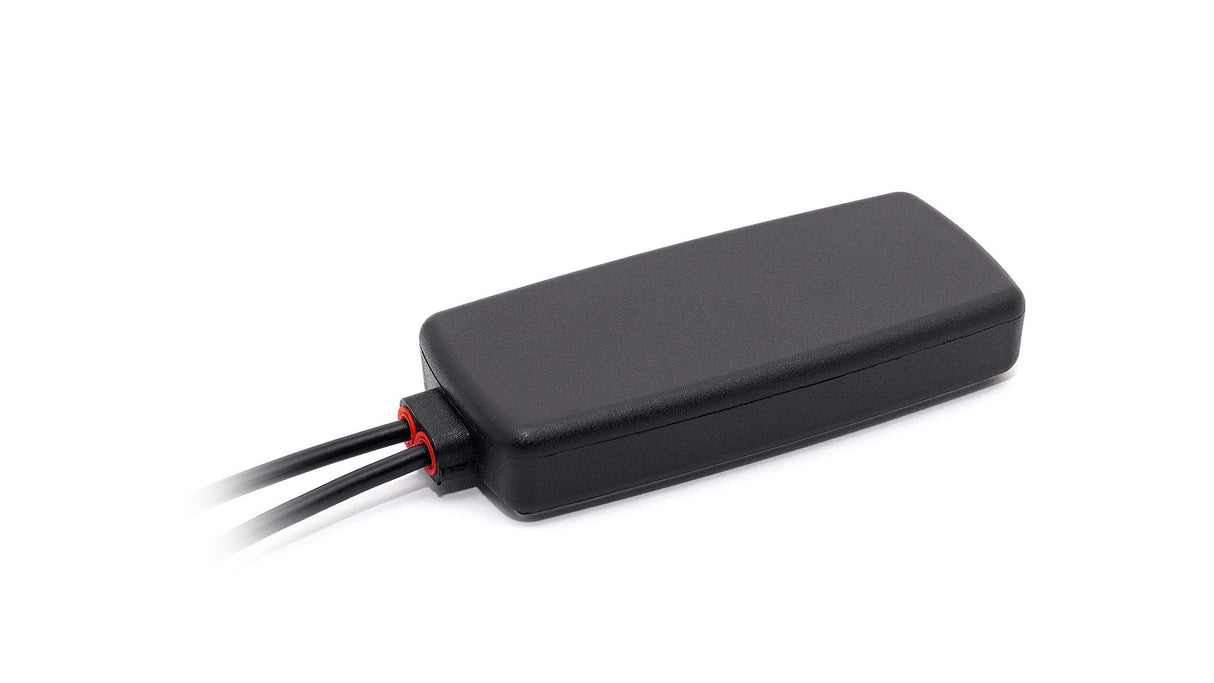

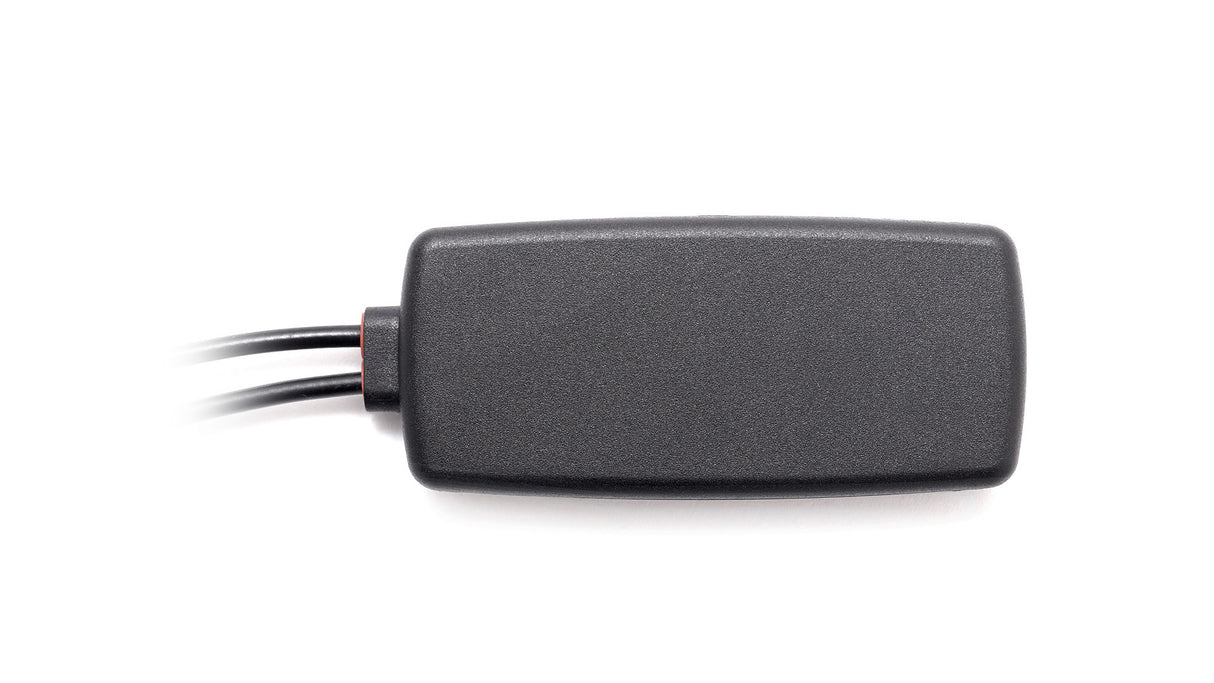

2J4841PGF 4G/LTE, GNSS Antenna adhesive 2-in-1 Fakra 300cm
