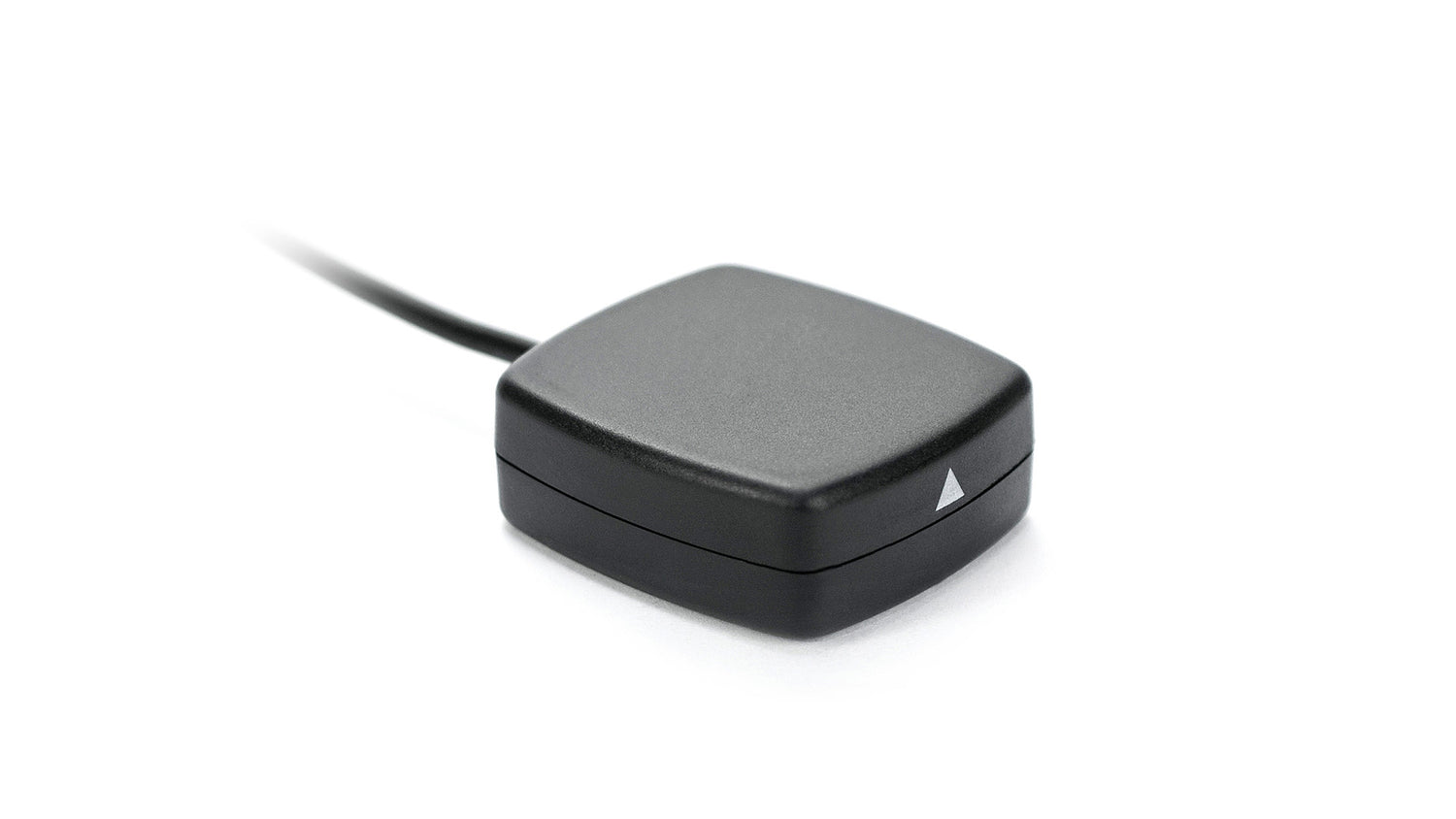

2J4D01MP3F GNSS Antenna adhesive/magnetic mount L1/L5

Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
2J Antennas, s.r.o.
Stefanikova 61, Bardejov, 08501, Slovakia
sales@2j-antennas.com
+421 (54) 488-1694

Description

This high-precision, low-profile external antenna is designed for advanced GNSS applications requiring centimeter-level accuracy and reliability. Supporting multi-band and multi-constellation reception, it is ideal for next-generation navigation, surveying, and autonomous systems. The antenna is ground plane independent and features active gain with a pre-filter for enhanced signal quality. Its compact form factor and included adhesive mounting sticker make it easy to install in a wide range of environments.

Connections

GNSS/RTK/L1L5


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Adhesive Mount, Magnetic Mount, Magnetic/Adhesive Mount
Location: External
Satellite Navigation: GNSS
Type: Single

Connection 1 - GNSS/RTK/L1L5

Technologies: GPS/QZSS/Galileo/IRNSS/SBAS/L1L5
Bandwidth (MHz): 1176, 1575
Bands: L5, L1
Frequency: 1176.45, 1575.42 MHz
Standards: GPS(L5), QZSS(L5), Galileo(E5a), IRNSS(L5), GPS(L1C), QZSS(L1C), Galileo(E1), SBAS (L1)
Return Loss (dB): ~-15.5, ~-23.6
VSWR: ~1.4:1, ~1.1:1
Impedance (Ohm): 50
Radiation Pattern: Hemispherical
Axial Ratio (dB): 3dB max
Polarisation: RHCP
Voltage (V): 1.5 - 6
Active Gain (dB): 28 @ 3 V
Noise Figure (dB): 1.6 @ 3V
Current Consumption (mA): 16 @ 3V
Power Consumption (mW): 48 @ 3V
Saw Filter Type: Pre-Filter
Out of Band Rejection (dB): ~40
ESD Protection (kV): 2

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2J4D01MP3F", "title": "High Precision GPS/IRNSS/RTK/L1/L5 Active Adhesive-Magnetic Mount Antenna", "mountingType": "Magnetic/Adhesive Mount", "ipRating": "IP67", "dimensions_mm": "41 x 34 x 13.5/14.5", "elements": [ { "elementID": "GNSS", "type": "GNSS", "technologies": [ "GPS", "QZSS", "Galileo", "IRNSS", "SBAS", "RTK", "L1", "L5" ], "frequencies": [ { "range_mhz": "1176.45", "returnLoss_db": "~-15.5", "vswr": "~1.4:1", "efficiency_percent": null, "peakGain_dbi": "~28", "averageGain_db": null }, { "range_mhz": "1575.42", "returnLoss_db": "~-23.6", "vswr": "~1.1:1", "efficiency_percent": null, "peakGain_dbi": "~28", "averageGain_db": null } ], "polarization": "RHCP", "radiationPattern": "Hemispherical", "impedance_ohms": 50, "maxInputPower_w": null } ], "connectors": [ { "elementIDRef": "GNSS", "type": "SMA-Male", "cableType": "LL100", "cableLength_mm": 3000 } ] }
