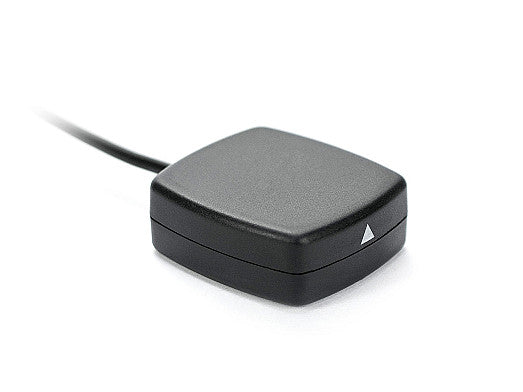

2J4D01MPCF GNSS adhesive magnetic mount Antenna SMA-M 300cm

€13,70
Unit Price excluding VAT. Shipping calculated at checkout.

Datasheet

PDF Download

Description

This active GNSS antenna is designed for reliable and precise satellite navigation across a wide range of applications. Its ground plane independent design and integrated pre-filter ensure high signal quality and robust performance, even in challenging environments. The antenna is suitable for use in logistics, smart cities, fleet management, autonomous driving, drone operations, security, transportation, surveying, and more. The included adhesive mounting sticker allows for flexible installation on various surfaces, while the magnetic base provides additional mounting options.

Connections

GPS/GLO/BEI/QZSS/Galileo/L1

Connector & Cable

  • Connector Type: SMA-M
  • Cable Length: 300cm
  • Cable Type: LL100


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Location: External
Mounting: Adhesive Mount, Magnetic Mount, Magnetic/Adhesive Mount
Satellite Navigation: GNSS
Type: Single
Dimensions: 41 x 34 x 13.5/14.5 mm

Connection 1 - GNSS

Standards: GPS/GLONASS/BeiDou/QZSS/Galileo
Frequency: 1561.098, 1575.42, 1598-1610 MHz
VSWR: ≤1.4:1
Impedance (Ohm): 50
Polarisation: RHCP
Active Gain (dB): 28 @ 2.7 V
Saw Filter Type: Pre-Filter
Voltage (V): 1.5 - 3.6
Current (mA): 9 Typ
Power Consumption (mW): 24.3 Typ
ESD Protection (kV): 2

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2J4D01MPCF", "title": "GPS/GLONASS/BeiDou/QZSS/Galileo Adhesive Magnetic Mount Antenna", "mountingType": "Magnetic/Adhesive Mount", "ipRating": "IP67", "dimensions_mm": "41 x 34 x 13.5/14.5", "elements": [ { "elementID": "GNSS", "type": "GNSS", "technologies": [ "GPS", "GLONASS", "BeiDou", "QZSS", "Galileo" ], "frequencies": [ { "range_mhz": "1561.098", "returnLoss_db": "~-15.0", "vswr": "~1.4:1", "efficiency_percent": null, "peakGain_dbi": "~28", "averageGain_db": null }, { "range_mhz": "1575.42", "returnLoss_db": "~-15.0", "vswr": "~1.4:1", "efficiency_percent": null, "peakGain_dbi": "~28", "averageGain_db": null }, { "range_mhz": "1598-1606", "returnLoss_db": "~-15.0", "vswr": "~1.4:1", "efficiency_percent": null, "peakGain_dbi": "~28", "averageGain_db": null } ], "polarization": "RHCP", "radiationPattern": "Hemispherical", "impedance_ohms": 50, "maxInputPower_w": null } ], "connectors": [ { "elementIDRef": "GNSS", "type": "SMA-Male", "cableType": "RG174", "cableLength_mm": 3000 } ] }
