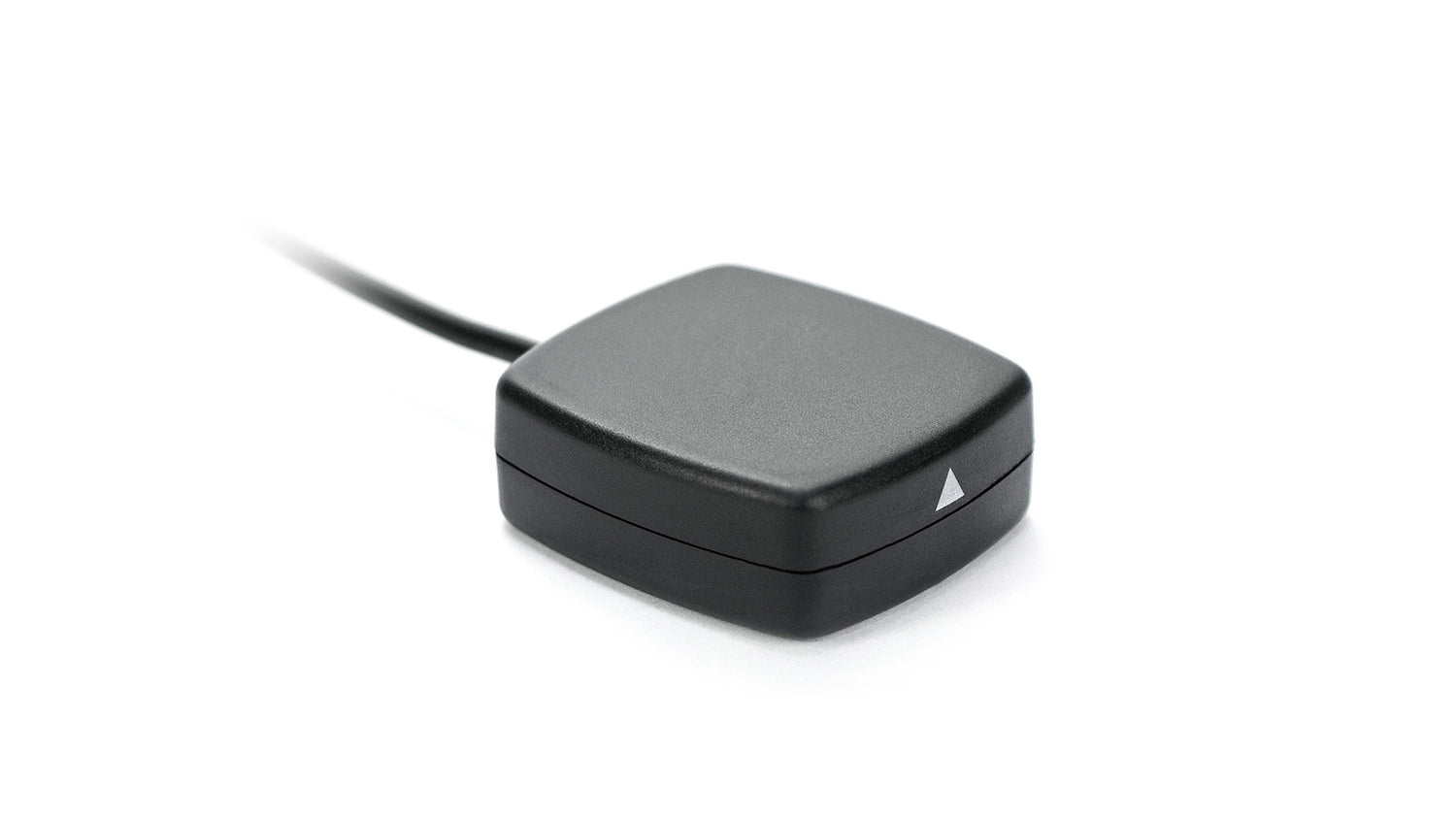

2J4D01MPGF GNSS Antenna adhesive/magnetic mount

Unit Price excluding VAT. Shipping calculated at checkout.

Datasheet

PDF Download

Description

This active GNSS antenna is designed for reliable and precise satellite positioning in a wide range of applications. Its ground plane independent design and integrated pre-filter ensure high performance and signal integrity, even in challenging environments. The antenna is suitable for use in logistics, smart cities, fleet management, autonomous driving, surveying, and more. The included adhesive mounting sticker and magnetic base provide flexible installation options for various surfaces.

Connections

GPS/GLO/QZSS/Galileo/L1


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Adhesive Mount, Magnetic Mount, Magnetic/Adhesive Mount
Location: External
Satellite Navigation: GNSS
Type: Single
Dimensions: 41 x 34 x 13.5/14.5 mm

Connection 1 - GNSS

Standards: GPS/QZSS/Galileo/GLONASS
Frequency: 1575.42, 1598-1606 MHz
VSWR: ≤1.4:1
Impedance (Ohm): 50
Polarisation: RHCP
Active Gain (dB): 28 @ 2.7 V
Voltage (V): 1.5 - 3.6
Current (mA): 9 Typ
Power Consumption (mW): 24.3 Typ
Saw Filter Type: Pre-Filter
ESD Protection (kV): 2

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2J4D01MPGF", "title": "GPS/GLONASS/Galileo Adhesive Magnetic Mount Antenna", "mountingType": "Magnetic/Adhesive Mount", "ipRating": "IP67", "dimensions_mm": "41 x 34 x 13.5/14.5", "elements": [ { "elementID": "GNSS", "type": "GNSS", "technologies": [ "GPS", "QZSS", "Galileo", "GLONASS" ], "frequencies": [ { "range_mhz": "1575.42", "returnLoss_db": "<=-15.0", "vswr": "<=1.4:1", "efficiency_percent": null, "peakGain_dbi": "~28.0", "averageGain_db": null }, { "range_mhz": "1598-1606", "returnLoss_db": "<=-15.0", "vswr": "<=1.4:1", "efficiency_percent": null, "peakGain_dbi": "~28.0", "averageGain_db": null } ], "polarization": "RHCP", "radiationPattern": "Hemispherical", "impedance_ohms": 50, "maxInputPower_w": null } ], "connectors": [ { "elementIDRef": "GNSS", "type": "SMA-Male", "cableType": "RG174", "cableLength_mm": 3000 } ] }
