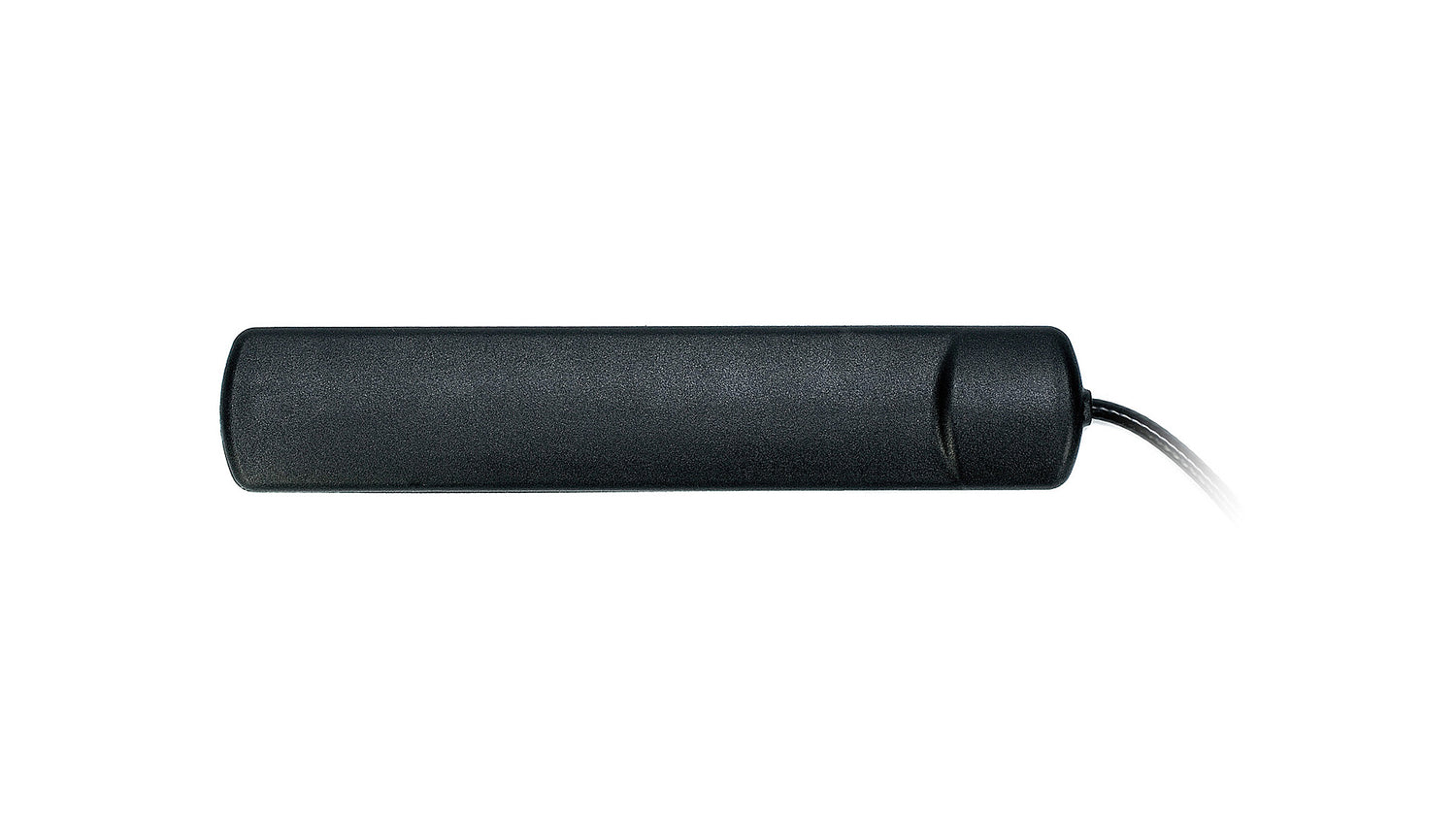

This low-profile antenna is designed for reliable 3G and 2G cellular connectivity in a wide range of applications. Its ground plane independent design ensures consistent performance, even when mounted on non-metallic surfaces. The antenna is suitable for use in mobile networks, machine control, asset tracking, wearables, automotive, and telecommunication systems. Its customizable cable and connector options make it adaptable to various installation requirements.
Connections
3G/2G/CELL
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Mounting: Adhesive Mount
Location: External
Type: Single
Connection 1 - Cellular
Standards: 2G and 3G
Frequency: 824-960, 1710-2170 MHz
VSWR: ~1.5:1, ~1.4:1
Efficiency (%): ~52, ~43
Peak Gain (dBi): ~3.5, ~4.6
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Download Datasheet PDF
Technical Specifications (AI Reference Data)
{
"model": "2J5004PL",
"title": "Cellular Ground Plane Independent Adhesive Mount Antenna",
"mountingType": "Adhesive Mount",
"ipRating": null,
"dimensions_mm": "126.5 x 22 x 6.7",
"elements": [
{
"elementID": "Cellular",
"type": "Cellular",
"technologies": [
"3G",
"2G"
],
"frequencies": [
{
"range_mhz": "824-960",
"returnLoss_db": "~-14",
"vswr": "~1.5:1",
"efficiency_percent": "~52",
"peakGain_dbi": "~3.5",
"averageGain_db": "~-2.8"
},
{
"range_mhz": "1710-2170",
"returnLoss_db": "~-16.0",
"vswr": "~1.4:1",
"efficiency_percent": "~43",
"peakGain_dbi": "~4.6",
"averageGain_db": "~-3.6"
}
],
"polarization": "Linear",
"radiationPattern": "Omni-Directional",
"impedance_ohms": 50,
"maxInputPower_w": 25
}
],
"connectors": [
{
"elementIDRef": "Cellular",
"type": "SMA-Male",
"cableType": "RG174",
"cableLength_mm": 3000
}
]
}
