2J  |  SKU: 2J5115P-433

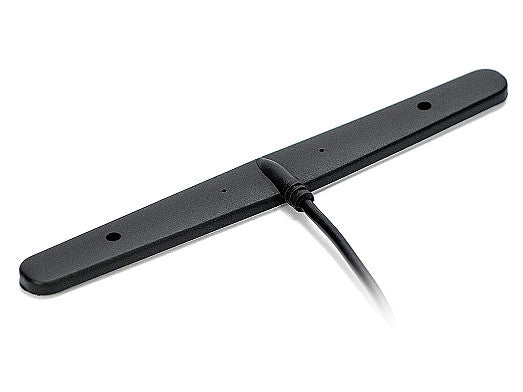

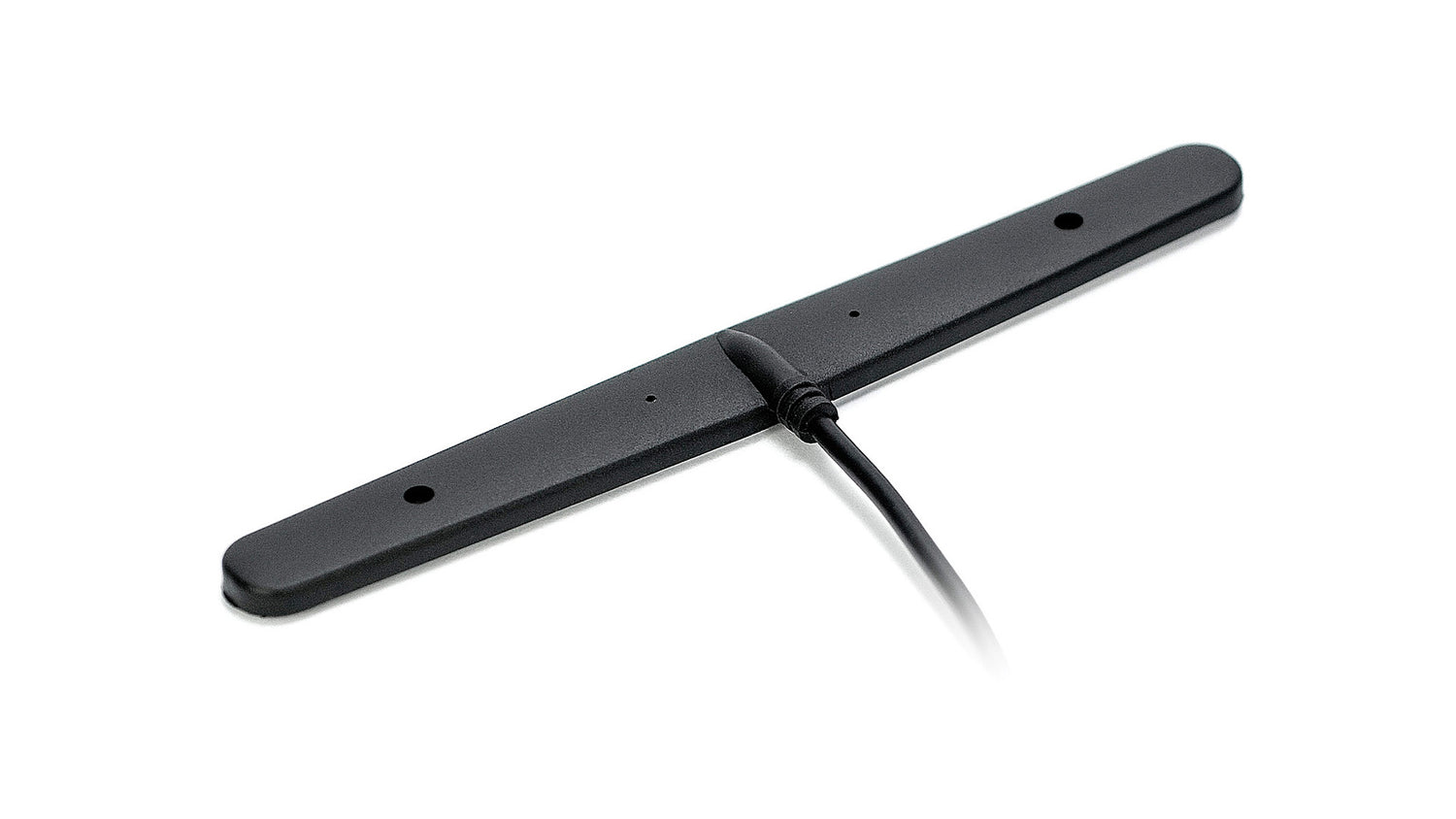

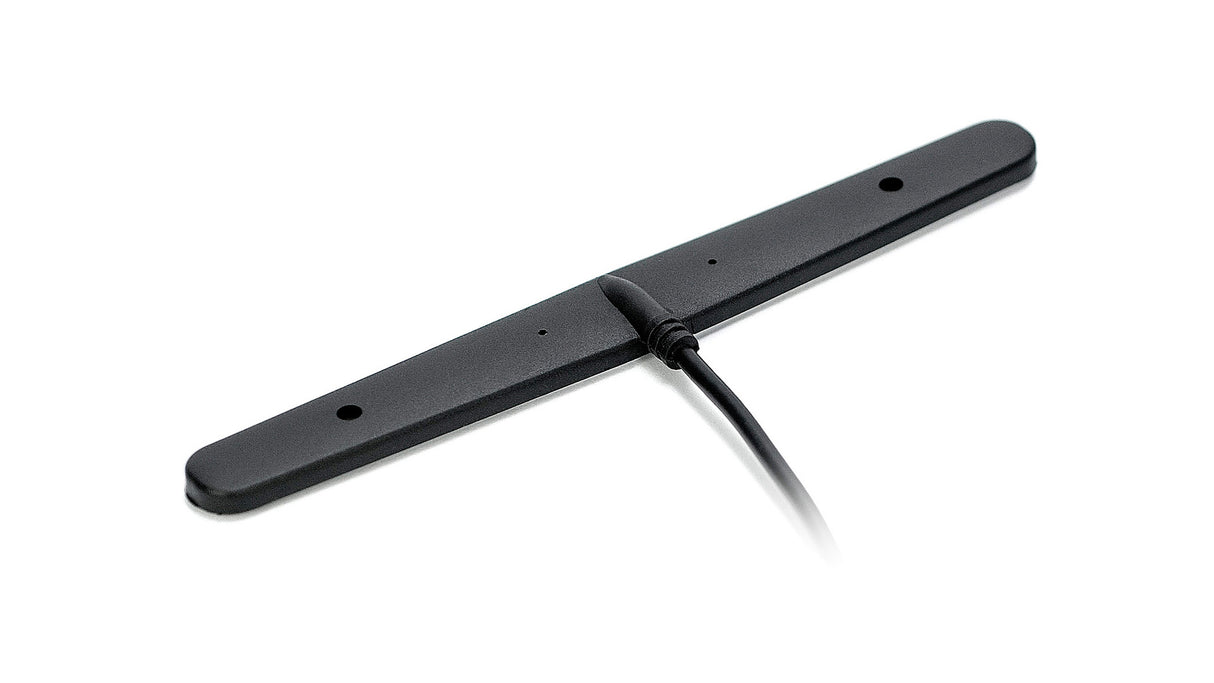

2J5115P-433 ISM Antenna adhesive mount

Unit Price excluding VAT. Shipping calculated at checkout.

Datasheet

PDF Download

Description

This high-performance antenna is designed for reliable operation in the 433 MHz ISM band, making it ideal for IoT, smart home, industrial, and asset tracking applications. Its flexible housing and low-profile design allow for easy integration into a variety of devices and environments. The antenna is ground plane independent, ensuring consistent performance regardless of installation surface. Customizable cable and connector options are available to suit specific project requirements.

Connections

433MHz/Sigfox/LoRa/LPWA/RFID/ISM


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Adhesive Mount
Location: External
Type: Single
Dimensions: 122 x 14 x 6 mm

Connection 1 - 433 MHz ISM

Standards: ISM, LoRa
Frequency: 433-435 MHz
VSWR: ~1.3:1
Efficiency (%): ~39.6
Peak Gain (dBi): ~1.7
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 50

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2J5115P-433", "title": "433 MHz ISM Flexible Housing High Performance Antenna", "mountingType": "Adhesive Mount", "ipRating": null, "dimensions_mm": "122 x 14 x 6", "elements": [ { "elementID": "ISM 433 MHz", "type": "ISM", "technologies": [ "ISM", "LoRa", "Sigfox", "LPWA", "RFID" ], "frequencies": [ { "range_mhz": "433-435", "returnLoss_db": "~-17.0", "vswr": "~1.3:1", "efficiency_percent": "~39.6", "peakGain_dbi": "~1.7", "averageGain_db": "~-4.0" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 50 } ], "connectors": [ { "elementIDRef": "ISM 433 MHz", "type": "SMA-Male", "cableType": "RG174", "cableLength_mm": 3000 } ] }
