2J  |  SKU: 2J5124P-300LL100-C20GST

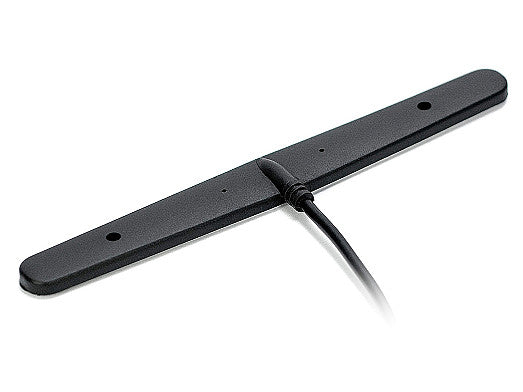

2J5124P 4G/LTE adhesive mount Antenna SMA-M 300cm

€3,70
Unit Price excluding VAT. Shipping calculated at checkout.

Datasheet

PDF Download

Description

This high-performance antenna is designed for reliable 4G LTE, 3G, and 2G connectivity in a wide range of applications. Its flexible, low-profile housing and ground plane independent design make it ideal for installations where space and mounting options are limited. The wideband coverage ensures compatibility with multiple cellular bands, supporting robust data and voice communications for mobile networks, IoT, asset tracking, and more. The antenna is suitable for use in automotive, industrial, telematics, and smart city deployments.

Connections

4G LTE/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G

Connector & Cable

  • Connector Type: SMA-M
  • Cable Length: 300cm
  • Cable Type: LL100


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Adhesive Mount
Location: External
Type: Single
Dimensions: 122 x 14 x 6 mm

Connection 1 - Cellular/4G LTE

Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~2.0:1, ~1.5:1, ~1.8:1
Efficiency (%): ~53, ~4.1, ~4.1
Peak Gain (dBi): ~2.0, ~4.1, ~4.1
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2J5124P", "title": "4G LTE/3G/2G Flexible Housing High Performance Adhesive Mount Antenna", "mountingType": "Adhesive Mount", "ipRating": null, "dimensions_mm": "122 x 14 x 6", "elements": [ { "elementID": "Cellular", "type": "Cellular", "technologies": [ "4G LTE", "3G", "2G", "FirstNet", "LPWA", "NB-IoT", "Cat-X-Mx-NBx" ], "frequencies": [ { "range_mhz": "698-960", "returnLoss_db": "~-11.5", "vswr": "~2.0:1", "efficiency_percent": "~53", "peakGain_dbi": "~2.0", "averageGain_db": "~-2.8" }, { "range_mhz": "1710-2170", "returnLoss_db": "~-14.4", "vswr": "~1.5:1", "efficiency_percent": "~52", "peakGain_dbi": "~4.1", "averageGain_db": "~-2.8" }, { "range_mhz": "2500-2700", "returnLoss_db": "~-11.5", "vswr": "~1.8:1", "efficiency_percent": "~41", "peakGain_dbi": "~4.1", "averageGain_db": "~-3.9" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 } ], "connectors": [ { "elementIDRef": "Cellular", "type": "SMA-Male", "cableType": "LMR100", "cableLength_mm": 3000 } ] }
