2J  |  SKU: 2J5215P-433

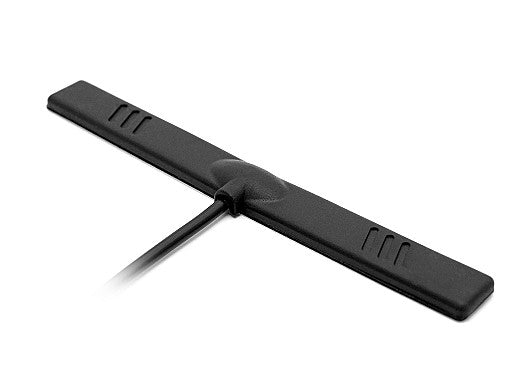

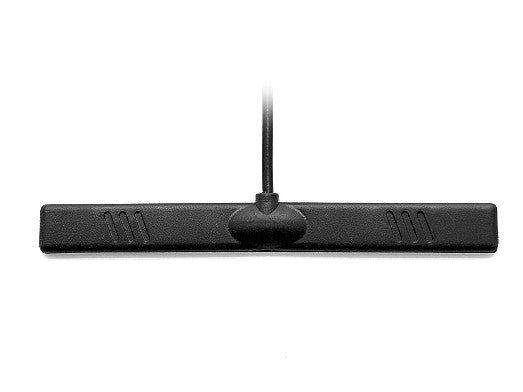

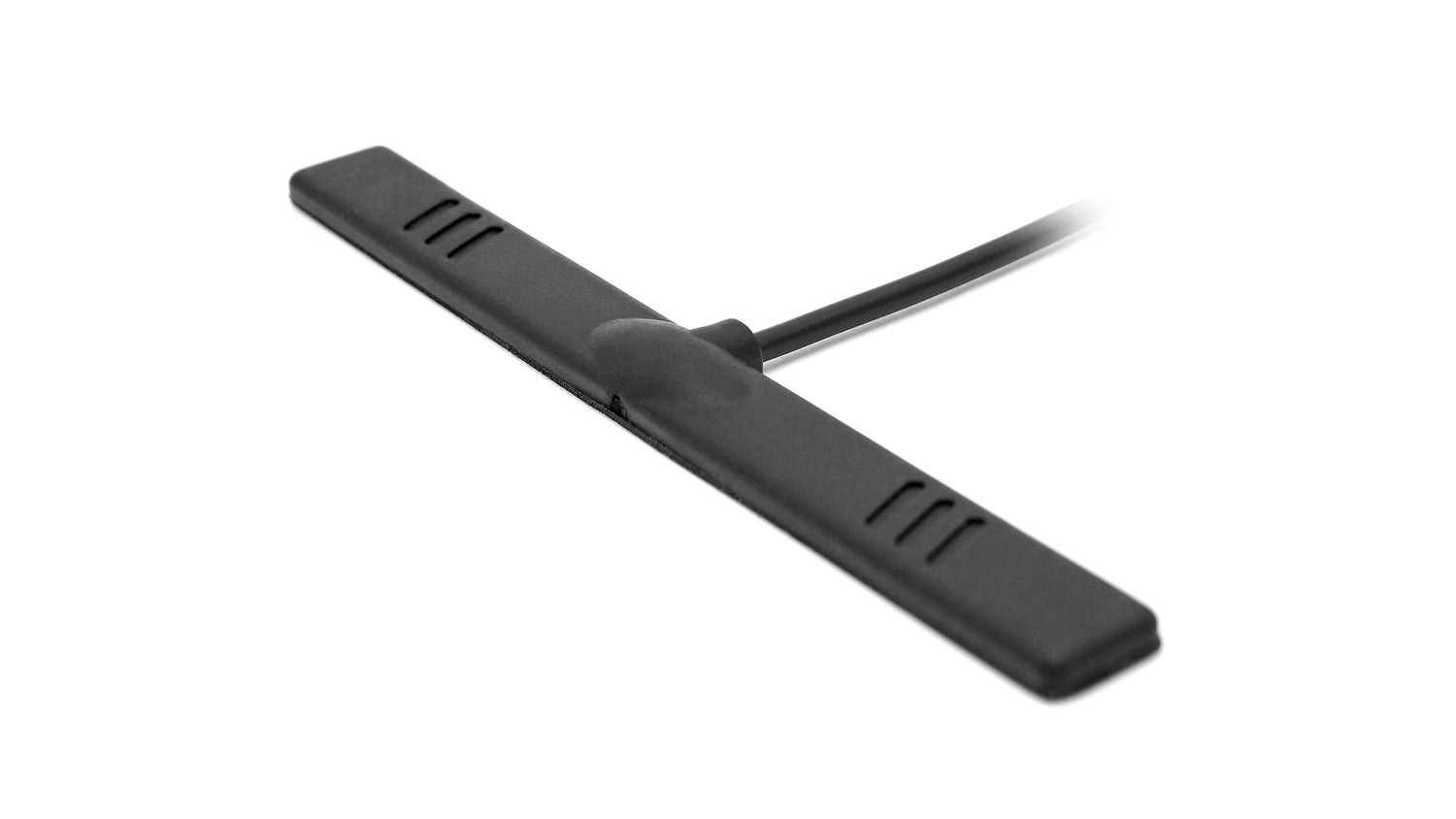

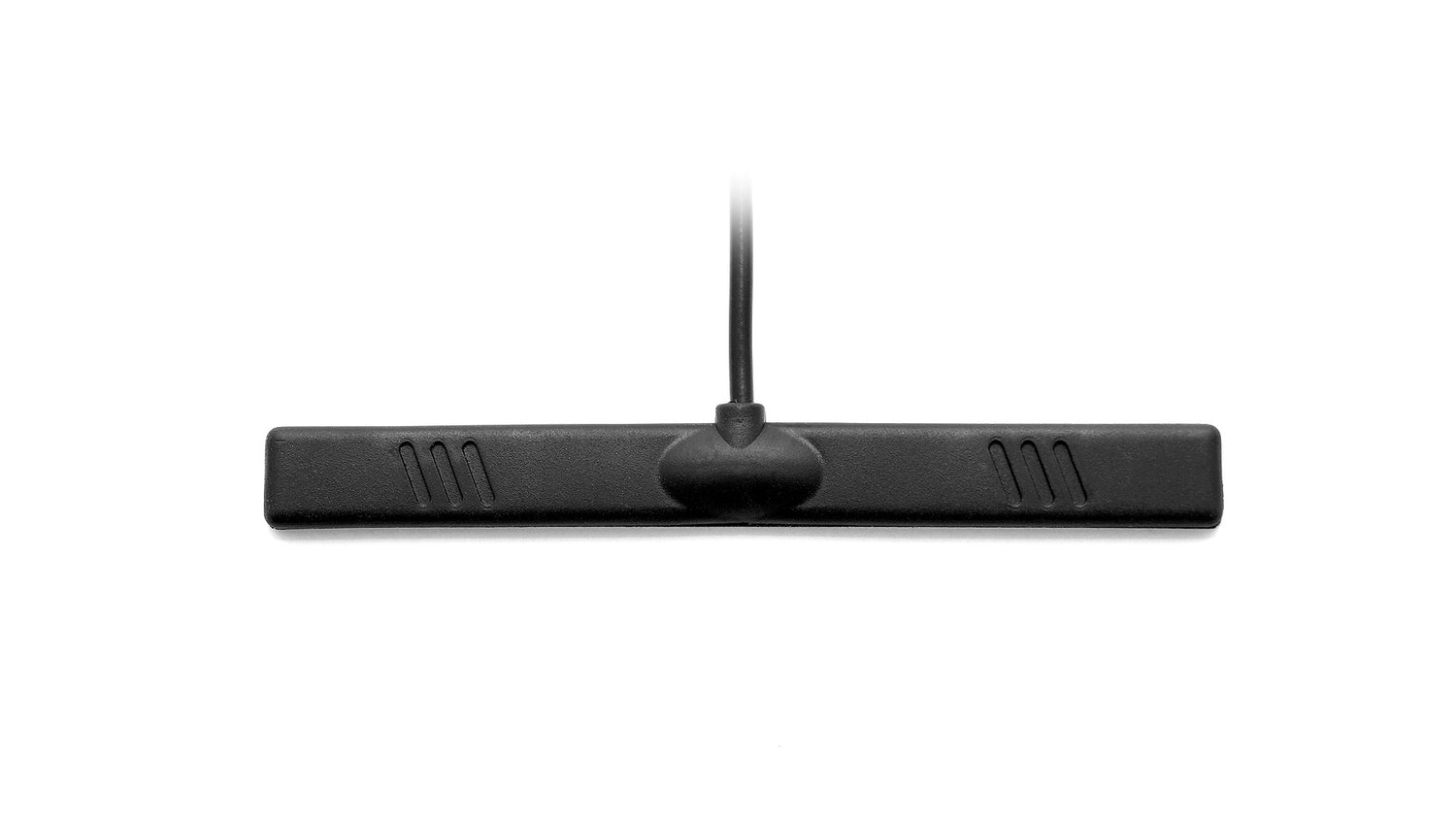

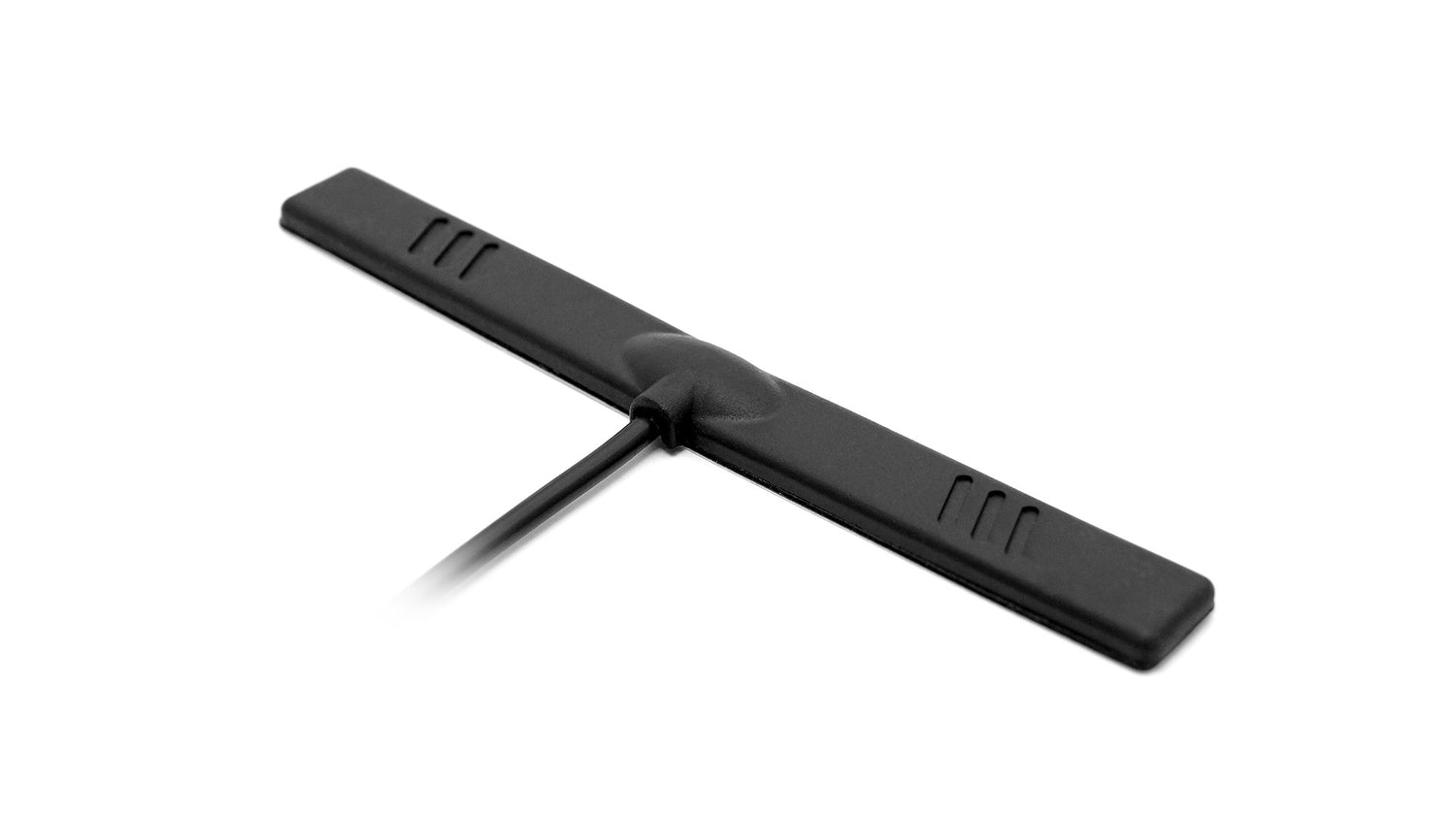

2J5215P-433 ISM Antenna flexible adhesive mount customizable

Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
2J Antennas, s.r.o.
Stefanikova 61, Bardejov, 08501, Slovakia
sales@2j-antennas.com
+421 (54) 488-1555

Description

This high-performance antenna is designed for reliable operation in the 433 MHz ISM band, making it ideal for IoT, smart home, industrial, and asset tracking applications. Its low-profile, flexible housing allows for easy installation in space-constrained environments, while ground plane independence ensures consistent performance across various mounting surfaces. The antenna is customizable to meet specific cable and connector requirements, providing versatility for a wide range of wireless solutions.

Connections

433MHz/Sigfox/LoRa/LPWA/RFID/ISM


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Adhesive Mount
Location: External
Type: Single

Connection 1 - 433 MHz ISM

Standards: ISM, LoRa
Frequency: 433-435 MHz
VSWR: ~1.8:1
Efficiency (%): ~42.6
Peak Gain (dBi): ~1.5
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 50

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2J5215P-433", "title": "433 MHz ISM Flexible Housing High Performance Customizable Antenna", "mountingType": "Adhesive Mount", "ipRating": null, "dimensions_mm": "117.4 x 12.5 x 6.5", "elements": [ { "elementID": "ISM 433 MHz", "type": "ISM", "technologies": [ "ISM", "LoRa", "Sigfox", "LPWA", "RFID" ], "frequencies": [ { "range_mhz": "433-435", "returnLoss_db": "~-11.0", "vswr": "~1.8:1", "efficiency_percent": "~42.6", "peakGain_dbi": "~1.5", "averageGain_db": "~-3.7" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 50 } ], "connectors": [ { "elementIDRef": "ISM 433 MHz", "type": "SMA-Male", "cableType": "RG174", "cableLength_mm": 3000 } ] }

Send request

Let us know your specific requirements or check the availability of this product. We will get back to you shortly.
