2J  |  SKU: 2J5224P

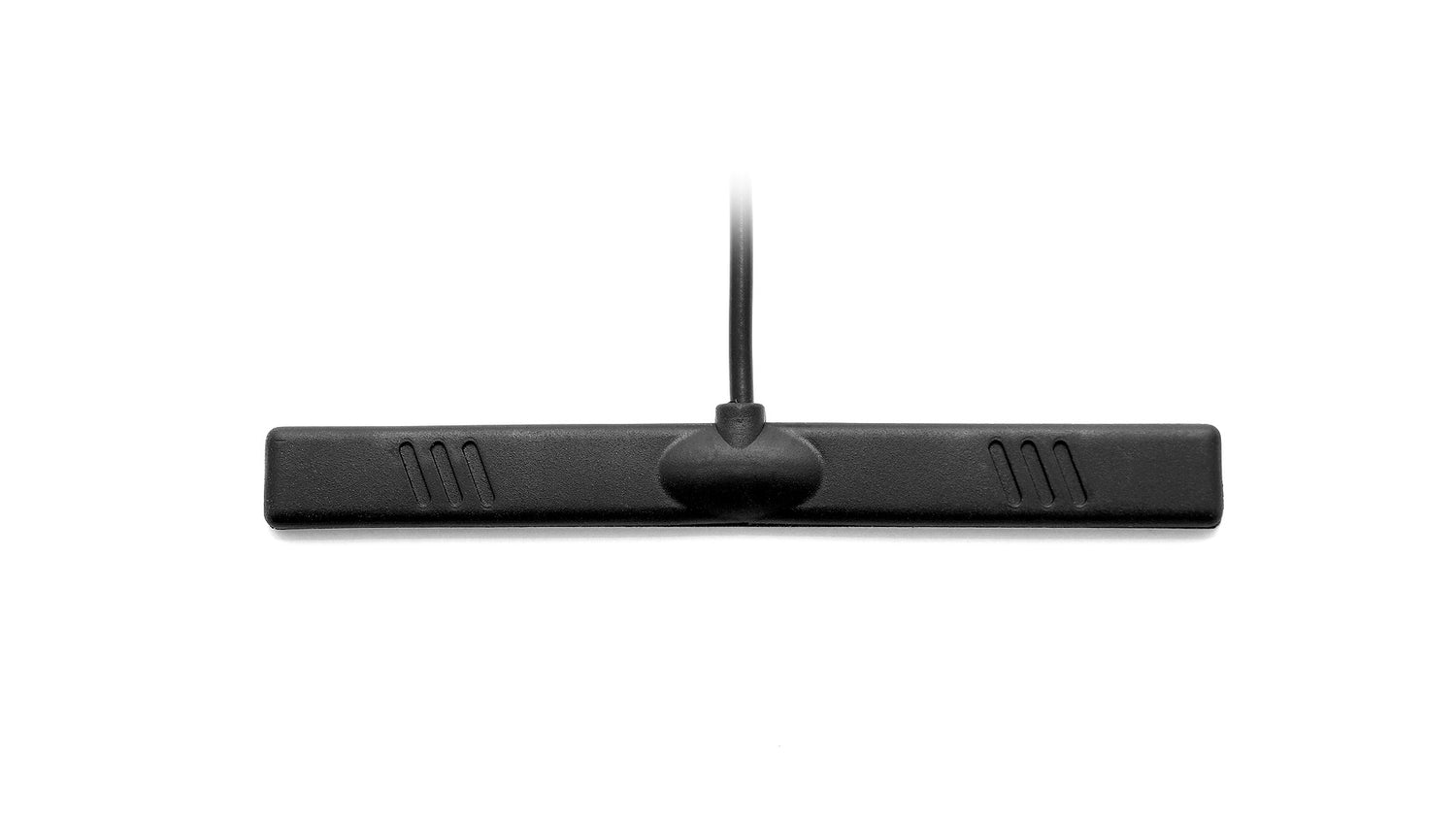

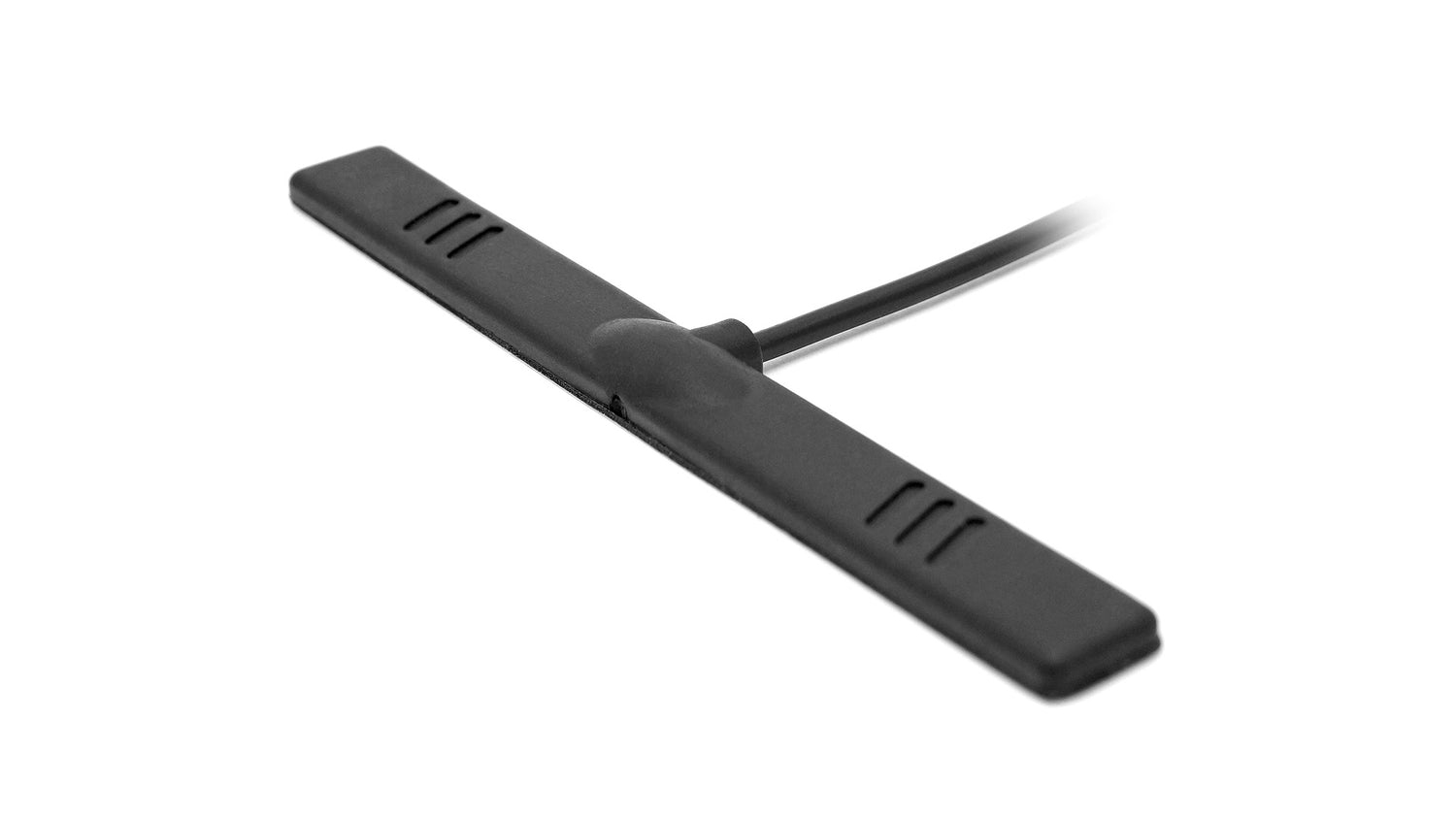

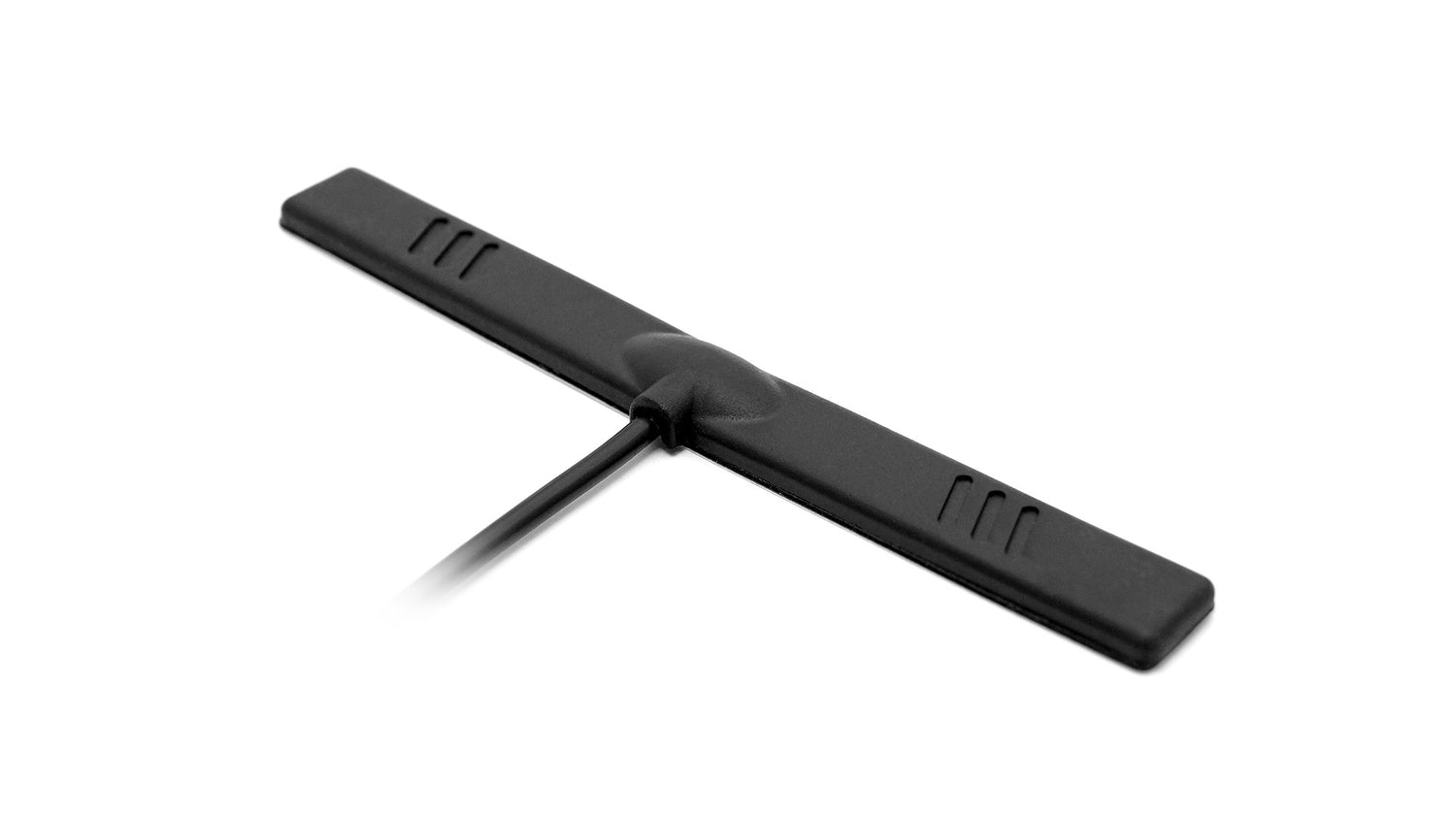

2J5224P 4G/LTE adhesive mount Antenna

€11,40
Tax included Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
2J Antennas, s.r.o.
Stefanikova 61, Bardejov, 08501, Slovakia
sales@2j-antennas.com
+421 (54) 488-1546

Description

This compact, high-performance antenna is designed for reliable 4G LTE, 3G, and 2G connectivity across a wide range of frequencies. Its ground plane independent and low-profile design makes it ideal for installations where space is limited or flexibility is required. The flexible housing and adhesive mount allow for easy integration into various applications, including mobile and cellular networks, IoT devices, asset tracking, and more. The antenna supports a broad spectrum of bands, ensuring compatibility with global networks and mission-critical communications.

Connections

4G LTE/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Adhesive Mount
Location: External
Type: Single

Connection 1 - CELLULAR/4G LTE

Standards: 2G, 3G and 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~2.0:1, ~1.5:1, ~1.8:1
Efficiency (%): ~53, ~52, ~41
Peak Gain (dBi): ~2.0, ~4.1, ~4.1
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2J5224P", "title": "4G LTE/3G/2G Compact Size High Performance Adhesive Mount Antenna", "mountingType": "Adhesive Mount", "ipRating": null, "dimensions_mm": "117.4 x 12.5 x 6.5", "elements": [ { "elementID": "Cellular", "type": "Cellular", "technologies": [ "4G LTE", "3G", "2G" ], "frequencies": [ { "range_mhz": "698-960", "returnLoss_db": "~-11.5", "vswr": "~2.0:1", "efficiency_percent": "~53", "peakGain_dbi": "~2.0", "averageGain_db": "~-2.8" }, { "range_mhz": "1710-2170", "returnLoss_db": "~-14.4", "vswr": "~1.5:1", "efficiency_percent": "~52", "peakGain_dbi": "~4.1", "averageGain_db": "~-2.8" }, { "range_mhz": "2500-2700", "returnLoss_db": "~-11.5", "vswr": "~1.8:1", "efficiency_percent": "~41", "peakGain_dbi": "~4.1", "averageGain_db": "~-3.9" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 } ], "connectors": [ { "elementIDRef": "Cellular", "type": "SMA-Male", "cableType": "LMR100", "cableLength_mm": 3000 } ] }
