2J  |  SKU: 2J5410P

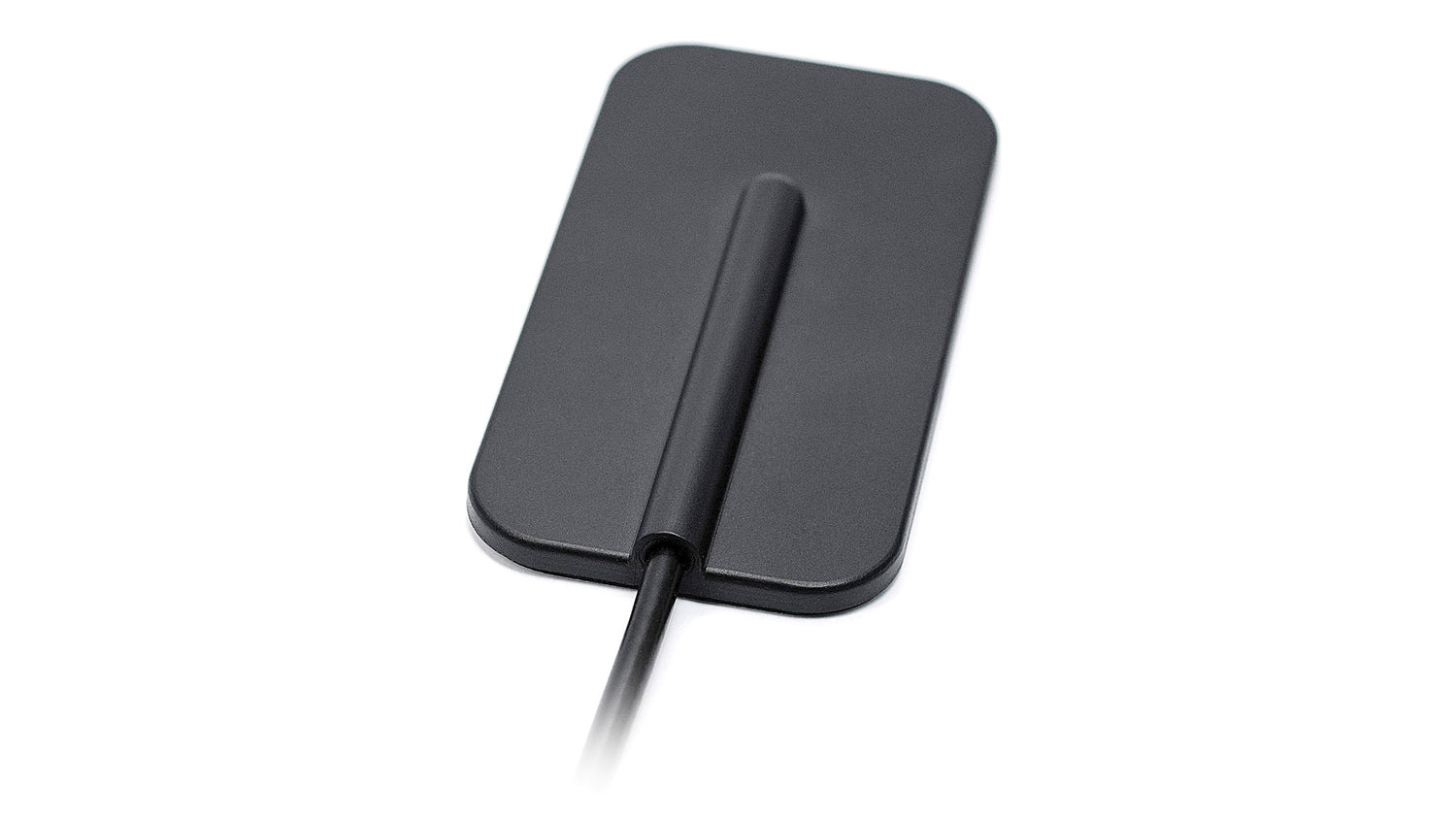

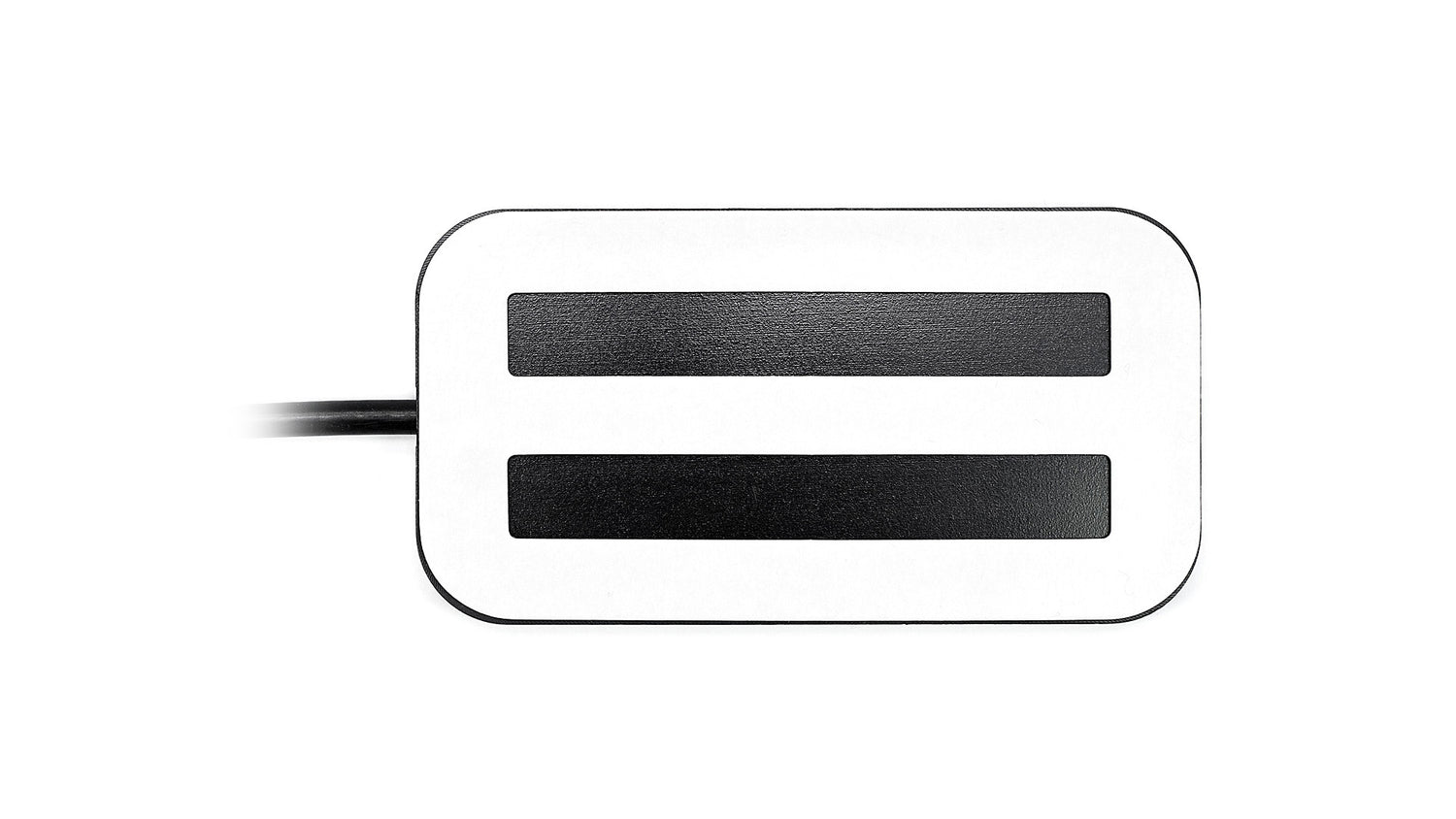

2J5410P TETRA, UHF, LPWA Antenna adhesive Adhesive Mount

€11,60
Tax included Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
2J Antennas, s.r.o.
Stefanikova 61, Bardejov, 08501, Slovakia
sales@2j-antennas.com
+421 (54) 488-1531

Description

This high-gain antenna is designed for reliable TETRA, UHF, and LPWA communications, making it ideal for mission-critical applications such as public safety, defense, asset tracking, and first responder fleets. Its ground plane independent design and low-profile form factor ensure flexible installation on a variety of surfaces. The antenna delivers strong performance with up to 2.8 dBi peak gain, supporting secure and stable connectivity in demanding environments.

Connections

380-470MHz/LPWA/TETRA/UHF


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Adhesive Mount
Location: External
Type: Single

Connection 1 - TETRA

Standards: TETRA
Frequency: 380-470 MHz
VSWR: ~2:1
Efficiency (%): ~45
Peak Gain (dBi): ~2.8
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 50

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2J5410P", "title": "380–470 MHz TETRA High Gain Adhesive Antenna", "mountingType": "Adhesive Mount", "ipRating": null, "dimensions_mm": "60 x 112.5 x 11.3", "elements": [ { "elementID": "TETRA", "type": "Cellular", "technologies": [ "TETRA", "LPWA", "UHF" ], "frequencies": [ { "range_mhz": "380–470", "returnLoss_db": "~-11.5", "vswr": "~2:1", "efficiency_percent": "~45", "peakGain_dbi": "~2.8", "averageGain_db": "~-3.6" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 50 } ], "connectors": [ { "elementIDRef": "TETRA", "type": "SMA-Male", "cableType": "RG58", "cableLength_mm": 3000 } ] }
