2J  |  SKU: 2J5415P-433

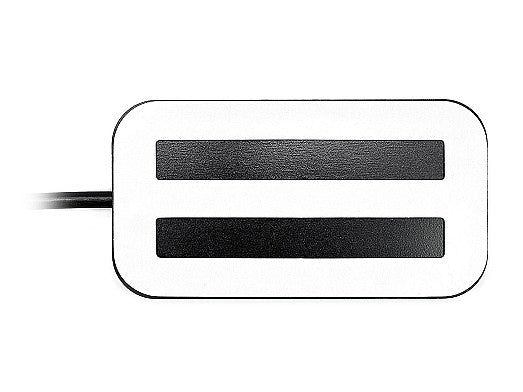

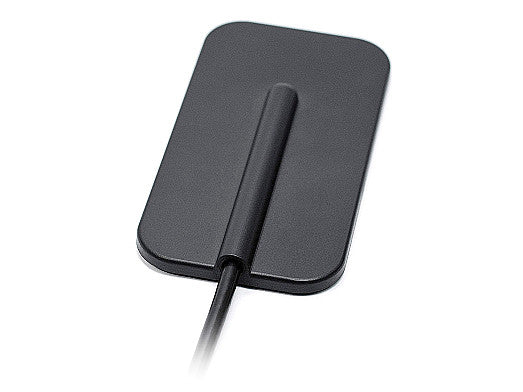

2J5415P-433 ISM Antenna adhesive

Unit Price excluding VAT. Shipping calculated at checkout.

Datasheet

PDF Download

Description

This high-gain adhesive antenna is designed for reliable ISM band performance at 433 MHz, making it ideal for IoT, smart home, industrial, and asset tracking applications. Its low-profile, ground plane independent design ensures flexible installation on a variety of surfaces, while maintaining strong signal quality. The antenna supports key LPWAN and IoT standards such as LoRa, Sigfox, and RFID, providing robust connectivity for modern wireless solutions.

Connections

433MHz/Sigfox/LoRa/LPWA/RFID/ISM


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Adhesive Mount
Location: External
Type: Single
Dimensions: 60 x 112.5 x 11.3 mm

Connection 1 - 433 MHz ISM

Standards: ISM, LoRa
Frequency: 433-435 MHz
VSWR: ~1.2:1
Efficiency (%): ~46.5
Peak Gain (dBi): ~2.4
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 50

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2J5415P-433", "title": "433 MHz ISM High Gain Adhesive Mount Antenna", "mountingType": "Adhesive Mount", "ipRating": null, "dimensions_mm": "60 x 112.5 x 11.3", "elements": [ { "elementID": "ISM 433 MHz", "type": "ISM", "technologies": [ "ISM", "LoRa", "Sigfox", "LPWA", "RFID" ], "frequencies": [ { "range_mhz": "433-435", "returnLoss_db": "~-20.3", "vswr": "~1.2:1", "efficiency_percent": "~46.5", "peakGain_dbi": "~2.4", "averageGain_db": "~-3.3" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 50 } ], "connectors": [ { "elementIDRef": "ISM 433 MHz", "type": "SMA-Male", "cableType": "RG174", "cableLength_mm": 3000 } ] }
