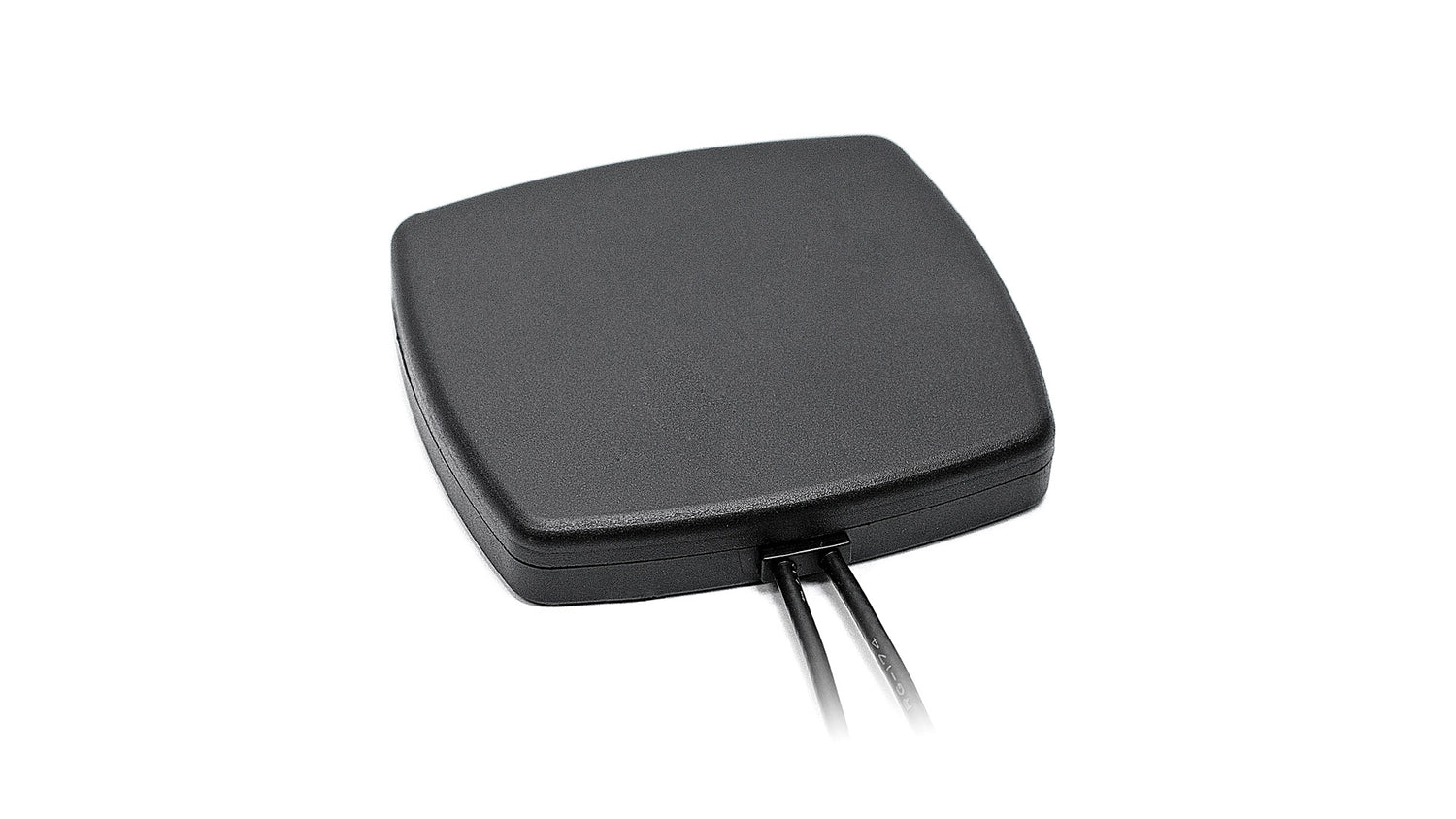

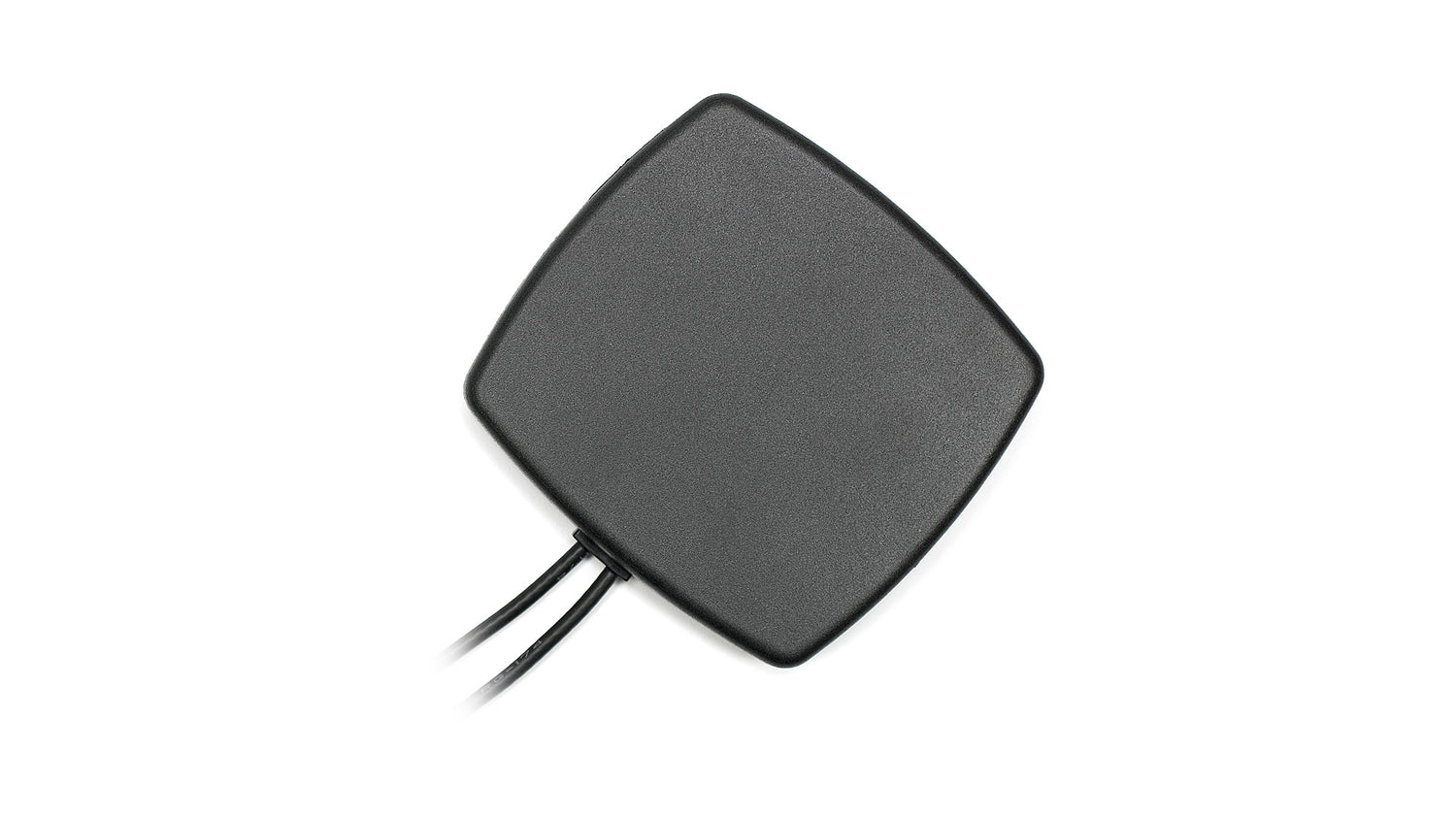

This low-profile combination antenna is designed for reliable performance in Wi-Fi, ISM, and GNSS applications. Its compact form factor and adhesive mount make it ideal for installations where space is limited and a discreet appearance is required. The antenna is ground plane independent and features an active GNSS element with pre-filtering for enhanced signal quality. Suitable for a wide range of applications including logistics, smart cities, fleet management, autonomous vehicles, and asset tracking.
Connections
GPS/GLO/QZSS/Galileo/L1
2.4-5.0GHz/WiFi/LPWA/BT/ZigBee/RFID/ISM
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Multi-Technology
Location: External
Mounting: Adhesive Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee, ISM
Type: Combination
Connection 1 - 2.4/5.0 GHz ISM
Standards: WiFi, BT, ZigBee, ISM
Frequency: 2410-2490, 4920-5925 MHz
VSWR: ~1.7:1, ~1.5:1
Efficiency (%): ~44.8, ~29.8
Peak Gain (dBi): ~2.8, ~3.6
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Connection 2 - GPS/GLONASS
Standards: GPS/QZSS/Galileo/GLONASS
Frequency: 1575.42, 1598-1606 MHz
VSWR: <=1.4:1
Impedance (Ohm): 50
Polarisation: RHCP
Active Gain (dB): 28 @ 2.7 V
Saw Filter Type: Pre-Filter
Voltage (V): 1.5 - 3.6
Noise Figure (dB): 1.5 Typ
Current Consumption (mA): 9 Typ
Power Consumption (mW): 24.3 Typ
ESD Protection (kV): 2
Download Datasheet PDF
Technical Specifications (AI Reference Data)
{
"model": "2J6003PGF",
"title": "Falcon WiFi ISM GPS/GLONASS/Galileo Versatile Antenna",
"mountingType": "Adhesive Mount",
"ipRating": null,
"dimensions_mm": "80 x 76 x 16",
"elements": [
{
"elementID": "ISM/Wi-Fi",
"type": "Wi-Fi/ISM",
"technologies": [
"Wi-Fi",
"Bluetooth",
"ZigBee",
"ISM"
],
"frequencies": [
{
"range_mhz": "2410-2490",
"returnLoss_db": "~-12.3",
"vswr": "~1.7:1",
"efficiency_percent": "~44.8",
"peakGain_dbi": "~2.8",
"averageGain_db": "~-3.5"
},
{
"range_mhz": "4920-5925",
"returnLoss_db": "~-15.7",
"vswr": "~1.5:1",
"efficiency_percent": "~29.8",
"peakGain_dbi": "~3.6",
"averageGain_db": "~-5.3"
}
],
"polarization": "Linear",
"radiationPattern": "Omni-Directional",
"impedance_ohms": 50,
"maxInputPower_w": 25
},
{
"elementID": "GNSS",
"type": "GNSS",
"technologies": [
"GPS",
"QZSS",
"Galileo",
"GLONASS"
],
"frequencies": [
{
"range_mhz": "1575.42",
"returnLoss_db": "<=-15.0",
"vswr": "<=1.4:1",
"efficiency_percent": null,
"peakGain_dbi": "~28",
"averageGain_db": null
},
{
"range_mhz": "1598-1606",
"returnLoss_db": "<=-15.0",
"vswr": "<=1.4:1",
"efficiency_percent": null,
"peakGain_dbi": "~28",
"averageGain_db": null
}
],
"polarization": "RHCP",
"radiationPattern": "Hemispherical",
"impedance_ohms": 50,
"maxInputPower_w": null
}
],
"connectors": [
{
"elementIDRef": "ISM/Wi-Fi",
"type": "RP-SMA-Male",
"cableType": "D302",
"cableLength_mm": 3000
},
{
"elementIDRef": "GNSS",
"type": "SMA-Male",
"cableType": "LL100",
"cableLength_mm": 3000
}
]
}
