2J  |  SKU: 2J6012B-2.4

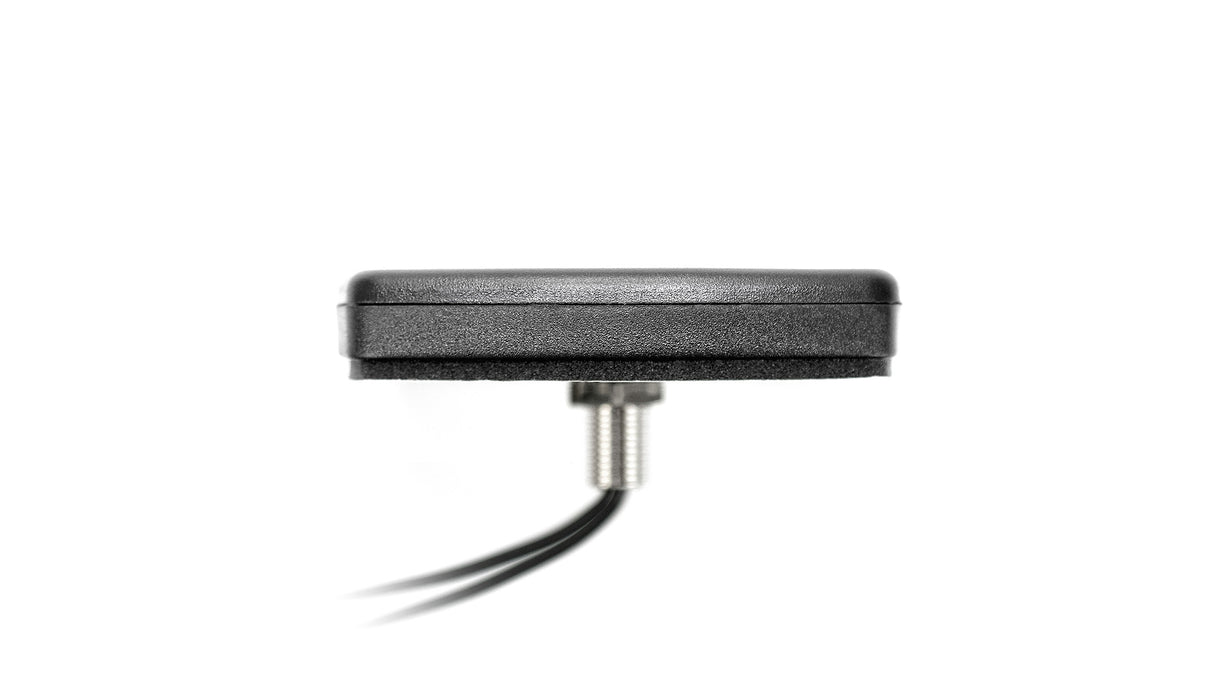

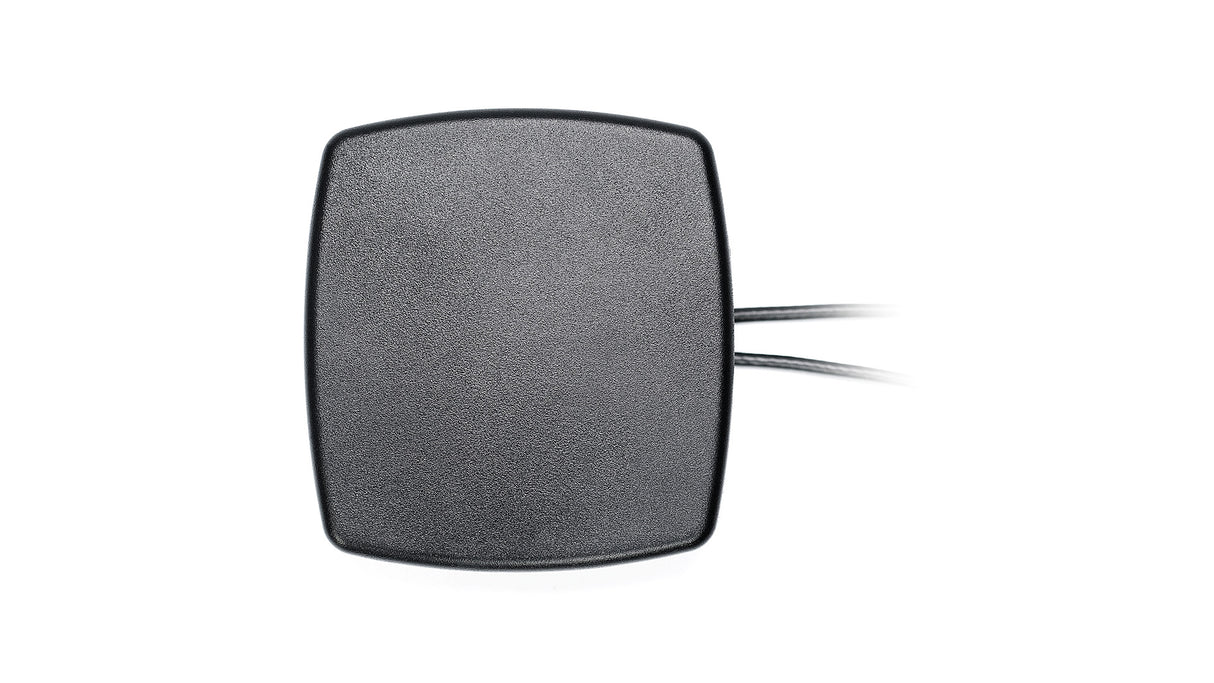

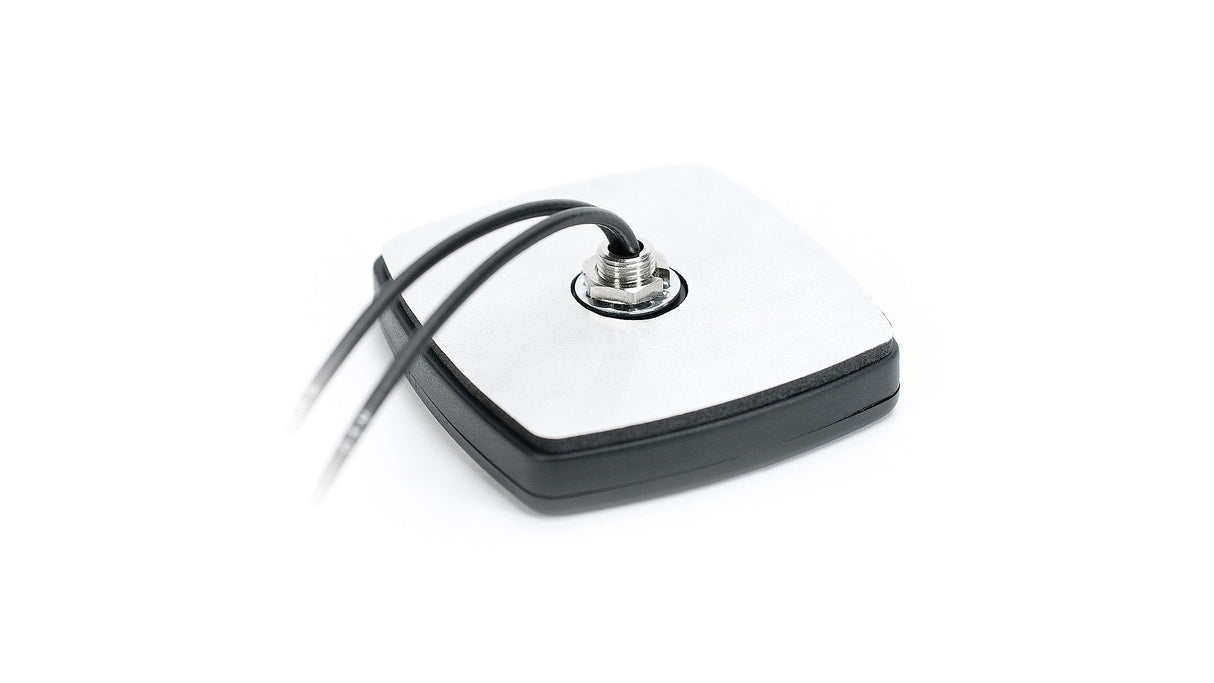

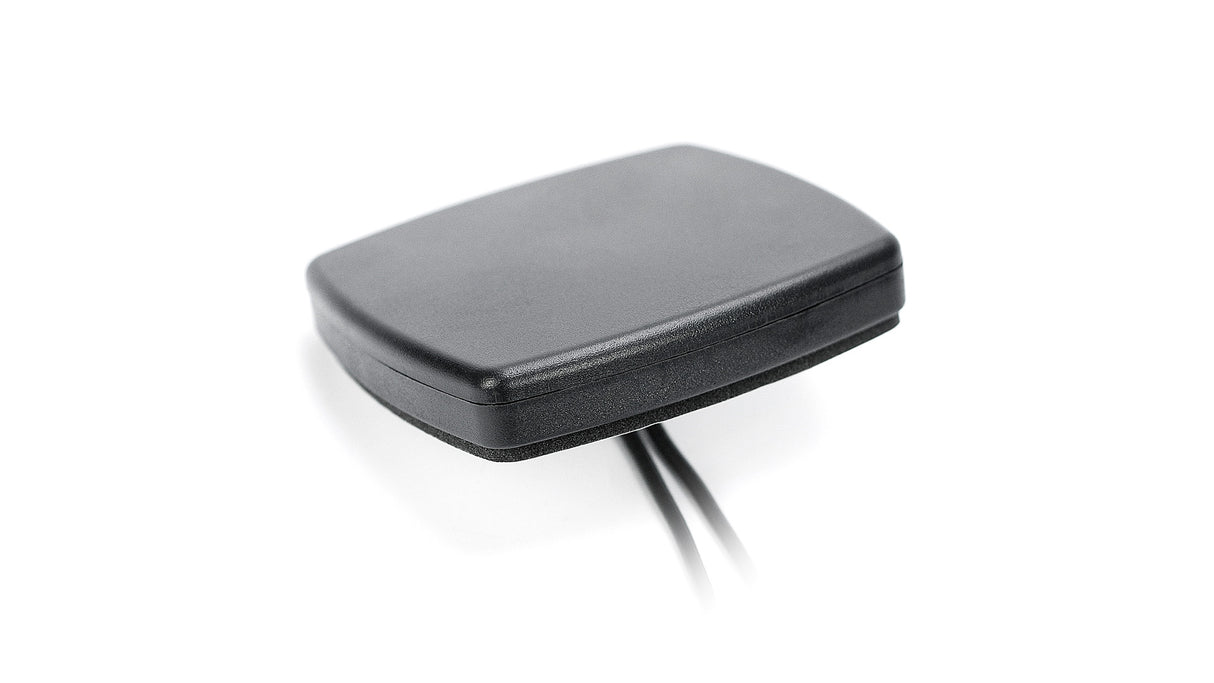

2J6012B-2.4 Wi-Fi, ISM screw mount Antenna 2-in-1 Customizable Connector

Unit Price excluding VAT. Shipping calculated at checkout.

Datasheet

PDF Download

Description

This low-profile 2-in-1 antenna is designed for reliable performance in both 2.4 GHz Wi-Fi and 868 MHz ISM bands, making it ideal for IoT, smart home, industrial, and wireless communication applications. Its ground plane independent design ensures consistent operation across various installation environments, while the screw mount provides secure and robust attachment. The antenna's compact form factor allows for easy integration into space-constrained devices and enclosures. With customizable cable and connector options, it offers flexibility for a wide range of deployment scenarios.

Connections

2.4GHz/WiFi/LPWA/BT/ZigBee/RFID/ISM
868MHz/Sigfox/LoRa/LPWA/RFID/ZigBee/ISM


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Multi-Technology
Location: External
Mounting: Screw Mount
Type: Combination
Dimensions: 80 × 74 × 14.7 mm

Connection 1 - 2.4 GHz ISM

Standards: WiFi, BT, ZigBee, ISM
Frequency: 2410-2490 MHz
VSWR: ~1.8:1
Efficiency (%): ~30.7
Peak Gain (dBi): ~2.0
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 2 - 868 MHz ISM

Standards: ZigBee, ISM, SIGFOX, LoRa
Frequency: 863-870 MHz
VSWR: ~1.5:1
Efficiency (%): ~50.3
Peak Gain (dBi): ~1.8
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2J6012B-2.4", "title": "Falcon WiFi, 868 MHz ISM Screw Mount Antenna", "mountingType": "Screw Mount", "ipRating": null, "dimensions_mm": "80 x 74 x 14.7", "elements": [ { "elementID": "ISM 2.4GHz", "type": "ISM", "technologies": [ "WiFi", "Bluetooth", "ZigBee", "ISM" ], "frequencies": [ { "range_mhz": "2410-2490", "returnLoss_db": "~-12.2", "vswr": "~1.8:1", "efficiency_percent": "~30.7", "peakGain_dbi": "~2.0", "averageGain_db": "~-5.3" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 }, { "elementID": "ISM 868MHz", "type": "ISM", "technologies": [ "ZigBee", "ISM", "Sigfox", "LoRa" ], "frequencies": [ { "range_mhz": "863-870", "returnLoss_db": "~-14.4", "vswr": "~1.5:1", "efficiency_percent": "~50.3", "peakGain_dbi": "~1.8", "averageGain_db": "~-3.2" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 } ], "connectors": [ { "elementIDRef": "ISM 2.4GHz", "type": "RP-SMA-Male", "cableType": "LL100", "cableLength_mm": 3000 }, { "elementIDRef": "ISM 868MHz", "type": "SMA-Male", "cableType": "LL100", "cableLength_mm": 3000 } ] }
