2J  |  SKU: 2J6015B-868

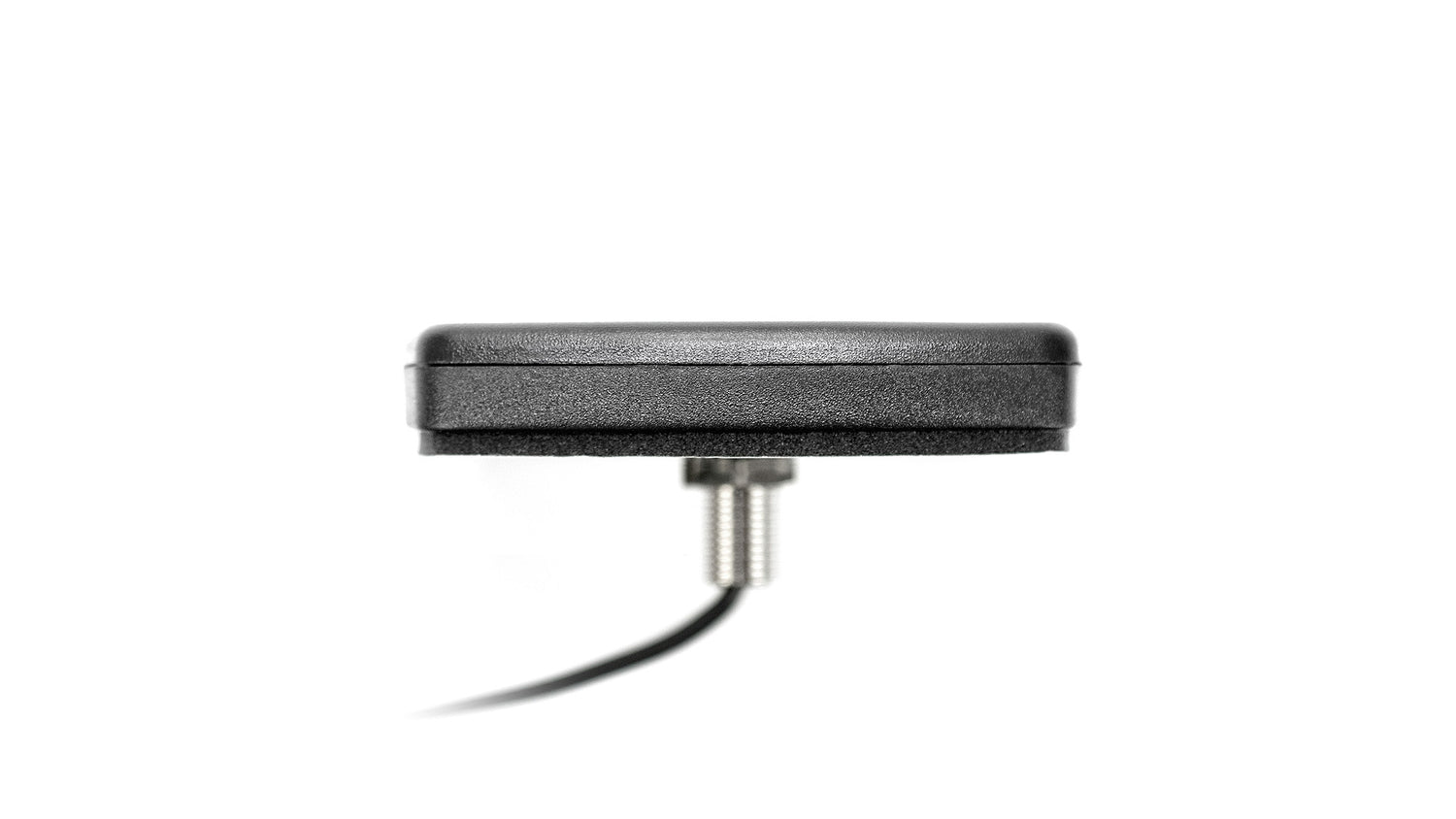

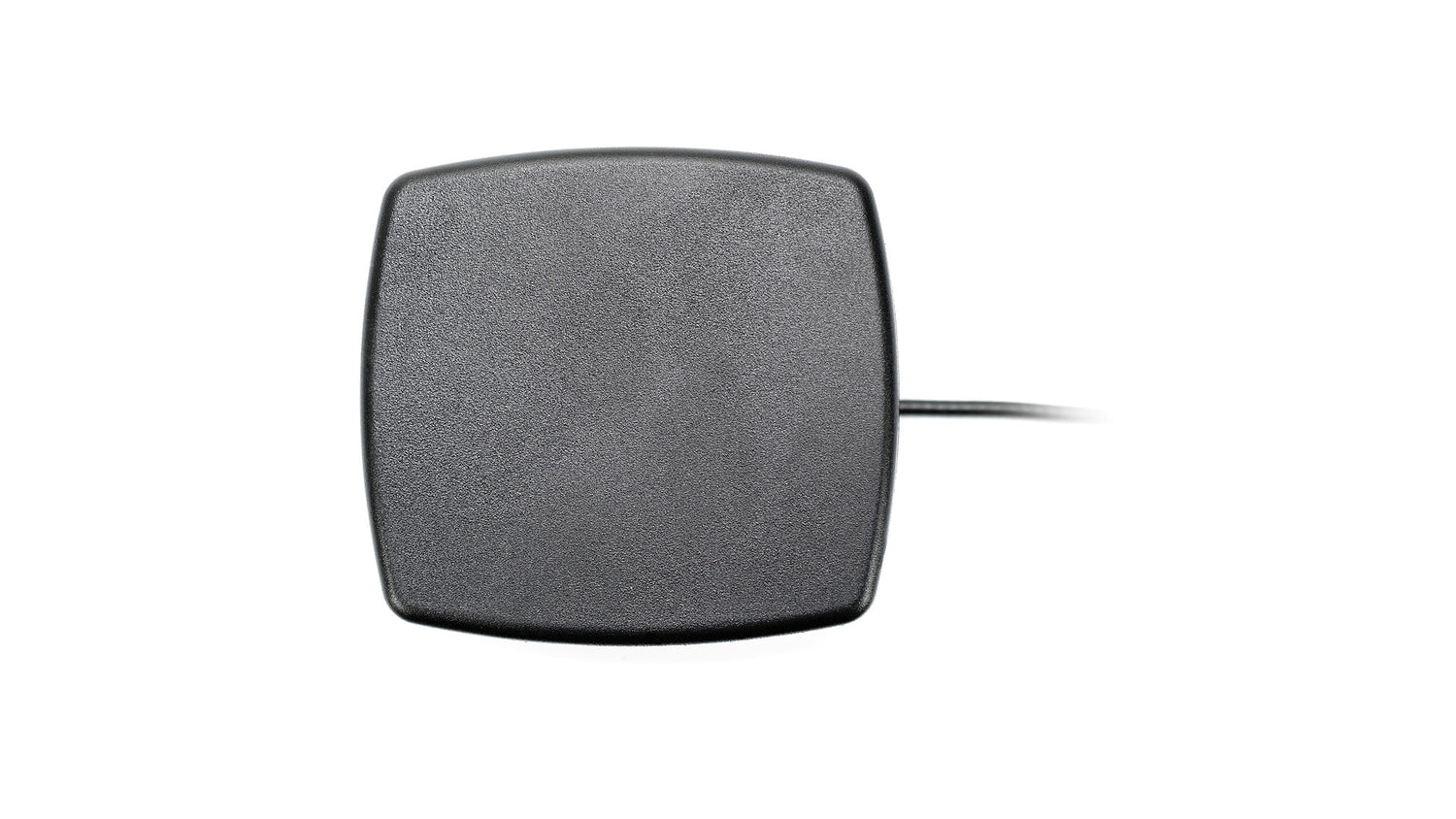

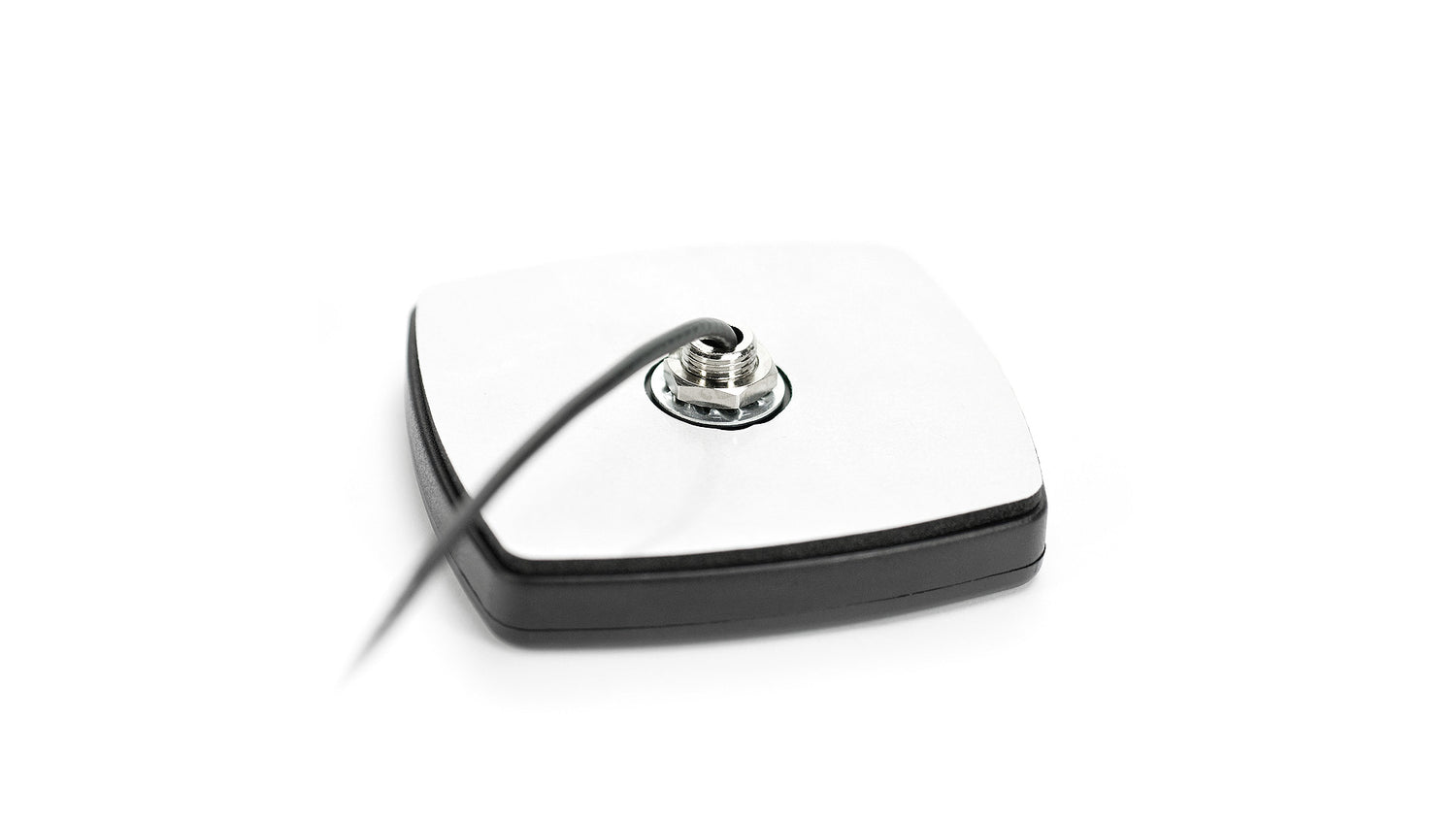

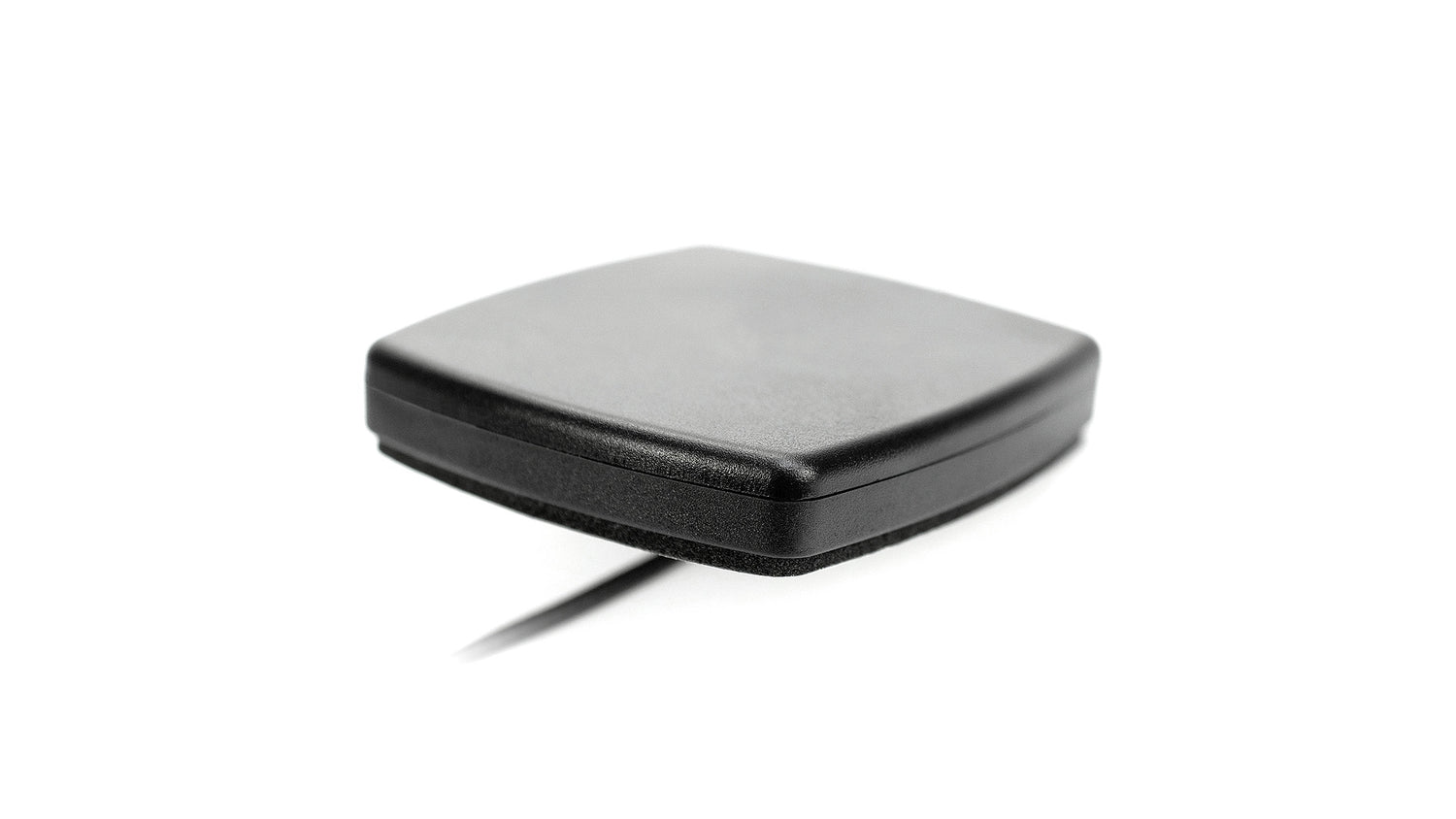

2J6015B-868 ISM screw mount Antenna IP67

Unit Price excluding VAT. Shipping calculated at checkout.

Datasheet

PDF Download

Description

This low-profile, compact antenna is designed for high-performance 868 MHz ISM band applications. Its sleek form factor and screw mount make it ideal for turnkey implementation in IoT, smart home, industrial, and automation systems. The antenna is ground plane dependent and offers reliable connectivity for Sigfox, LoRa, LPWA, RFID, and ZigBee networks. Its robust construction and IP67 rating ensure durability in demanding environments.

Connections

868MHz/Sigfox/LoRa/LPWA/RFID/ZigBee/ISM


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Screw Mount
Location: External
Type: Single
Dimensions: 80 x 74 x 14.7 mm

Connection 1 - 868 MHz ISM

Standards: ZigBee, ISM, SIGFOX, LoRa
Frequency: 863-870 MHz
VSWR: ~1.1:1
Efficiency (%): ~57.6
Peak Gain (dBi): ~2.5
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2J6015B-868", "title": "Falcon 868 MHz ISM Sleek Compact Ultra Versatile Antenna", "mountingType": "Screw Mount", "ipRating": "IP67", "dimensions_mm": "80 x 74 x 14.7", "elements": [ { "elementID": "ISM 868 MHz", "type": "ISM", "technologies": [ "ISM", "Sigfox", "LoRa", "ZigBee" ], "frequencies": [ { "range_mhz": "863-870", "returnLoss_db": "~-25.9", "vswr": "~1.1:1", "efficiency_percent": "~57.6", "peakGain_dbi": "~2.5", "averageGain_db": "~-2.4" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 } ], "connectors": [ { "elementIDRef": "ISM 868 MHz", "type": "SMA-Male", "cableType": "RG174", "cableLength_mm": 3000 } ] }
