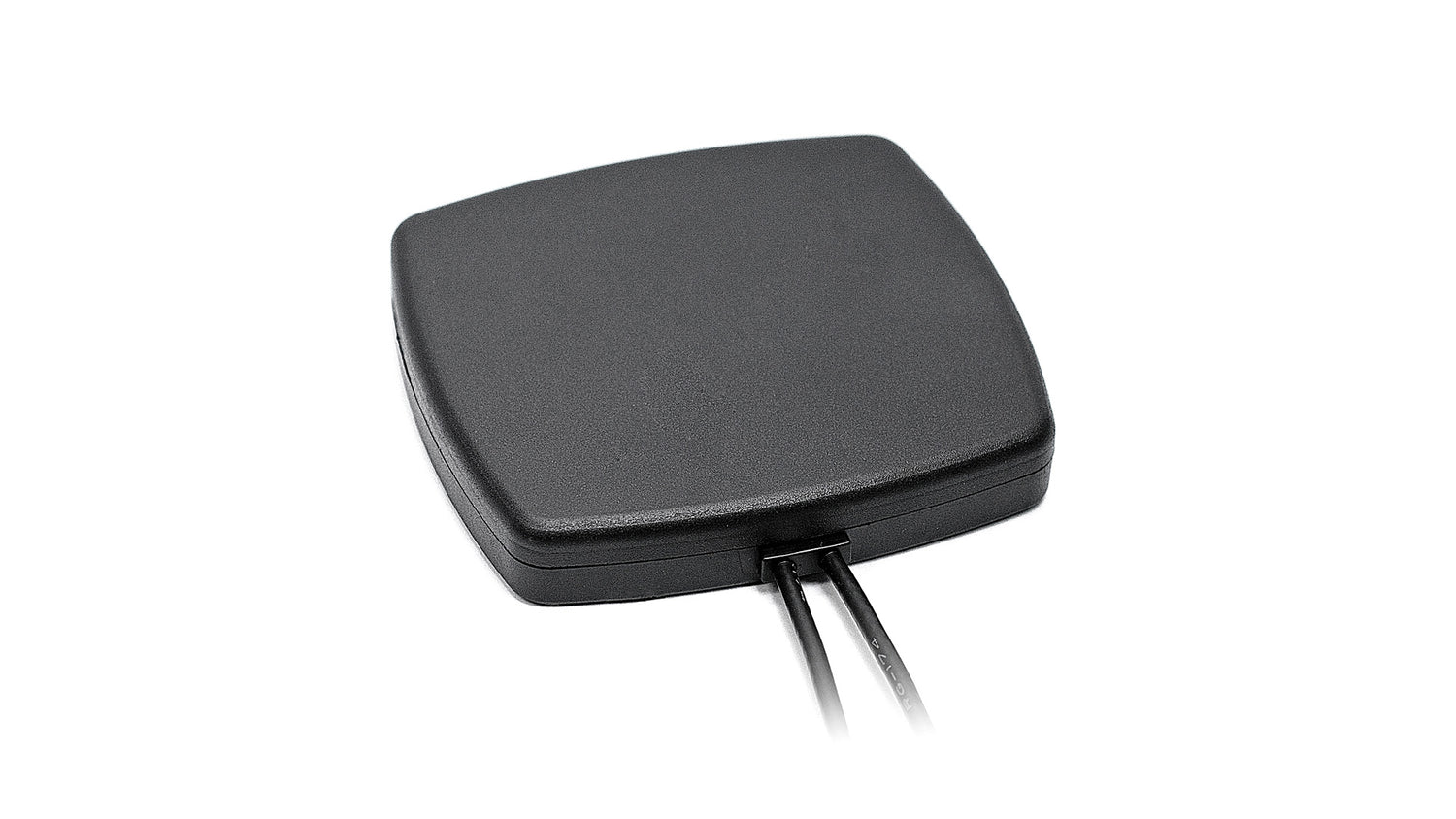

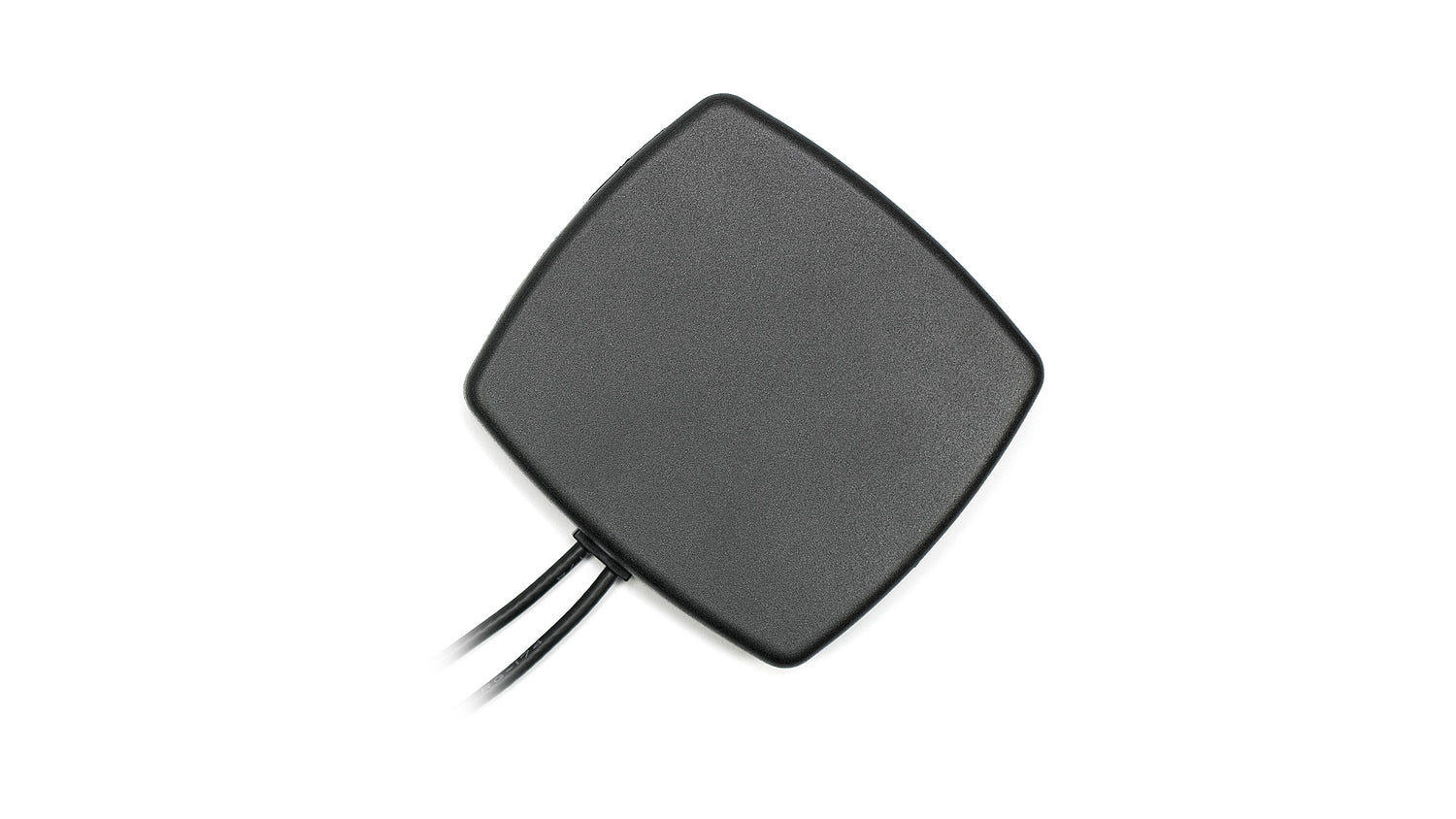

This compact, low-profile antenna is designed for reliable 4G LTE, 3G, and 2G connectivity in a wide range of applications. Its 2-in-1 MIMO configuration ensures enhanced data throughput and signal stability, making it ideal for mobile networks, IoT, telematics, and industrial monitoring. The ground plane independent design and magnetic mounting allow for flexible installation on various surfaces, while the robust construction supports use in demanding environments.
Connections
2× 4G LTE MIMO/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO
Cellular Technologies: 4G/LTE
Location: External
Mounting: Magnetic Mount
Type: Combination
Dimensions: 80 x 76 x 13 mm
Connection 1 - Cellular/4G LTE
Standards: 2G, 3G and 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~2.2:1, ~2.6:1, ~2.1:1
Efficiency (%): ~25.3, ~20.2, ~36.1
Peak Gain (dBi): ~-0.7, ~1.7, ~4.4
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Connection 2 - Cellular/4G LTE
Standards: 2G, 3G and 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~2.5:1, ~2.5:1, ~2.2:1
Efficiency (%): ~25.7, ~22.5, ~35.2
Peak Gain (dBi): ~0.8, ~1.8, ~4.5
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Download Datasheet PDF
Technical Specifications (AI Reference Data)
{
"model": "2J6024Ma",
"title": "Falcon 2 x 4G LTE/3G/2G MIMO Compact Ultra Versatile Magnetic Mount Antenna",
"mountingType": "Magnetic Mount",
"ipRating": null,
"dimensions_mm": "80 x 76 x 13",
"elements": [
{
"elementID": "Cellular 1 (MIMO)",
"type": "Cellular",
"technologies": [
"4G LTE",
"3G",
"2G",
"FirstNet",
"LPWA",
"NB-IoT"
],
"frequencies": [
{
"range_mhz": "698-960",
"returnLoss_db": "~-10.0",
"vswr": "~2.2:1",
"efficiency_percent": "~25.3",
"peakGain_dbi": "~-0.7",
"averageGain_db": "~-6.1"
},
{
"range_mhz": "1710-2170",
"returnLoss_db": "~-7.8",
"vswr": "~2.6:1",
"efficiency_percent": "~20.2",
"peakGain_dbi": "~1.7",
"averageGain_db": "~-7.1"
},
{
"range_mhz": "2500-2700",
"returnLoss_db": "~-9.7",
"vswr": "~2.1:1",
"efficiency_percent": "~36.1",
"peakGain_dbi": "~4.4",
"averageGain_db": "~-4.4"
}
],
"polarization": "Linear",
"radiationPattern": "Omni-Directional",
"impedance_ohms": 50,
"maxInputPower_w": 25
},
{
"elementID": "Cellular 2 (MIMO)",
"type": "Cellular",
"technologies": [
"4G LTE",
"3G",
"2G",
"FirstNet",
"LPWA",
"NB-IoT"
],
"frequencies": [
{
"range_mhz": "698-960",
"returnLoss_db": "~-9.9",
"vswr": "~2.5:1",
"efficiency_percent": "~25.7",
"peakGain_dbi": "~0.8",
"averageGain_db": "~-6.1"
},
{
"range_mhz": "1710-2170",
"returnLoss_db": "~-8.3",
"vswr": "~2.5:1",
"efficiency_percent": "~22.5",
"peakGain_dbi": "~1.8",
"averageGain_db": "~-6.6"
},
{
"range_mhz": "2500-2700",
"returnLoss_db": "~-9.1",
"vswr": "~2.2:1",
"efficiency_percent": "~35.2",
"peakGain_dbi": "~4.5",
"averageGain_db": "~-4.6"
}
],
"polarization": "Linear",
"radiationPattern": "Omni-Directional",
"impedance_ohms": 50,
"maxInputPower_w": 25
}
],
"connectors": [
{
"elementIDRef": "Cellular 1",
"type": "SMA-Male",
"cableType": "D302",
"cableLength_mm": 3000
},
{
"elementIDRef": "Cellular 2",
"type": "SMA-Male",
"cableType": "D302",
"cableLength_mm": 3000
}
]
}
